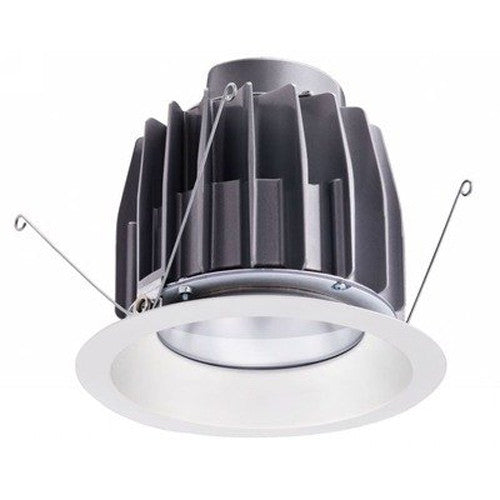

Lithonia 6" Retrofit LED 11watt Soft White Downlight ceiling light - 65w equiv.

Lithonia 6" Retrofit LED 11watt Soft White Downlight ceiling light - 65w equiv.

Item SKU: 206WMR
Manufacturer:

Lithonia

$ 79.95 $ 111.93

Sorry, this product is temporarily out of stock.


Description

Lithonia 6 inch downlight that delivers the promise of LED, perfect for relight and new construction opportunities. Soft White 3000K Color temperature and 85CRI. Matte white finish. Fits in most popular 6" IC and non-IC housings. Dimmable and wet listed standard.

Intended Use
For use with common 6” installed housings for retrofit applications:
LED module for use in retrofit / remodel or new construction applications where energy savings, long-life, and functional delivered light levels are required.
The Reality LED module provides 80% energy savings over the 65W BR30 and replicates the beam pattern and useful light levels of these fixtures.
It will maintain at least 70% light output for 50,000 hours in a typical lC environment.
The Reality LED module is the most economical means to create a well-lit environment with exceptional energy efficiency and near zero maintenance.

Construction
Rugged, one-piece, die-cast heat sink design for optimal thermal management. Wet location rated lens is tightly fitted to the housing to reduce the ingress of dust. Hardwire kit ships standard to enable a permanent conversion to a LED source and Title 24 compliant. Twin torsion springs ensure easy installation.

Optics
Elliptical upper reflector and a patented micro prism lens provides a 38 degree or 67 degree full width half max (FWHM) beam angle based on distribution chosen. Lower splay recesses optical system into the ceiling to prevent glare and provide a traditional look.

Electrical
LEDs on a metal core circuit board, ensure cool-running operation for long life. On-board circuitry to ensure protection against wiring errors.

High-efficiency driver mounted on the module. Primary power disconnect provided for simple connection to a standard Edison (E26) base socket. Full range dimming is standard; dimming down to 25%. Optimal dimming performance is achieved when connected to an electronic low-voltage (ELV) dimmer;

Installation
Suitable for installation in standard-height rough-in sections. Fits into most popular 6” housings. CSA listed for installation in any can with minimum 6-1/8” inside diameter X 7-1/32” inside height.

Available with a dedicated rough-in section for new construction. Use the L7X, L7XR, or LC6 Lithonia rough-in with the REALITY LED module.

Listings
REALITY (non-ENERGY STAR®) module: CSA certified to US and Canadian safety standards. Wet location listed.

Specs

Color Temperature (K) 3000K
Color Soft White
Luminous Flux (LM) 600
Rated Life (Hours) 50000
Length (in) 6.25
Height (in) 6
Width (in) 6.25
