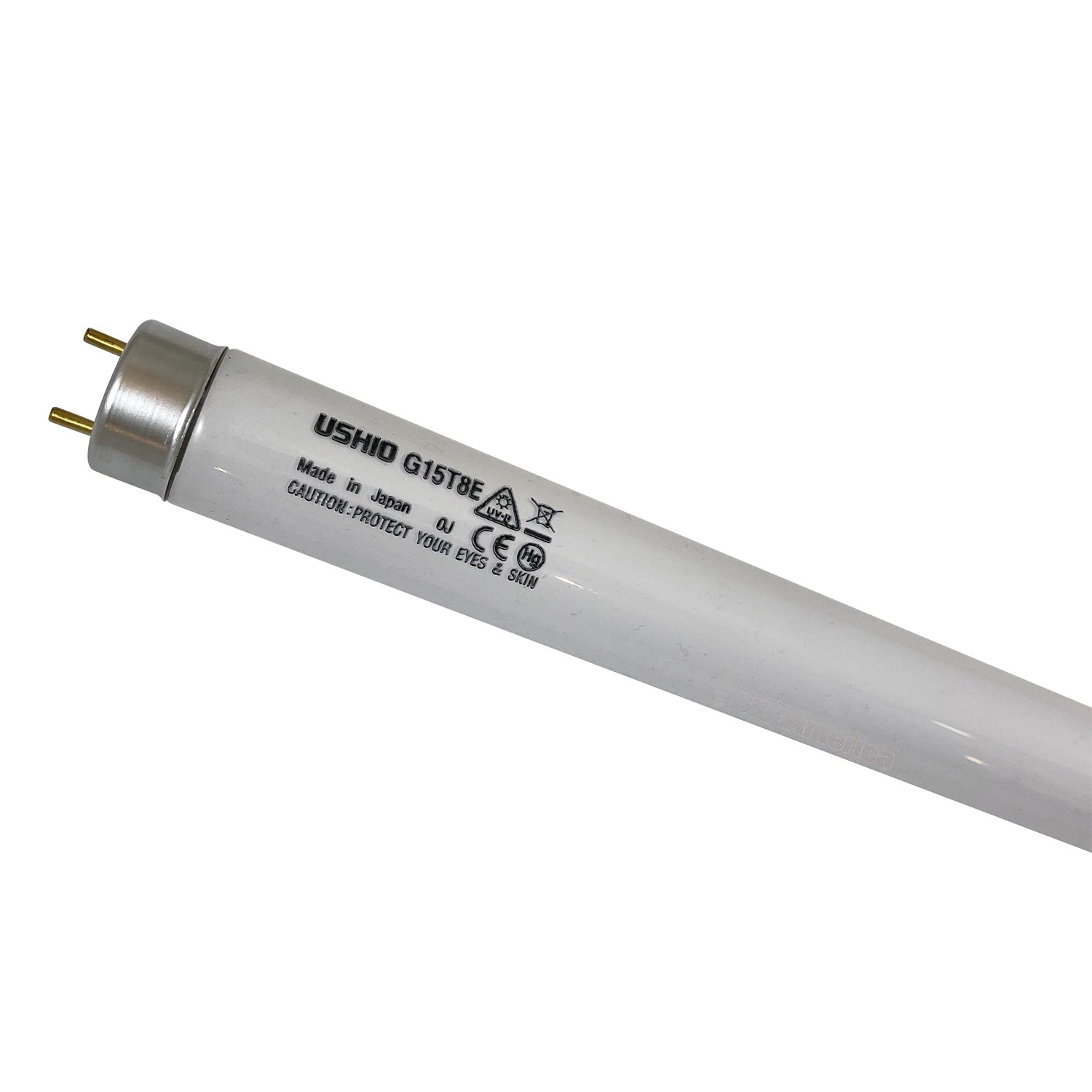

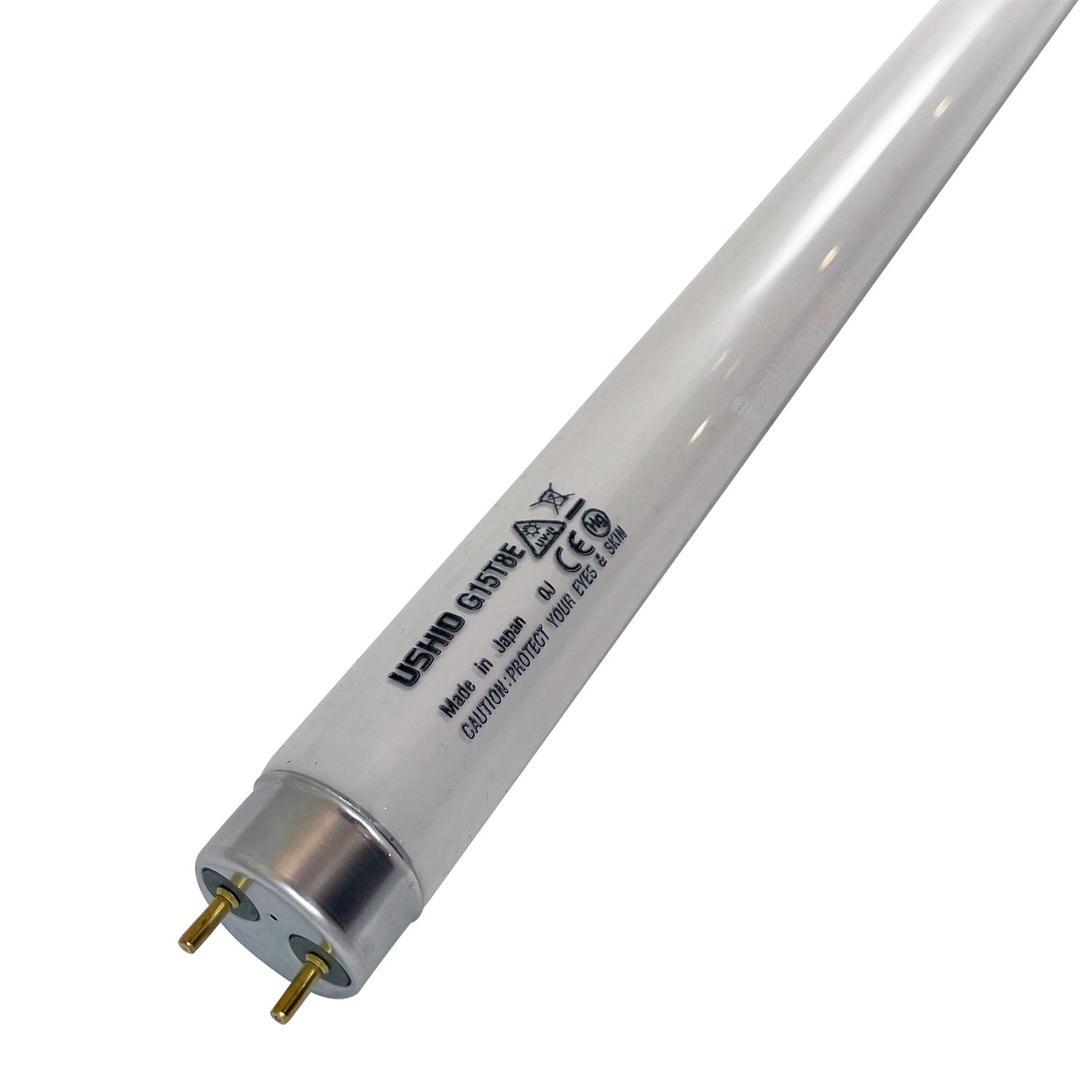

USHIO G15T8E 14.7W UV-B 306nm Midrange Tube - 3000319

Ushio 3000319 G15T8/E Ultraviolet UV-B (306nm) Midrange Tube

This Ushio UV-B tube has 14.7 watts and G13 2-Pin base with a maximum overall length of 17.16 inches. Features:
- Specially blended phosphor coating for maximum UV effect and output
- Low Mercury dose to meet environmental demands
- Large production capacity providing lamps with consistent quality and reliable delivery
- Flexible design capability for custom lamp development

APPLICATIONS:
- UV Curing
- Fluorescence Illumination
- Fluorescence Analysis
- Laboratory/Research
- Photochemistry
- Chromatography
- Phototherapy
- Dermatology

Base	G13 2-Pin
Bulb Type	UV-B (306nm) Midrange Lamp
Diameter (in)	1.00

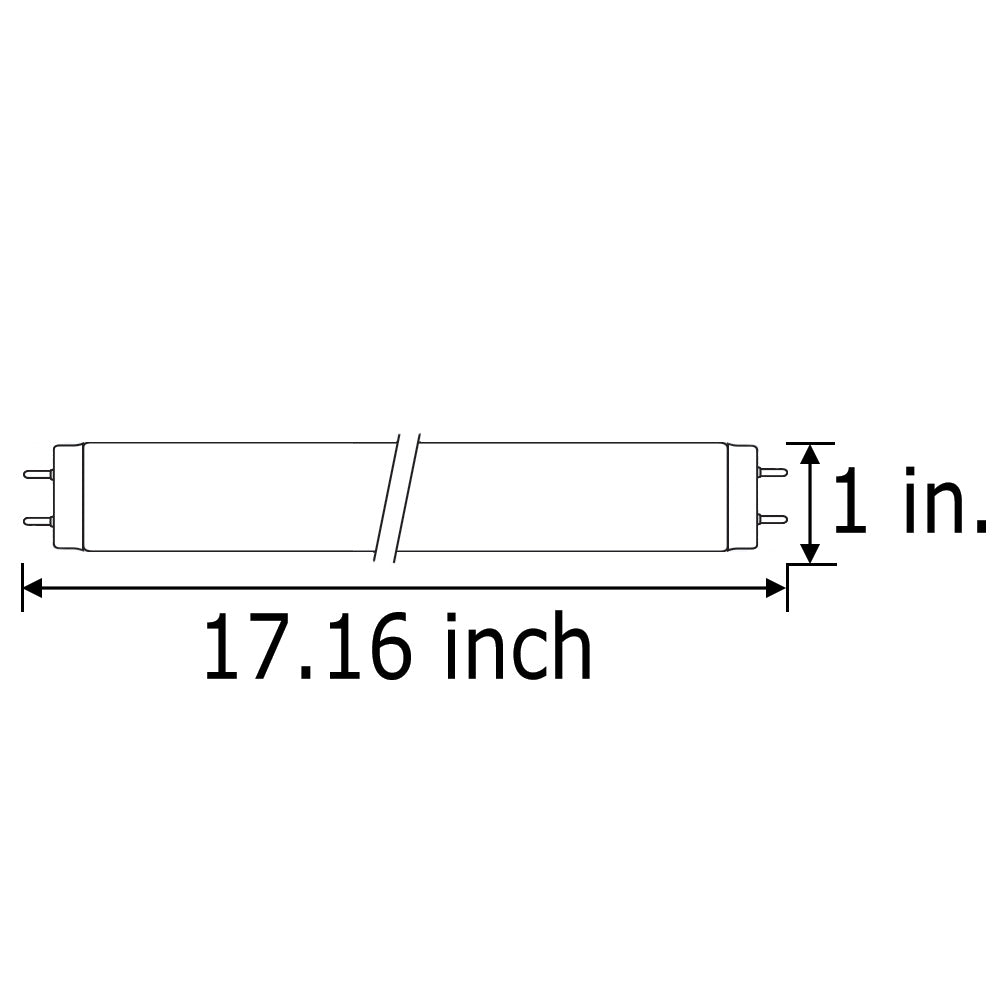

Maximum Overall Length (in)	17.16
Rated Life (Hours)	4000
Shape	T8
Voltage (V)	55V
Wattage (W)	14.7W
CA Prop 65	Yes
CA Prop 65 Material	Mercury

Manual:

3000319 Data Sheet
