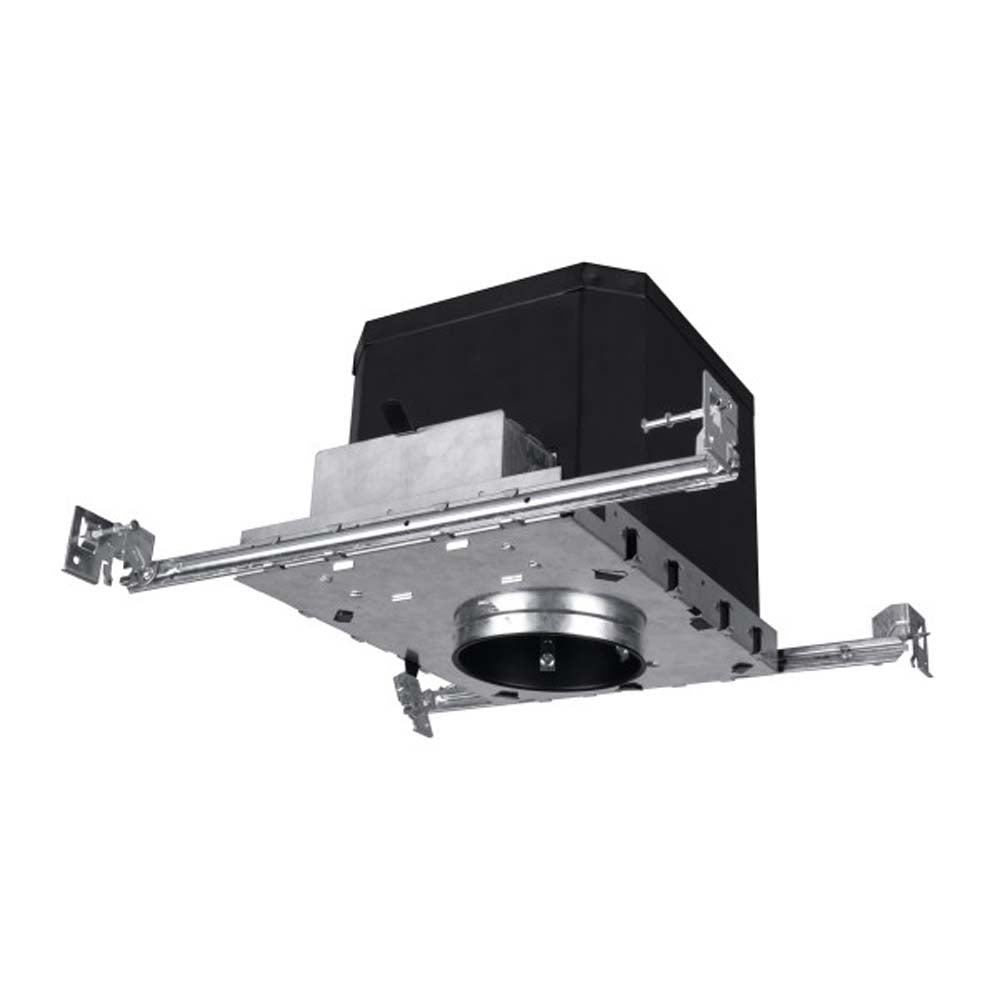

4 in. Fire Rated New Construction Recessed Housing with IDEAL Quick Connect

The NICOR EFH4-LED is a Fire Rated 4-inch Recessed Housing designed for new construction applications. The housing is UL Classified for a 2-hour Fire Rating. The durable double wall steel construction incorporates a non-combustible fiber insulation layer to block flames and gasses from entering the ceiling above. The insulation layer also acts as sound proofing to reduce the noise level passed between floors. The EFH4-LED is designed for standard 4-inch recessed downlights and trims. It also features an IDEAL Quick-Connect for a simple snap-in connection to most LED downlights. This makes installation as easy as possible. The IDEAL quick-connect also improves light efficiency and quality that are usually lost through the Edison base connection. The EFH4-LED housing is Insulation Contact Rated (IC-Rated), Airtight, and Wet-Location Rated when used with a Wet-Location Rated downlight or trim. This makes it the perfect housing for showers and bathrooms. It also keeps your home or office insulated and energy efficient. The EFH4-LED also features extendable hangar bars and end brackets (with pre-set nails) that swivel 90deg. during installation. This allows them to be affixed one side at a time. The EFH4-LED is designed for 120-Volt applications and includes a 1-Year Limited Warranty.

Features
- Designed for LED Downlights rated up to 20-Watts (not included)
- Includes an IDEAL quick-connect base for fast installation
- Intended for New Construction applications only
- UL Classified 2-hour Fire rating
- Indestructible 22-gauge double wall steel construction

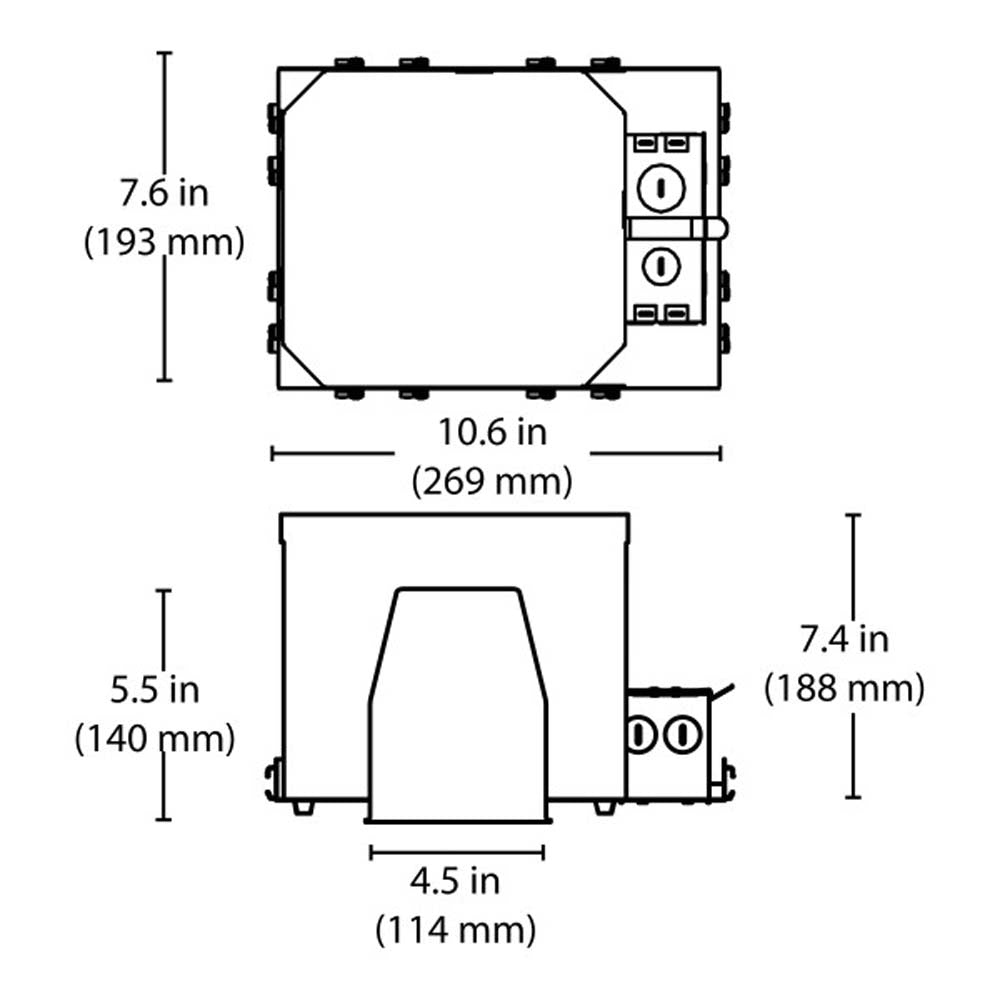

Size (in.)	4
Product Color	Black
Finish	Matte
Voltage	120VAC
Lumen Output	Operating Temperature	257F (125C)
Bulbs Included	No
No of Bulbs Required	1
Recommended Bulb Type	LED (any shape), R20, PAR20
Bulb Wattage (Max)	50
Listings/Certifications	UL Listed, cUL Listed, UL Classified (2 Hr Fire Rated), cUL Classified, ANSI/UL 263, ANSI/UL 1598, IC-Rated, Airtight, ASTM 283 Compliant, Damp-Location, Wet-Location (with specified trims)
Other Certifications	Listed for through branch circuit wiring Meets or exceeds ASTM-283 Air-Tight Requirements
Warranty	1 Year Limited Warranty

Manual:

EFH4-LED Data Sheet
