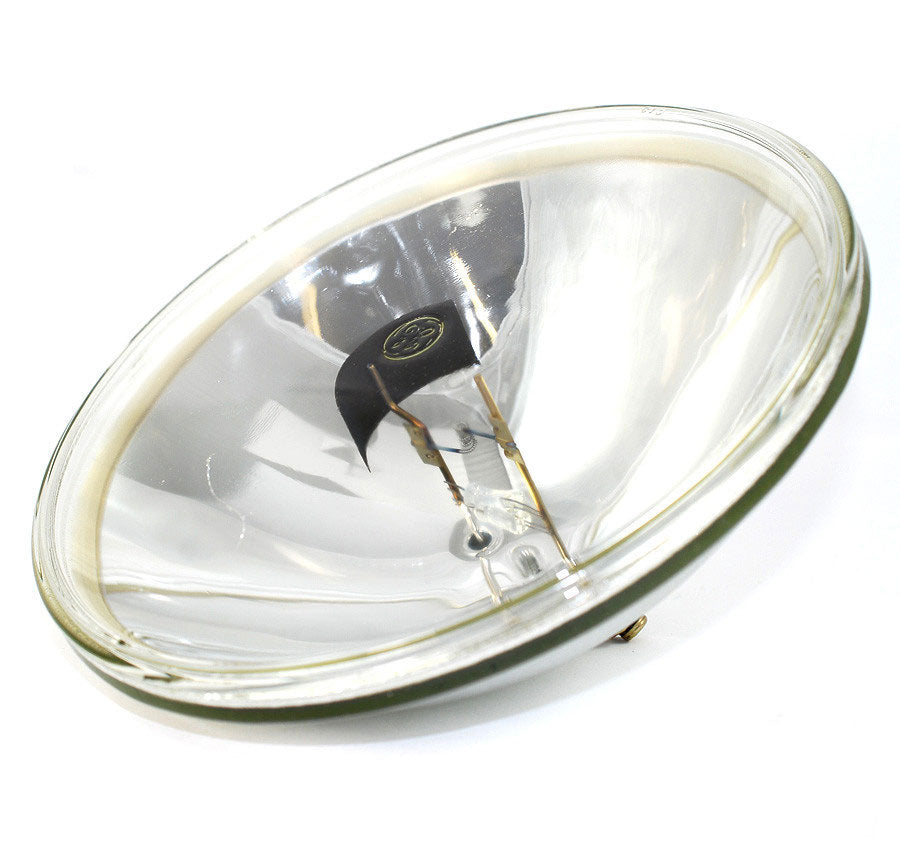

GE 4552 - 40576 250W 28V PAR64 G53 Sealed Beam Aircraft Aviation Light Bulb

GE's aircraft bulb is 250 watts and 28 volts. It is a PAR64 shape and has a rated life of 25 hours. This bulb has a CC-8 filament and is a screw terminal G53. The overall length of the bulb is 3.75 inches and gives off a very narrow spot beam spread.

Features:

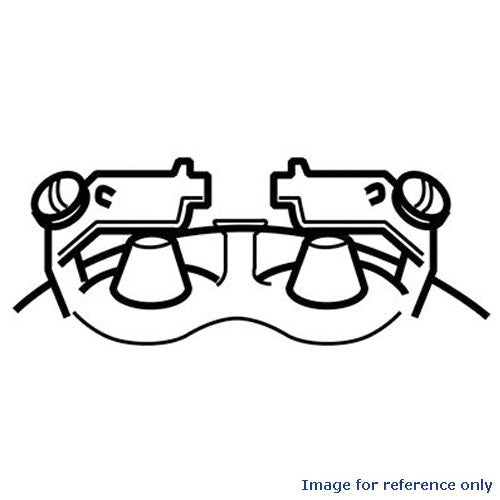

- Base Type: Pin/Plug-In, Base Description: G53 (Screw Terminals)

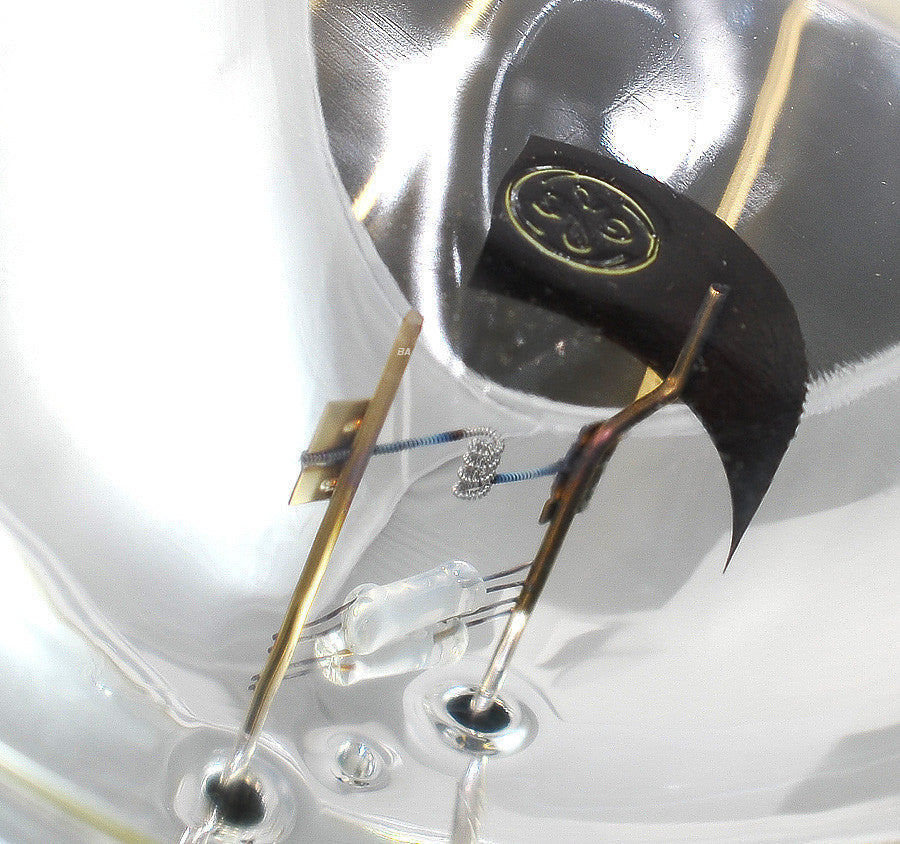

- Filament: CC-8, Lamp Count: 1
- Rated Life: 25 hrs, Primary Application: Aircraft Very Narrow Spot
- Product Technology: Incandescent, Bulb Shape: PAR64
- Voltage: 28, Wattage: 250

GENERAL CHARACTERISTICS
Base Type	Pin/Plug-In
Base Description	G53 (Screw Terminals)
Filament	CC-8
Lamp Count	1
Rated Life	25 hrs
Primary Application	Aircraft Very Narrow Spot
Product Technology	Incandescent
Bulb Shape	PAR64
ELECTRICAL CHARACTERISTICS
Voltage	28
Wattage	250
PHOTOMETRIC CHARACTERISTICS
Beam Candlepower (MBCP)	500000

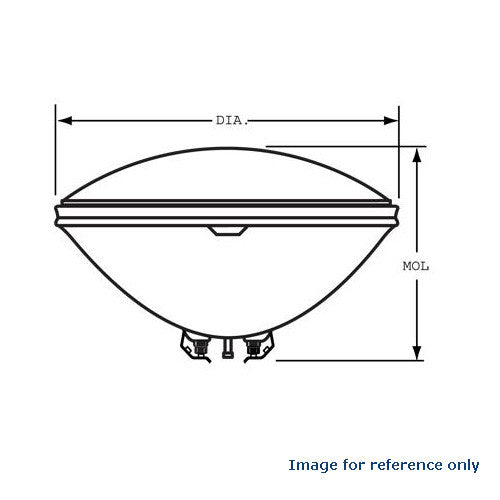

DIMENSIONS
Diameter	8 in
MOL	3.75 in
PACKAGING INFORMATION
Package Quantity	12
UPC	043168405768
Length	21.25 in
Width	14.17 in
Height	7.87 in
Gross Weight	25.9 Ib
