HPL 575w 115V Super Life 3000Hr Ushio halogen lamp

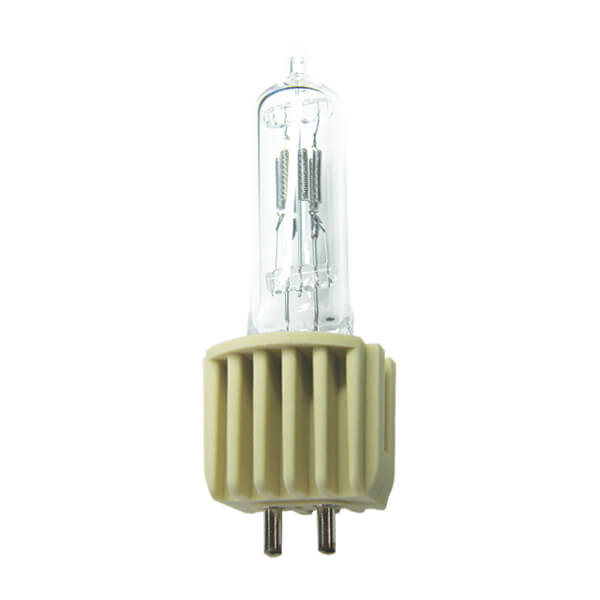

USHIO HPL 575 watt, G9.5 Ceramic Base, 6-C8 Filament, 115 Volts, #1004063, HPL-575/115VSL, Super Life (SL) halogen lamp.

The new HPL Super Life can significantly reduce maintenance costs for fixture installations where access requires lifts or scaffolding.
USHIO 1004063 HPL Super Life (SL) halogen lamp from USHIO extends lamp life to 3,000 hours. That's 50% more life hours than the current long life versions on the market. Smaller theatre venues and architectural applications will benefit from the additional life hours with a marginal difference in performance.

Features:
- 3,000 Hour Super Life
- Ceramic Heat Sink Base Maintains its Resistance to Electric Conductivity Over the Life of the Lamp
- Six Filament Design for an Even and Smoother Field
- Tapered Pins Ensure Easy Fit Into the Fixture Socket

Applications:
- Theatres
- House of Worship
- Museums
- Architectural Installations

Abbreviation Name	HPL-575/115VSL
Base	G9.5 2-Pin w/ Heat Sink
Bulb Type	Halogen Bulbs
Color Temperature (K)	2950K

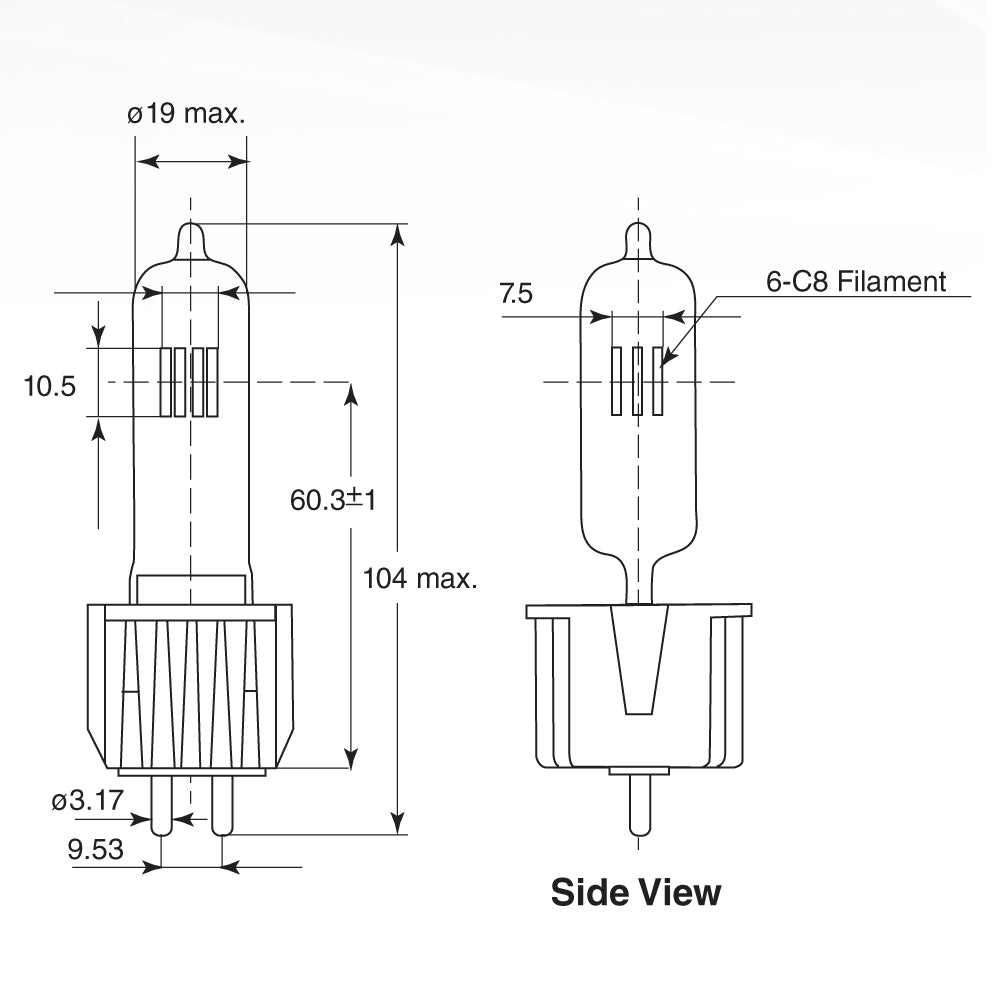

Filament	6-C8
Lamp Finish	Clear
Luminous Flux (LM)	10500
Rated Life (Hours)	3000
Shape	T6
Voltage	115V
Wattage	575W

Manual:

Ushio 1004063 Data Sheet
HPL Cross Reference
HPL-575/115VSL Data Sheet

The HPL575/115 bulbs is used in following equipment:

- ETC Source Four
- ETC Source Four 230 V
- ETC Source Four Jr
- ETC Source Four junior 230 V
- ETC Source Four Par & Parnel
- ETC Source Four Par 575
- ETC Source Four Zoom
