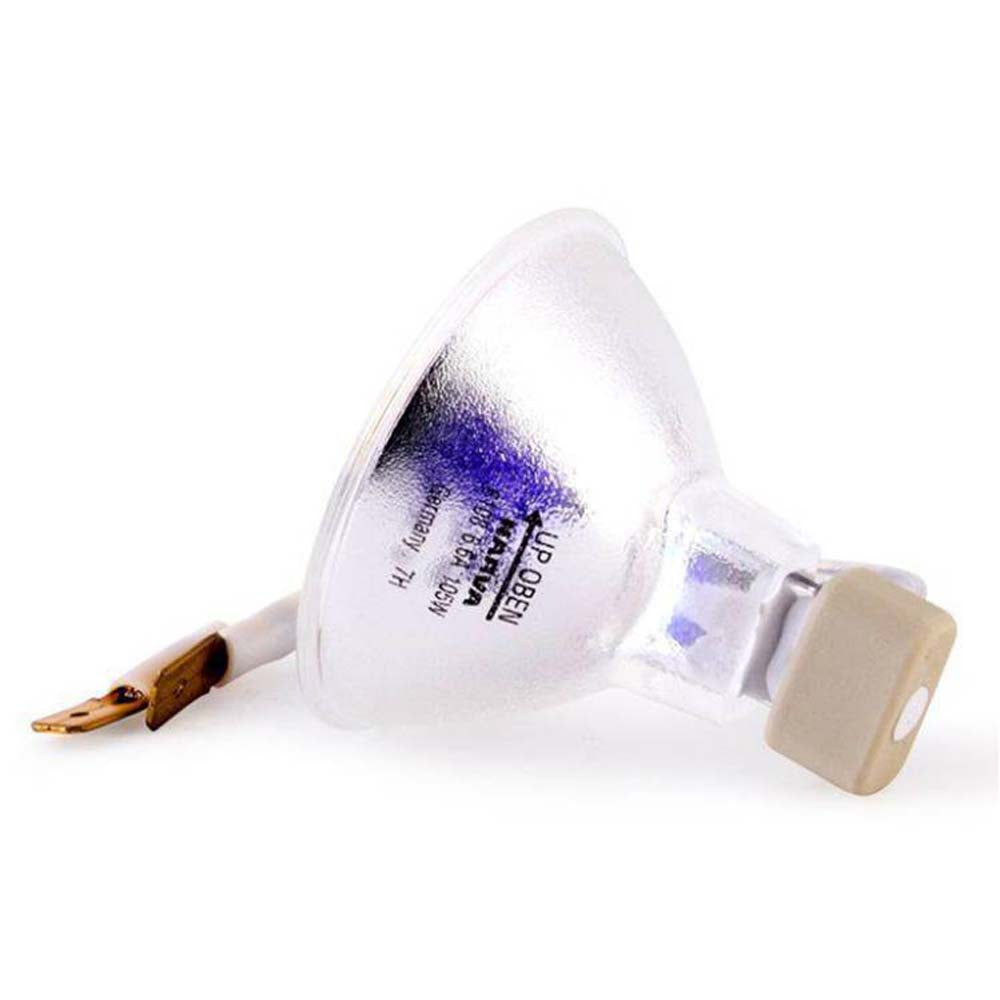

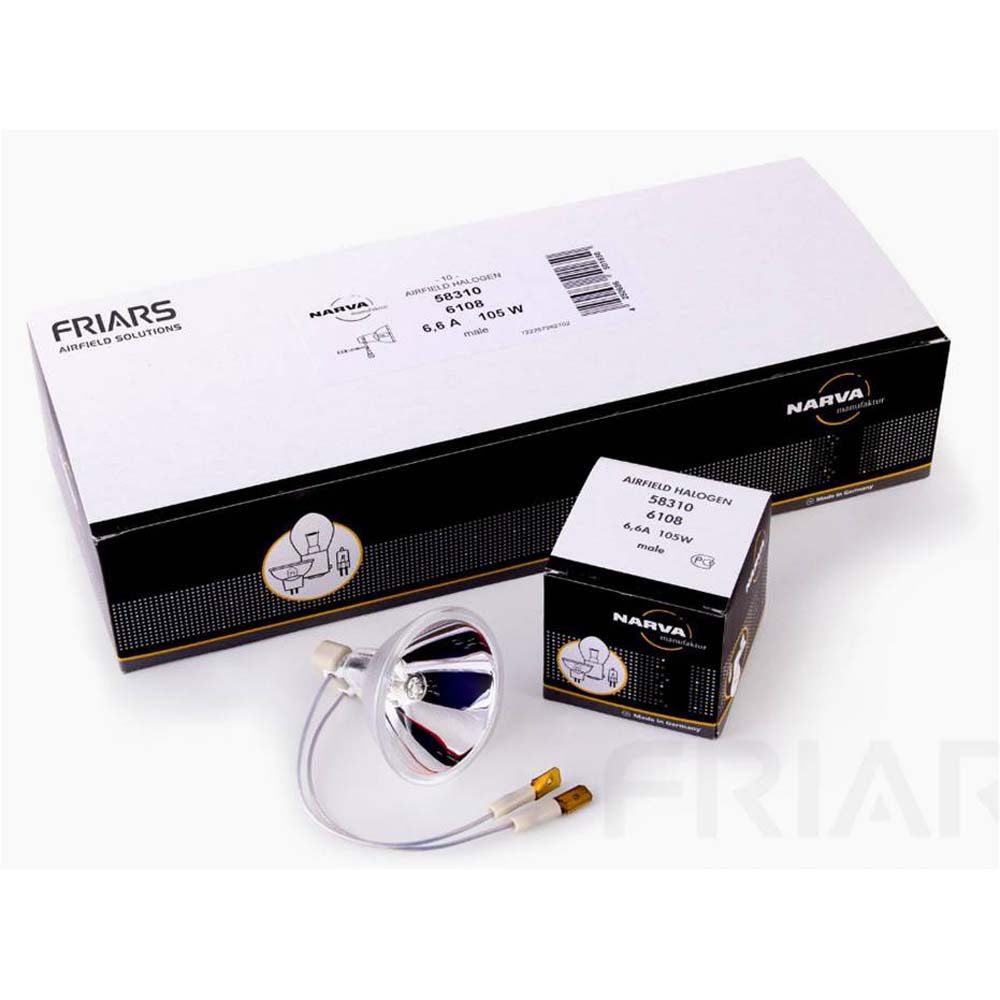

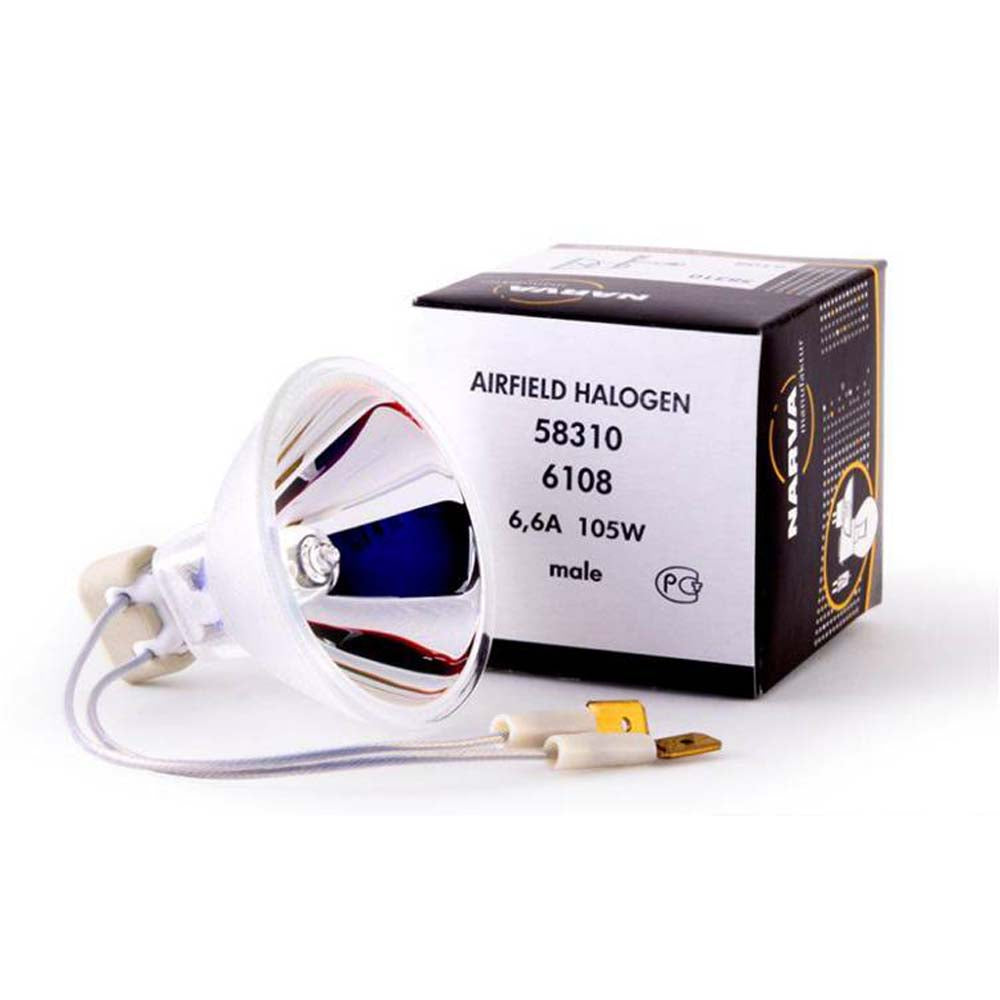

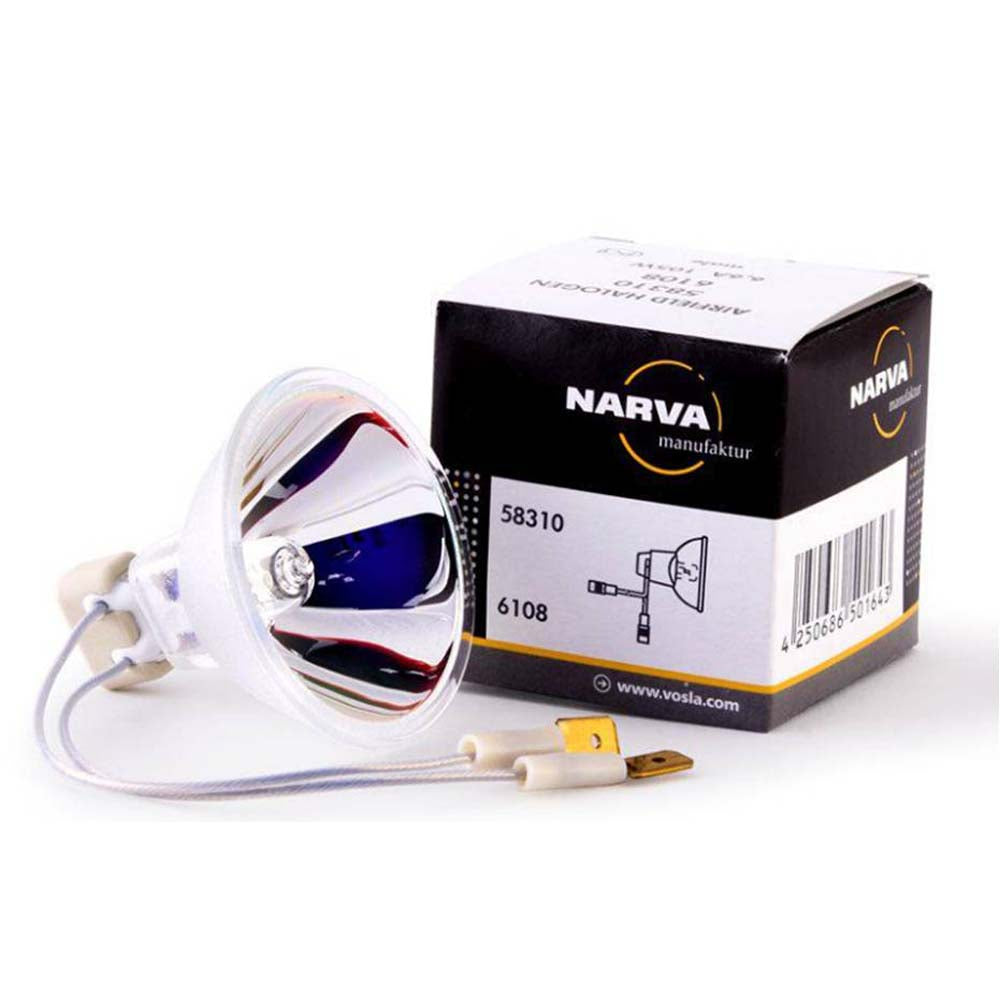

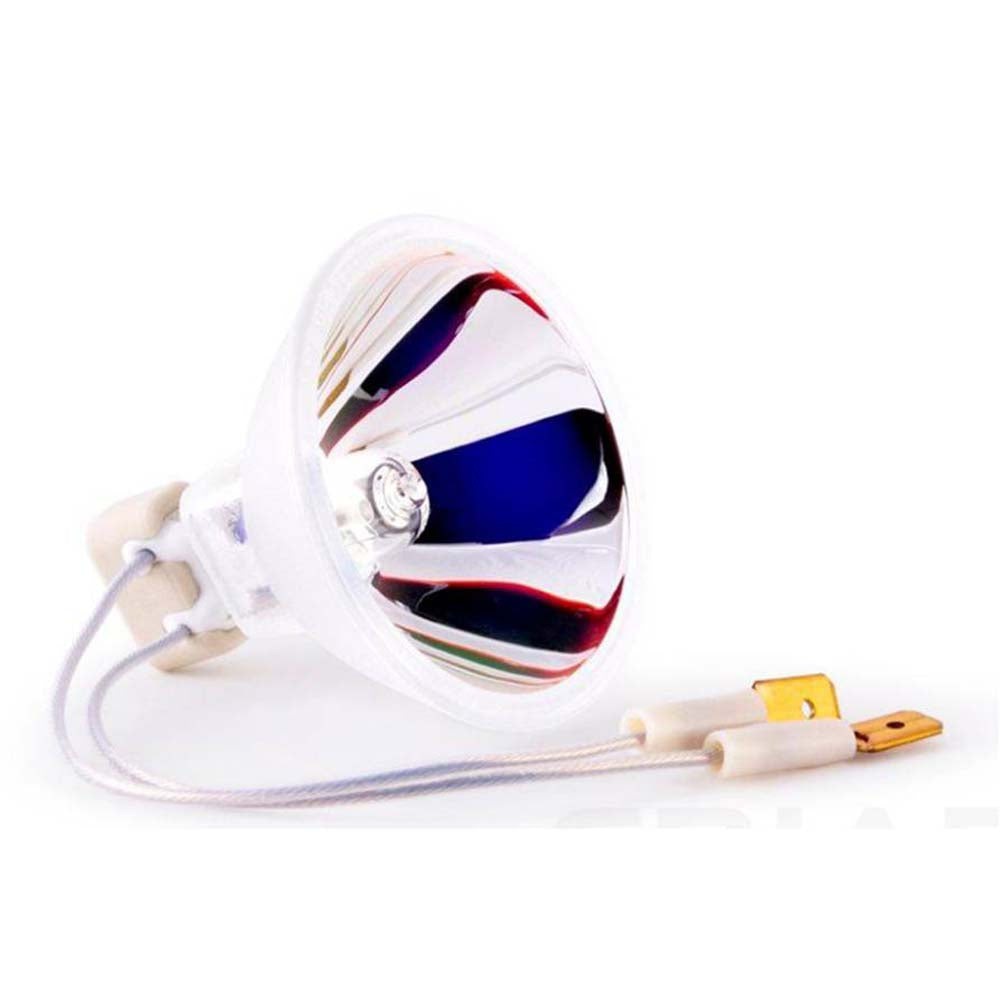

Narva 58310 - 6108 - 64339C - 105W 6.6A Flat Male Connectors Aviation Bulb

Narva Type 6108 Halogen Dichroic Reflector Airfield Lamp offers a world-class solution for airfields across the globe. The high and constant 105W lumen output combined with a high degree of optical adjustment and suitability for series operation makes the Type 6108 a leading choice for a multitude of airfield ground lighting systems. The unit is completely mercury-free for full compliance with regulations, including FAA and ICAO, and uses a male flat connector.

Features:
- 105W power at 6,6A current consumption
- Robust base in Cable Flat Male shape - without cement
- 1000 hours lamp life
- High and continuous total luminous flux
- Intensive light concentration

Application:
- Approach lighting and ground threshold lighting
- Runway and taxiway lighting
- Airport information signs
- Illumination of brake strips and touchdown zones

Cross Reference:
- Sylvania: L2369 / 21499
- Osram: 64339-C, 64339C
- Osram: 58963
- Philips: 6108
- Philips: 9230 199 859

Manufacturer	Narva
Bulb Type	Halogen Bulbs
Base	Cable Flat Male Connector
Filament Type	C-8
Rated Current (A)	6,6
Reflector type	MR16
Wattage	105
Lumens	30000
Rated Life	1000 hrs

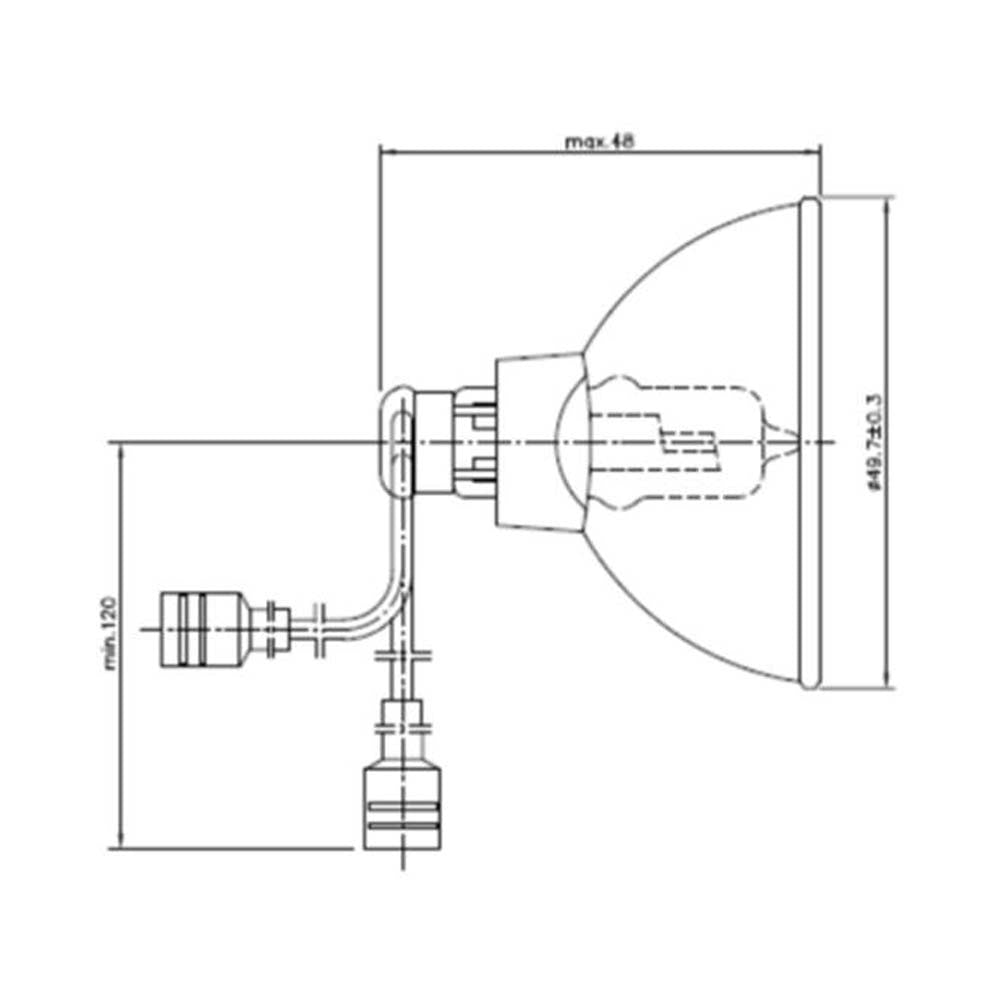

MOL (in)	1.77 (45 mm)
Diameter (in)	1.93 (49 mm)
Maximum allowed cable temperature (°C)	250
Maximum allowed pinch temperature (°C)	350
Burning Position	S90
Part Number	58310
UPC	4250686501643

Manual:

58310 Data Sheet
