NICOR 5 in. / 6 in. White LED Surface Mount Disc Light in 2700K

Part of NICORs D-Series, the DLS surface mount downlight combines price, performance and design all in one package. The DLS is versatile enough for use in most 5" or 6" recessed housings. This luminaire delivers incredible color accuracy with 90+ CRI and flexible dimming capabilities. The DLS is an ideal commercial, retail, institutional or residential downlight choice for retrofit or new construction. Providing superior efficacy and a longer life than compact fluorescents, the DLS still offers the pleasant light quality you expect from an incandescent lamp. From LED color rendering and trim finishes to fixture performance, the design style is consistent with other fixtures in this design series.

Features:
- Die cast aluminum trim routes heat away from electrical components
- 1015 Lumens at 15 Watts
- Dimmable to 10%
- Utilizes high performing Nichia brand LEDs with greater than 95 CRI and an R9 greater than 65
- Low profile, integrated driver, allows for surface mount installation of 4/O J-box
- White polycarbonate diffuser eliminates hot spots creating a pleasantly uniform light distribution
- Thermally protected high efficiency driver comes standard
- Lifetime rated for greater than 50,000 hours
- 120 Volt Operation

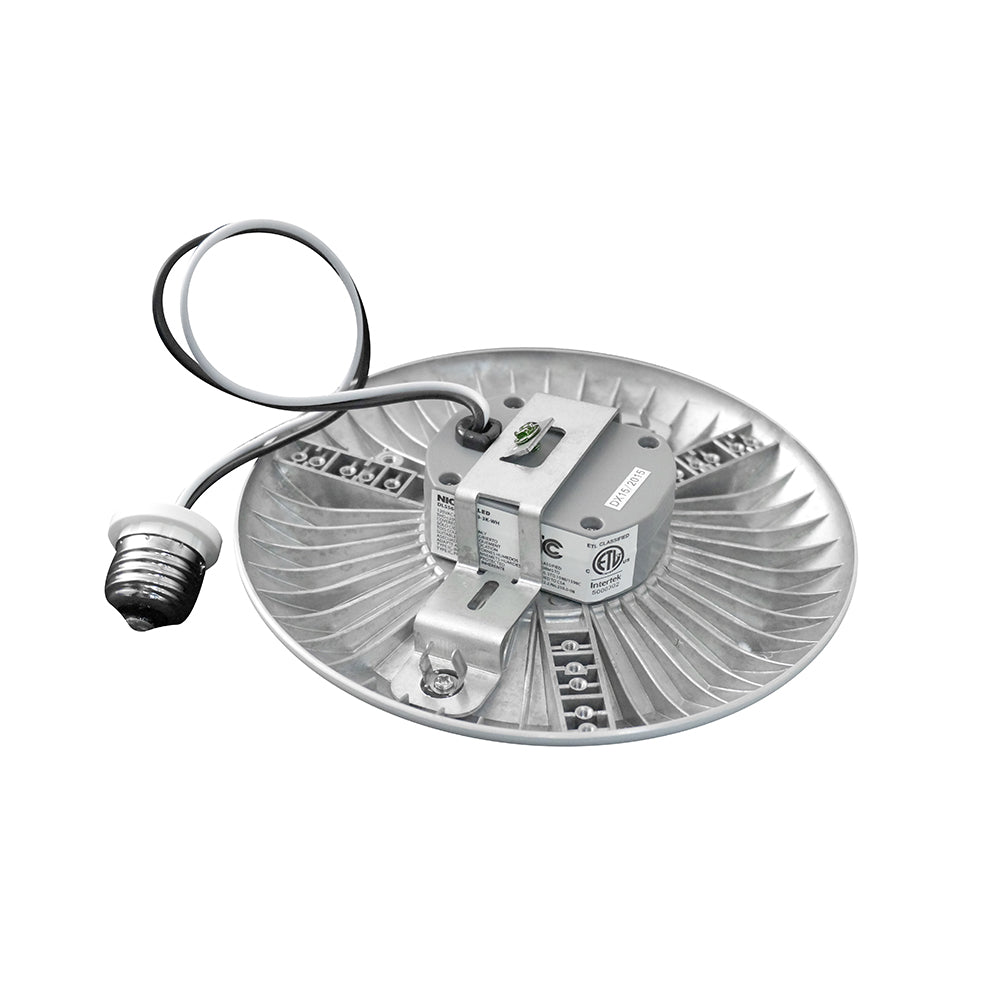

- Easy installation with snap-in mounting bracket over a plastic or metal 4/O J-box
- Protected by NICOR's 5 Year Limited Warranty

Finish:	White
Product Type:	LED Surface Mount
Size:	5" | 6"
Application:	Residential
Wattage (W)	14.7w
Voltage (V)	120v
Incandescent equivalent:	90w
Light Output (LM):	1015
Color Reindering index CRI:	95
Color Temperature:	2700K
Dimmable:	Yes
Rate life:	>50,000
Bulbs Included?:	Yes
Adapter/Bulb Base:	E26 | IDEAL
Hardwire/Plug/Socket:	Socket

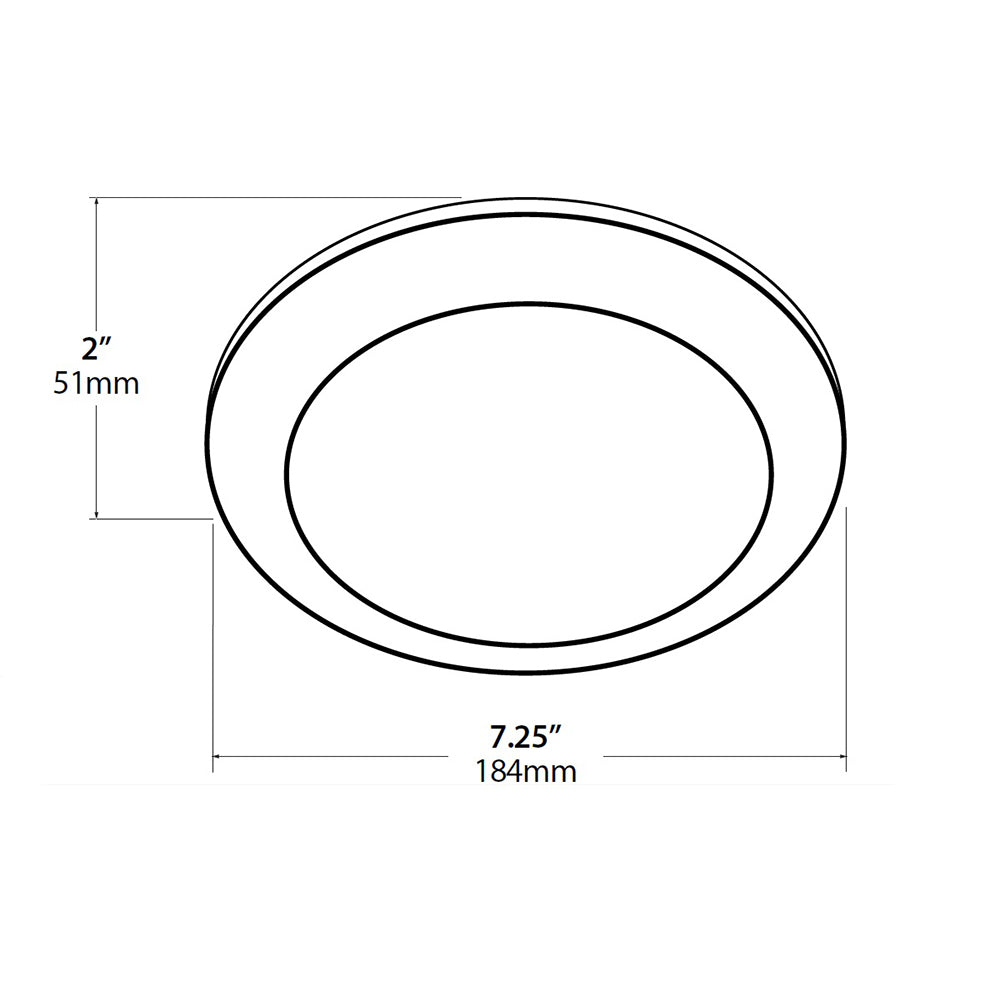

Product Length:	7.65
Product Width:	7.65
Product Depth:	2.5
Product Weight:	0.95
Limited Manufacturer Warranty (Year):	5
Certification:	ETL
Energy Star Qualified:	Yes
Tilte 24:	Yes
CEC:	Yes
FCC
Wet Rated

Manual:

DLS56 Installation Manual
