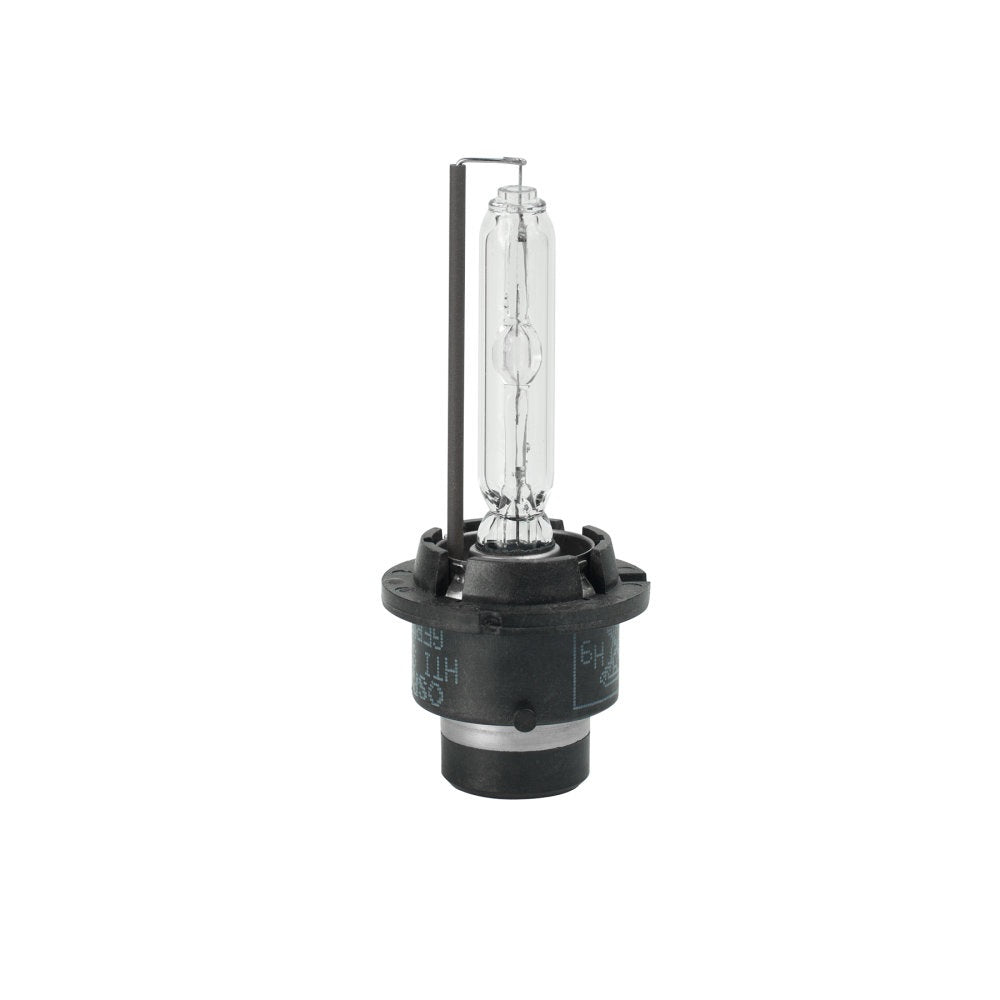

OSRAM HTI S 35/12 P32d-2 Base 5000K Stage Studio Bulb

OSRAM HTI S 35/12 P32d-2 Base 5000K Stage Studio Bulb

OSRAM SKU: 69000
$18599 $260.99 USD

Sorry, this product is temporarily out of stock, please check Related Products below, or use the email for stock updates


0

Description

OSRAM 69000 35W Metal Halide HTI S 35/12 T9,3 P32d-2 85V 5000K

Application
- Entertainment and Effect Lighting
- Fiber Optic
- Searchlights
- Club & Disco
- Stage and theatre
- Studio, TV and film

Features and benefits
- Robust design with eXtreme Seal (XS) technology on some types, allowing up to 450°C at the pinch seal
- Consistent lumen output over the life of the lamp
- Higher luminous efficacy than conventional HID lamps provides higher fixture efficiency

Specs

Abbreviation Name HTIS3512
Average Rated Life (hr) 3000
Base P32d-2
Bulb T9,3
Class C (gas)
Color Rendering Index (CRI) 90
Color Temperature (K) 5000
Cooling Convection
Current (A) 2.5
Diameter d (in) 1.26
Diameter d (mm) 32
Distance a (mm) 27.1
Electrode Gap (cold) (mm) 4.2
Family Brand Name HTI
Hot Restart Yes
Lamp Finish Clear
Length l (mm) 79.5
Length l max. (mm) 79.5
Light Center Length - LCL (mm) 27.1
Luminous Flux (lm) 9500
Maximum Base Temperature °C 230
Maximum Overall Length - MOL (mm) 79.5
Nominal Voltage (V) 85
Nominal Wattage (W) 35
Operating Position p 10
Reflector Coating 32
Type of Current AC
‎
