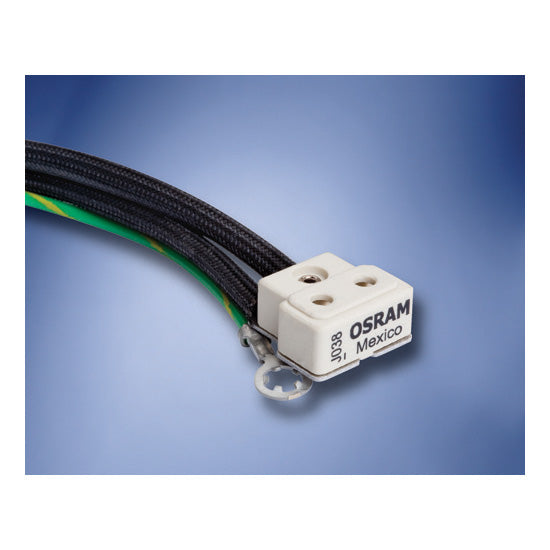

Osram G9.5 Ceramic Socket for HPL lamps in ETC PAR Fixtures

OSRAM SKU: 69018
$3799 $68.99 USD
60 in stock




1

Description

This Osram socket is designed to be used with any G9.5 base. This socket will fit all generations of ETC Source Four fixtures and HPL bulbs.
The TP22H ceramic socket has nickel plated contacts with high temperature stainless steel backer springs.

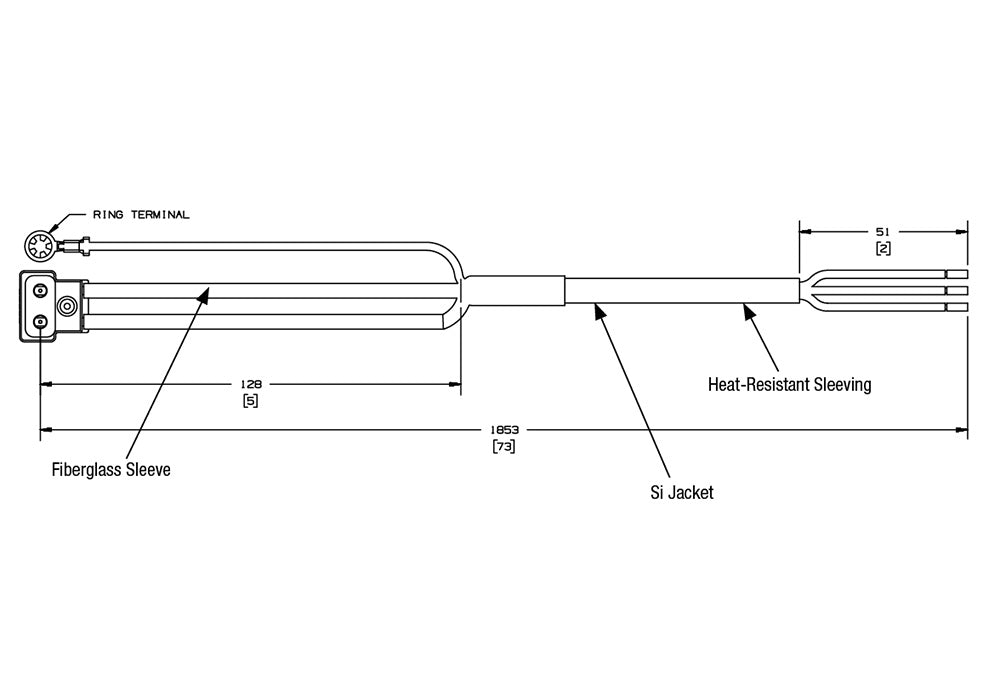

The socket comes with two 16 gauge wires with PTFE high temperature wire jackets and a ground wire. This socket is UL approved and is designed for maximum 250v or 1000W and maximum temperature of 300 degrees Celsius.

Features:
- Lamp base type: G9.5
- Body Material: Ceramic
- Contact Material: silver plated nickel
- Maximum Wattage: 1000W
- Maximum Voltage: 250V

Specs

Abbrev. With Packaging Info. TP22HCE160CM16GAUL1659 40/CS 10/SKU
Body Material Ceramic Steatite
Contact Material Silver Plated Nickel
CSA File No. LR20904
Height (in) 0.43
Height (mm) 10.8
Lamp Base Reference G9.5, Bi-Pin
Lead Strip Length (in) 0.25
Lead Strip Length (mm) 6.35
Lead Length (in) 63
Lead Length (mm) 1600
Length (in) 0.75
Length (mm) 19
Maximum Operating Temperature C 250
Maximum Voltage (V) 250
Maximum Wattage (W) 1000
Rohs Compliant Yes
Width (in) 0.85
Width (mm) 21.7
Wire Color(s) Brown, Blue, Green
Wire Type PTFE Jacket
Underwriters Laboratories File No. E31557
Wire Gauge (AWG) 16
