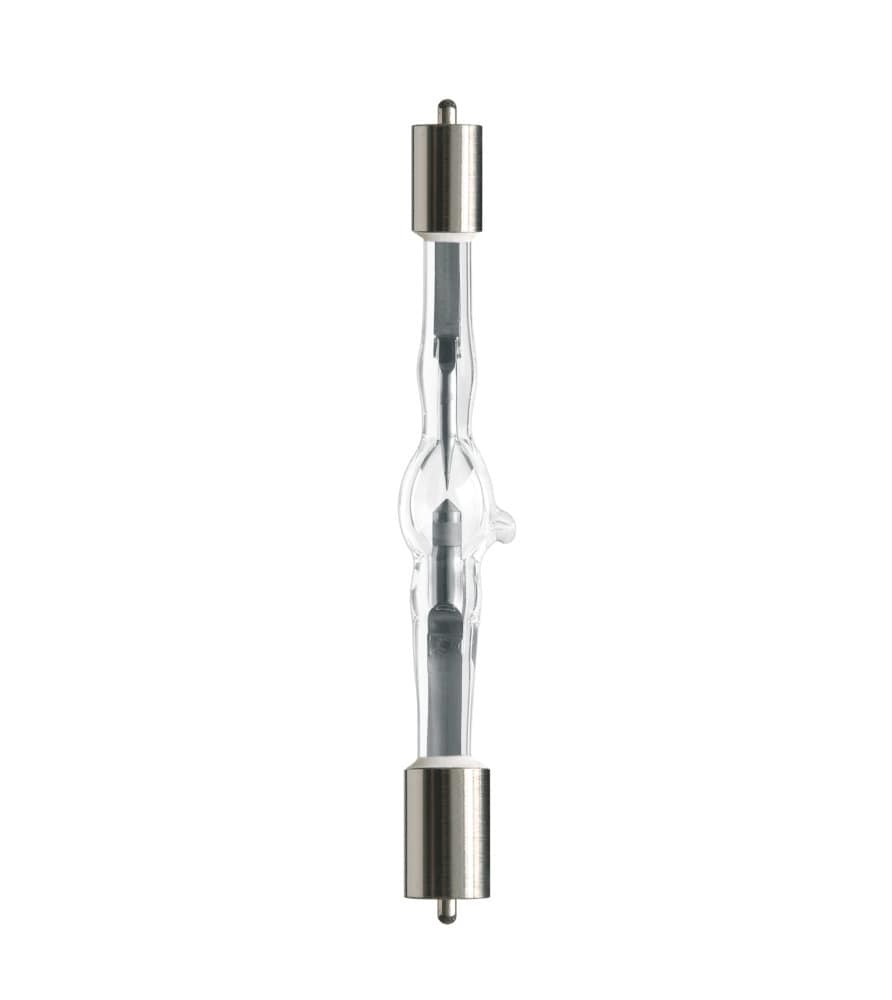

Osram Sylvania 69233 - XBO 100 W OFR Projector Light Bulb

Osram Sylvania 69233 - XBO 100 W OFR Projector Light Bulb

OSRAM SKU: 69233_4
$35399 $613.99 USD
20 in stock




1

Description

OSRAM 69233 XBO 100w OFR Xenon Short Arc Discharge Lamps are intense point sources that provide a broad, continuous spectrum and have a near perfect color rendering in the visible range with an index greater than 95.
This makes them an ideal choice for fiber illumunation devices for Medical, Scientific, and even Industrial areas.
In particular, surgical devices that benefit from the accurate color rendering and intense beam of the XBO light source. OSRAM has been producing reliable, high quality XBO lamps for over 60 years. Key Features and Benefits
- High luminance / radiance with intense point source
- Broad, continuous spectral distribution
- High color rendering >95
- High arc stability
- DC operation

Specs

Abbreviation Name XBO100WOFR
Application MICROSCOPY, SEARCHLIGHTS
Average Luminance (cd/cm2) 30000
Average Rated Life - Horizontal (hr) 500
Average Rated Life - Vertical (hr) 500
Base Anode SFA9-2
Base Cathode SFA7.5-2
Bulb KO176
Class C (GAS)
Color Rendering Index (CRI) 98
Color Temperature (K) 6000
Current (A) 7.2 A
Diameter d (in) 39.331
Diameter d (mm) 999
Distance a (mm) 44.5
Electrode Gap (cold) (mm) 0.9MM
Family Brand Name XBO
Hot Restart YES
Lamp Finish Clear
Length l1 (mm) 90
Length l1 max. (mm) 90
Length l2 (mm) 82
Length l2 max. (mm) 82
Light Center Length - LCL (mm) 44.5
Luminous Area w x h (mm) 0.4 X 0.8
Luminous Flux (lm) 1900
Luminous Intensity (cd) 270
Maximum Base Temperature °C 230
Maximum Overall Length - MOL (mm) 90
Nominal Wattage (W) 100
Operating Position S100
Reflector Coating 999
Type of Current DC
CA Prop 65 Yes
CA Prop 65 Material Mercury
