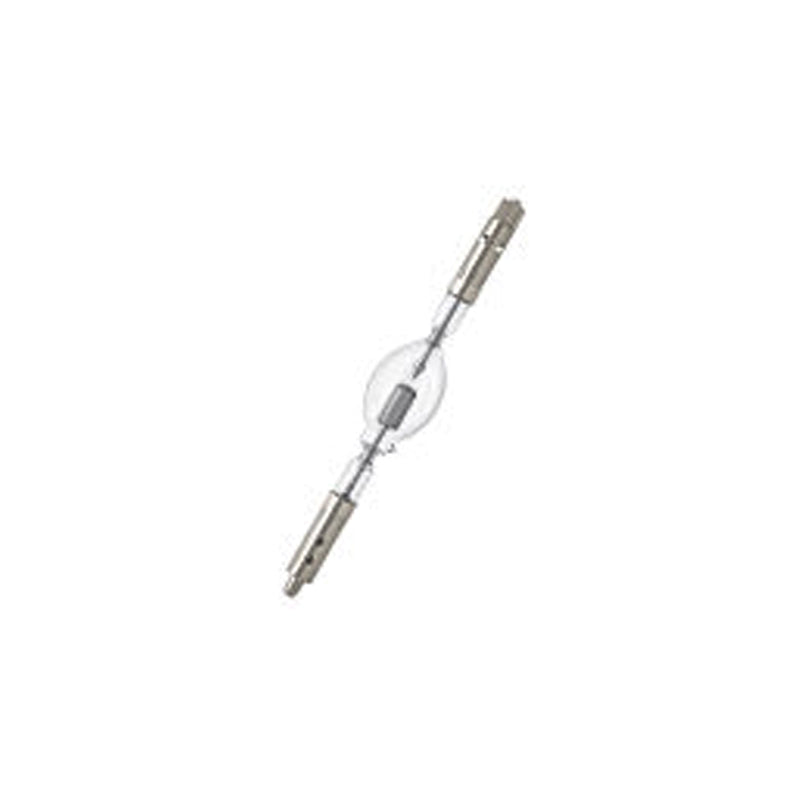

OSRAM XBO 4000W/HTP XL OFR Metal Halide Bulb

OSRAM XBO 4000W/HTP XL OFR Metal Halide Bulb

OSRAM SKU: 69151
$1,58299 $2,216.99 USD

Sorry, this product is temporarily out of stock, please check Related Products below, or use the email for stock updates


0

Description

The OSRAMmetal halide bulb,   XBO 4000W/HTP XL OFR is a DC-operated lamp, developed with the latest high brightness technology for XBO lamps andmetal halide bulb.The XL lamps, which stands for Xtreme life, are strictly optimized on performance and have an increased warranty by up to 50%.

Specs

Base SFa27-14
Bulb Type High Intensity Discharge Bulbs (HID)
Magnetic Arc Stabilization Required
Average Luminance (cd/cm2) 90000
Base Special Double Ended
Base Anode SFa27-14
Class C (gas)
Cooling Required
Current (A) 130
Current Control Range (A) 100-140
Diameter d (in) 2.756
Electrode Gap (cold) (mm) 7
Family Brand Name XBO
Hot Restart Yes
Lamp Finish Clear
Length l1 max. (mm) 433
Length l2 max. (mm) 382
Light Center Length - LCL (mm) 167.5
Luminous Area w x h (mm) 1.9 x 6.0
Luminous Intensity (cd) 16000
Maximum Base Temperature �C 230
Maximum Overall Length - MOL (mm) 430
Nominal Voltage (V) 28.00
Nominal Wattage (W) 4000.00
Operating Position s20 p20
Reflector Coating 70.00
Type of Current DC
CA Prop 65 Yes
CA Prop 65 Material Mercury
‎
