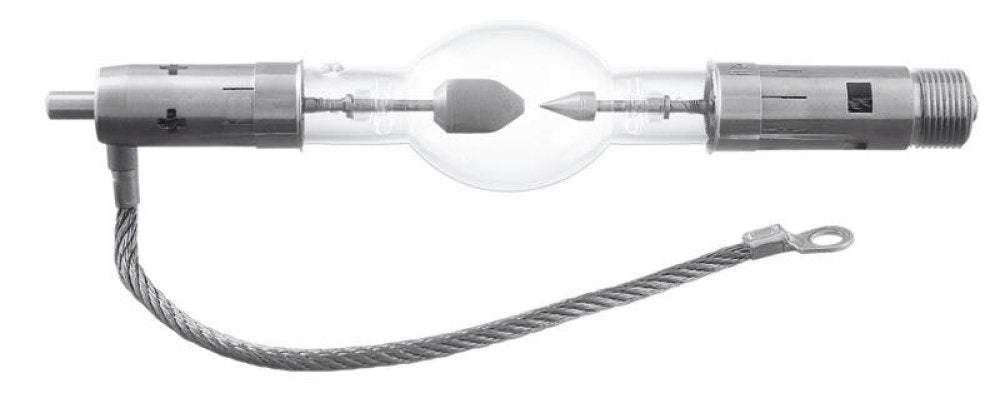

OSRAM XSTAGE 7000W 40V OFR Specialty / Stage Studio Lamp

OSRAM XSTAGE 7000W 40V OFR Specialty / Stage Studio Lamp

OSRAM SKU: 69485
$1,65499 $2,857.99 USD
25 in stock




1

Description

Osram XSTAGE 7000W OFR is a 7000 watt, Xenon High Pressure Lamp. Typical lifetime is 650 hours, 1000 hours - horizontal. This lamp has SFaX28-27 (anode) and SFc28-27 (cathode) basing on the 60mm diameter x 405mm long clear special double ended bulb. Strong XL

Specs

Abbreviation Name XSTAGE7000WOFR
Application Event & Architainment Lighting, Follow S
Average Luminance (cd/cm2) 120000
Average Rated Life - Horizontal (hr) 1000
Average Rated Life (hr) 650
Base Special Double Ended
Base Anode SFaX28-27
Base Cathode SFc28-27
Bulb KO156
Class C (gas)
Cooling Required
Current (A) 160
Current Control Range (A) 110-165
Diameter d (in) 2.756
Diameter d (mm) 70
Distance a (mm) 162.5
Electrode Gap (cold) (mm) 8
Family Brand Name XBO
Hot Restart Yes
Lamp Finish Clear
Length l1 (mm) 405
Length l1 max. (mm) 405
Length l2 (mm) 363
Length l2 max. (mm) 362
Light Center Length - LCL (mm) 162.6
Luminous Area w x h (mm) 2.0 x 7.0
Luminous Intensity (cd) 33000
Maximum Base Temperature °C 230
Maximum Overall Length - MOL (mm) 405
Nominal Voltage (V) 40
Nominal Wattage (W) 7000
Operating Position s90
Reflector Coating 70
Type of Current DC
‎
