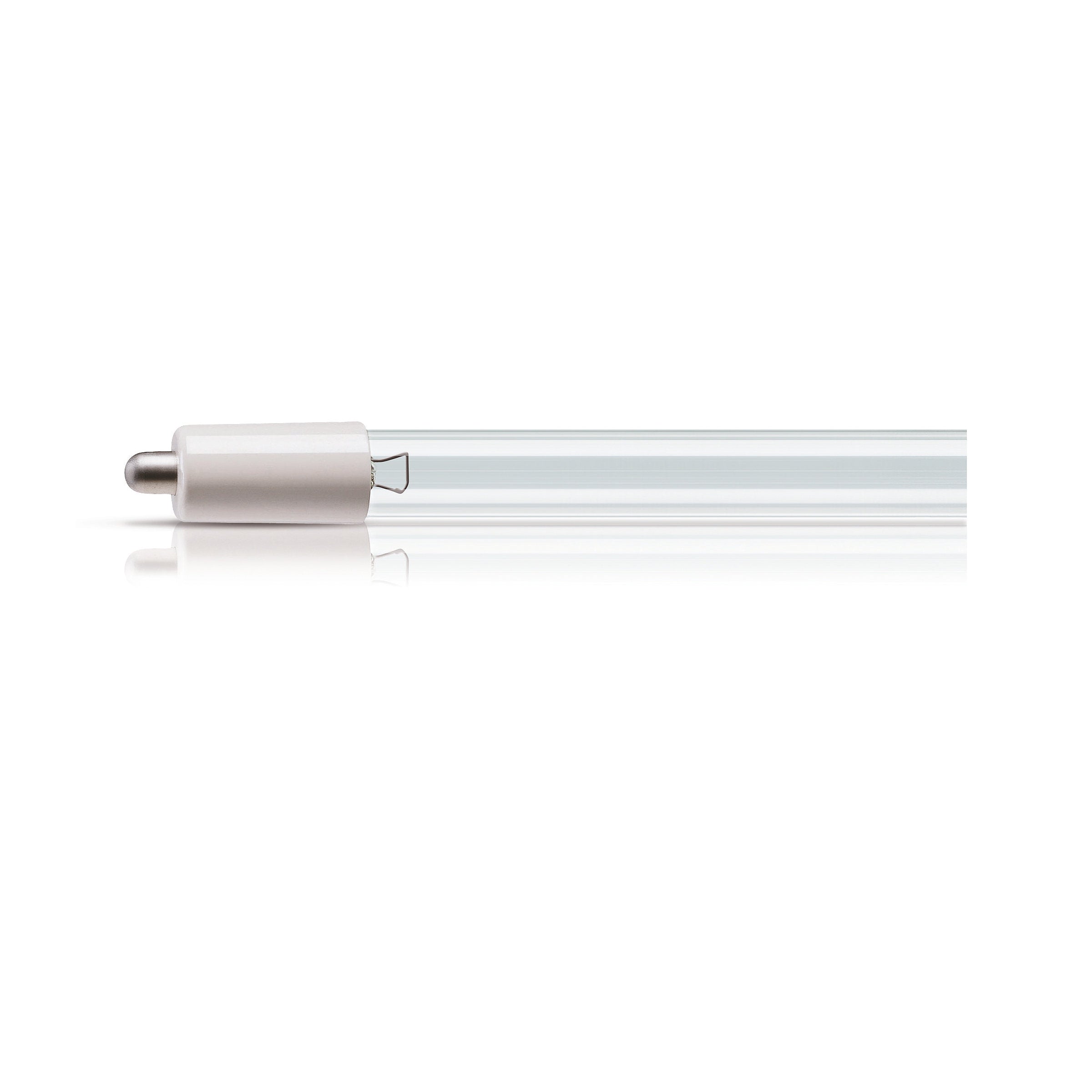

Philips 292698 TUV 64T5/SP HE UVC T5 62in Germicidal Lamps

Philips 292698 TUV 64T5/SP lamps are 62 inch Single Pin Double-Ended UVC (germicidal) lamps used in professional water and air disinfection units. The small 16 mm diameter of the lamp allows for a small system design and design flexibility. Philips 292698 TUV 64T5/SP lamps offer constant UV output over their complete lifetime, for maximum security of disinfection and high system efficacy.

• Security of effective disinfection over the useful lifetime of the lamp
• Good environmental choice because of lowest amount of mercury
• High system efficacy because it is not required to over-design the purification system to maintain effectiveness of disinfection
• Small diameter

• Short-wave UV radiation with a peak at 253.7 nm (UVC) for disinfection purposes
• Protective inside coating ensures constant UV output over the complete lifetime of the lamp
• Special lamp glass filters out the 185 nm ozone-forming radiation
• High Output versions available for optimum UVC output per lamp length, allowing for further reduction of system size
EPA Approved: Philips/Signify EPA # Est. No 95792-POL-1

• DANGER: Risk Group 3 Ultra Violet product. These lamps emit high-power UV radiation that can cause severe injury to skin and eyes. Avoid eye and skin exposure to unshielded product. Use only in an enclosed environment which shields users from the radiation.

Manual:

Ozone emissions Philips TUV lamps

TUV 64T5/SP

Philips UV Technology

Philips Germicidal Tubular Fluorescent EU Declaration of Conformity
