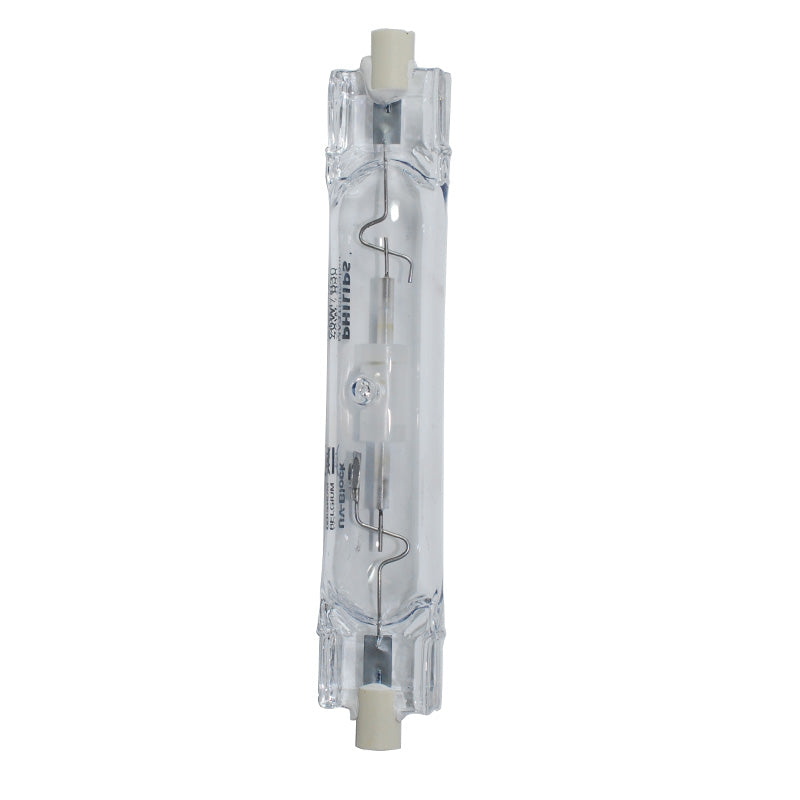

Philips CDM-TD 70/830 70w RX7s 3000K Double Ended MasterColor HID Bulb

Philips MasterColor CDM-TD 70W/830 Double Ended HID Bulb

Philips CDM-TD 70W/830 are compact discharge lamps with a stable colour over lifetime, a sparkling light, a warm (3000 K) colour impression and an excellent colour rendering CRI>80
High beam intensities can be created thanks to the small discharge arc and the compact dimensions of the lamp. Low operating costs result from the high lamp efficacy, combined with a long lamp life compared to incandescent and halogen lamps.
The lamps feature a UV-block quartz outer bulb and personal comfort is increased thanks to the low heat output.
CDM-TD lamps have to be used in combination with a ballast and an ignitor

Cross Reference:
- Philips CDM-TD 70/830
- Philips 231605
- Philips 197825
- Greinger 5XN58
- GE 92587 CMH70/TD/830RX7S
- Osram 64793 MC70T6/DE/830 PB
- 8711500197825
- Order Code 928082205115

Product Features
- Warm colour impression
- Good Colour rendering CRI>80
- Retrofit in double-ended luminaires for quartz metal halide lamps (MHN/W-TD), thereby allowing to reduce operating costs and improve colour quality
- Burning position horizontal +/-45 Deg
- ANSI Code C139/E

Product Benefits
- Stable colour impression over lifetime
- High lamp efficacy results in low operating costs and low heat generation. Provides better operating costs and improved light quality versus standard quartz metal halide (MHN/W-TD)
- Long lamp life compared with incandescent, halogen and quartz metal halide (MHN/W-TD) lamps
- Relatively low heat output enhances comfort for shoppers and staff
- UV-Block for reduced fading risks

Environment
- Good environmental choice because of high energy efficiency and long reliable life
- This product is RoHS compliant
Application
- Shops and shop windows, offices and public buildings
- Decorative outdoor: floodlighting of facades, statues and monuments
Luminaires
- Must be used in closed luminaires with a hard-glass cover

Manual:

Philips 231605 MasterColor CDM-TD 70W/830 RX7s T6
