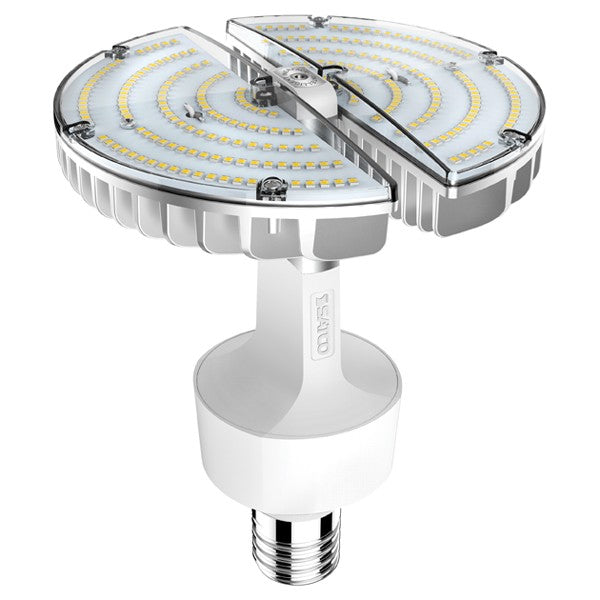

Satco 70W LED EX39 Mogul extended base rotatable Direct wire 100-277V 4000k

Satco 70W LED EX39 Mogul extended base rotatable Direct wire 100-277V 4000k

FEATURES:
- Light panels rotate and angle
- Built-in surge protection - 4KV
- IP64 rated
- Direct wire range voltage 100-277V
- Approved for enclosed fixtures

APPLICATIONS:
- Indoor/outdoor direct replacement
- Street lamps/shoe box
- High bays/low bays
- Parking garages
- Commercial and industrial security
- Gymnasiums and other high ceiling applications.
- Outdoor canopies

ACCESSORIES:
- 80-954 Hi-Pro WiFi Module
- 80-955 Hi-Pro Motion Sensor/PIR
- 80-956 Hi-Pro Photocell
- 80-957 Hi-Pro Motion Sensor/MW

Manufacturer	Satco
NAED	S13121
UPC	045923131219
Volt	100-277v
Watts	70w
HID Equivalent	250w
Power Factor	0.9
Base	EX39 Mogul Screw
ANSI Base	EX39
Lamp Code	70W/LED/HID/HP360/840K/100-277V
Dimmable/Non-Dimmable	Dimmable
Finish	White
MOL In Inches	11-13/16 in
MOD In Inches	7.00 in
Initial Lumens	10500lm
Average Rated Hours	50,000 hours
Kelvin Temp	4000k
Color	Cool White
CRI	80
Beam Spread Deg	360
Burning Position	Universal
Operating Temperature	Enclosed fixture -30C (-22F) to a maximum of +45C (+113F); Open fixture -29C (-20.2F) to a maximum of +60C (140F)
CA Title 20	Lawful for sale in California
RoHS Compliant	Yes
Fixture Type	Enclosed Rated Lamp
UL or ETL Listed	Yes
UL Classification	cULus Classified - Damp Location Rated
Warranty	5 Year Limited Warranty

Manual:

S13121 Data Sheet
