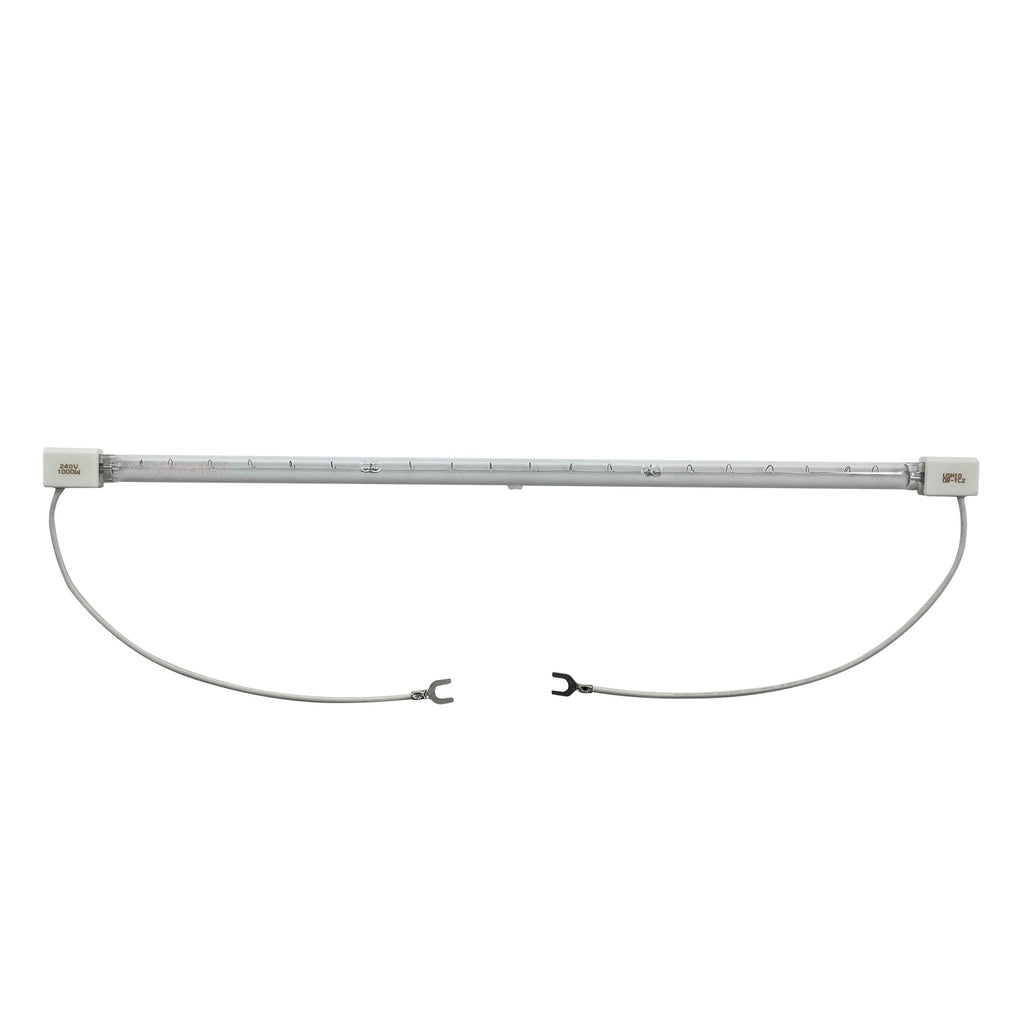

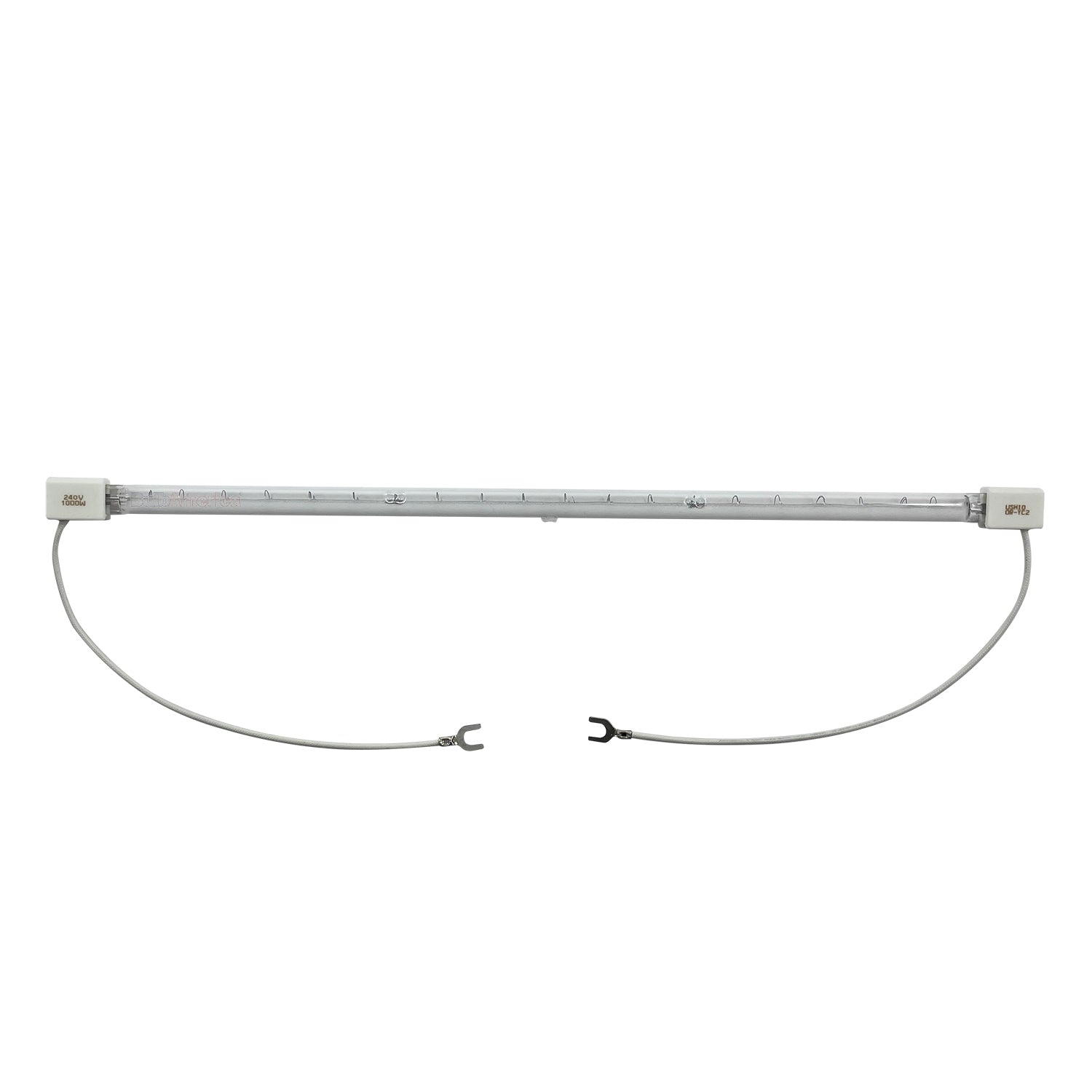

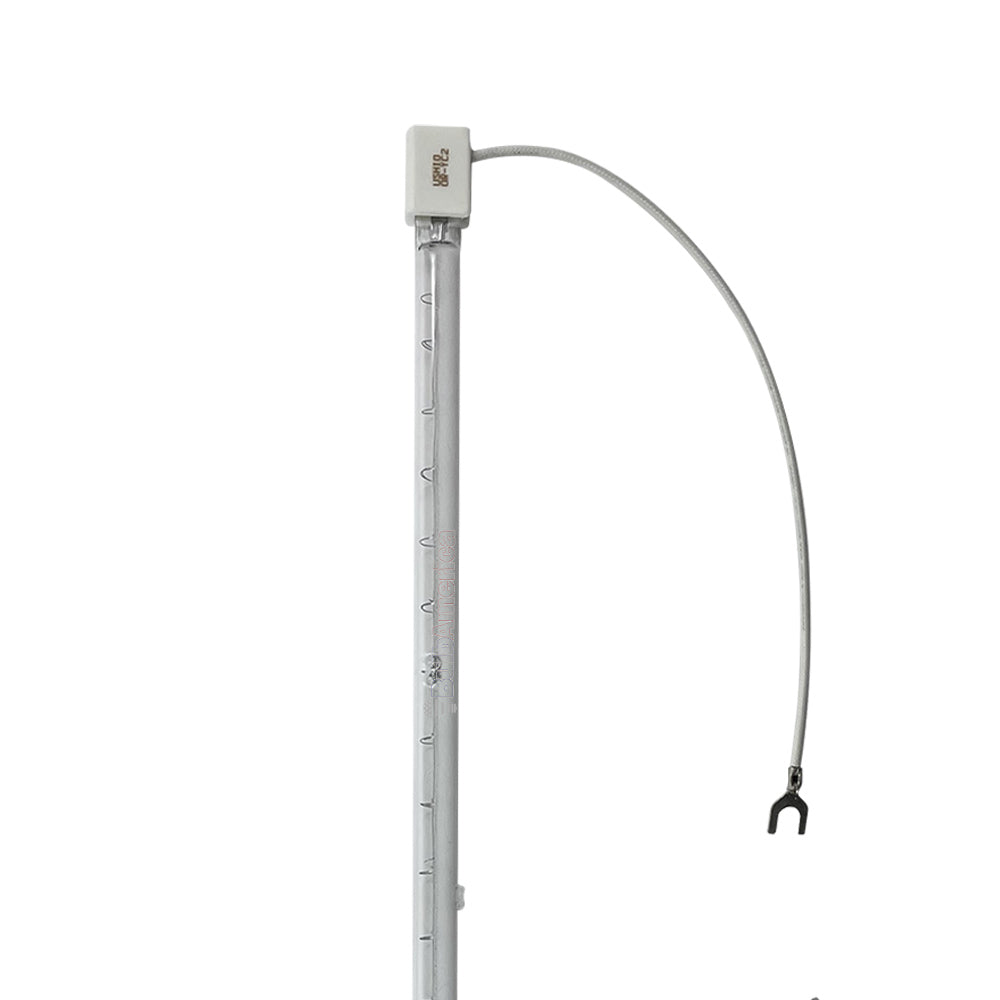

USHIO 1000w QIH240-1000/VZD (#26) Quartz Infrared Heat Lamp

USHIO 1001322 - 1000w QIH240-1000/VZD (#26) Quartz Infrared Heat Lamp

The Double Ended halogen bulb has a rated life of 5000 hours.
The Double Ended bulb provides a bright whiter light than incandescent bulbs.
With over 85% of the light converted into heat and instant on and off, makes this lamp easier to control and manipulate by use of lenses and reflectors. This bulb has a 5000 hours rate life with consistent output.

Description: QIH240-1000/VZD, 13713Z/98 1000W 240V
Prod. ID / ANSI Code: QIH-1004
Base: FC
Rated Life: 5000h

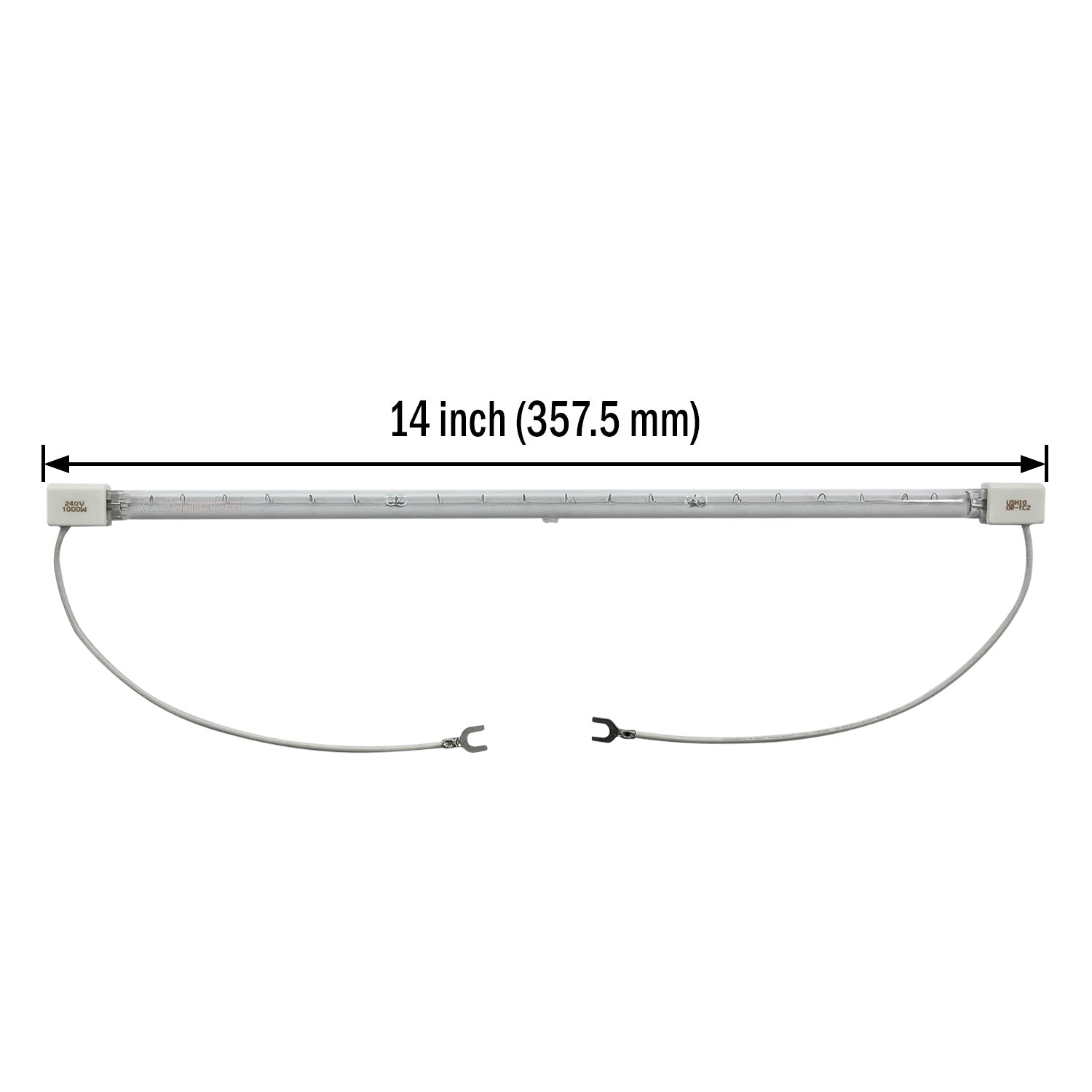

Maximum Overall Length: 14 inch (357.50mm)

USHIO Code Item	1001322
Product Series	Heater Infrared
Prod. ID / Ansi Code	QIH-1004
Description	QIH 240-1000/VZD
Description 2	13713Z/98 1000W 240V
Item type	Halogen
Base	FC
Voltage	240
Wattage	1000
Burn Position	V
Bulb Shape	T3
Bulb Finish	CLEAR
Color Tepm	2500
Filament	C-6
Front Glass Cover	NO
Rated Life	5000
Diameter	10
MOL (mm)	357.5
Lighted Length (lm)	272

Manual:

Ushio Heat Bulbs Manual
Ushio 1001322 Lamp Data Sheet
