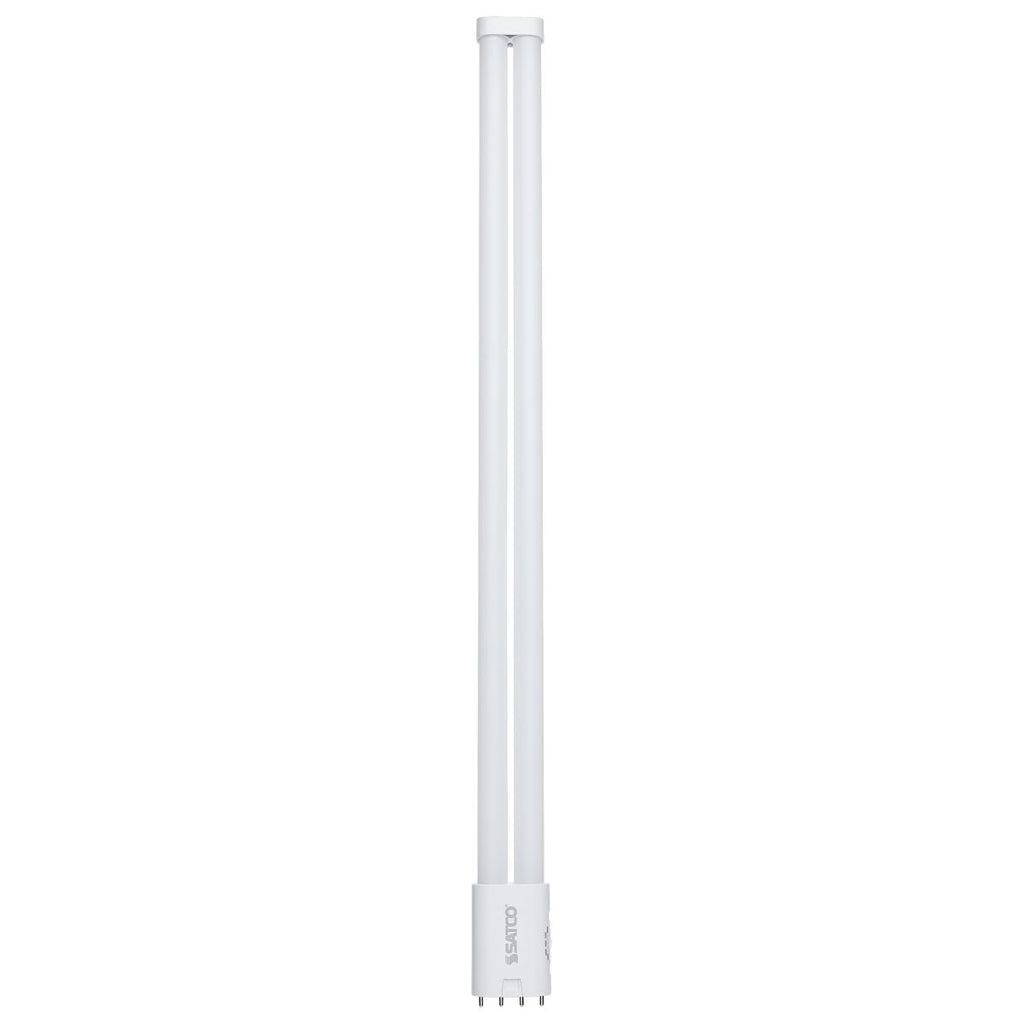

Satco 20w PLL LED 2G11 Base CCT Selectable Ballast Bypass 120-277v Bulb

Satco SKU: S18423
$2099 $37.99 USD
1830 in stock




Description

SATCO NUVO innovative S18423 20W PLL lamp offers an easy solution for upgrading older luminaires to the energy-efficient benefits of LED technology. By utilizing a Type B ballast bypass, this lamp will replace outdated, less efficient CFL tubes, consuming less energy while significantly extending the lifespan of the lamp. Available in five CCT options, users can customize their lighting environment with color temperatures ranging from a warm 3000K to a crisp daylight white of 6500K. Designed for use in enclosed fixtures, this lamp ensures safe and efficient operation. The durable PET coated glass tubing enhances light quality and provides higher heat resistance. The exceptional versatility and energy savings of this lamp make it an ideal choice for both residential and commercial applications.

Features:
- Watts: 20W, Rated Life: 50000 hrs
- Volts: 120V-277V, Shape: T5
- Base: 2G11, Ansi Base: 2G11
- Finish: Frost, Lumens: 2650L/2700L/2800L/2800L/2800L

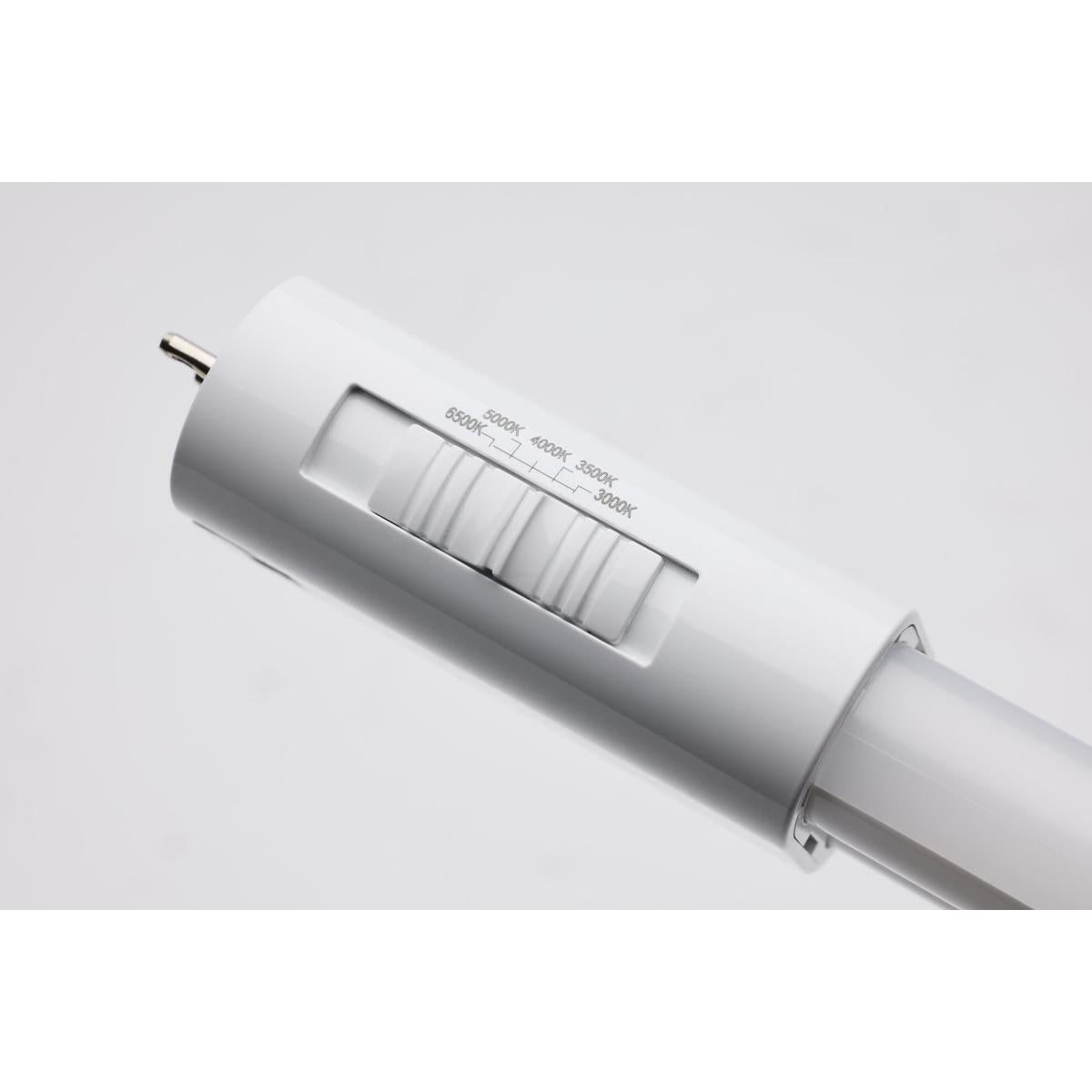

- Temperature: Soft White to Daylight, CCT (Kelvin): 3000K/3500K/4000K/5000K/6500K
- Warranty: 5 Year Limited

Specs

General
Watts 20W
Volts 120V-277V
Shape T5
Base 2G11
Ansi Base 2G11
Finish Frost
CCT (Kelvin) 3000K/3500K/4000K/5000K/6500K
Temperature Soft White to Daylight
CRI 80
Lumens 2650L/2700L/2800L/2800L/2800L
Beam Spread 140
Dimmable Non-Dimmable
Rated Life 50000
Electrical
Operating Frequency 60Hz
Power Factor 0.9
Operating Temperature -20C (-4F) to 45C (113F)
Physical

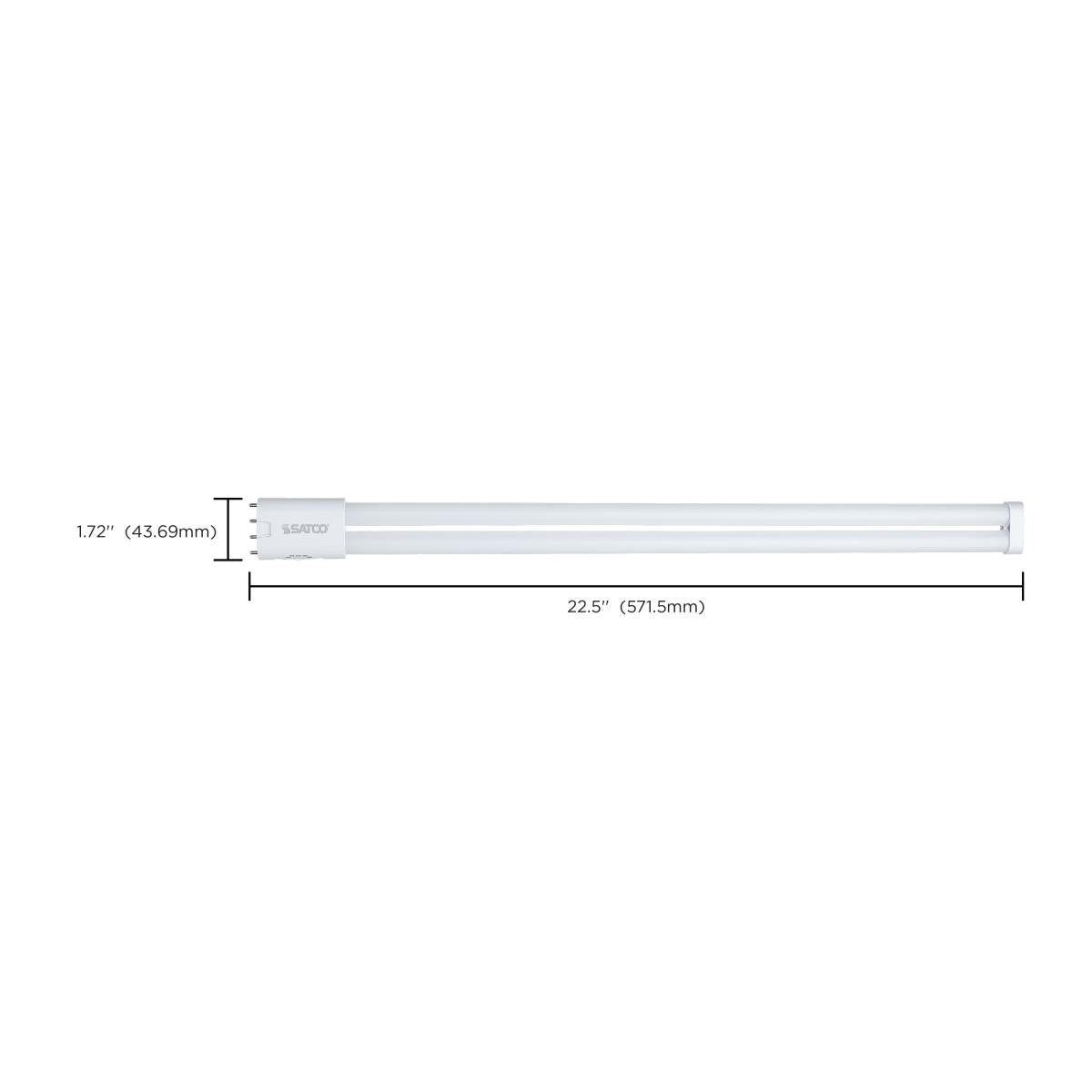

MOL 22.5
MOD 1.72
Housing Color White
Weight (lb.) 0.37
Additional Information
Rated For Enclosed Fixture Yes
Installation Notes Not for use in vapor tight fixtures.
Warranty 5 Year Limited
Compliance
Safety Listing cRUus - Recognized Component;cULus - Certified;cULus - Classified
Location Rating Damp
California Status Lawful for sale
Title 20 / 24 Status Lawful for sale
RoHS Compliant Yes
FCC Compliant Yes
