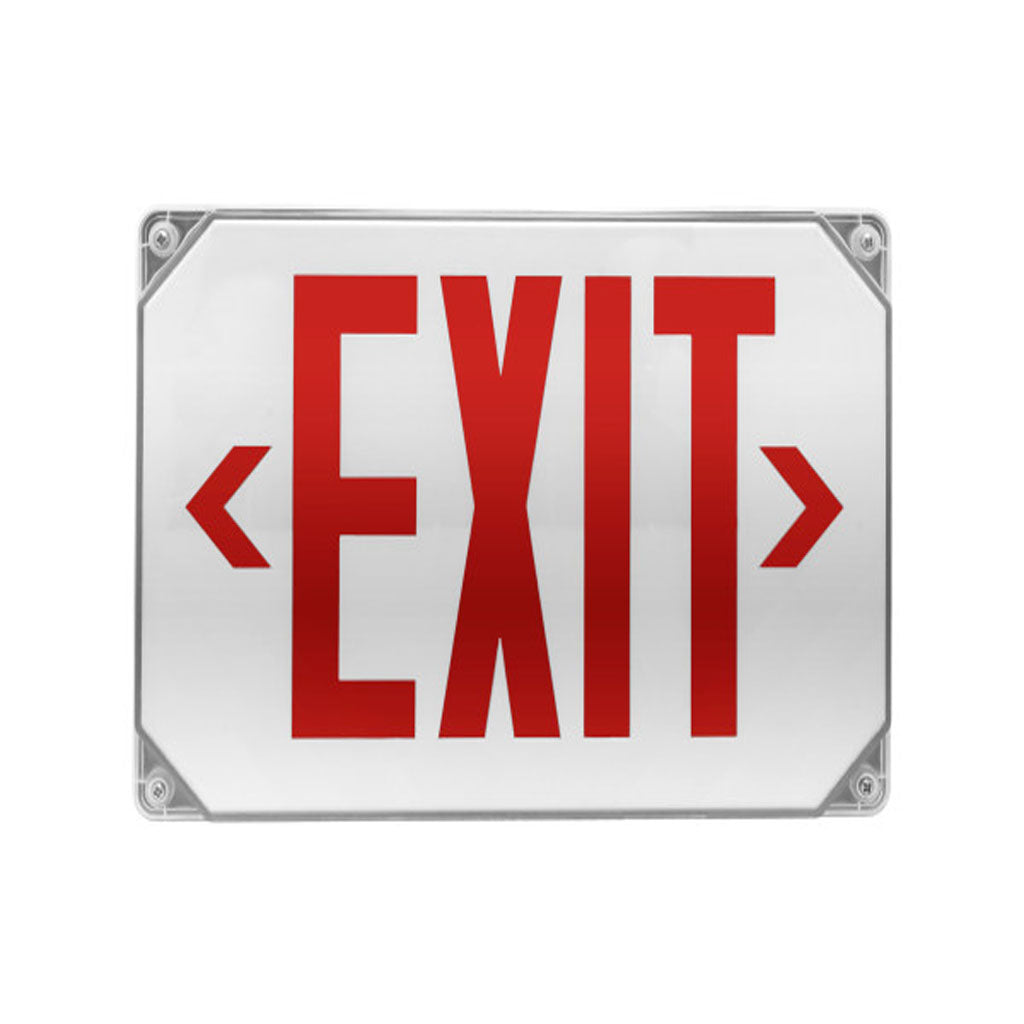

Nicor EXL5 Series LED Outdoor Emergency Exit Sign Red Lettering

The NICOR EXL5 Series Outdoor LED Exit Sign is code compliant for Outdoor, Wet Location, and Battery Backup requirements. It features a durable corrosion-resistant polycarbonate shield to ensure a wet-location rating. it is constructed using a new injection-molded ABS thermoplastic housing that is flammability (UL-94-V-0) rated. The EXL5 includes a Nickel-Cadmium battery to provide 90-minute emergency run-time that kicks on if the power goes out. The EXL5 uses less than 3.6-Watts of electricity and can be installed in both 120-Volt and 277-Volt applications. The low-profile design keeps the fixture lightweight and easy to install. It can be surface mounted to a wall or ceiling using the included mounting bracket with EZ quick-connect. The EXL5 includes an additional faceplate for the backside (if required) and removable chevron arrows. The EXL5 is Wet-Location rated and protected by NICOR 1-Year Limited Warranty.

Features:
- Suitable for Outdoor and Wet-Location settings
- Sealed Polycarbonate shield protects internal components
- 90-minute emergency battery backup (UL 924 compliant)
- 1.2-Volt maintenance-free Nickel-Cadmium 500mAh battery
- Injection molded thermoplastic ABS housing (UL94-V-0 rated)
- Dual-Voltage for residential and commercial applications (120/277V)
- Features a Push-To-Test button with indicator light
- Includes universal mounting plate for ceiling or wall mount installation
- Mounting Hardware and installation instructions included
- Available with red or green lettering
- Removable covers for directional chevron arrows
- UL Listed for wet locations
- Protected by NICOR 1-Year Limited Warranty

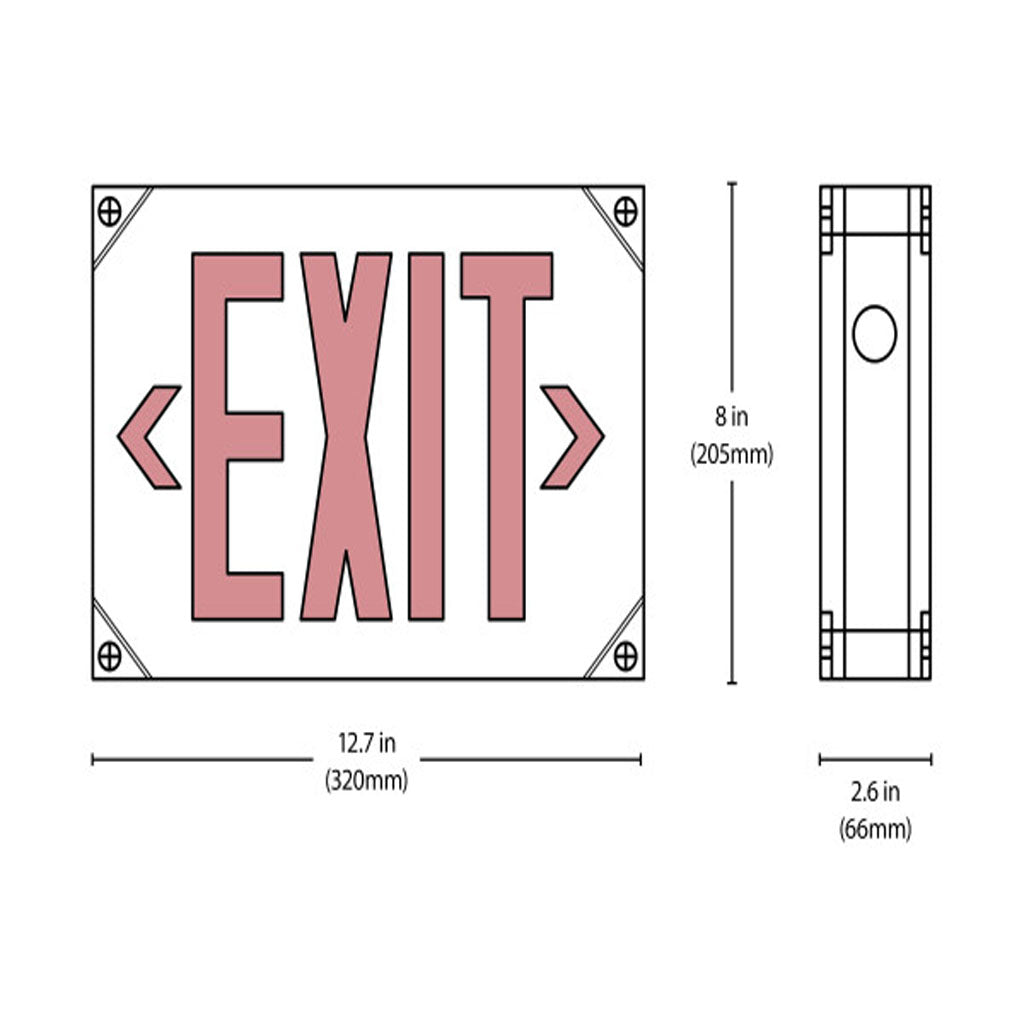

Size	12.7
Product Color	White, Red Letters
Finish	Textured
Light Source	LED
Wattage	3.6
Wattage Equivalent	25
Operating Temperature	5F to 104F (-15C to 40C)
Listings/Certifications	UL Listed, cUL Listed, UL 924 Listed, UL-94-V-0 Flame Retardant, BC (CEC Title 20), Wet-Location
Warranty	1 Year Limited
