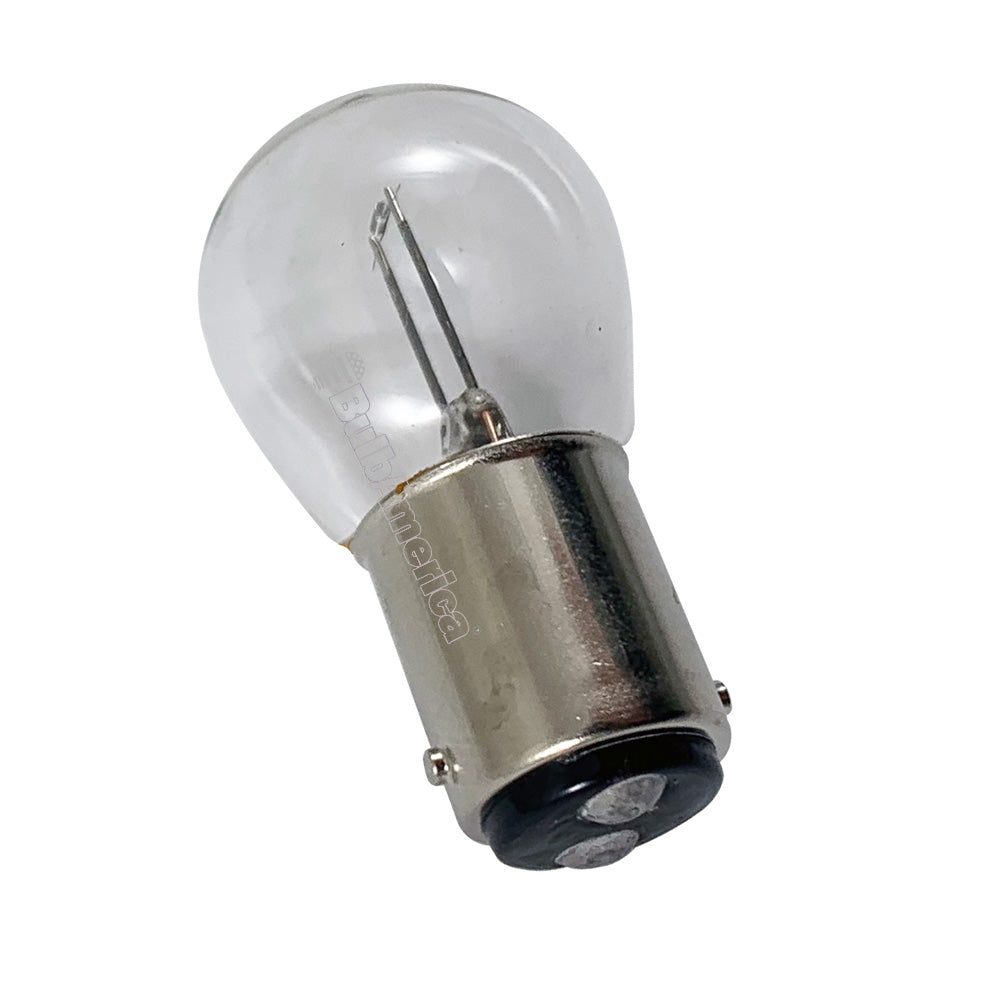

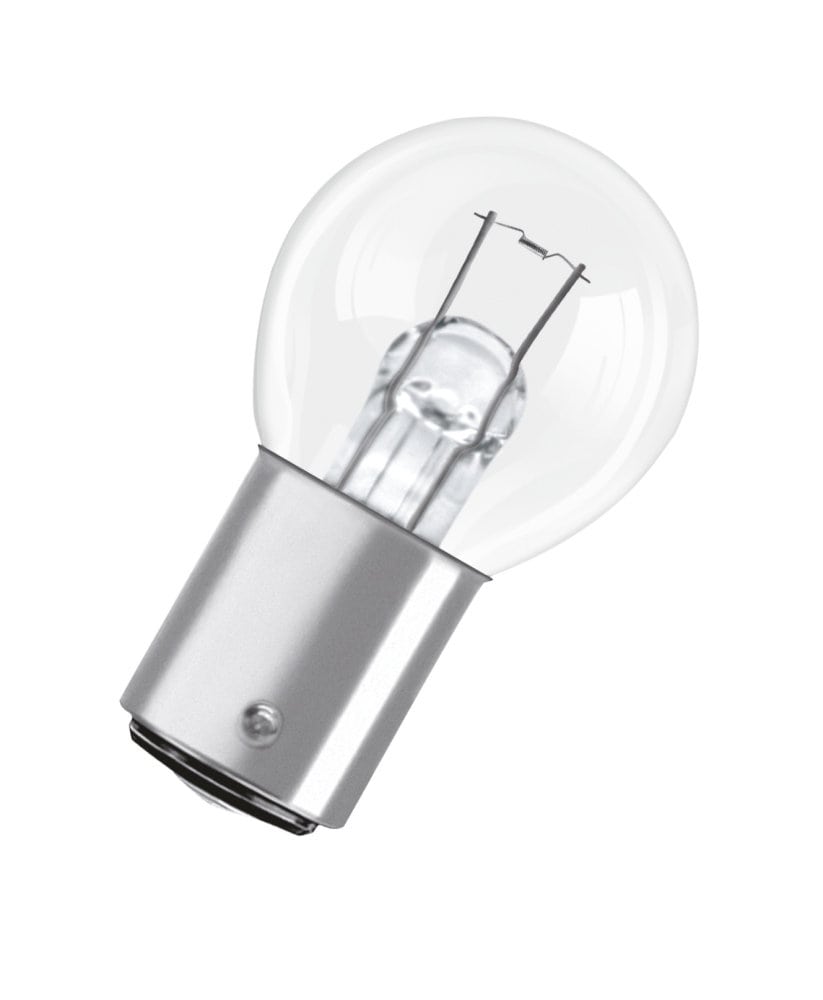

OSRAM 8013 10W 6V P25 BA15d Base Film Projector Bulb

OSRAM SKU: 76311
$2699 $43.99 USD
34 in stock




1

Description

Osram 8013 10 watt P25 Incandescent Lamp

Features:
- ANSI Code: SM-8013, BC8972
- Wattage: 10W
- Voltage: 6V
- Base: BA15d Double Contact
- Average Rated Life: 200 hours
- Diameter: 0.97in (25mm)
- maximum Overall Length: 1.81 in (46mm)

Cross Reference:
- Ushio 8000266 SM-8013/6V-10W

Applications:
- film projector lamps

Specs

Manufacturer OSRAM
Part Number 76311
UPC 046135763113
EAN 4050300206356
Manufacturer OSRAM
Part Number 23397
UPC 046135233975
EAN 4008321378316
Manufacturer OSRAM
Part Number 23397
UPC 046135233975
EAN 4008321378316
Abbrev. With Packaging Info. 8013
Application Projector
Average Rated Life (hr) 200
Base BA15d Double Contact Bayonet
Bulb P25
Class C (gas)
Color Rendering Index (CRI) 100
Diameter d (in) 0.984
Diameter d (mm) 25
Distance a (in) 1.17
Distance a (mm) 30
Filament Dimensions Length (in) 0.035
Filament Dimensions Length (mm) 0.9
Filament Dimensions Width (in) 0.066
Filament Dimensions Width (mm) 1.7
Lamp Finish Clear
Length l (in) 1.794
Length l (mm) 46
Length l max. (in) 1.794
Length l max. (mm) 46
Maximum Overall Length - MOL (in) 1.794
Maximum Overall Length - MOL (mm) 46
Nominal Voltage (V) 6
Nominal Wattage (W) 10
Operating Position h 105
Type of Current AC
‎
