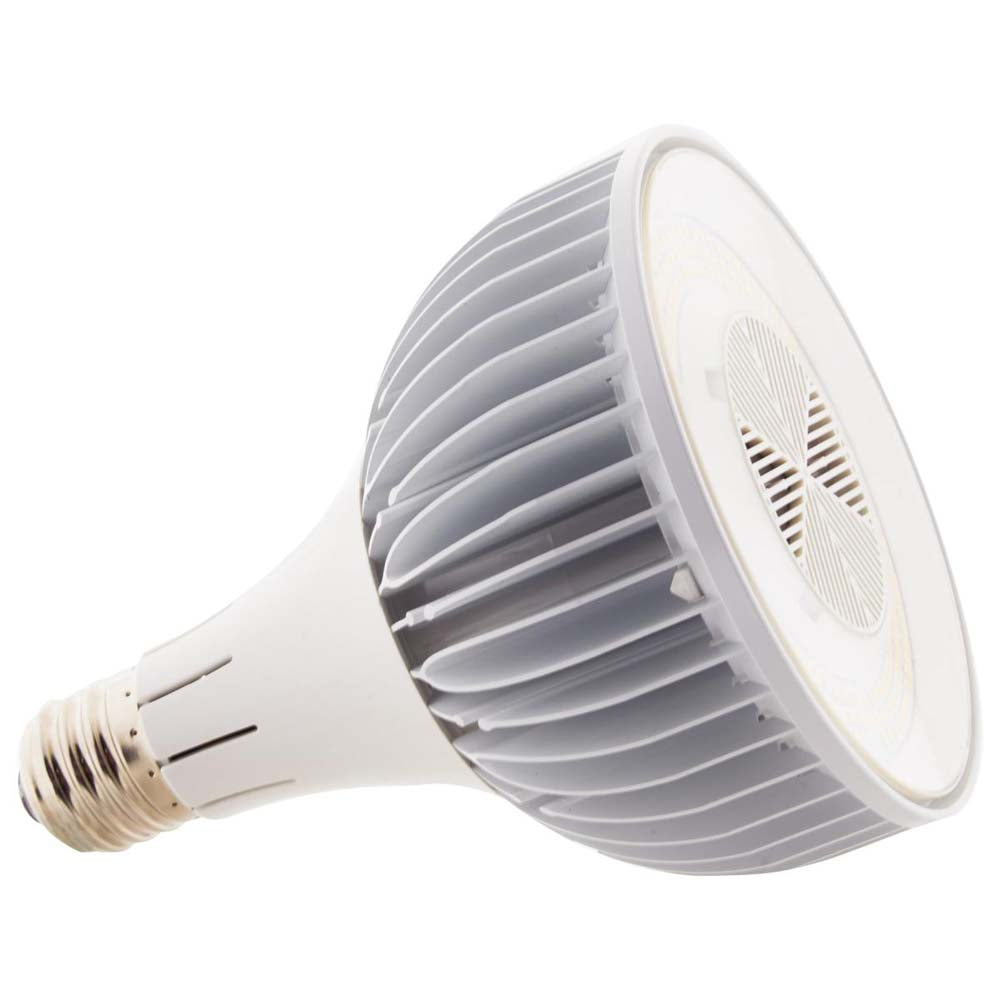

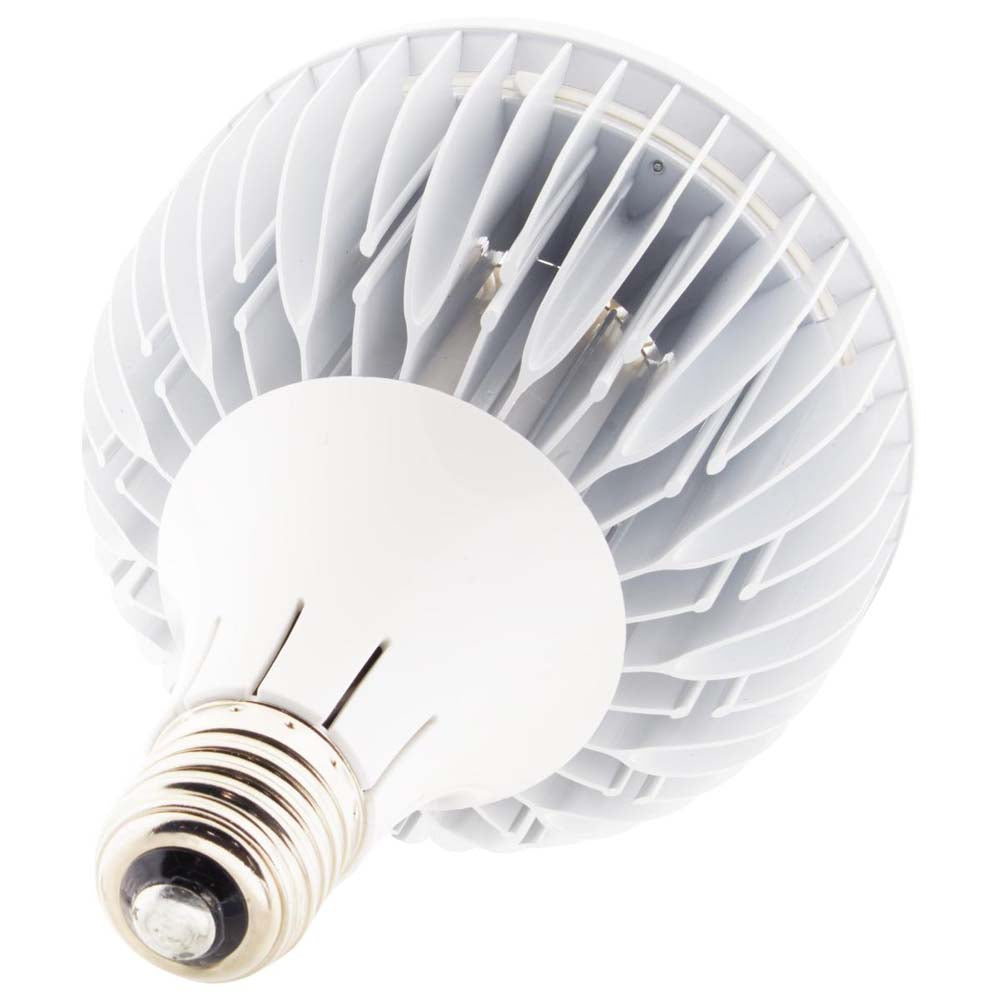

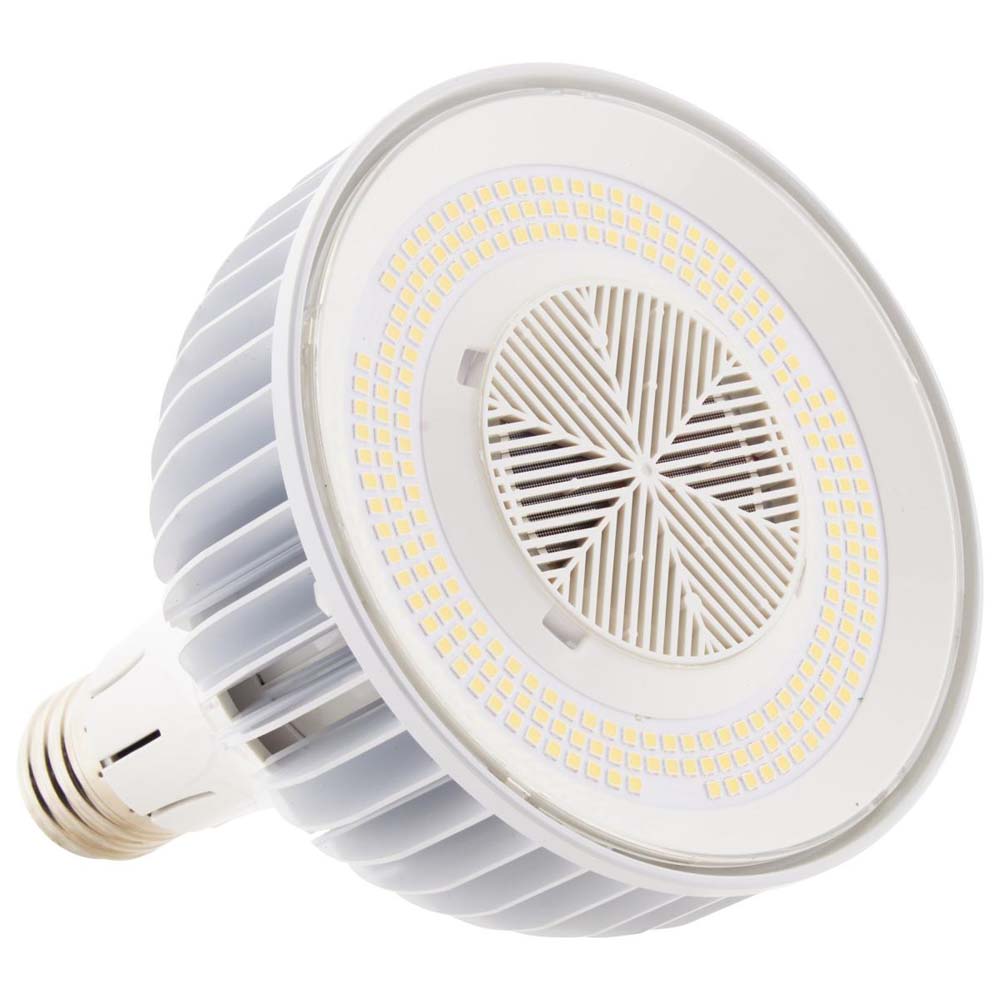

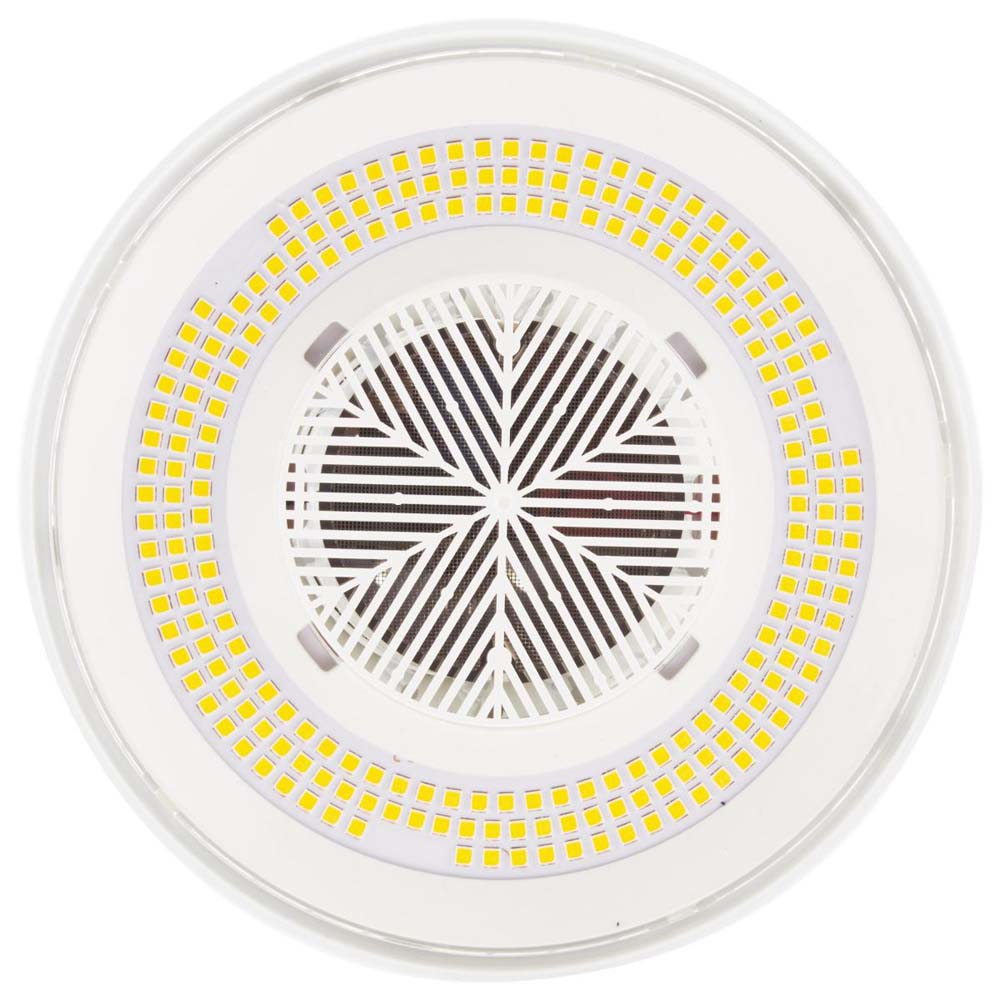

100W LED HID Replacement 4000K EX39 Ballast Bypass 120-277v - 400W equiv

Satco 100-watt high bay LED lamp is a versatile and efficient lighting solution for those difficult lighting situations. Illuminate warehouses, gymnasiums, health clubs, and factories with this high lumen, LED lamp. Reduce maintenance and energy costs with this dimmable lamp rated for 50,000 hours of cool white light.

Features:
- Watts: 100W, Incandescent Equivalent: 500W
- HID Equivalent: 400W
- Volts: 120V-277V, Shape: HB51
- Base: Mogul Extended, ANSI Base: EX39
- CCT (Kelvin): 4000K, Temperature: Cool White
- CRI: 82, Lumens: 15500L
- Beam Spread: 180
- Rated Life: 50,000 hrs
- Warranty: 5 Year Limited

General
Watts	100W
Incandescent Equivalent	500W
HID Equivalent	400W
Volts	120V-277V
Shape	HB51
Base	Mogul Extended
ANSI Base	EX39
CCT (Kelvin)	4000K
Temperature	Cool White
CRI	82
Lumens	15500L
Beam Spread	180
Rated Life	50,000 hrs
Lamp Type	Hi-Bay Flood
Technology	LED
Electrical
Operating Frequency	50/60Hz
Power Factor	0.9
Operating Temperature	-40C (-40F) to +60C (+140F)
Physical
MOL	8.15
MOD	6.34
Lens Finish	Clear
Lens Material	Glass
Housing Color	White
Weight (lb.)	2.09
Additional Information
Rated For Enclosed Fixture	Yes
Warranty	5 Year Limited - Hi-Pro
Compliance
Safety Listing	cULus - Listed
Location Rating	Damp
Energy Star	No
California Status	Lawful for sale
RoHS Compliant	Yes
FCC Compliant	Yes

Manual:

S13152 Data Sheet
S11730 Installation Manual
