100W LED HID Replacement 5000K Mogul extended base 100-277v - 400W equiv

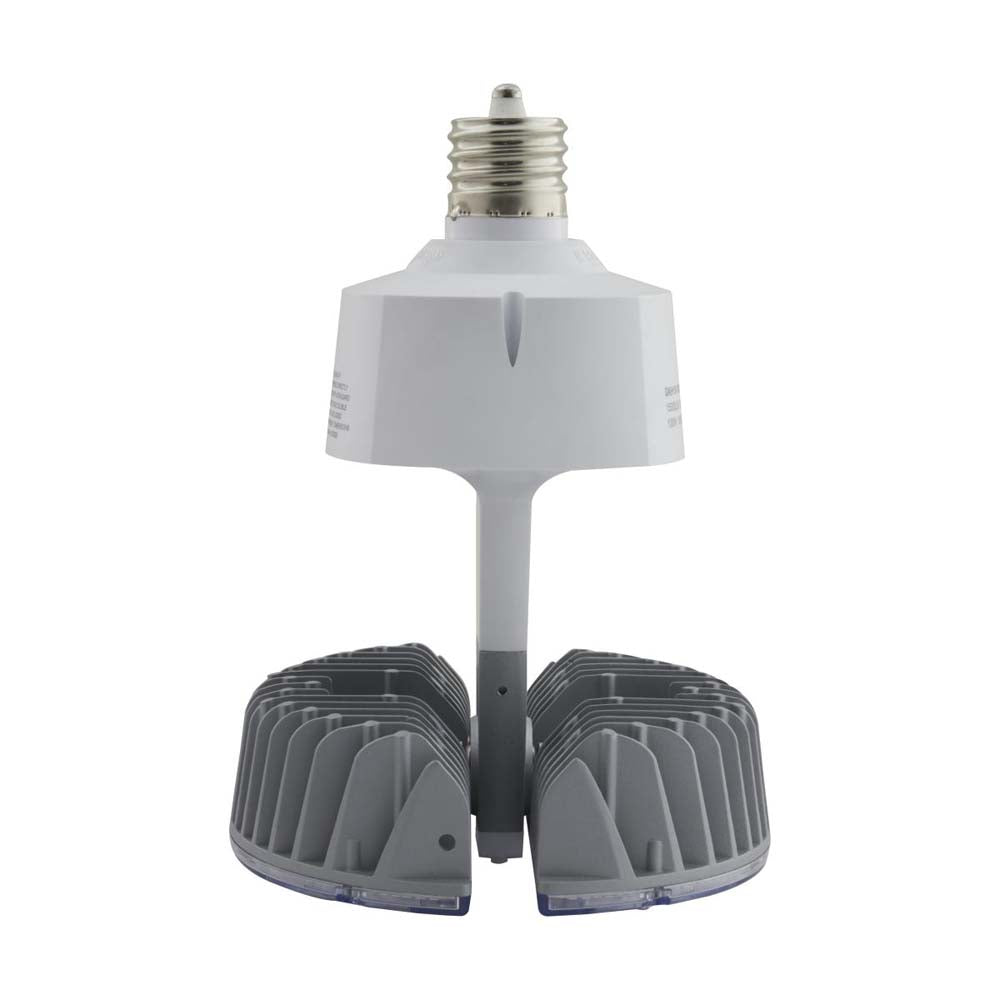

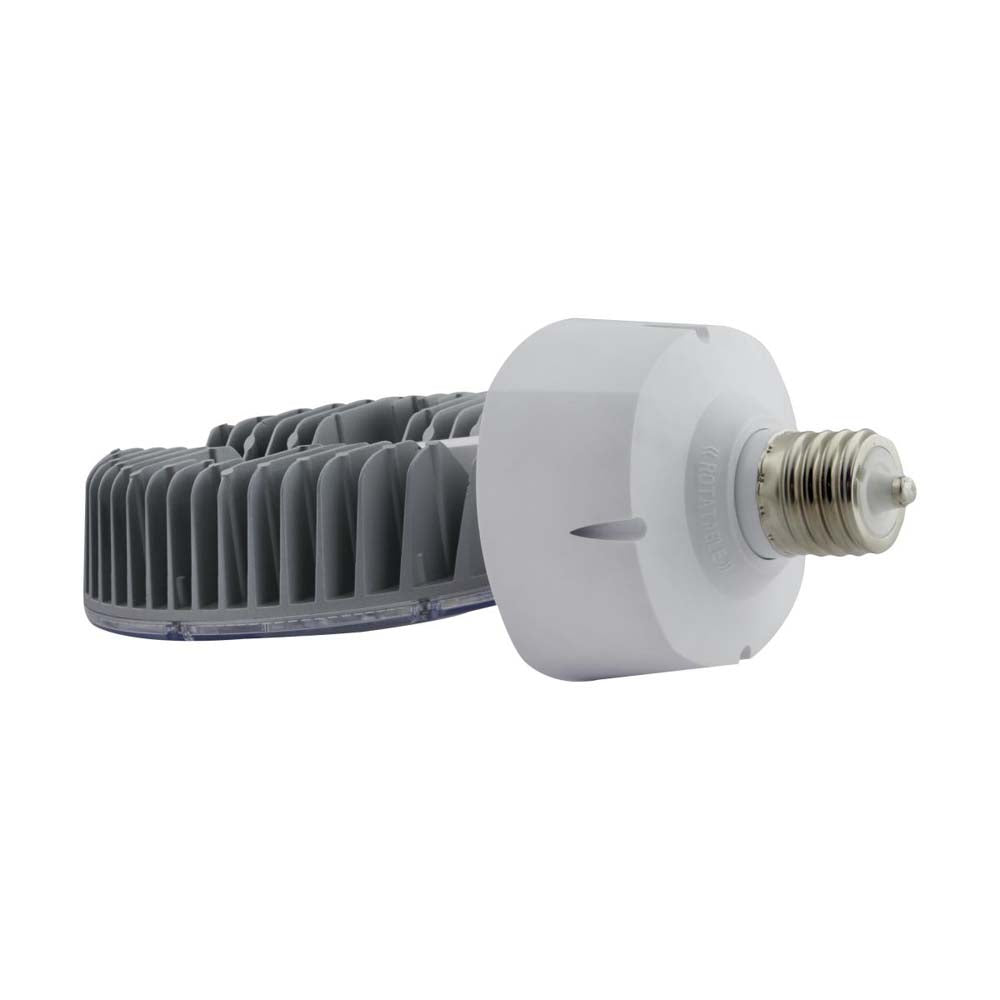

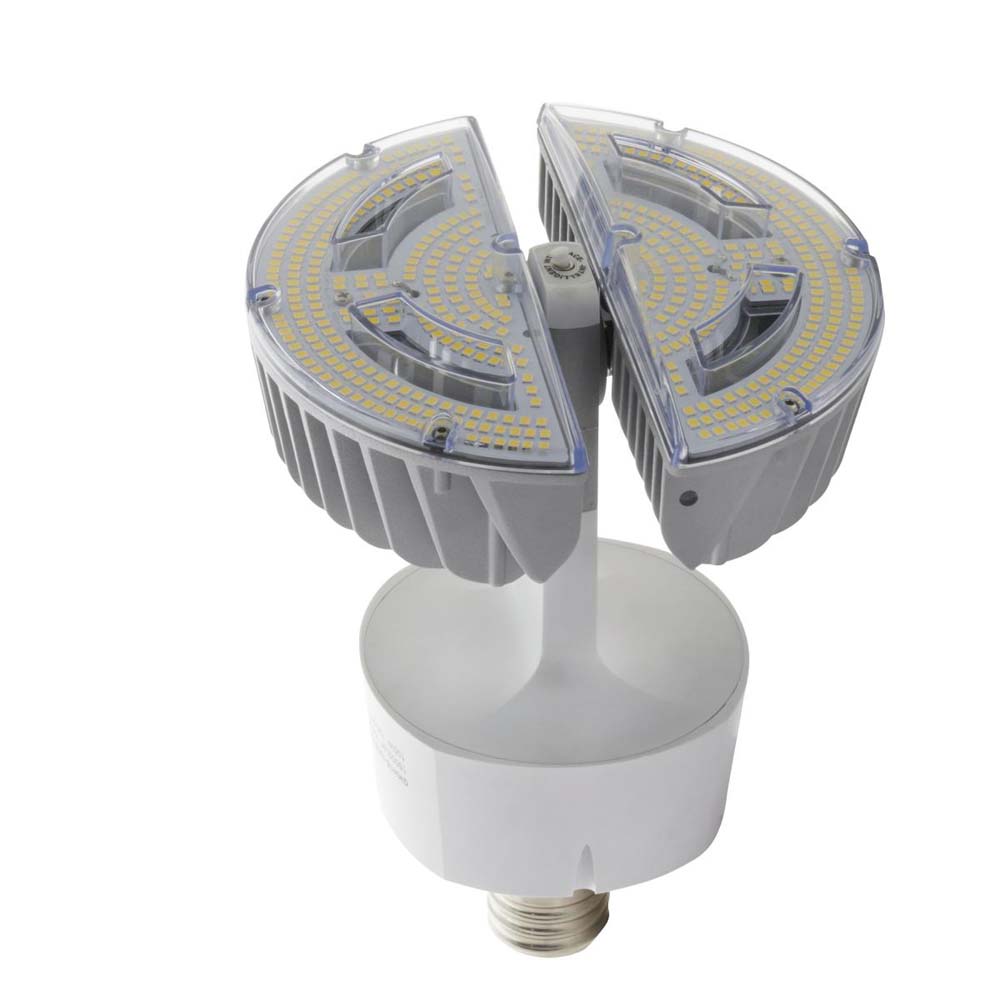

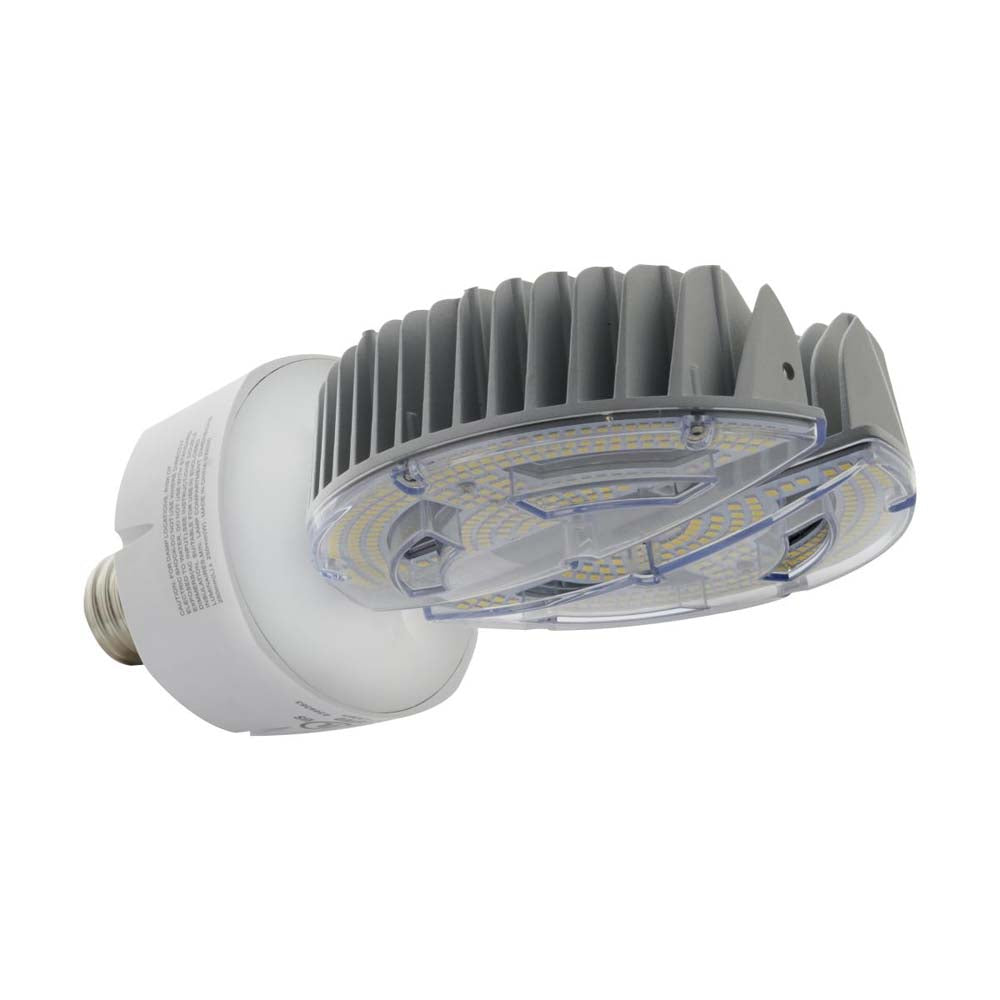

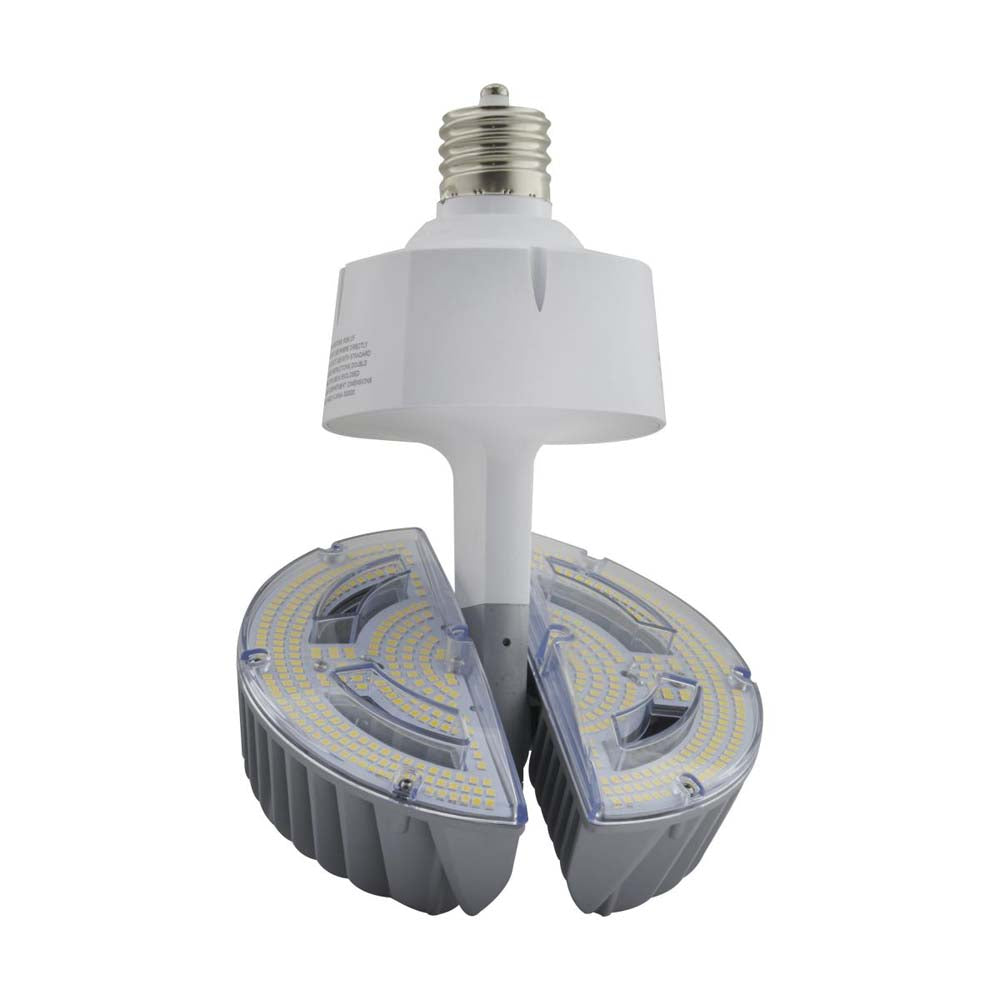

Satco multi-angle rotating base LED lamp with a folding panel design replaces HID, CFL and incandescent lighting indoors and outdoors. Applications consist of: high bays, low bays, garages, gymnasiums and other high ceiling applications. Optional Hi-Pro Sensors are available to purchase to fit your needs.

Features:
- Watts: 100W, Incandescent Equivalent: 400W
- HID Equivalent: 350W
- Volts: 100V-277V, Shape: UFO
- Base: Mogul Extended, ANSI Base: EX39
- CCT (Kelvin): 5000K, Temperature: Natural Light
- CRI: 80, Lumens: 15000L
- Beam Spread: 360, Dimmable
- Rated Life: 50,000 hrs
- Warranty: 5 Year Limited

General
Watts	100W
Incandescent Equivalent	400W
HID Equivalent	350W
Volts	100V-277V
Shape	UFO
Base	Mogul Extended
ANSI Base	EX39
CCT (Kelvin)	5000K
Temperature	Natural Light
CRI	80
Lumens	15000L
Beam Spread	360
Dimmable	Yes-Dimmable
Rated Life	50,000 hrs
Lamp Type	LED HID
Technology	LED
Electrical
Operating Frequency	50/60Hz
Power Factor	0.9
Operating Temperature	Open Fixture: -29C (-20F) to +60C (+140F); Closed Fixture: -30C(-22F) to +45C(+113F)
Physical
MOL	12.35
MOD	4.6
Lens Finish	Clear
Lens Material	Polycarbonate (PC)
Housing Color	White/Grey
Photocell	Has Photocell
Weight (lb.)	3.19
Additional Information
Rated For Enclosed Fixture	Yes
Warranty	5 Year Limited - Hi-Pro
Compliance
Safety Listing	cUL - Certified;cUL - Classified
Location Rating	Damp
Energy Star	No
California Status	Lawful for sale
RoHS Compliant	Yes
FCC Compliant	Yes

Manual:

S13127 Data Sheet
S11587 Installation Manual
