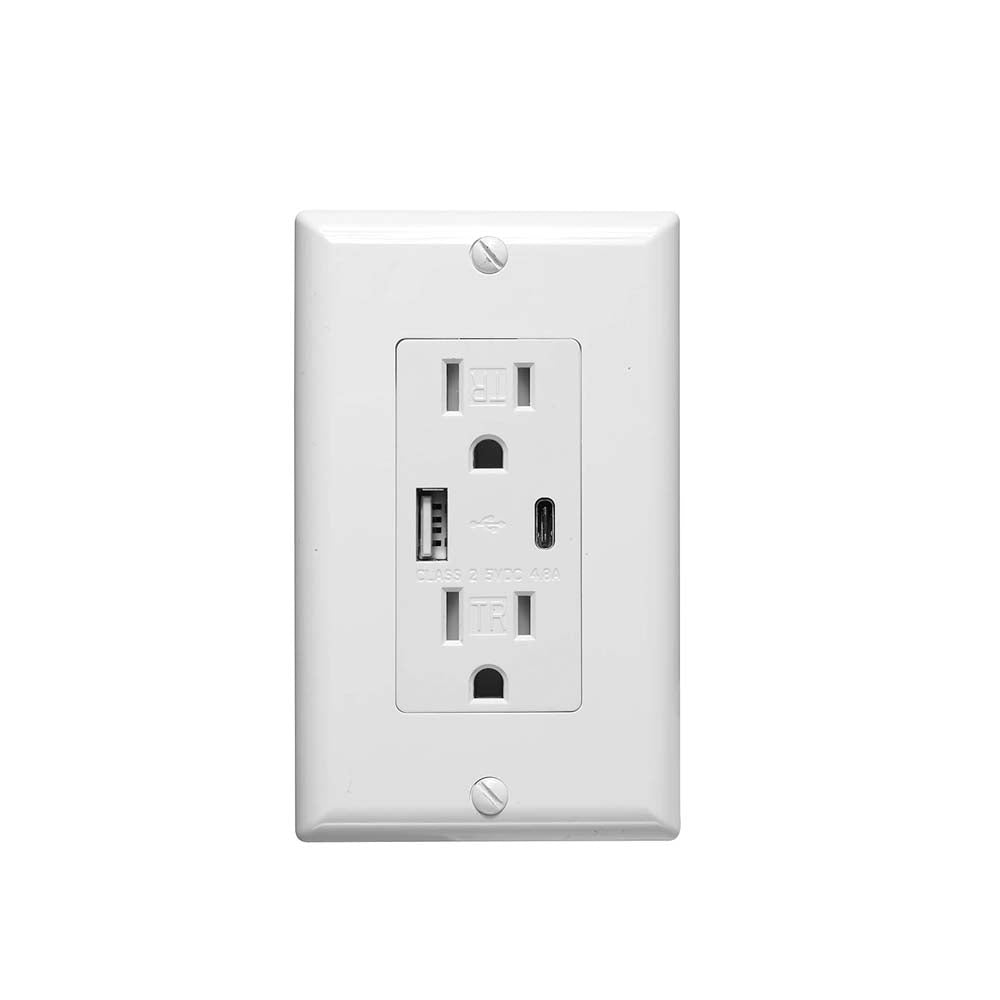

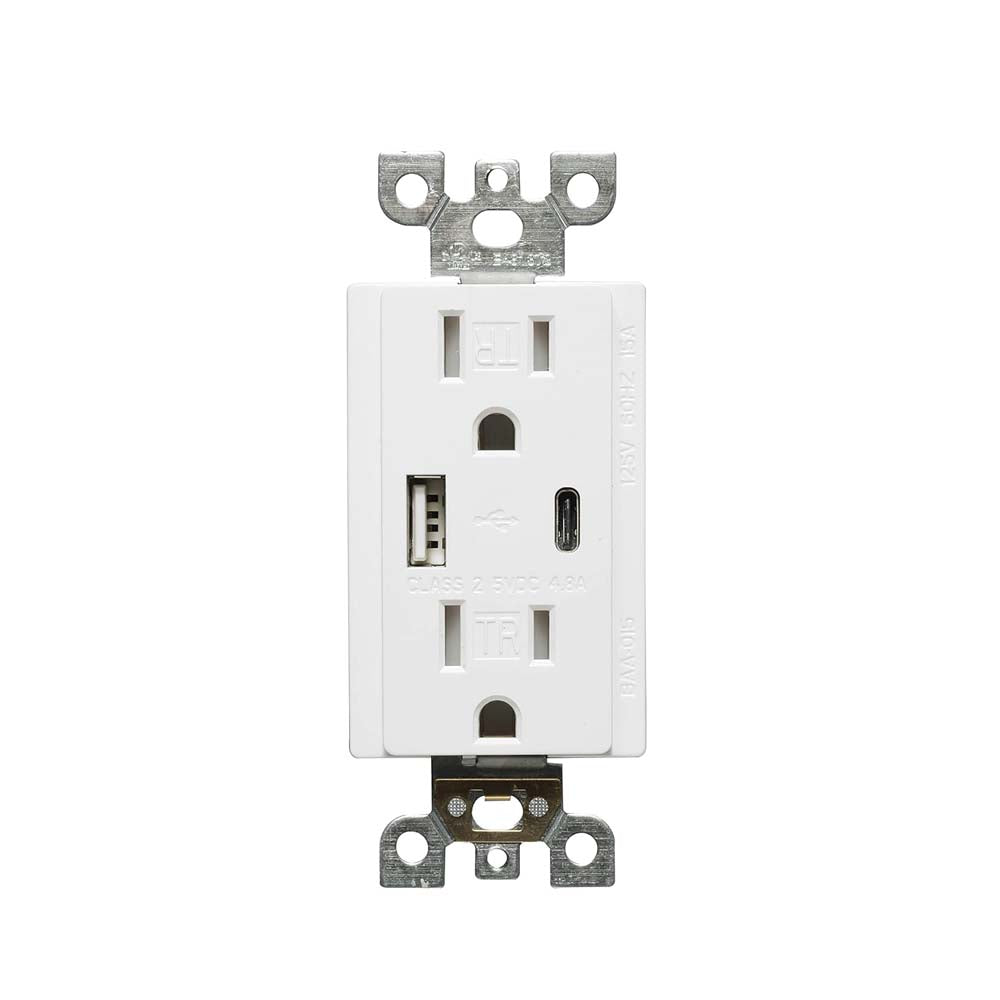

Sunlite USB Fast Charging Charger Duplex Receptacle 15 Amps 125v

Sunlite USB Charger and Duplex Receptacle, USB-A/C Ports, DC 4.8A 5A, 15A-125VAC, Decorator Style, Tamper Resistant, White with Cover Plate, for Fast Charging for Mobile Devices, UL Listed.

FEATURES:
- UPGRADE YOUR OUTLETS - This Sunlite USB Charger/Duplex Receptacle has one USB-A and one USB-C fast charging (DC 4.8A 5A).
- FAST CHARGING - Fast charging for mobile phones, tablets, headphones, battery packs, computers, peripherals, and more using only the charging cable leaving the receptacles free for other plug-in items.
- FOR HOME OR BUSINESS - Convenient charging anywhere in the home including the kitchen, home office, bedrooms, guest rooms, and more. Install them in hotel rooms, offices, restaurants, or anywhere you or your guests need convenience charging.
- EASY TO INSTALL - Easy to install on any standard junction box. Replaces any standard outlet. Back and side terminals for easy installation.
- A SAFER CHOICE - Tamper resistant outlet shutters prevent unwanted items from being inserted (Complies with 2017 NEC Code). UL Listed for safety and quality. Installation instructions included. 15A-125VAC. NEMA 5-15R.

General Characteristic
Finish	White
Dimmable	No
Material	Plastic, Metal
Application	Residential, Commercial
Use location	Indoor
Electrical Characteristic
Volts	125
Amps	15
Product Dimensions
MOL	4.13-in
Diameter	1.63-in

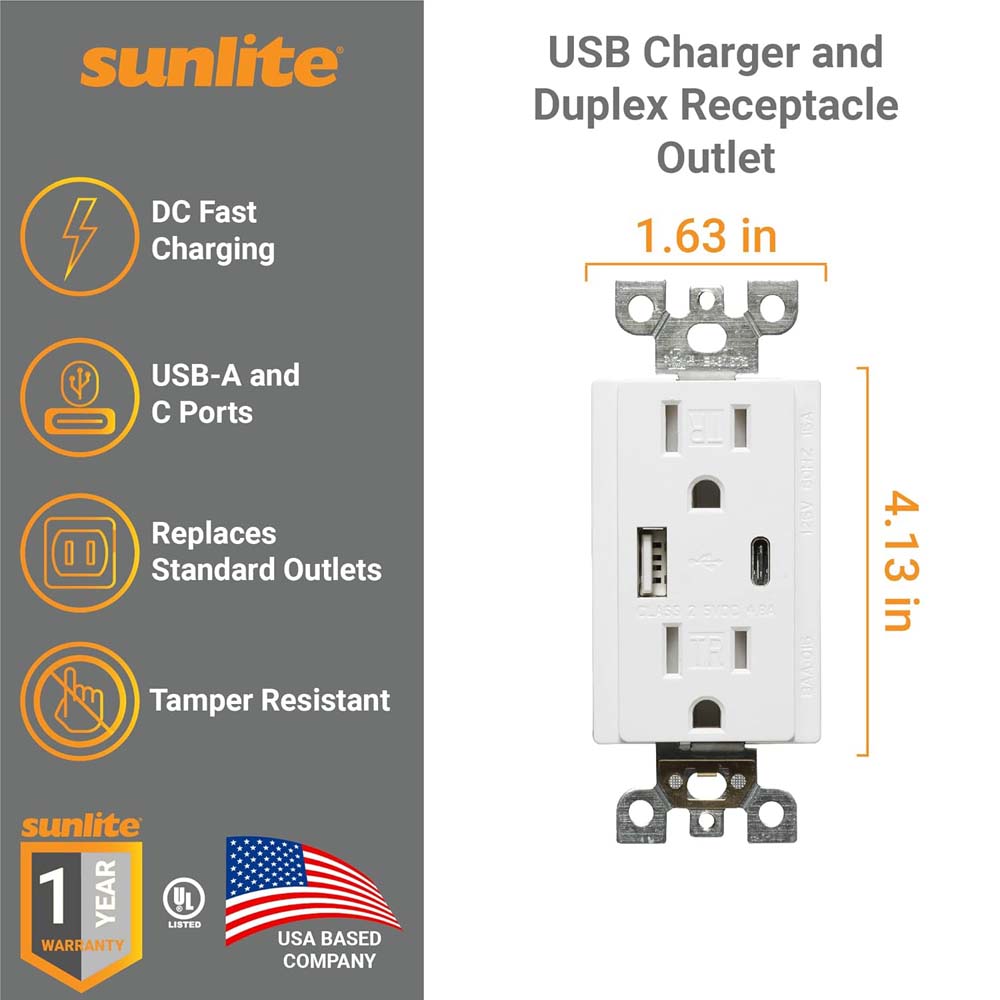

Item dimension	(W) 1.75 (H) 1.63 (D) 4.13
Package dimension	(W) 1.75 (H) 2.75 (D) 4.75
Package Weight	0.38
Product Data
Safety rating mark	UL Listed
UPC	653703081540
Warranty	See Packaging for Details

Manual:

08154-SU Data Sheet
