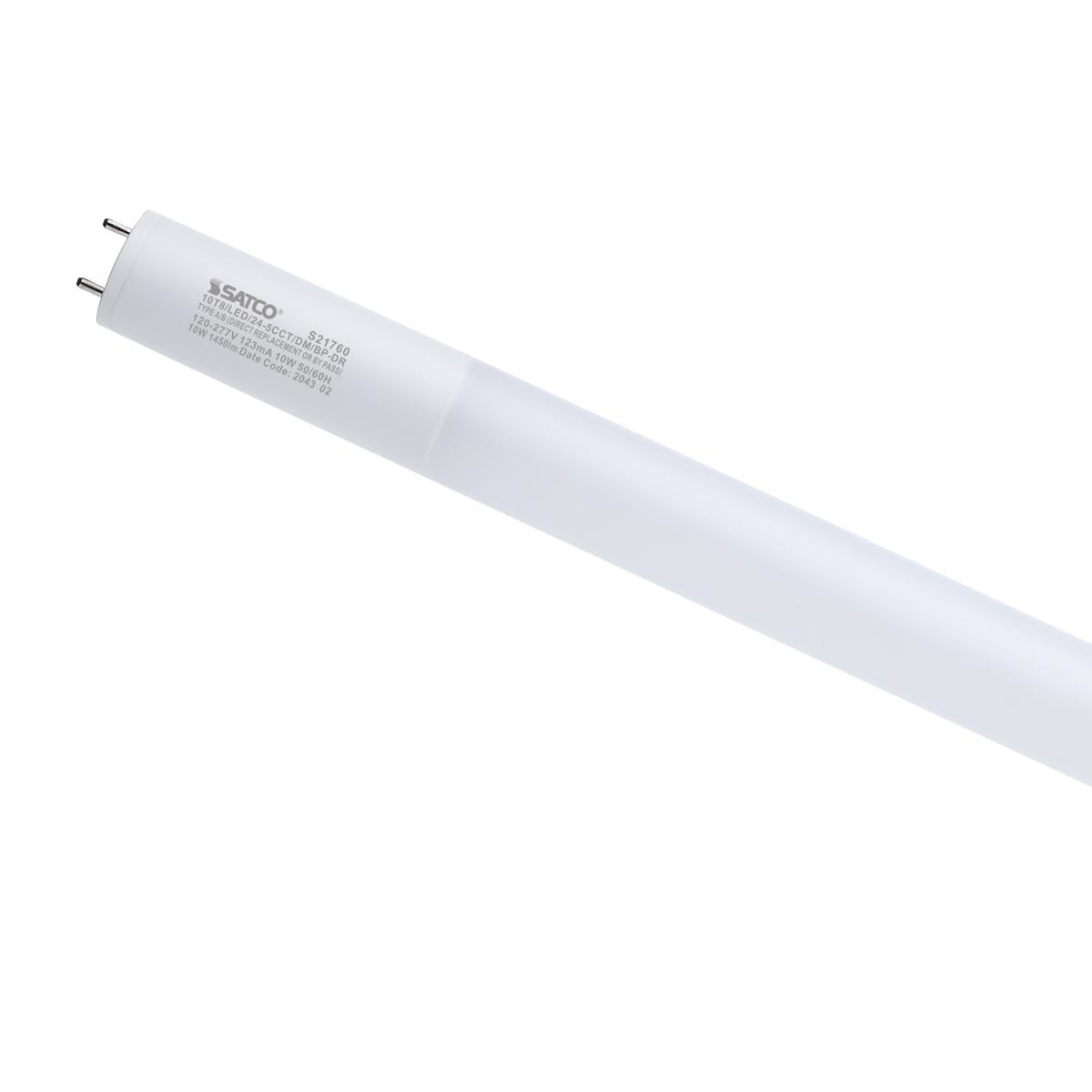

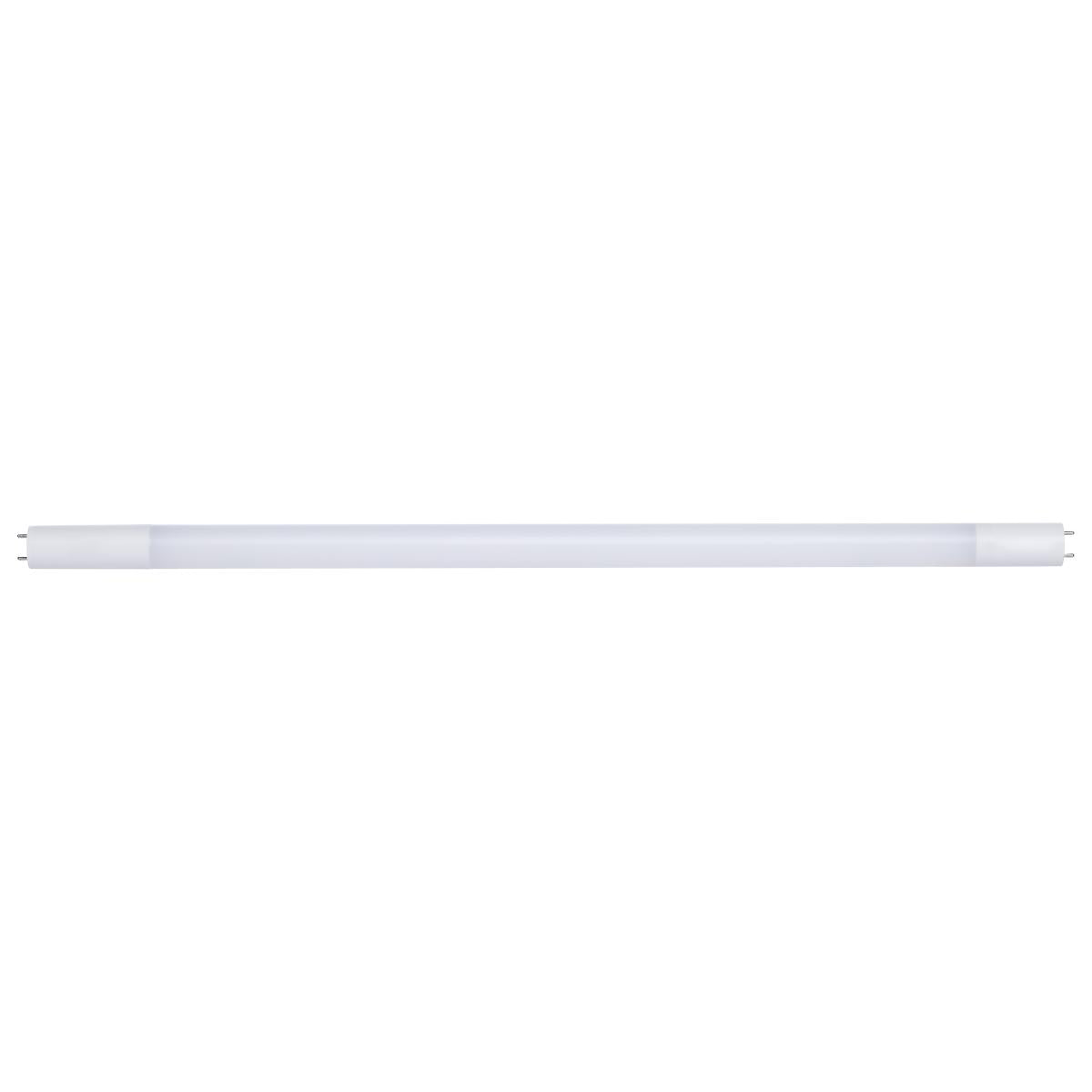

10W T8 LED 24-In CCT Selectable G13 Base Ballast Type A/B 120-277v Tube

Satco SKU: S21760
$1299 $28.99 USD
2239 in stock




Description

SATCO|NUVO LED T8 Lamps - Type A are range voltage compatible and CCT selectable for versatile for use in a variety of applications. With five selectable CCTs at installation, and dimmable with compatible ballats down to 20 percent, these lamps allow for a customized lighting experience. High-performing, these lamps are damp location rated for reliable use in humid areas. Available in 2FT, 3FT, and 4FT lengths, for a uniform look throughout the any space.

FEATURES:
- Plug & Play T8 Replacements

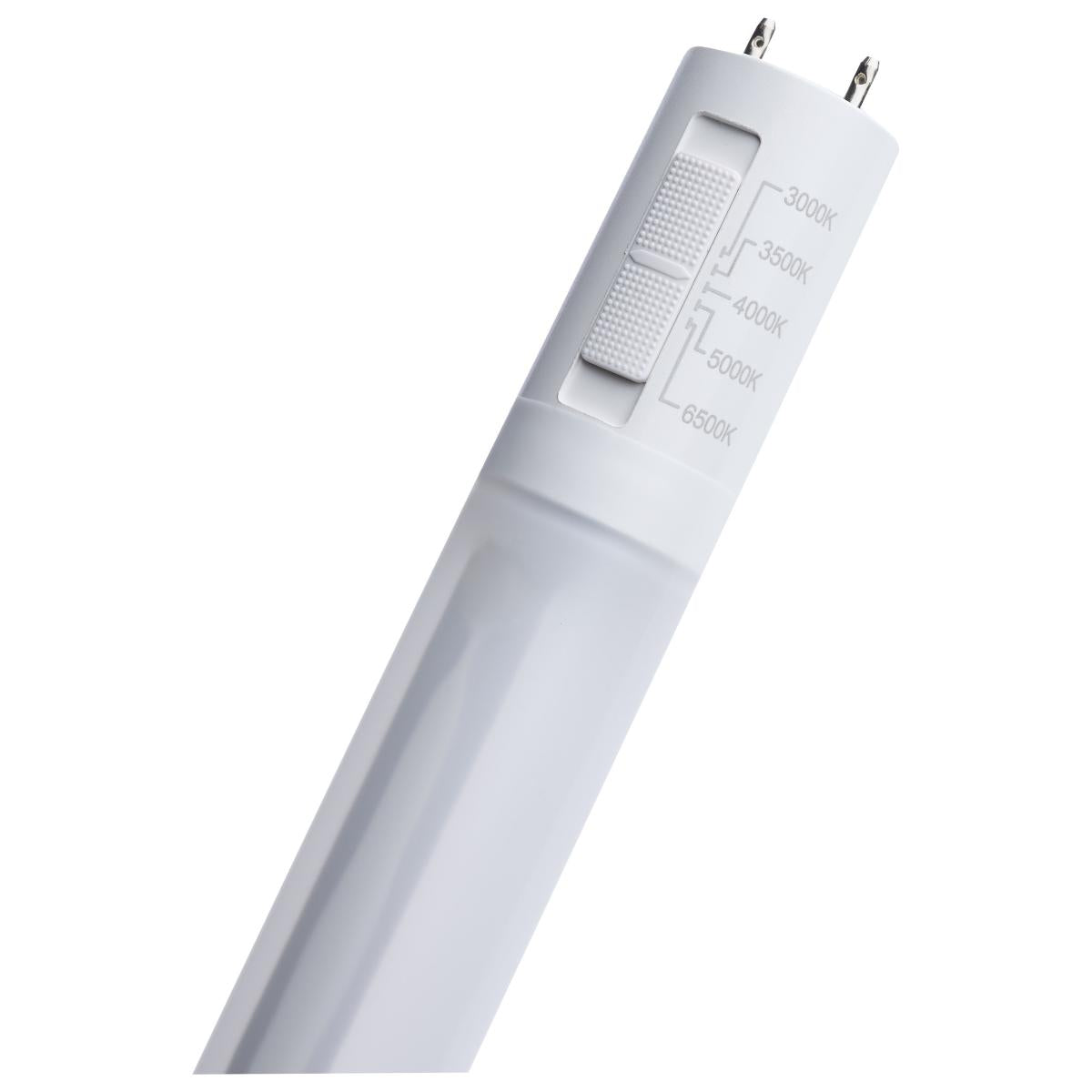

- 5 CCT Selectable
- Offered in 2FT,3FT, and 4FT Lengths

Specs

General
Watts 10W
Fluorescent Equivalent 15W, 17W
Volts 120V-277V
Ballast Type Type A/B
Shape T8
Base G13 Medium Bi Pin
Nominal Length 24in
Finish Frost
CCT (Kelvin) 3000K, 3500K, 4000K, 5000K, 6500K
Temperature Soft White to Daylight
CRI 80+
Lumens 1450L
Beam Spread 170
Dimmable Yes-Dimmable
Hours Rated 50,000 hrs
Product Category Linear
Technology LED
Electrical
Ballasting Requirements Ballast required (Type A) or Ballast Bypass (Type B)
Operating Frequency 50/60Hz
Dimming Note Only in Type A mode; Check Ballast MFG for Dimmer Compatibility
Power Factor 0.9
THD 0.2
Operating Temperature -20C (-4F) to +45C (+113F)
Physical
MOL 24.65
MOD 1
Weight (lb.) 0.27
Material Glass
Additional Information
Shatter-Proof Type PET Coated
Installation Notes Not for use in vapor tight fixtures.
Rated For Enclosed Fixture Yes
Warranty 5 Year Limited
Compliance
Safety Listing cULus - Certified; cULus - Classified; cULus Listed
Location Rating Damp
California Status Lawful for sale in California
Title 20 / 24 Status Lawful for sale
RoHS Compliant Yes
FCC Compliant Yes
NSF Approved Yes
