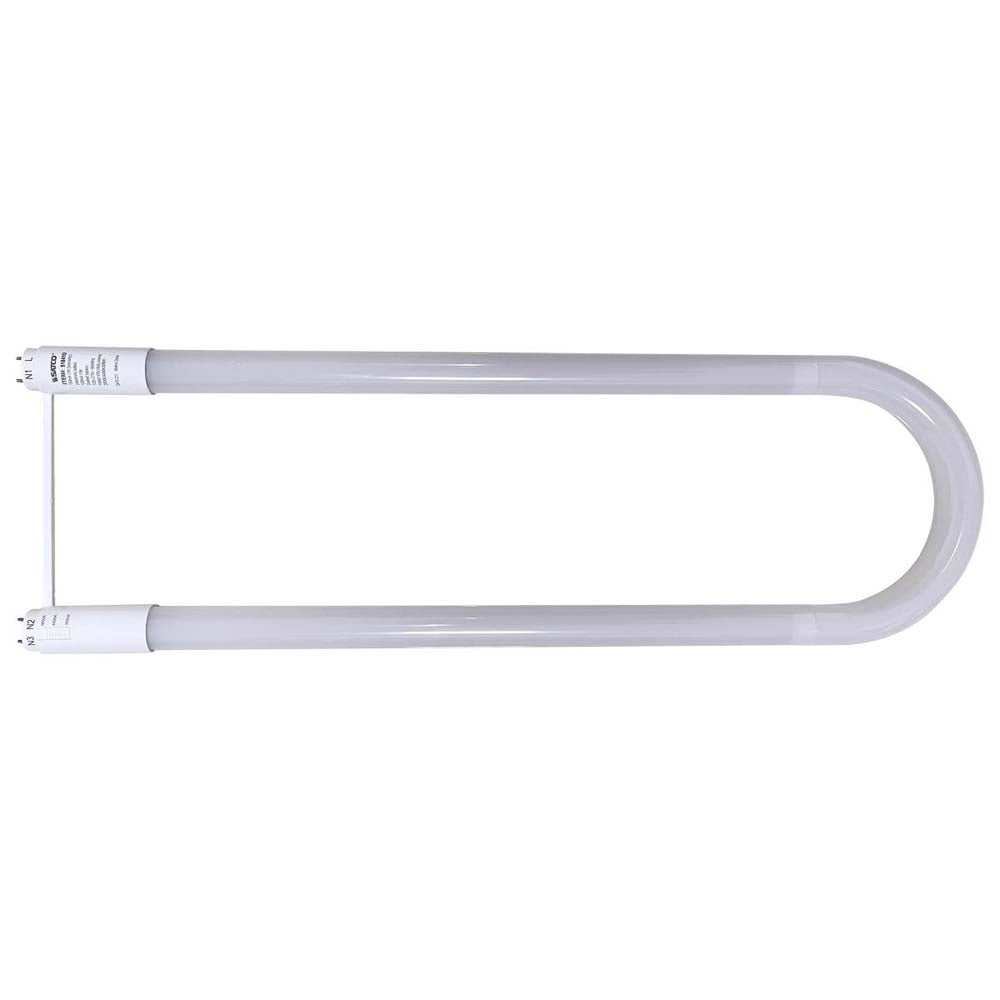

13W T8 U-BEND LED Bi Pin Base CCT Selectable - Ballast Dependant or Bypass

13W T8 U-BEND LED Bi Pin Base CCT Selectable Type A/B White Finish 120-277v

Features:
- Watts: 13W, Incandescent Equivalent: 50W
- Volts: 120V-277V, Shape: T8
- Base: Medium Bi Pin, ANSI Base: G13
- CCT (Kelvin): 3500K, 4000K, 5000K, Temperature: Neutral White to Natural Light
- CRI: 80, Lumens: 1900L, 1975L, 1950L
- Beam Spread: 160, Dimmable
- Rated Life: 50,000 hrs
- Warranty: 5 Year Limited

General
Watts	13W
Incandescent Equivalent	50W
Volts	120V-277V
Ballast Type	Type A/B
Shape	T8
Base	Medium Bi Pin
ANSI Base	G13
CCT (Kelvin)	3500K/4000K/5000K
Temperature	Neutral White to Natural Light
CRI	80
Lumens	1900L/1975L/1950L
Beam Spread	160
Dimmable	Yes-Dimmable
Rated Life	50,000 hrs
Lamp Type	U-Bend
Technology	LED
Electrical
Operating Frequency	50/60Hz
Power Factor	0.9
Operating Temperature	-20C (-4F) to +45C (+113F)
Physical
MOL	22.6
MOD	1
Lens Finish	Frost
Lens Material	Plastic
Housing Color	White
Additional Information
Rated For Enclosed Fixture	Yes
Warranty	5 Year Limited - T8 LED Bulbs
Compliance
Safety Listing	cETLus - Listed;cULus - Classified;cULus - Listed
Location Rating	Damp
Energy Star	No
California Status	Lawful for sale
RoHS Compliant	Yes
FCC Compliant	Yes

Manual:

S18410 Data Sheet
S11793 Installation Manual
