16W 3FT T5 LED CCT Selectable G5 Base Type B Ballast Bypass 120-277v Tube

Satco SKU: S11654
$1799 $35.99 USD
3199 in stock




Description

SATCO|NUVO LED T5 Lamps - Type A are range voltage compatible and CCT selectable for versatile for use in a variety of applications. With five selectable CCTs at installation, and dimmable with compatible ballats down to 20 percent, these lamps allow for a customized lighting experience. High-performing, these lamps are damp location rated for reliable use in humid areas. Available in 2FT, 3FT, and 4FT lengths, for a uniform look throughout the any space.

FEATURES:
- Plug & Play T5 Replacements

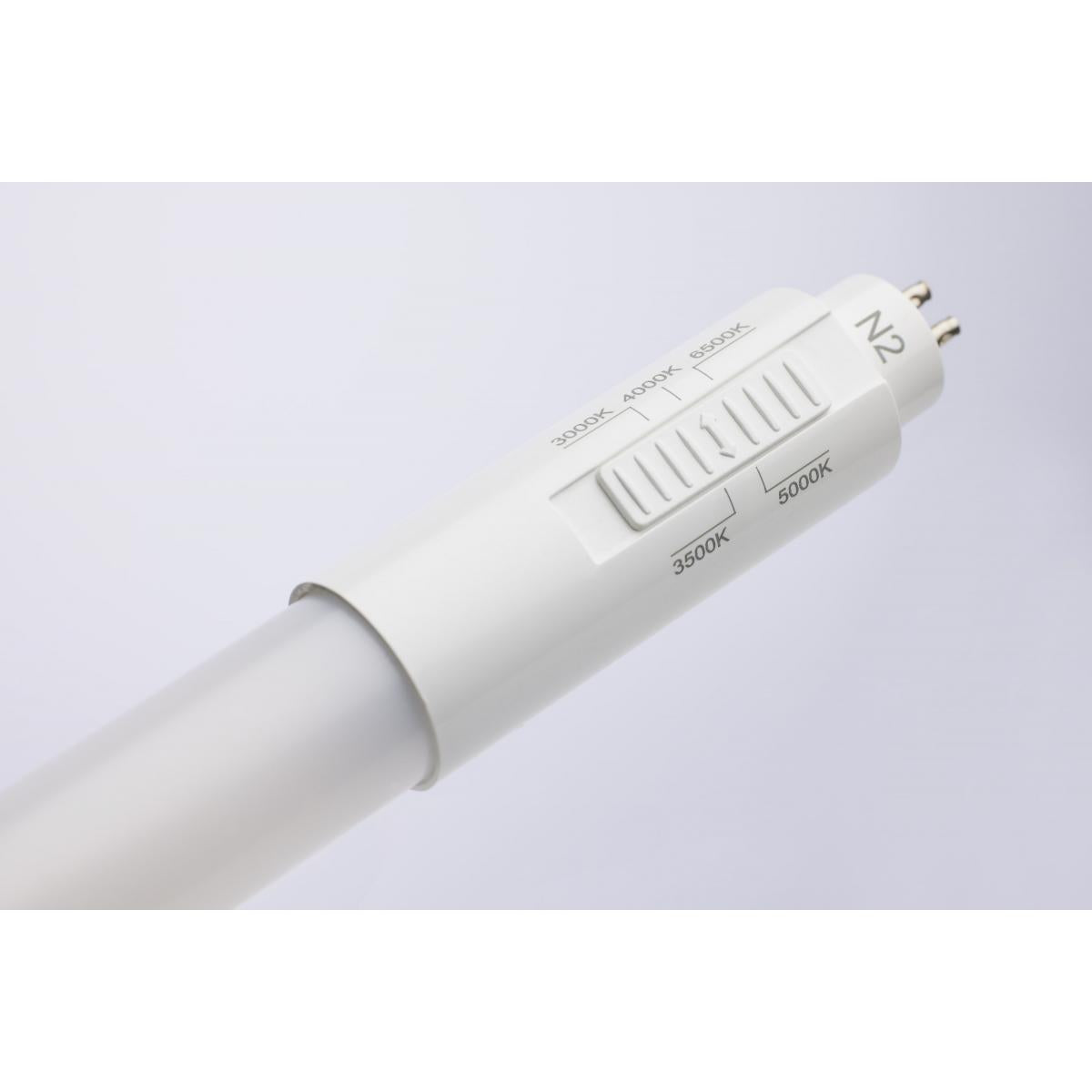

- 5 CCT Selectable
- Offered in 2FT,3FT, and 4FT Lengths

Specs

General
Watts 16W
Incandescent Equivalent 100W
Fluorescent Equivalent 39W
Volts 120V-277V
Ballast Type Type B
Shape T5
Base G5 Miniature Bi Pin
Nominal Length 36-in
Finish White
CCT (Kelvin) 3000K, 3500K, 4000K, 5000K, 6500K
Temperature Soft White to Daylight
CRI 82
Lumens 2000L, 2075L, 2100L, 2150L, 2050L
Beam Spread 160
Hours Rated 50,000 hrs
Product Category Linear
Technology LED
Electrical
Ballasting Requirements Ballast Bypass
Operating Frequency 50/60Hz
Power Factor >0.9
THD <25%
Operating Temperature -20C (-4F) to +45C (+113F)
Physical
MOL 33.98
MOD 0.88
Weight (lb.) 0.28
Material Glass
Additional Information
Shatter-Proof Type PET Coated
Installation Notes Not for use in vapor tight fixtures.
Rated For Enclosed Fixture Yes
Warranty 5 Year Limited
Compliance
Safety Listing cULus - Certified; cULus - Classified; cULus Listed
Location Rating Damp
California Status Lawful for sale in California
Title 20 / 24 Status Lawful for sale
RoHS Compliant Yes
FCC Compliant Yes
NSF Approved Yes
