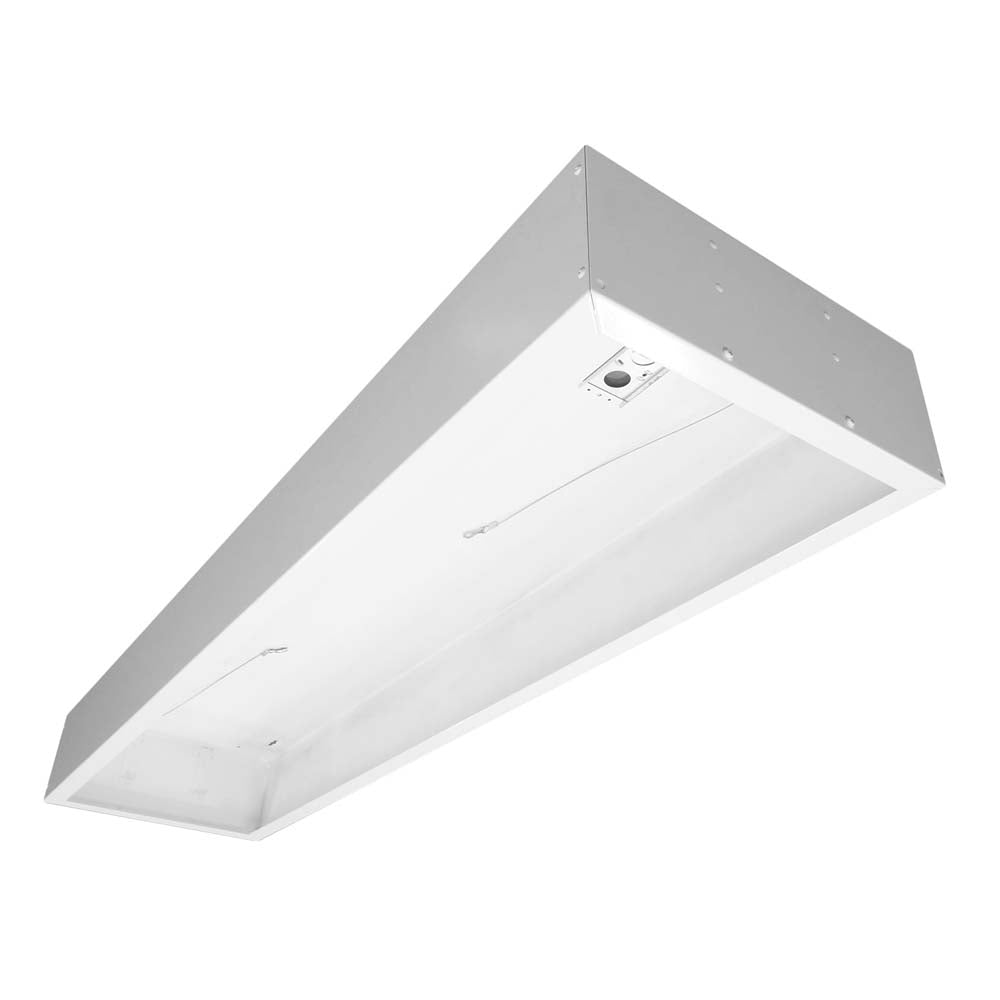

1x4 Ft. Surface Mount Frame Kit for LED Troffers

The SK14 Surface Mount Kit allows 1x4 Ft. LED Troffers to be surface mounted to any ceiling or wall. The SK14 works perfectly with NICOR T3C, T4C, T3A, and T4A LED Troffers. It also compatible with Troffers measuring between 11.625"- 12" in width, 47.625"- 48" in length, and up to 4.75" in height. The framed enclosure securely houses the Troffer to create a uniform and seamless look without the need to use ceiling grids. The Surface Mount Kits feature safety support cables and easy access to the rear of the troffer to make installation a breeze. The SK14 is protected by NICOR 1 Year Limited Warranty. Also available for 2x2 and 2x4 Troffers.

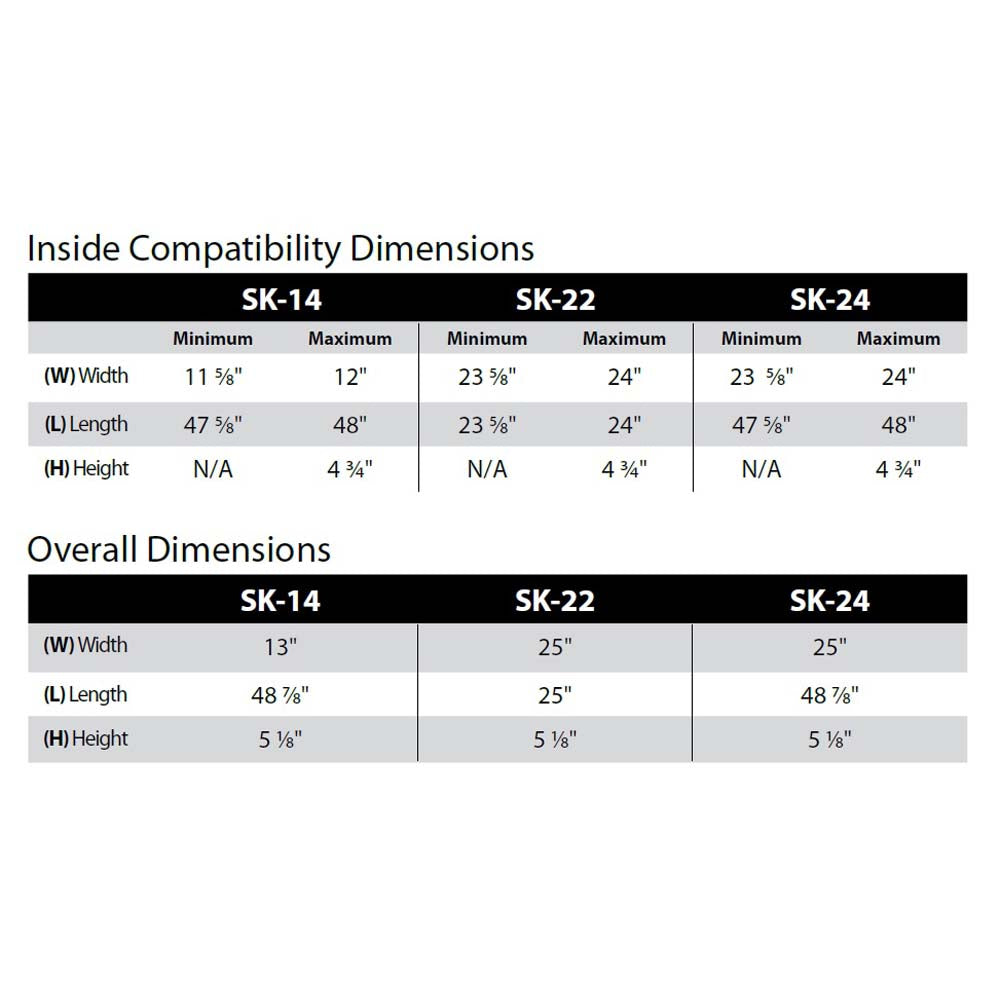

Features:
- Designed for 1x4 Ft. LED Troffers
- Troffer Width Required: between 11.625" and 12"
- Troffer Length required: between 47.625" and 48"
- Fits Troffers measuring up to 4.75" in height.

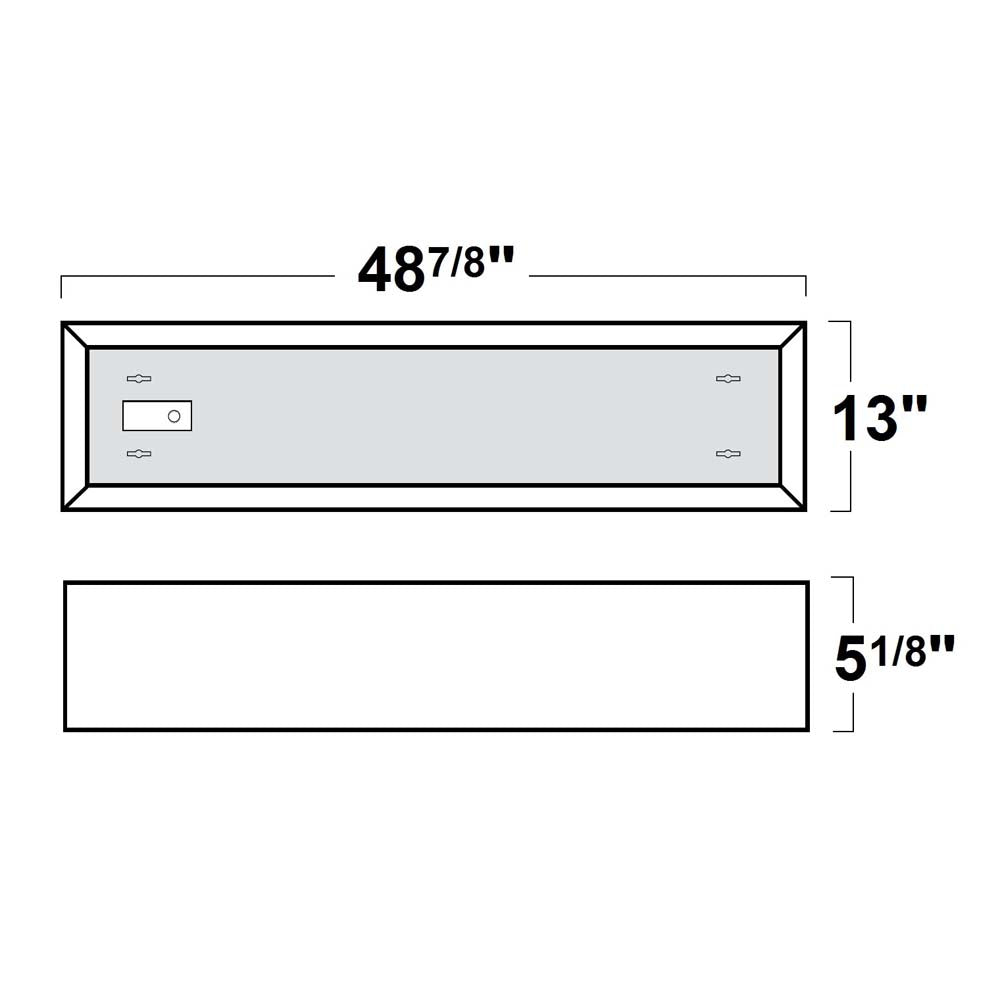

- Overall outside dimensions: 13" x 48.875" x 5.125"

Size (Ft.)	1x4
Product Color	White
Finish	Gloss
Warranty	1 Year Limited Warranty

Manual:

SK14 Data Sheet
SK14 Installation Manual
