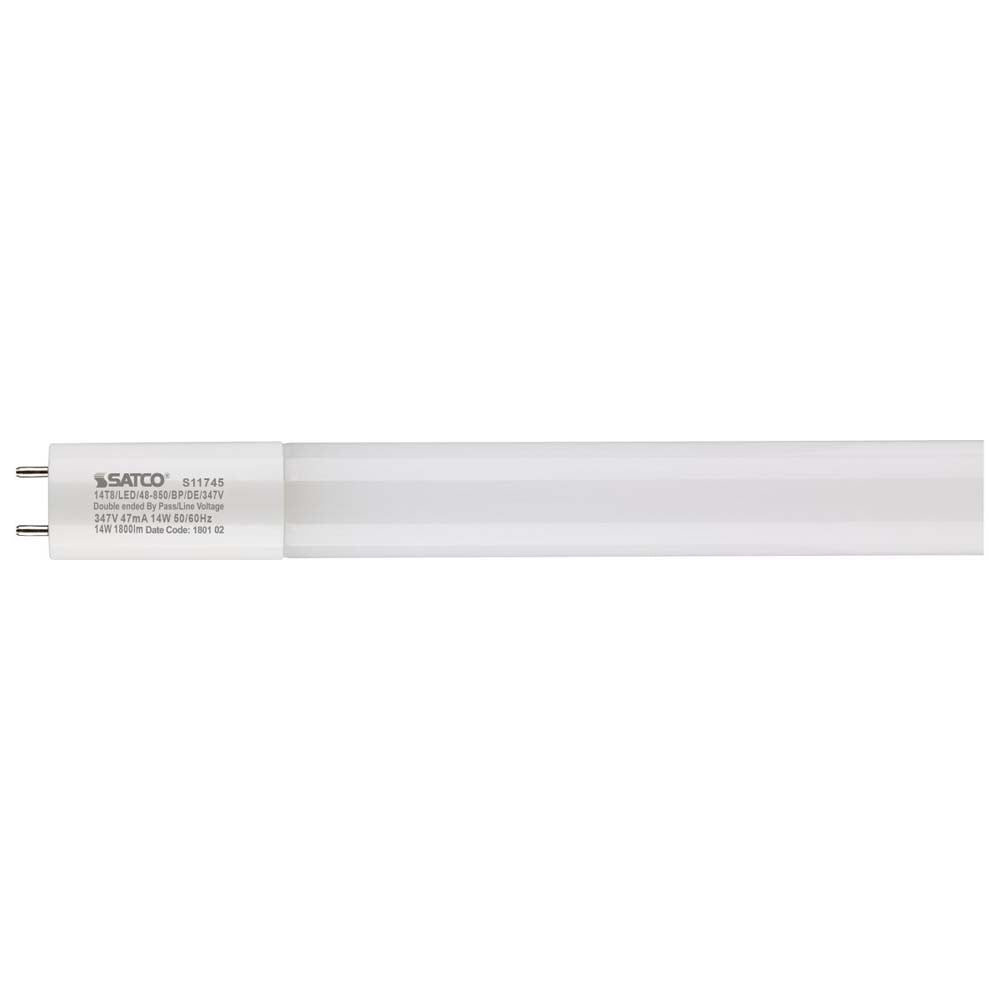

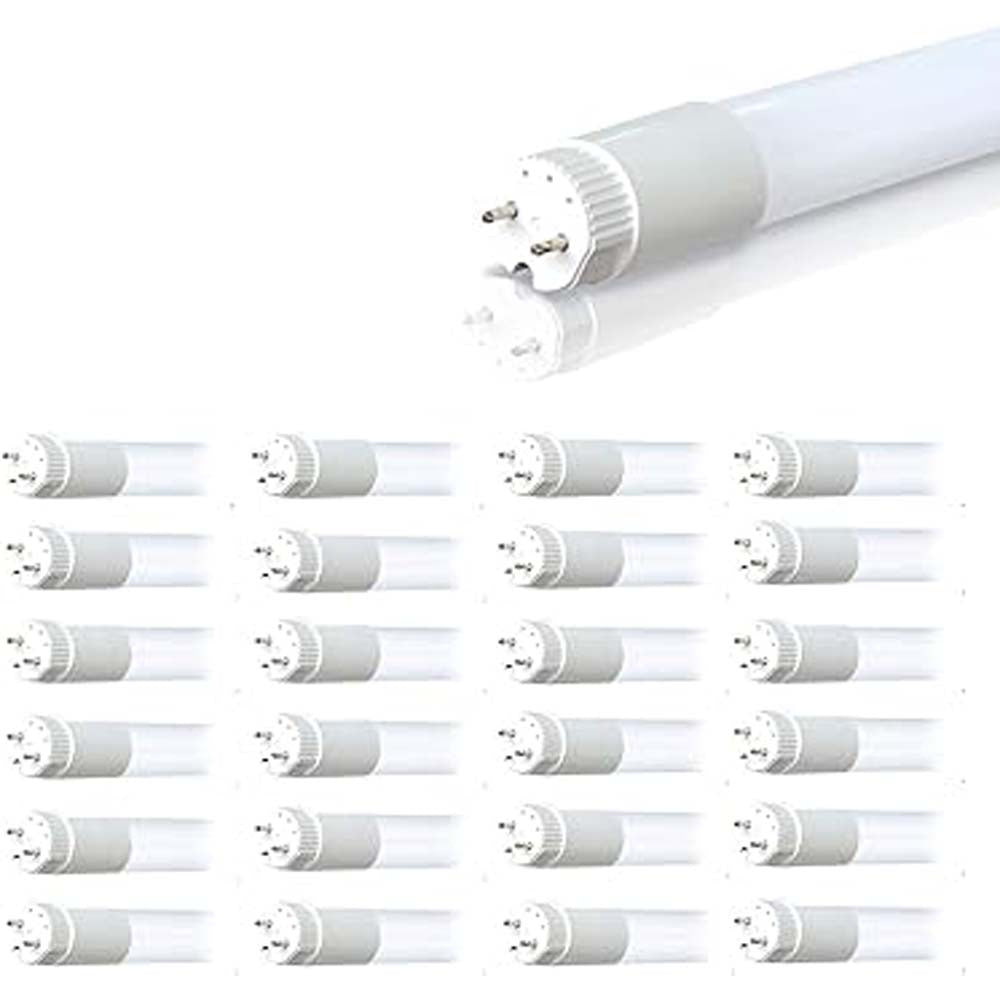

25Pk - 14W 48-in LED T8 5000K 347V G13 Base Type B Ballast Bypass Double Ended Wiring

25Pk - Satco's new generation of Type B ballast bypass lamps, designed to replace T8 or T12 medium bi-pin fluorescent lamps, are available in 4 foot lengths in a variety of wattages and lumens. These lamps are engineered for double-ended wiring and will not light unless the ballast is bypassed. Commercial venues, schools, hospitality, health care facilities - virtually any large scale lighting application - will benefit from immediate energy savings and less maintenance. With 347V, these lamps are for use in Canada.

Features:

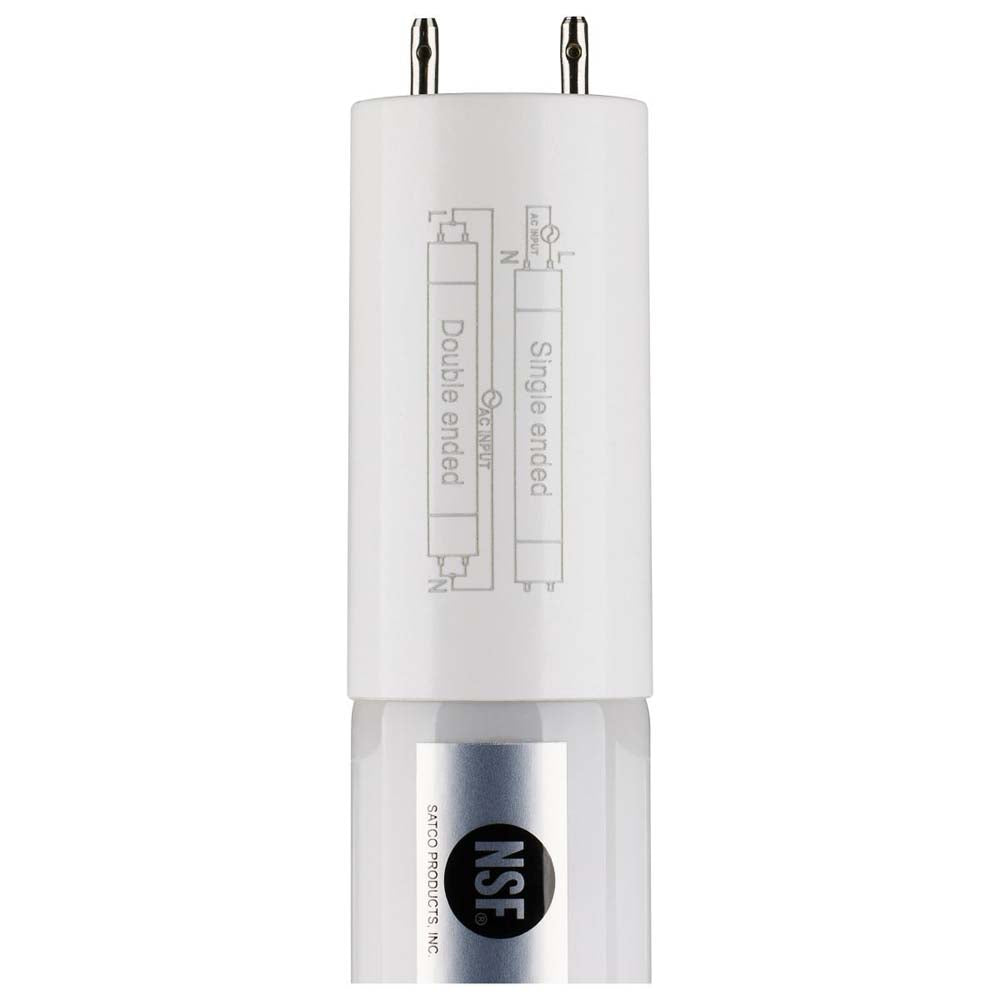

- Double ended wiring
- All glass tube
- Direct wire 347 line voltage - FOR USE IN CANADA
- Type B Ballast Bypass
- Damp location rated, for both indoor and outdoor use
- Long Life - 50,000 hours
- DLC Listed
- 5000K CCT, 1800 lumens

General
Watts	9.5W
Incandescent Equivalent	60W
Volts	120V
Shape	A19
Base	Medium
ANSI Base	E26
CCT (Kelvin)	2700K, 5000K
Temperature	Warm White, Natural Light
CRI	80
Lumens	800L
Beam Spread	220
Dimmable	Non-Dimmable
Hours Rated	15,000 hrs
Lamp Type	Type A
Technology	LED
Physical
MOL	2.36
MOD	4.33
Additional Information
Warranty	3 Year Limited
Compliance
Safety Listing	cULus
Location Rating	Damp
Energy Star	No
California Status	Non-Compliant
RoHS Compliant	Yes
FCC Compliant	Yes

Manual:

S11745 Data Sheet
S11274 Installation Manual
