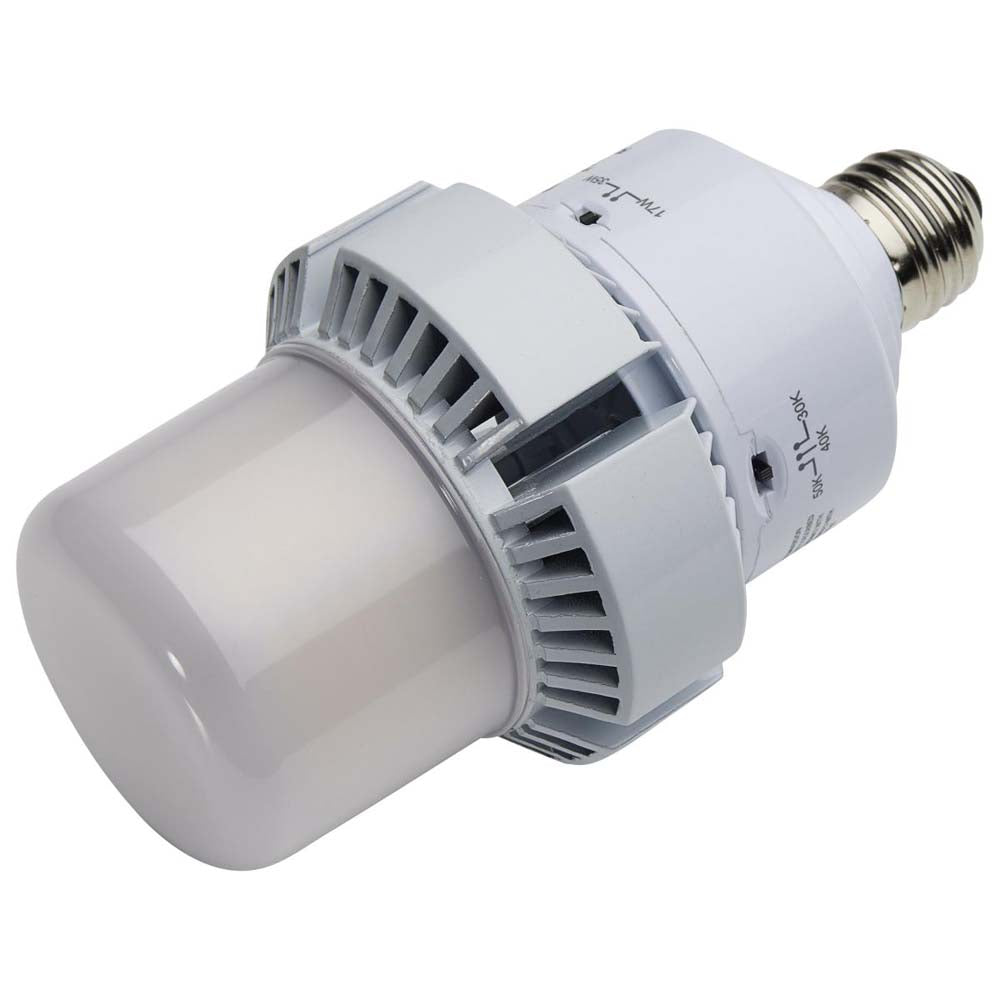

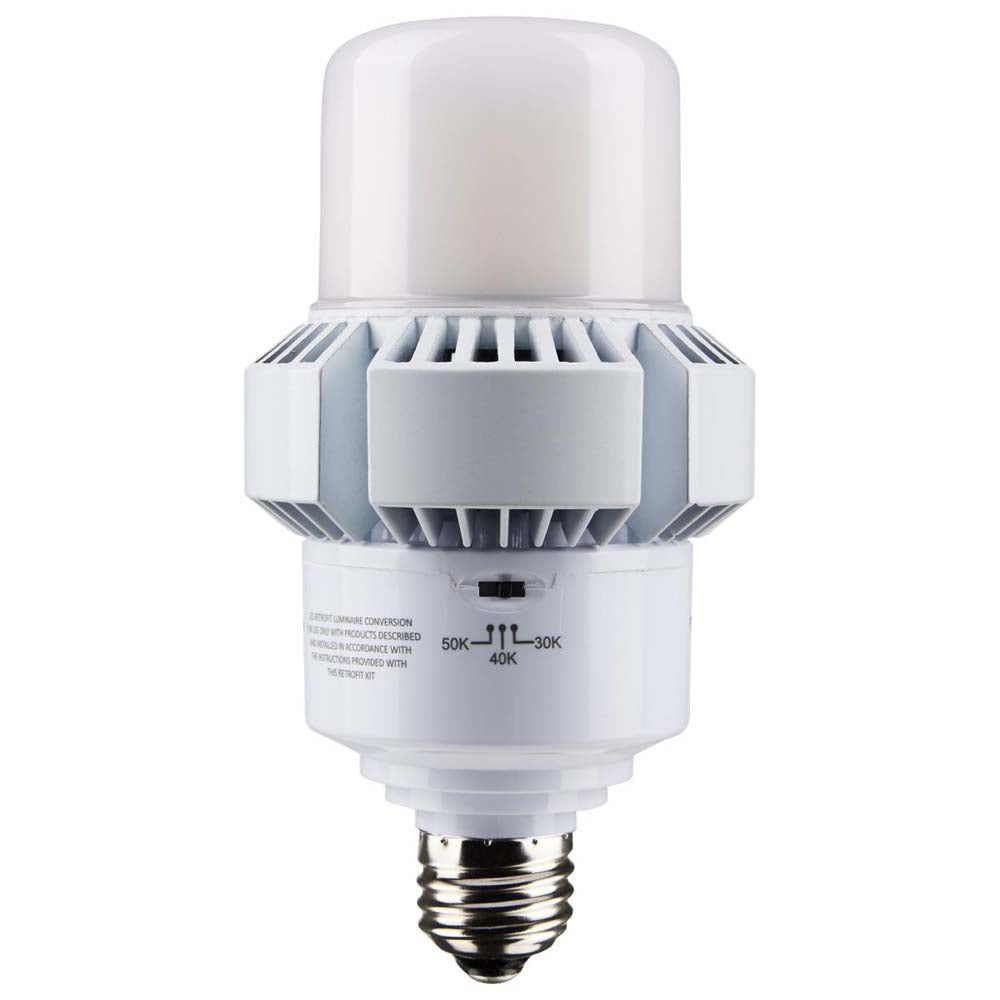

35W A-Plus 28 LED CCT Selectable and Wage Selectable E26 base Ballast Bypass

Satco newest additions to the Hi-Pro LED family provides up to 85% in energy savings, and advanced features. CCT and wattage selectable capability means more versatility and custom-tailored light for specific applications. Designed to produce high-output light with over 300 degrees of illumination, these lamps are perfect for commercial bollard fixtures, post-top lighting and high ceiling applications, to name a few. A smaller jacket size and base up, down or horizontal use makes this our most versatile "A" lamp to date.

Features:
- Watts: 35W, 17W, Incandescent Equivalent: 300W
- HID Equivalent: 100W-175W
- Volts: 100V-277V, Shape: AP28
- Base: Medium, ANSI Base: E26
- CCT (Kelvin): 3000K, 4000K, 5000K, Temperature: Warm to Cool White
- CRI: 80, Lumens: 4550L, 2380L
- Beam Spread: 280, Dimmable
- Rated Life: 50,000 hrs
- Warranty: 5 Year Limited

General
Watts	35W/17W
Incandescent Equivalent	300W
HID Equivalent	100W-175W
Volts	100V-277V
Shape	AP28
Base	Medium
ANSI Base	E26
CCT (Kelvin)	3000K/4000K/5000K
Temperature	Warm to Cool White
CRI	80
Lumens	4550L/2380L
Beam Spread	280
Dimmable	Yes-Dimmable
Rated Life	50,000 hrs
Lamp Type	Type A
Technology	LED
Electrical
Operating Frequency	50/60Hz
Power Factor	>0.9
Operating Temperature	-22C (-30F) to +45C (+113F)
Physical
MOL	6.26
MOD	3.39
Lens Finish	Frost
Lens Material	Polycarbonate (PC)
Housing Color	White
Weight (lb.)	1.11
Additional Information
Rated For Enclosed Fixture	Yes
Warranty	5 Year Limited - Hi-Pro
Compliance
Safety Listing	cULus - Classified;cULus - Listed
Location Rating	Damp
Energy Star	No
California Status	Lawful for sale
RoHS Compliant	Yes
FCC Compliant	Yes

Manual:

S13162 Data Sheet
S11744 Installation Manual
