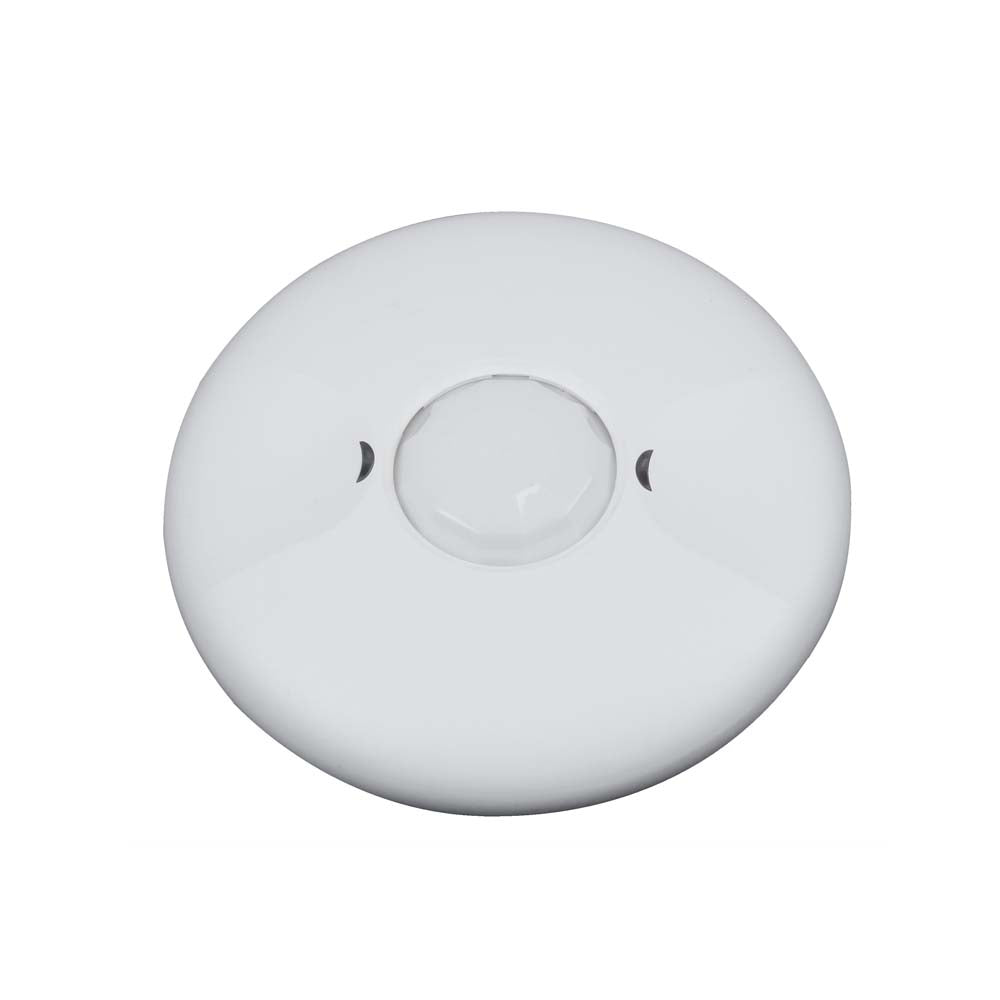

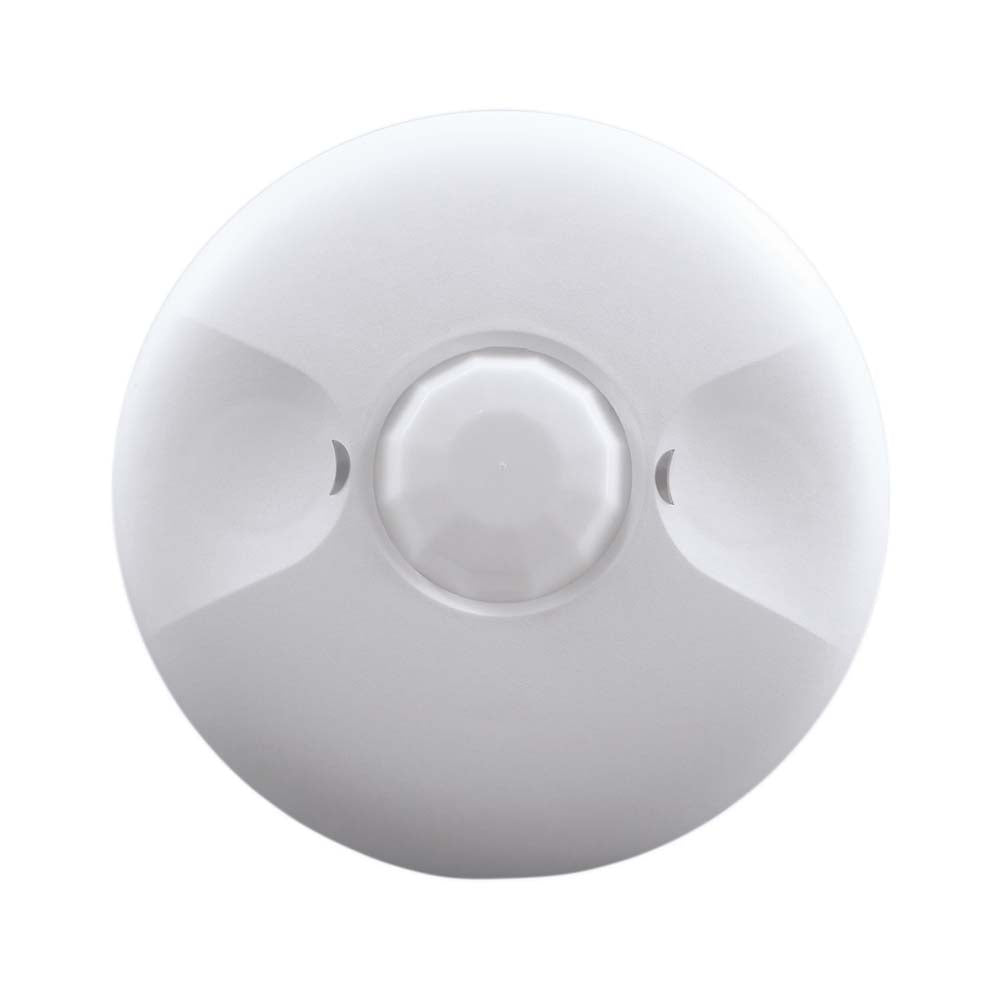

Nicor 360 deg. Ceiling Occupancy Motion Sensor Line Voltage

The COS360WH features 360 deg. passive infrared (PIR) occupancy sensor to turn lighting systems on and off based on occupancy and ambient light levels. The light level feature keeps lights from turning on if the ambient light level is sufficient. The sensors can be configured to turn lighting systems on, and hold it on as long as the sensor detects occupancy. After no movement is detected for a specified time, the light system is switched off.

Features:
- 360-Degree Passive Infrared (PIR) Occupancy Sensor
- Designed for Line Voltage Applications
- Provides a 360 deg. coverage pattern up to 1200 square feet
- Turns lights on and off based on occupancy and ambient light levels
- Adjustable PIR Sensitivity, Time Delay, and Ambient Light Levels

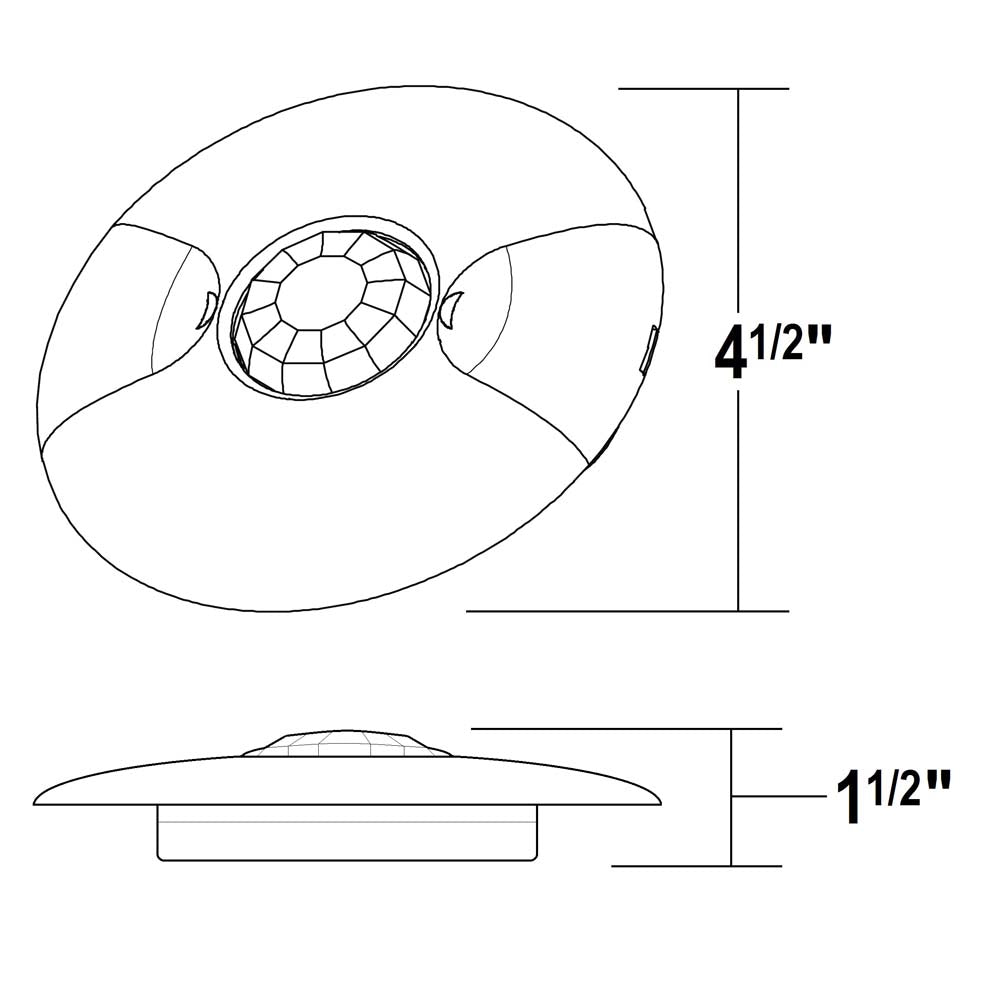

Size (in.)	4.5
Product Color	White
Wattage	800w
Voltage	120-277v
Bulbs Included	No
Listings/Certifications	UL Listed, cUL Listed, Title 24, Dry-Location
Warranty	1 Year Limited Warranty

Manual:

COS360WH Data Sheet
COS360WH Installation Manual
