4 in. IC-Rated and Airtight Remodel Housing

The NICOR 19005AR Remodel Housing is designed for 4-inch trims and downlights. This housing is perfect for residential or commercial Line Voltage applications. This housing is Insulation Contact Rated (IC-Rated), which means that insulation can be laid directly over the unit. It�s also rated airtight which helps keep rooms insulated to increase energy efficiency. All NICOR housings are equipped with Integrated Thermal Protection Guards which will shut itself off if the unit begins overheating, which can occur for any number of reasons. The 19005AR requires one R20 or PAR20 light bulb rated under 50-Watts and is Protected by NICOR�s Limited 1 Year Warranty.

Features:
- Designed for new construction and remodel applications
- Requires one R20 or PAR20 bulb rated up to 50-Watts Max. (not included)
- Airtight housing provides increased energy efficiency through room insulation
- Integrated thermal protector guards against overheating
- IC rated. Suitable for direct contact with insulation

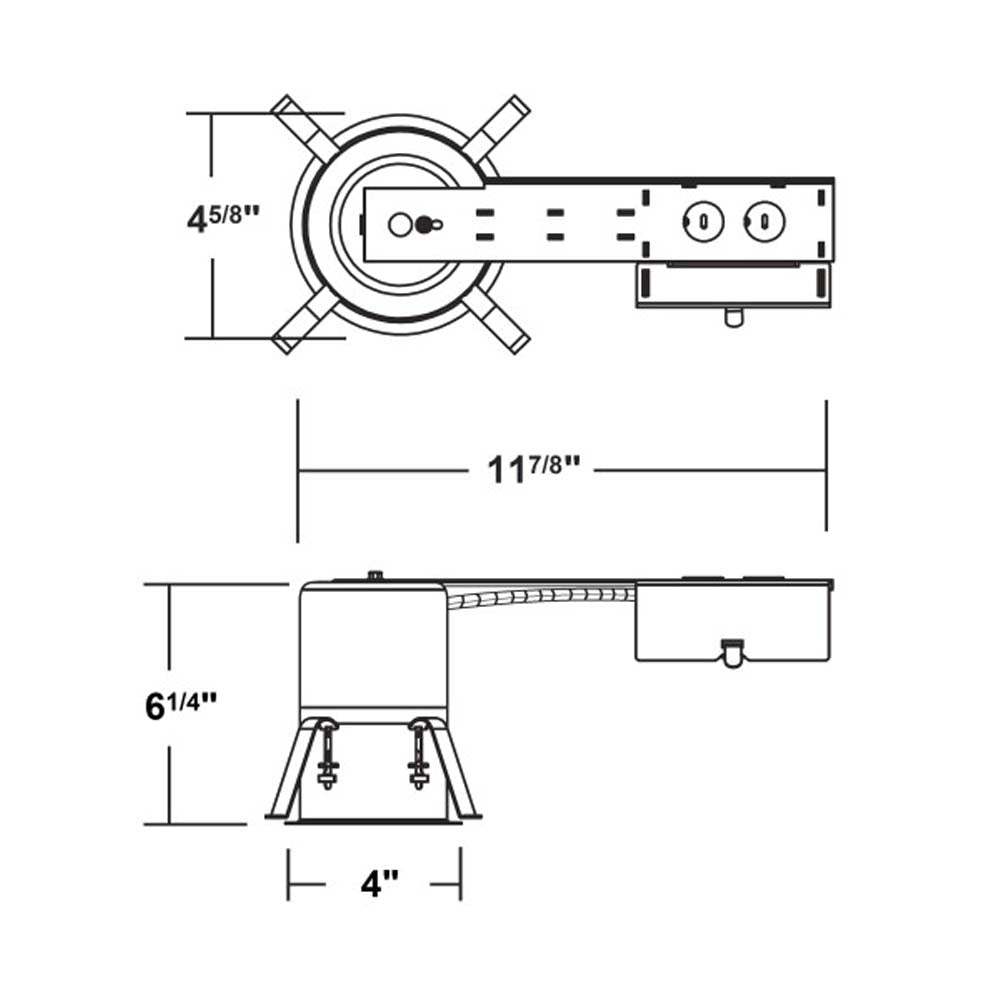

Size (in.)	4
Product Color	Neutral
Finish	Galvanized
Wattage	50w
Voltage	120v
Bulbs Included	No
No. of Bulbs Required	1
Recommended Bulb Type	R20, PAR20, A19
Bulb Wattage (Max)	50w
Listings/Certifications	UL Listed, cUL Listed, IC-Rated, Airtight, UL Feed-Through, Damp-Location
Warranty	1 Year Limited Warranty

Manual:

19005AR Data Sheet
