4 in. White Fire-Rated LED Downlight Remodel Kit

NICOR REL Series 4-inch Fire-Rated Selectable CCT Round Canless LED Downlight offers a clean and attractive aesthetic with a low-profile. The edge-lit technology allows for a very thin recessed design measuring less than an inch in depth. Easily change between 5 color temperature options (2700K, 3000K, 3500K, 4000K, 5000K) with the CCT selector switch on the driver. The high-performance REL Fixture features an impressive 95 CRI rating (R9 >71) to produce an incredible light output quality. It also carries a UL263 certified 2-hour fire rating to meet the latest codes for multi-family dwellings. Installation no longer requires a recessed housing, but rather a simple 3.875 diameter drywall cut-out using the provided template. The ultra-thin fixture depth and off-board driver (included) allows for a more flexible installation and increased product lifespan through superior heat management. The adjustable, spring-loaded retention tabs provide a secure fit, eliminating the need for a junction box or recessed housing. The REL comes ready to install right out of the box, no other parts or components are required. Protected by NICOR's 5-year limited warranty.

Features:

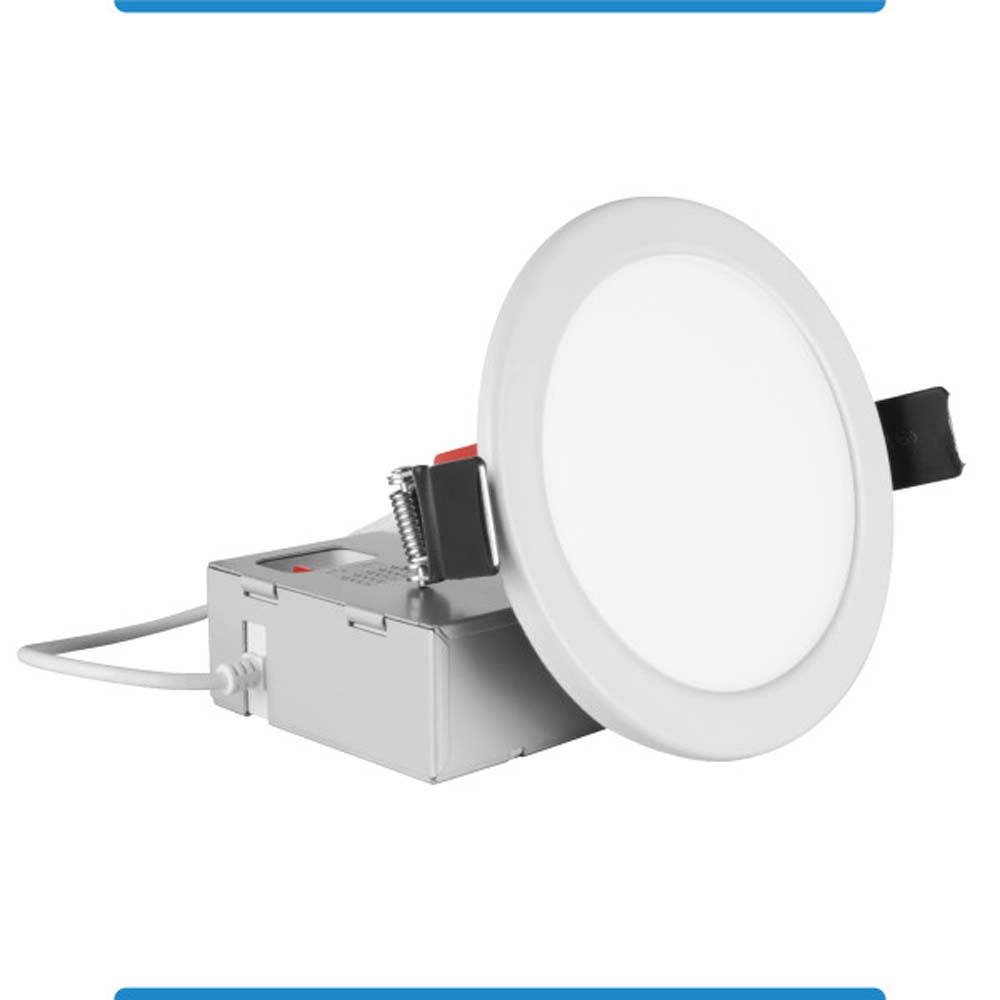

- Includes fire rated downlight, driver/junction box, and linking cable
- Five selectable color temperatures (2700K, 3000K, 3500K, 4000K, and 5000K)
- UL263 Certified 2-hour Fire rating
- Available in two sizes: 4-inch and 6-inch fixtures
- Produces up to 1007 Lumens using less than 11-Watts
- Installs directly into ceiling, no housing required
- 3.875 diameter cut-out template included
- Dimmable to 5% using standard TRIAC or ELV dimmers
- Airtight, Wet-Location, and Insulation Contact Rated (IC-Rated)
- Energy Star rated, Title 24, JA8, and RoHS compliant
- Protected by NICOR's 5-year limited warranty

Size (in.)	4
Shape	Round
Product Color	White
Finish	Powder Coat
Light Source	LED
Wattage	10.9
Wattage Equivalent	75
Voltage	120VAC
Lumen Output	914 (2700K), 957 (3000K), 1001 (3500K), 1007 (4000K), 958 (5000K)
Lumens Per Watt	83.9 (2700K), 87.8 (3000K), 91.8 (3500K), 92.4 (4000K), 87.9 (5000K)
Color Temperature (CCT)	5CCT Selectable (27K-30K-35K-40K-50K)
CRI	95
R9 Value	71
Dimmable	Yes
Dimming Type	TRIAC ELV
Operating Temperature	-4F to 104F (-20C to 40C)
Listings/Certifications	UL Certified 2hr Fire Rated (UL 263) Wet-Location (UL 1598) Energy Star Title 24 (Except 5000K) JA8 (Except 5000K) IC-Rated Airtight ASTM E283 Compliant NFPA 70 Compliant NEC 410.16 (A)(3) NEC 410.16 (C)(5) RoHS Compliant FCC Class B
Other Certifications	Testing performed in accordance with IESNA standards Meets air-tight requirements per ASTM E283
Warranty (Years)	5 Year Limited

Manual:

REL4FR1120SRD9WH Data Sheet
REL4FR1120SRD9WH Installation Manual
