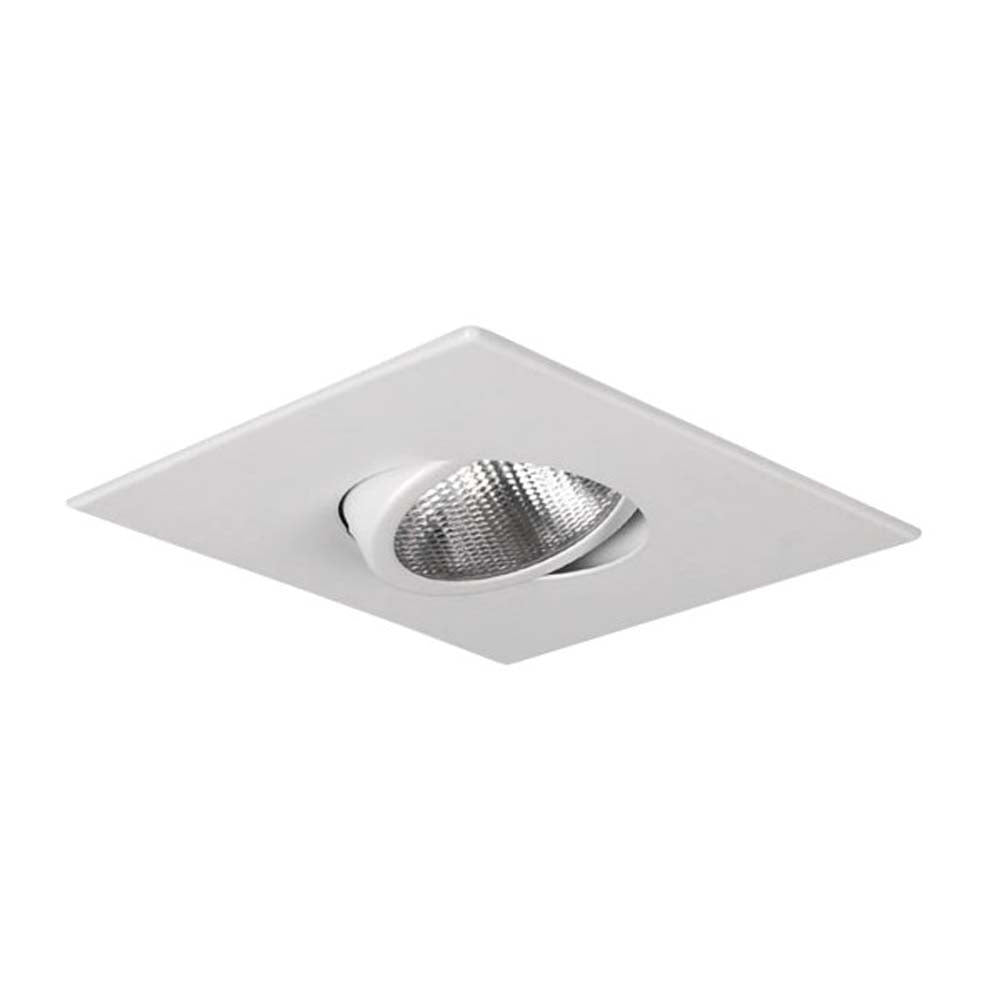

4 in. White Gimbal Ring Square Trim, for 4 inch Housings

NICOR�s quality constructed 4-inch square adjustable gimbal trims create a simple and attractive finished look for any room. The 19523 series gimbal trims are designed for PAR20 or R20 light bulbs rated up to 50-Watts. The 19523 fully rotates and features a 30-degree vertical tilt to help light up those hard to light areas, fireplaces, art, or collectibles. The 19523 series trims are designed to fit standard 4-inch recessed housings using tension clips (included) for installation. The 19523 measures 4.8-inches in diameter with a gimbal aperture of 2-inches Use with any of NICOR�s 4-inch recessed housings for a perfect match, or use with an existing 4-inch recessed housing. The 19523 is protected by NICOR 1 Year Limited Warranty. Available in Nickel and White.

Features:
- Requires one R20 or PAR20 bulb rated up to 50-Watts Max. (not included)
- Designed to fit 4-inch recessed housings

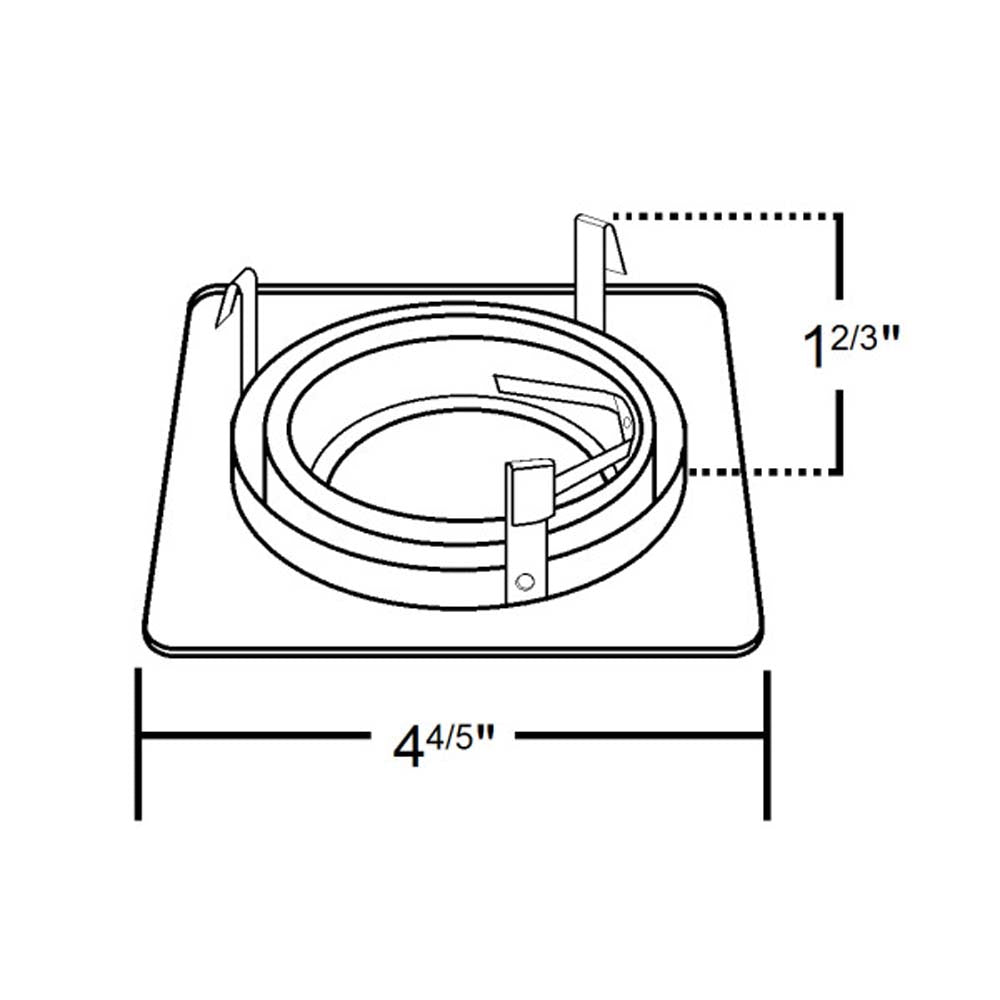

- Trim measures 4.8-inches in diameter with a 3.5-inch adjustable aperture
- Includes Tension Clips for a Fast and Secure Installation
- Comes ready to install. No extra parts required.

Size (in.)	4
Product Color	White
Finish	Powder Coat
Voltage	120v
Bulbs Included	No
No. of Bulbs Required	1
Recommended Bulb Type	R20, PAR20
Bulb Wattage (Max)	50w
Listings/Certifications	Dry-Location
Warranty	1 Year Limited Warranty

Manual:

19523WH Data Sheet
