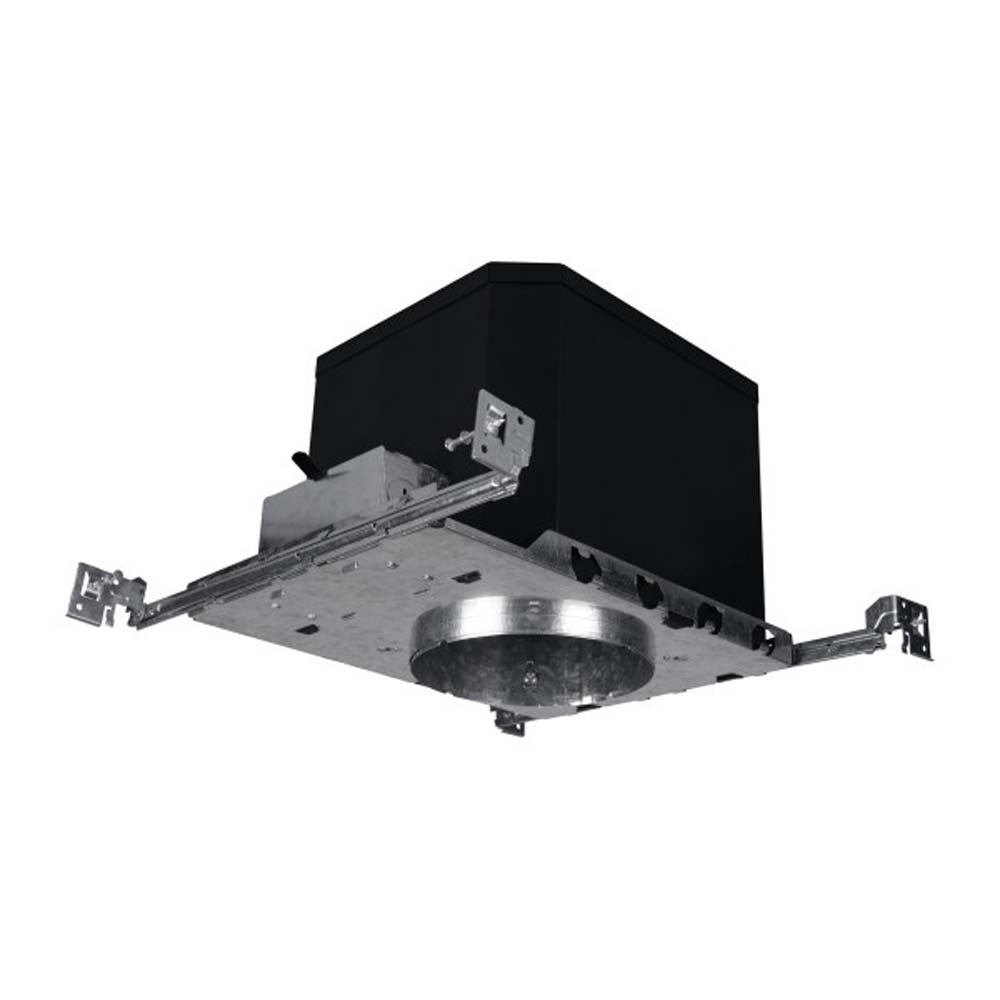

6 in. Fire Rated New Construction Recessed Housing with Edison Base

The NICOR EFH6 is a Fire Rated 6-inch Recessed Housing designed for new construction applications. The housing is UL Classified for a 2-hour Fire Rating. The durable double wall steel construction incorporates a non-combustible fiber insulation layer to block flames and gasses from entering the ceiling above. The insulation layer also acts as sound proofing to reduce the noise level passed between floors. The EFH6 is designed for standard 6-inch recessed downlights and trims. It also features an Edison (E26/E27) base for a quick connection to most LED downlights. This makes installation as easy as possible. The EFH6 housing is Insulation Contact Rated (IC-Rated), Airtight, and Wet-Location Rated when used with a Wet-Location Rated downlight or trim. This makes it the perfect housing for showers and bathrooms. It also keeps your home or office insulated and energy efficient. The EFH6 also features extendable hangar bars and end brackets (with pre-set nails) that swivel 90deg. during installation. This allows them to be affixed one side at a time. The EFH6 is designed for 120-Volt applications and includes a 1-Year Limited Warranty.

Features
- Compatible with LED bulbs or downlights rated up to 20-Watts (not included)
- Compatible with multiple (non-LED) bulbs rated up to 90-Watts (see compatibility chart)
- Intended for New Construction applications only
- UL Classified 2-hour Fire rating
- Indestructible 22-gauge double wall steel construction

Size (in.)	6
Product Color	Black
Finish	Matte
Voltage	120VAC
Lumen Output	Operating Temperature	257F (125C)
Bulbs Included	No
No of Bulbs Required	1
Recommended Bulb Type	LED (any shape), A19, R30, PAR30, BR30, BR40
Bulb Wattage (Max)	90
Listings/Certifications	UL Listed, cUL Listed, UL Classified (2 Hr Fire Rated), cUL Classified, ANSI/UL 263, ANSI/UL 1598, IC-Rated, Airtight, ASTM 283 Compliant, Damp-Location, Wet-Location (with specified trims)
Other Certifications	Listed for through branch circuit wiring Meets or exceeds ASTM-283 Air-Tight Requirements
Warranty	1 Year Limited Warranty

Manual:

EFH6 Data Sheet
