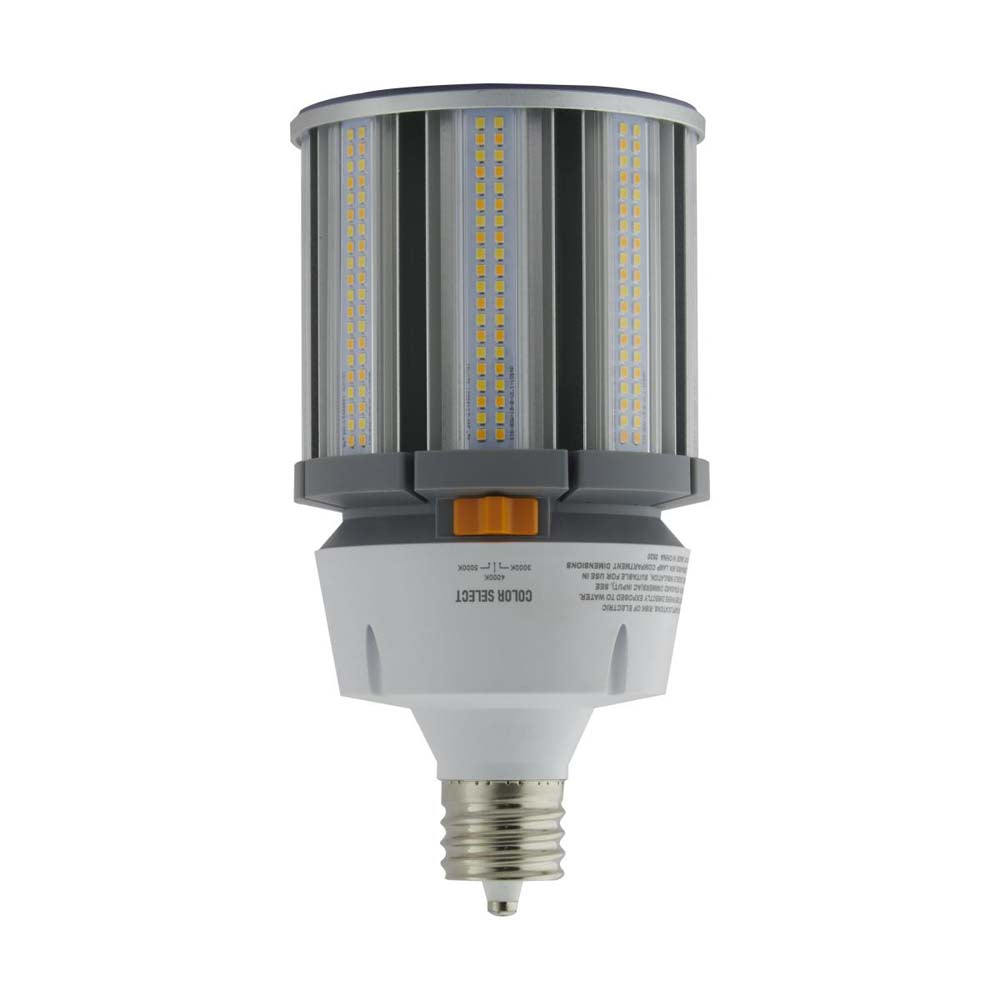

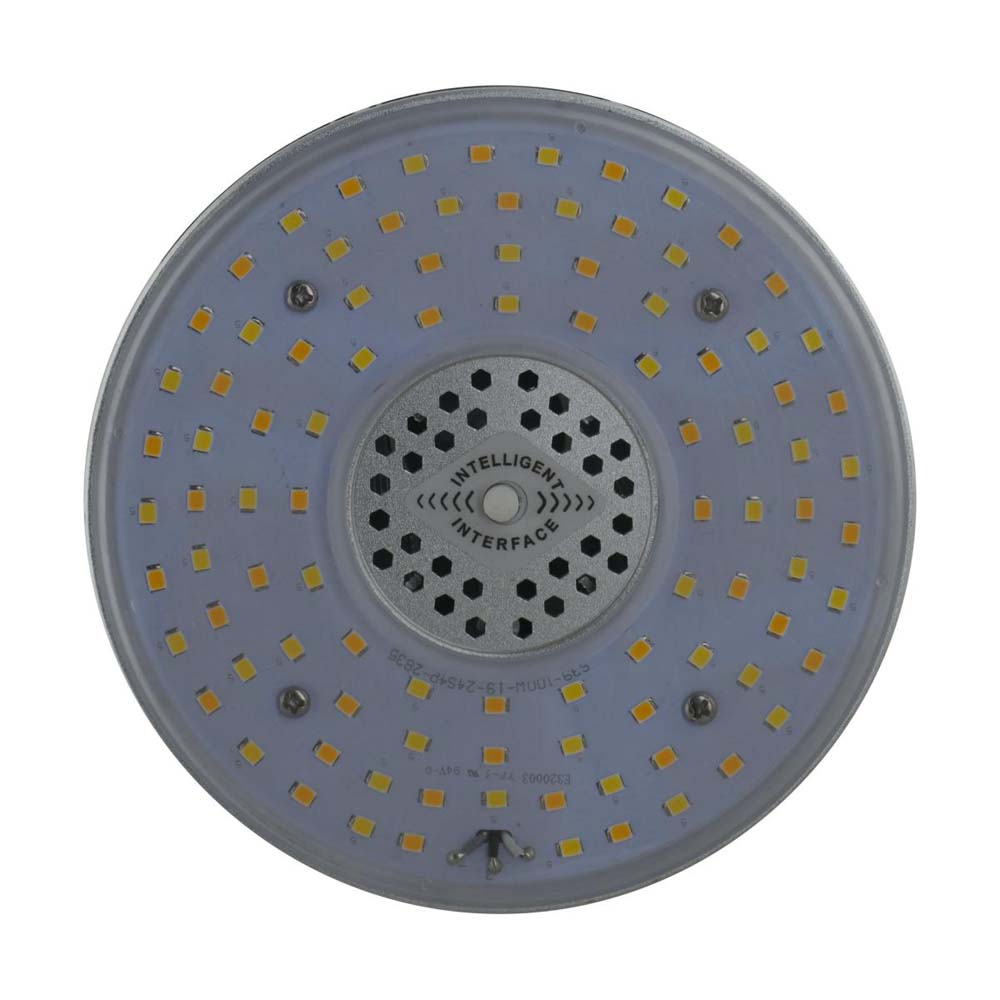

80W LED HID Replacement CCT Selectable Mogul extended base 100-277v - 400W equiv

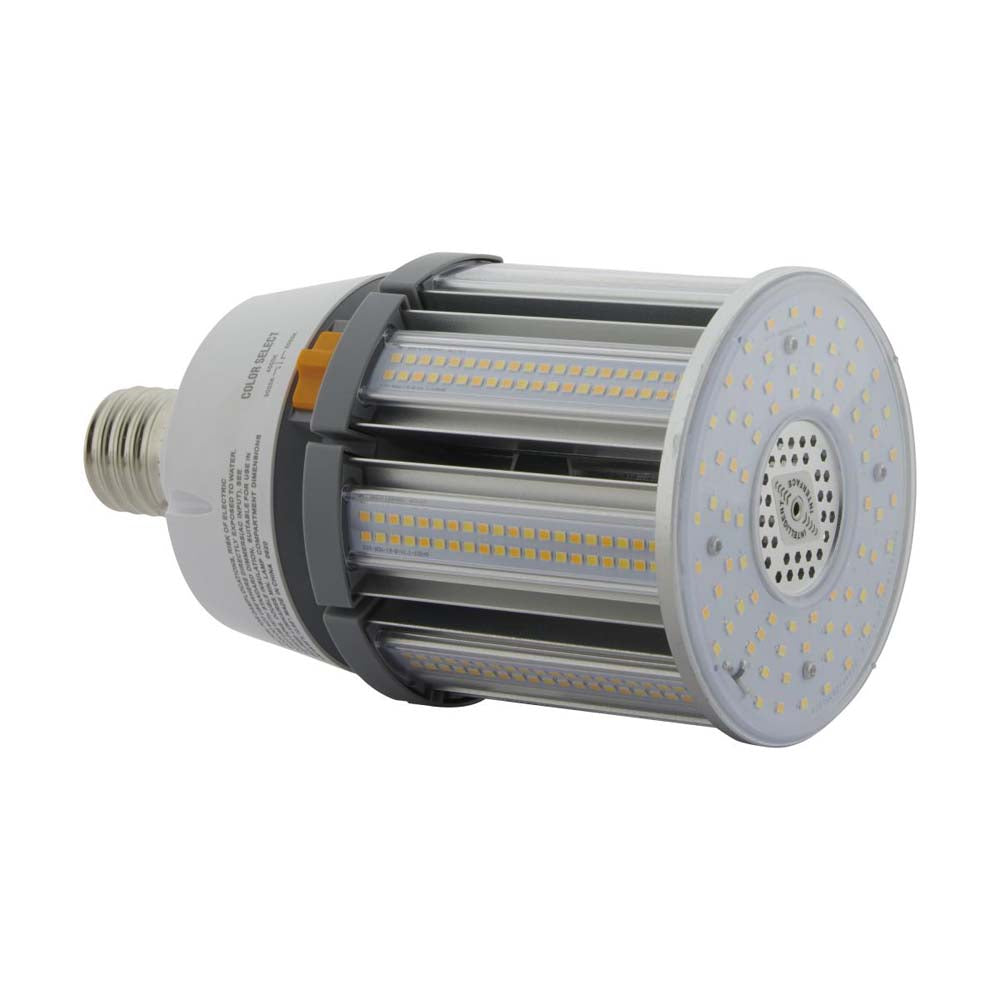

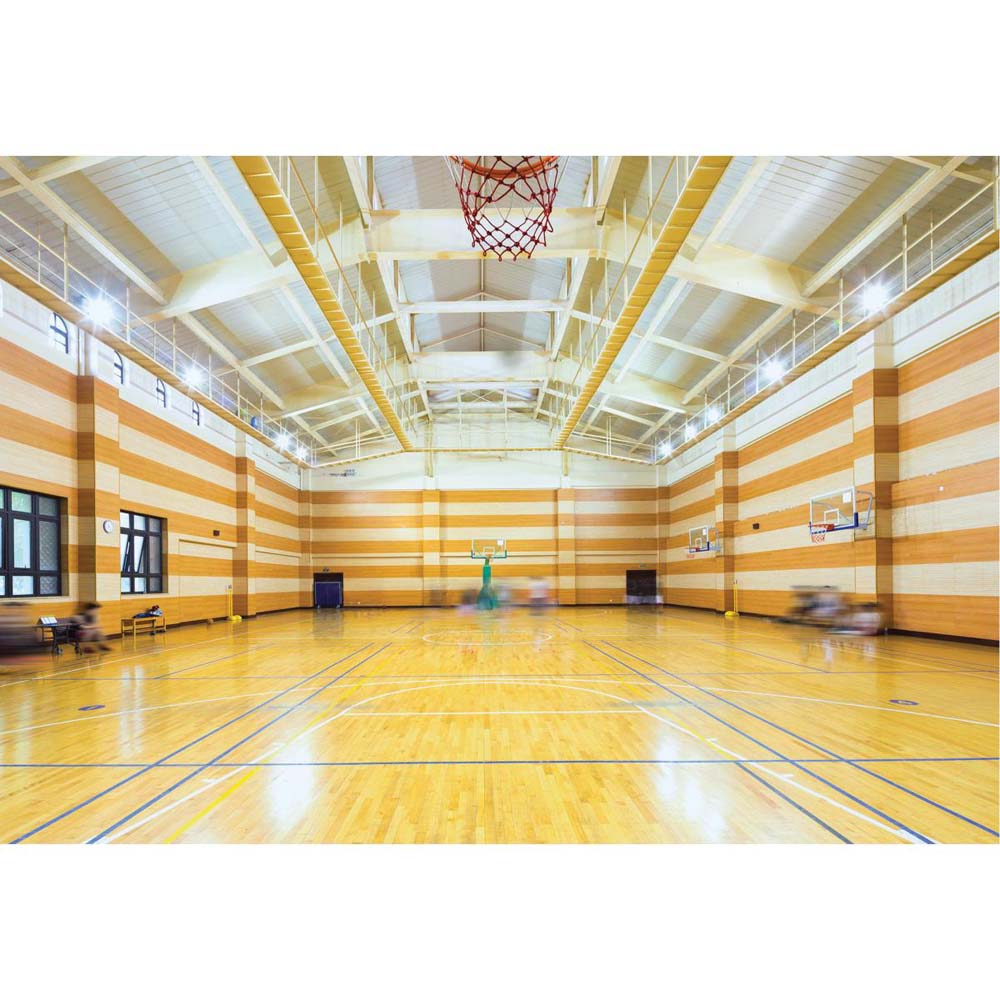

Satco newest additions to the Hi-Pro LED family provides up to 75 percent in energy savings, advanced sensor port technology and are CCT selectable. The omni-directional light is designed to fully and safely illuminate higher ceiling installations such as warehouses, gymnasiums, manufacturing plants and parking garages and the built-in sensor port allows for a variety of plug and play control options.

Features:
- Watts: 80W, Incandescent Equivalent: 400W
- HID Equivalent: 250W
- Volts: 100V-277V, Shape: Corncob
- Base: Mogul Extended, ANSI Base: EX39
- CCT (Kelvin): 3000K, 4000K, 5000K, Temperature: Warm to Cool White
- CRI: 80, Lumens: 10400L-11200L
- Beam Spread: 360, Dimmable
- Rated Life: 50,000 hrs
- Warranty: 5 Year Limited

General
Watts	80W
Incandescent Equivalent	400W
HID Equivalent	250W
Volts	100V-277V
Shape	Corncob
Base	Mogul Extended
ANSI Base	EX39
CCT (Kelvin)	3000K/4000K/5000K
Temperature	Warm to Cool White
CRI	80
Lumens	10400L-11200L
Beam Spread	360
Dimmable	Yes-Dimmable
Rated Life	50,000 hrs
Lamp Type	LED HID
Technology	LED
Electrical
Operating Frequency	50/60Hz
Power Factor	0.9
Operating Temperature	-30C (-22F) to +45C (+113F)
Physical

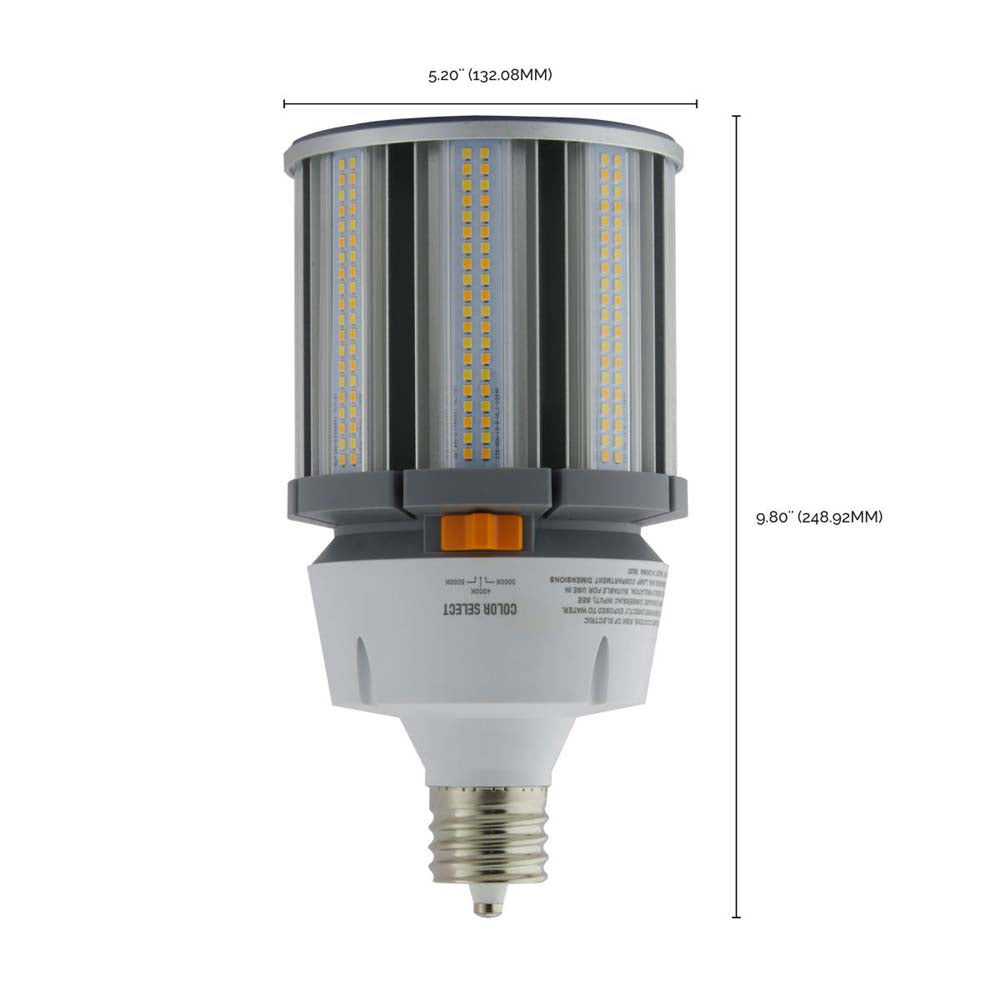

MOL	10.24
MOD	5.16
Lens Finish	Clear
Lens Material	Polycarbonate (PC)
Housing Color	White/Grey
Photocell	Has Photocell
Weight (lb.)	3.3
Additional Information
Rated For Enclosed Fixture	Yes
Warranty	5 Year Limited - Hi-Pro
Compliance
Safety Listing	cULus - Listed
Location Rating	Damp
Energy Star	No
California Status	Lawful for sale
RoHS Compliant	Yes
FCC Compliant	Yes

Manual:

S13143 Data Sheet
S11588 Installation Manual
