BulbAmerica G12 Ceramic Socket Lampholder 24 inch 18AWG Leads

BulbAmerica SKU: G12-SOCKET
$999 $16.99 USD
278 in stock

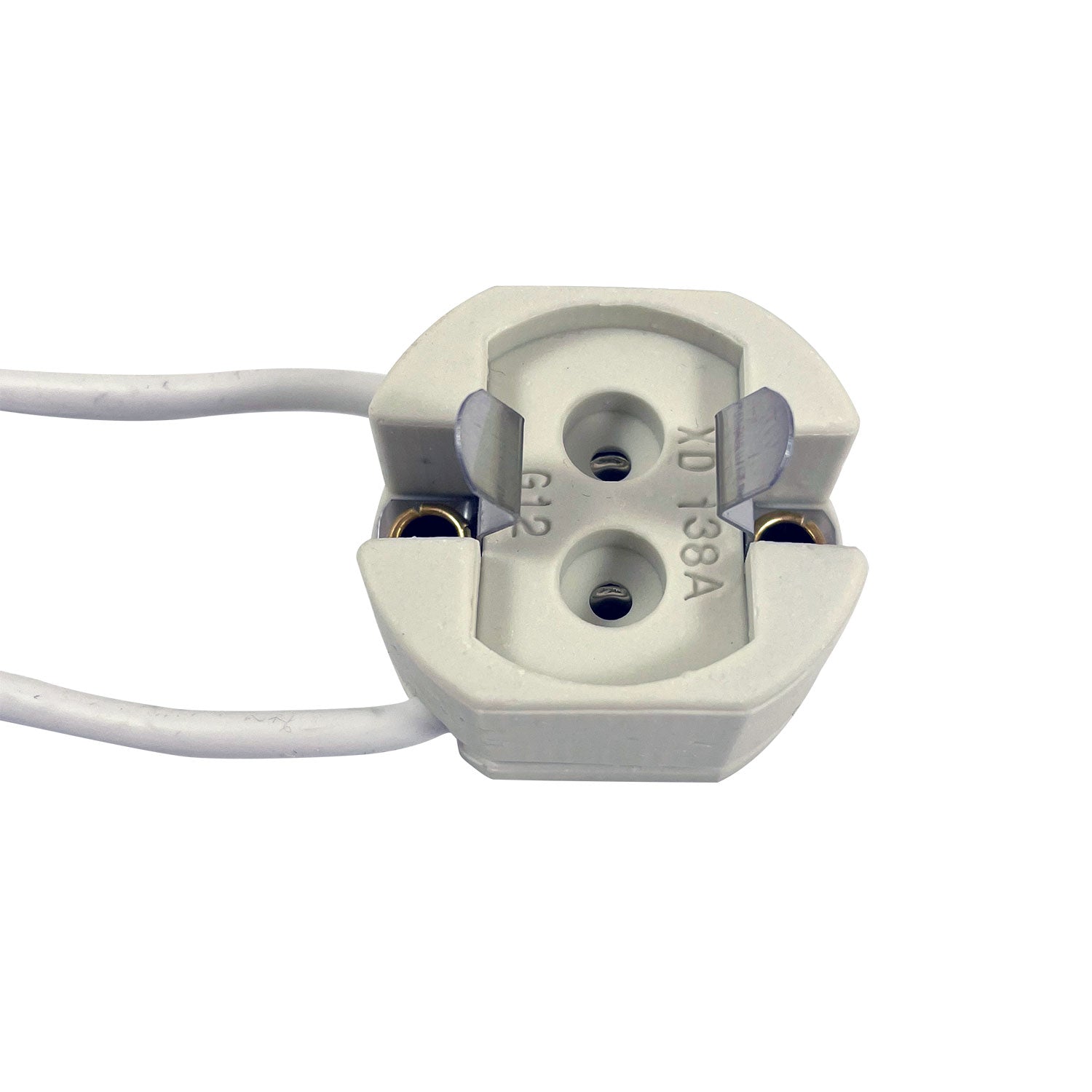

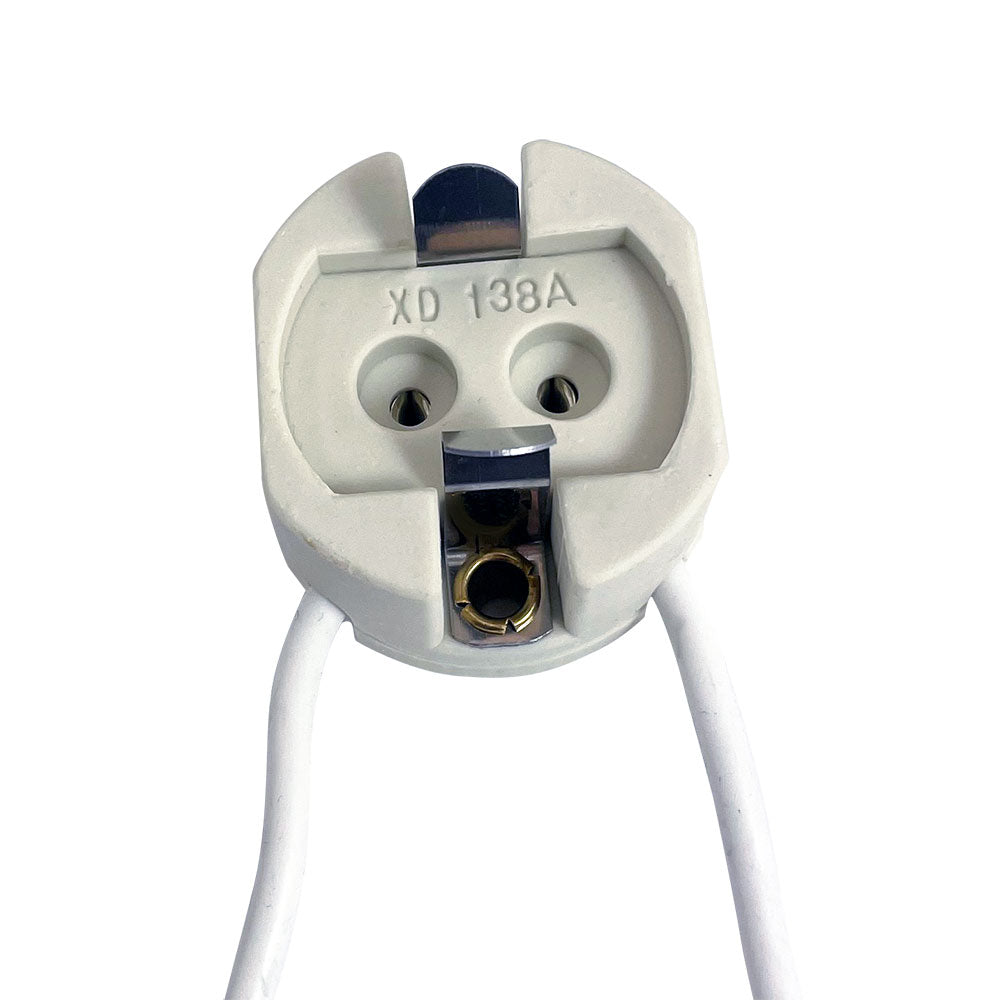

BulbAmerica G12 Ceramic Socket Lampholder 24 inch 18AWG Leads
The BulbAmerica G12 Steatite Socket is used for Halogen and Metal Halide lamps.
The socket includes two 18-gauge wire leads with a 392-degree F (200C) maximum operating temperature.
The 24-inch SEW-2 leads feature copper alloy nickel-plated contact material.

Product features and benefits
- Ceramic housings designed specifically for high-temperature halogen and metal halide applications
- High-quality contact materials for optimal mechanical and electrical properties

Areas of application
- Halogen Fixtures
- Metal Halide Fixtures
- HID bulbs like Philips CDM, GE CMH, OSRAM HSD, and Ushio MHL and CMS

Cross Reference
- OSRAM 69370 G12 24IN/18GA/UL3239
- SYLVANIA 69370


Manufacturer BulbAmerica
Part Number G12-SOCKET
UPC 675650419382
Application Ceramic Socket

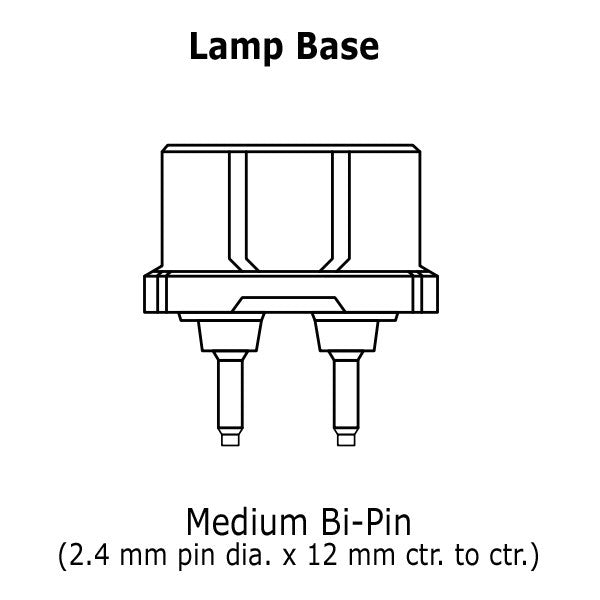

Base G12 2-Pin
Color White
Base Type G12 2Pin
Length 1.57 in
Width 1.38 in
Height 0.87 in
Body Material Ceramic Steatite
Contact Material Nickel Plated Copper
Wire Gauge (AWG) 18 AWG
Lead Length 24 inch (610mm)
Maximum Wattage 2400W
Maximum Voltage 600V
Voltage - Pulse Rated (kV) 5 kV
Current (A) 4A
