BulbAmerica G9.5 Ceramic Socket for HPL lamps in ETC Source Four Fixtures has a rating of 5.0 stars based on 1 reviews.

BulbAmerica G9.5 Ceramic Socket for HPL lamps in ETC Source Four Fixtures

BulbAmerica SKU: G9.5-SOCKET-HPL
$2199 $39.99 USD
679 in stock




Description

BulbAmerica 1000w 250v G9.5 base CE 65inch (165cm) 16AWG Leads Socket

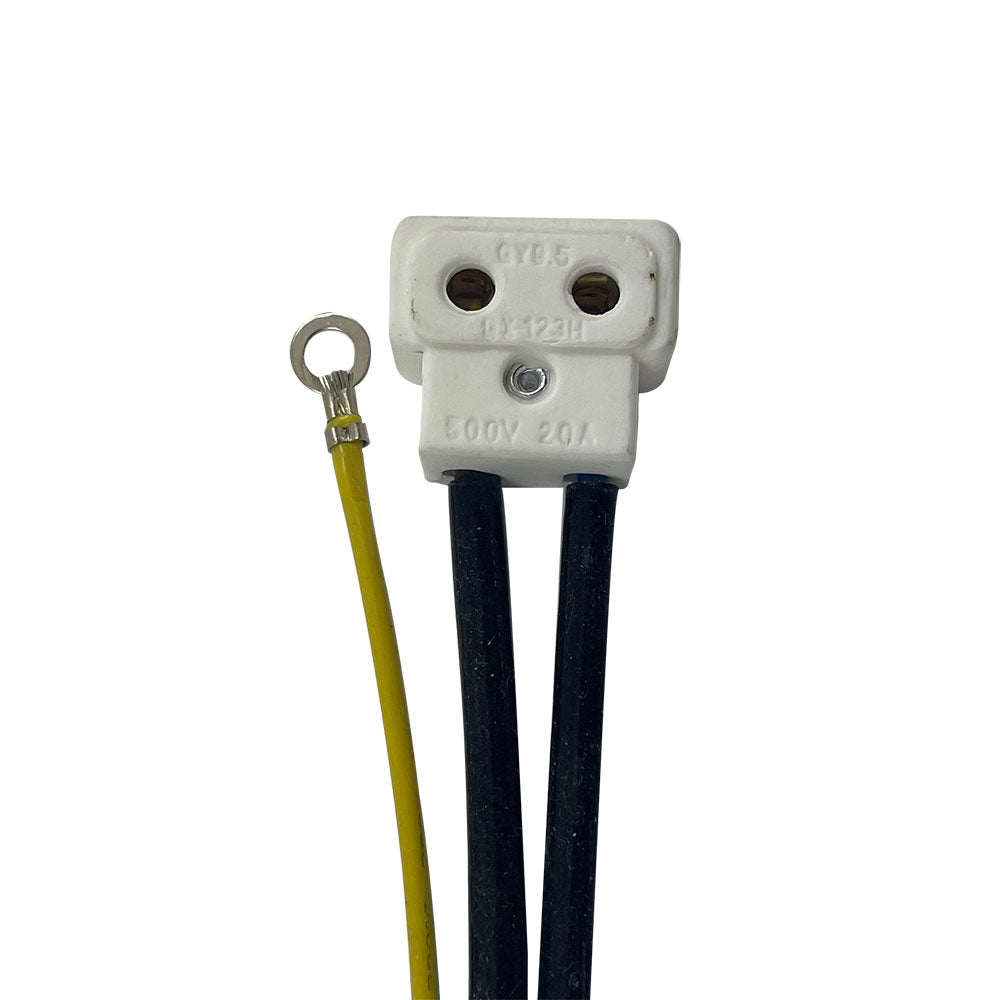

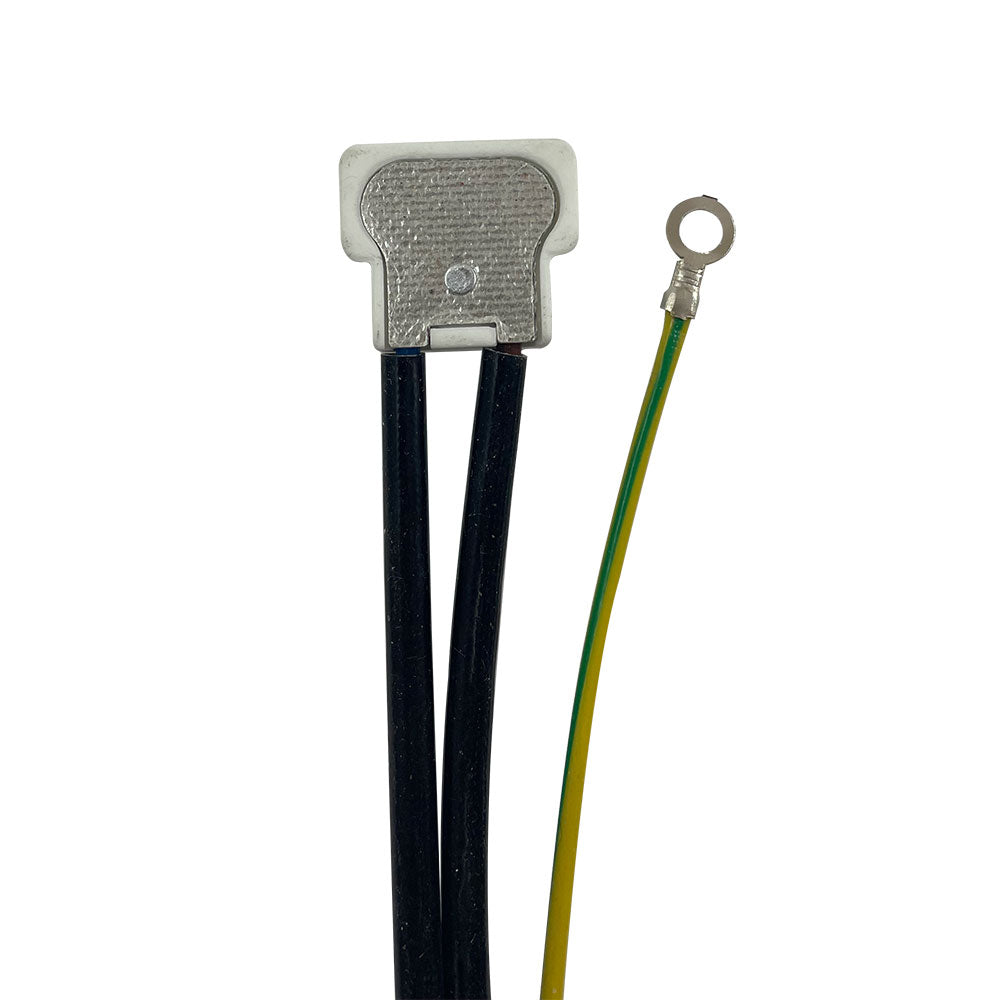

This BulbAmerica socket is designed to be used with any G9.5 base. This socket will fit all generations of ETC Source Four fixtures and HPL bulbs. The ceramic socket has nickel-plated contacts with high-temperature stainless steel backer springs.

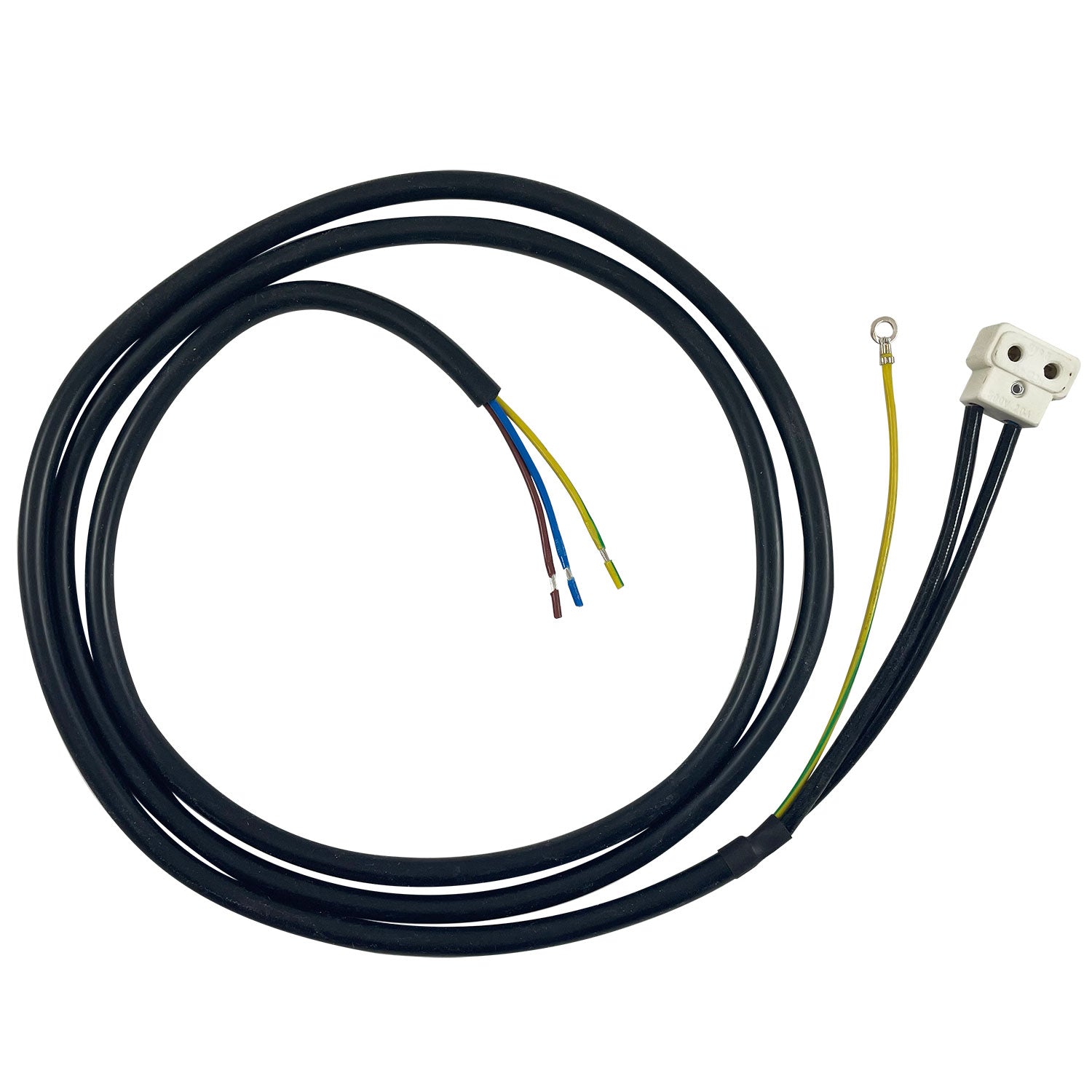

The socket comes with two 16 gauge wires, PTFE high-temperature wire jackets, and a ground wire. This socket is designed for a maximum of 250v and 1000W.

Cross Reference:
OSRAM 69018
OSRAM 69017
OSRAM TP22H, TP-22H
Features:
- Lamp base type: G9.5
- Body Material: Ceramic
- Contact Material: silver plated nickel
- Maximum Wattage: 1000W
- Maximum Voltage: 250V

Specs

Manufacturer BulbAmerica
Body Material Ceramic Steatite
Contact Material Silver Plated Nickel
Height (in) 0.43 in. (10.8 mm)
Length 0.75in. (19 mm)
Width 0.85in (21.7 mm)

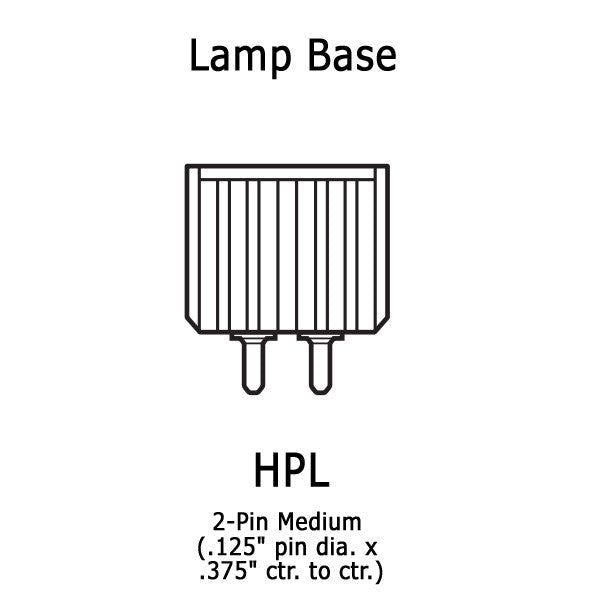

Lamp Base Reference G9.5, Bi-Pin

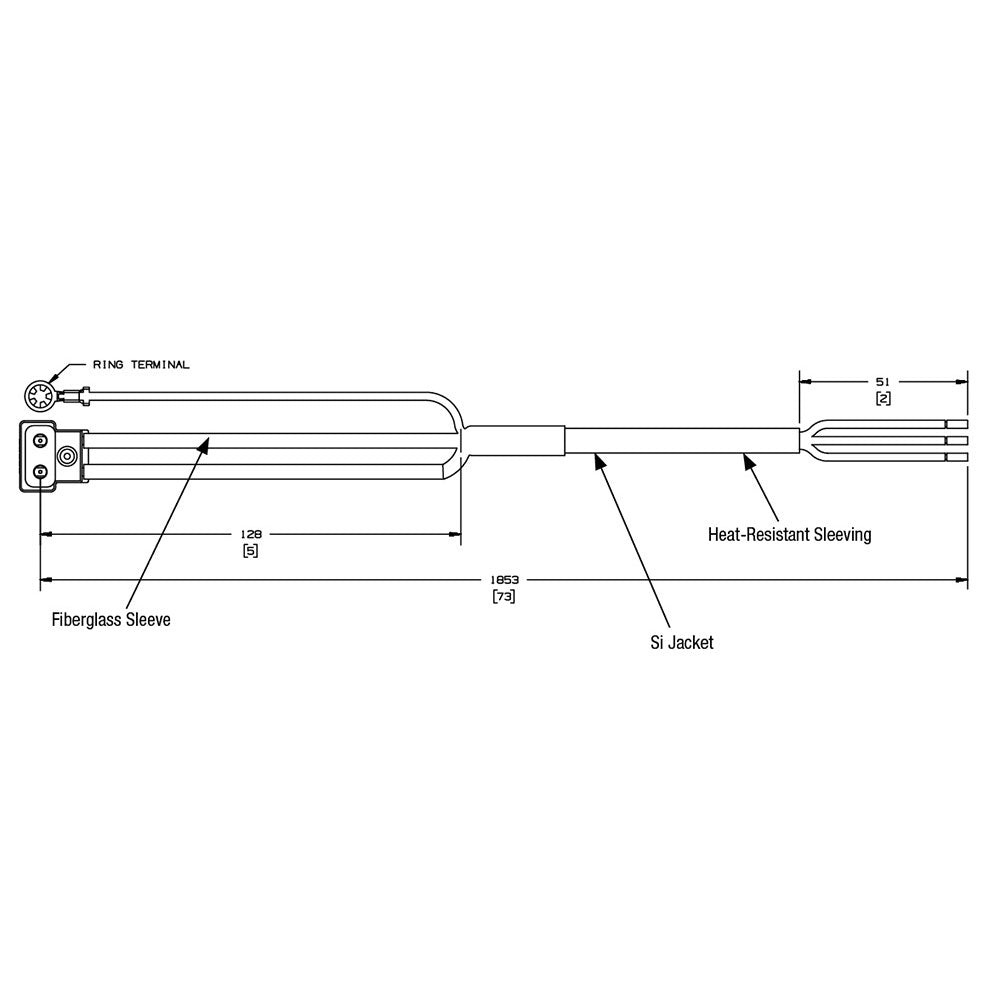

Lead Strip Length 64 inch (165cm)
Maximum Operating Temperature C 250
Maximum Voltage (V) 250
Maximum Wattage (W) 1000
Rohs Compliant Yes

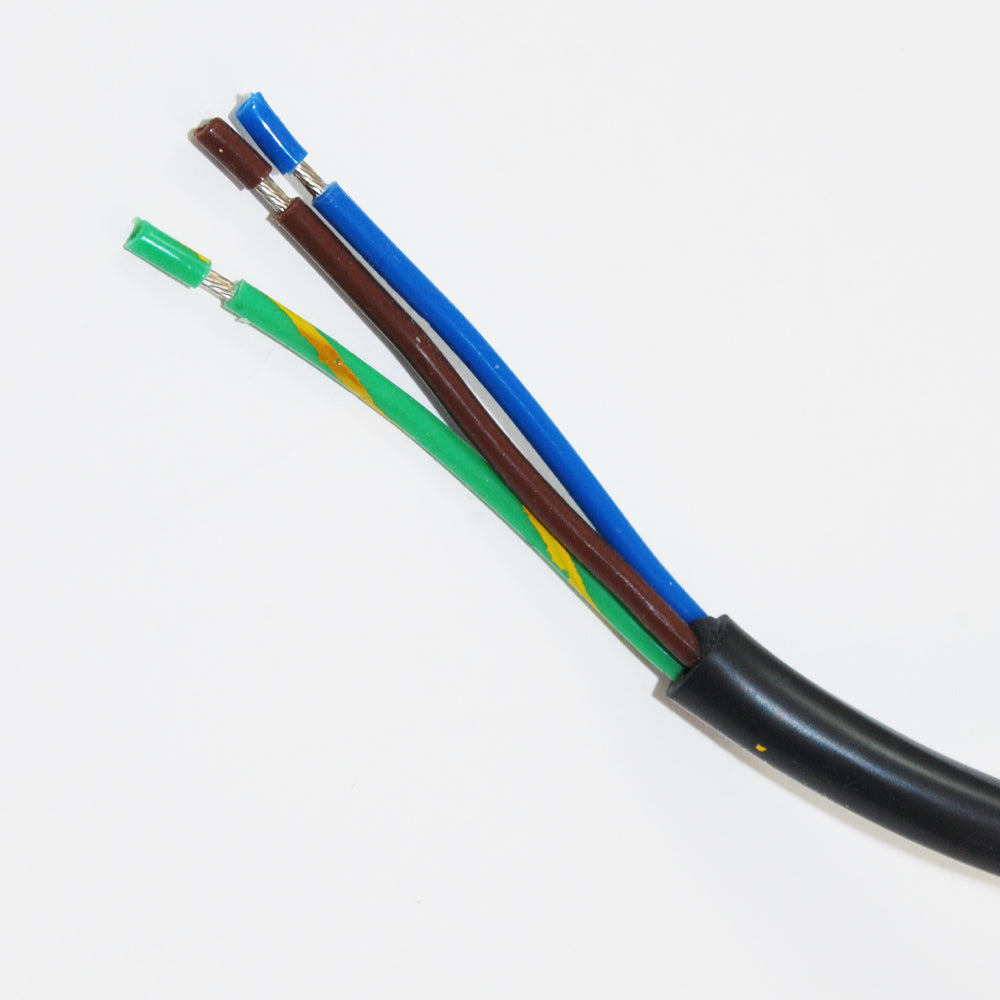

Wire Color(s) Brown, Blue, Green
Wire Type PTFE Jacket
Wire Gauge (AWG) 16
UPC 675650419436
‎
