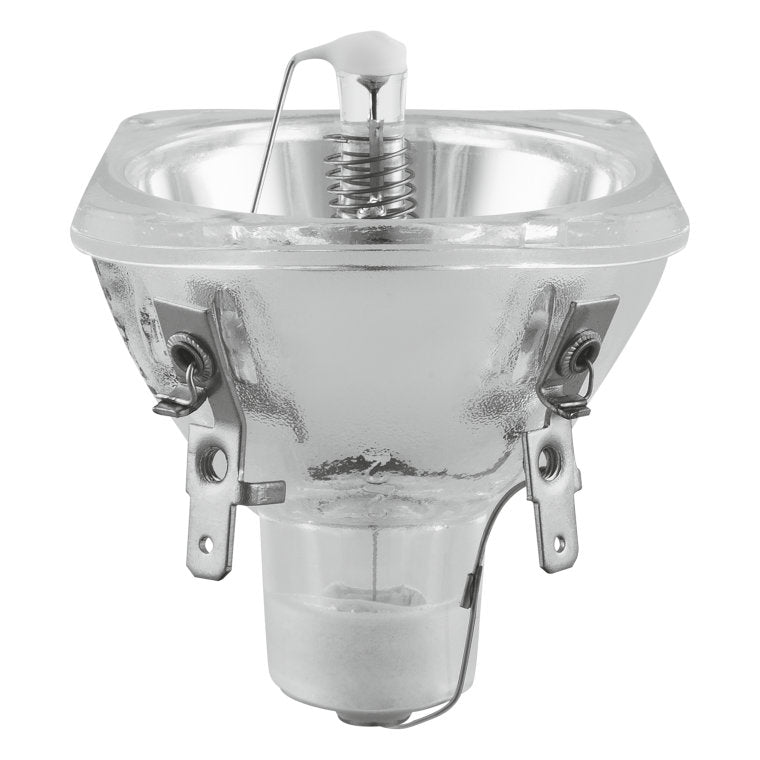

Color Imagination SI-220 PROBEAM 231 - Osram Original OEM Replacement Lamp

OSRAM SKU: 55184_3
$15399 $199.99 USD
95 in stock




0

Description

OSRAM 69483 3000W Xenon High Pressure Lamp XSTAGE OFR T17 Special Double Ended 30V

Application
- Event
- Architainment Lighting
- Follow Spots
- Sky Tracker

Specs

Replacement lamp for Color imagination
Model SI-220 PROBEAM 231
Abbreviation Name XSTAGE3000WOFR
Average Rated
Average Rated Life (hr) 650
Base Special Double Ended
Base Anode SFaX27-9.5
Base Cathode SFc28-27
Bulb T17
Class C (gas)
Color Rendering Index (CRI) 98
Color Temperature (K) 6000
Cooling Required
Current (A) 100
Current Control Range (A) 70-110
Diameter d (in) 2.165
Diameter d (mm) 55
Distance a (mm) 120
Electrode Gap (cold) (mm) 4.5
Family Brand Name XBO
Hot Restart Yes
Lamp Finish Clear
Length l1 (mm) 300
Length l1 max. (mm) 300
Length l2 (mm) 262
Length l2 max. (mm) 262
Light Center Length - LCL (mm) 120
Luminous Area w x h (mm) 1.3 x 3.5
Luminous Flux (lm) 140000
Luminous Intensity (cd) 13500
Maximum Base Temperature °C 230
Maximum Overall Length - MOL (mm) 300
Nominal Voltage (V) 30
Nominal Wattage (W) 3000
Operating Position s90
Reflector Coating 55
Type of Current DC
