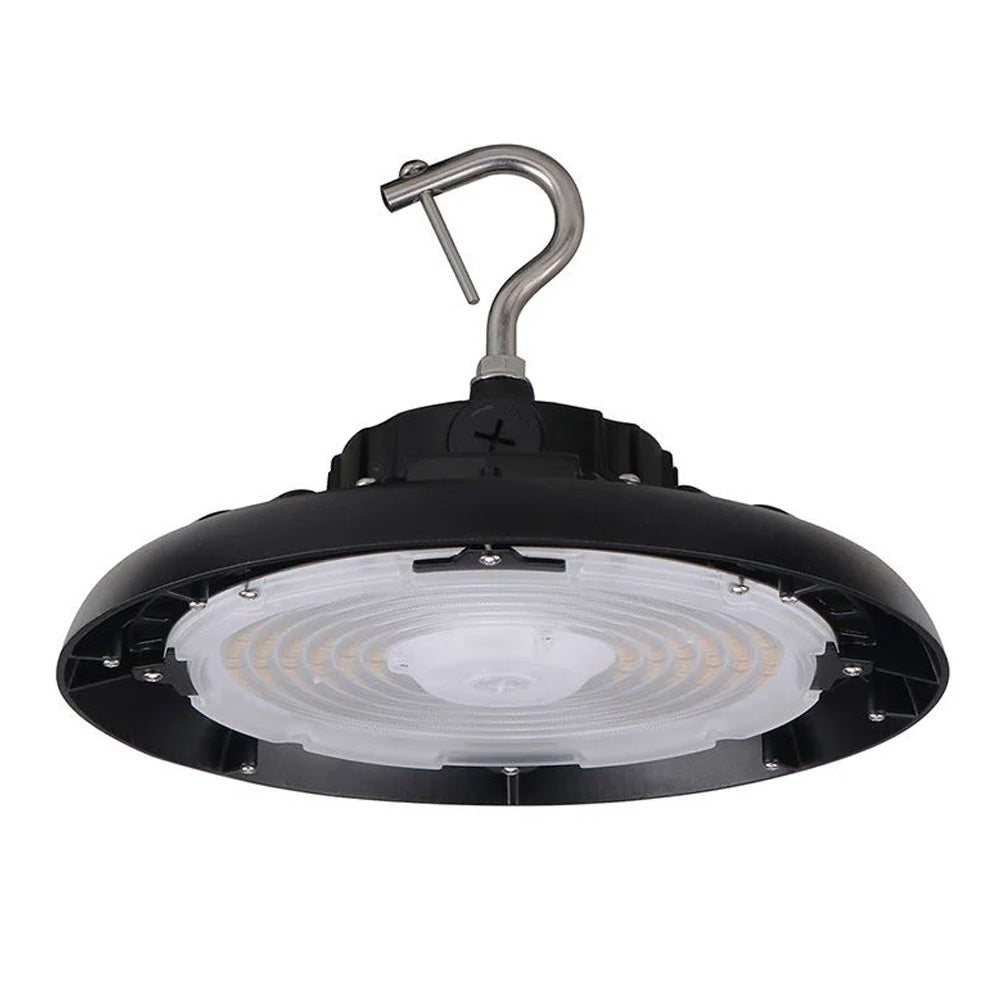

Day-Brite 150W UFO LED Wattage & CCT Selectable - Black High Bay with Reflector

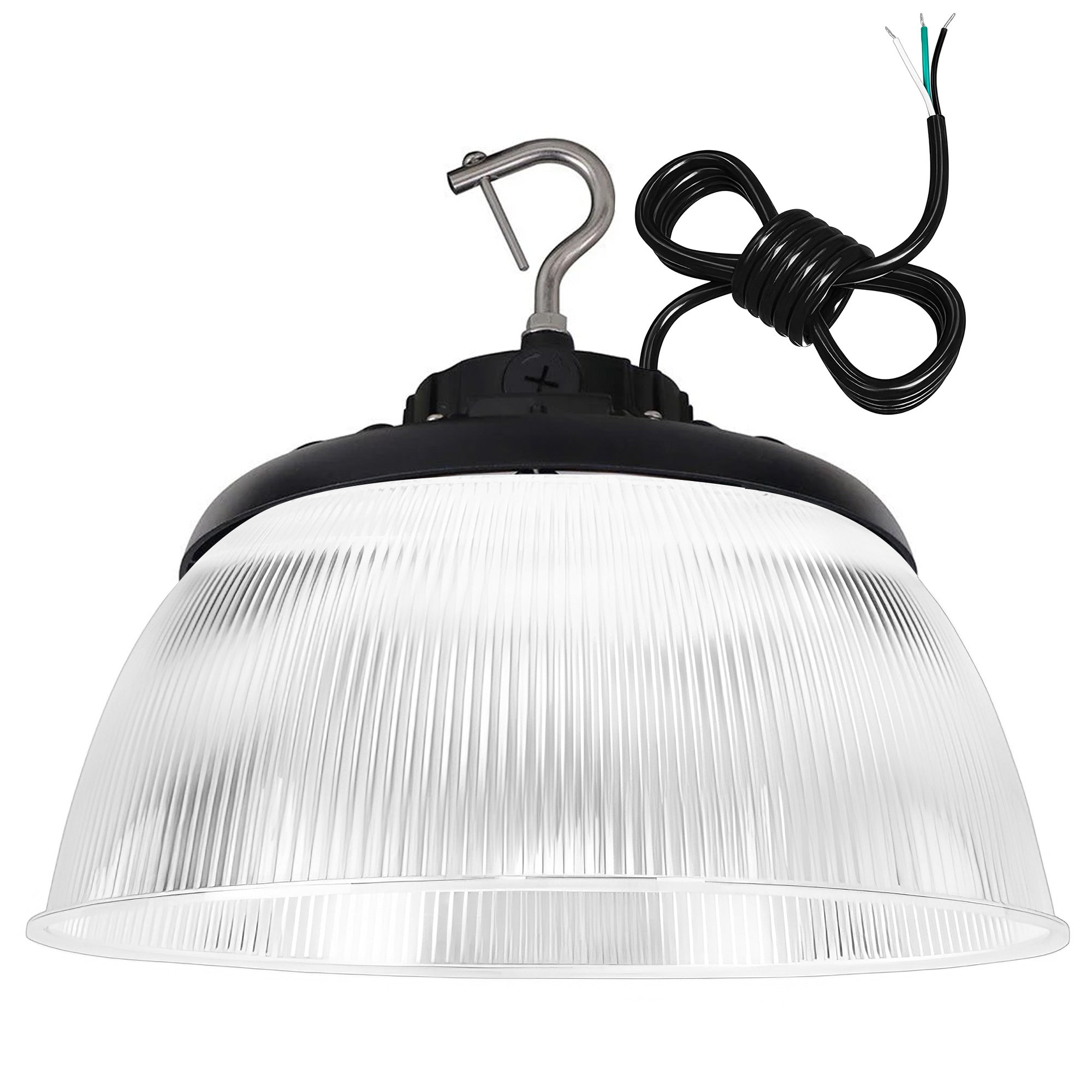

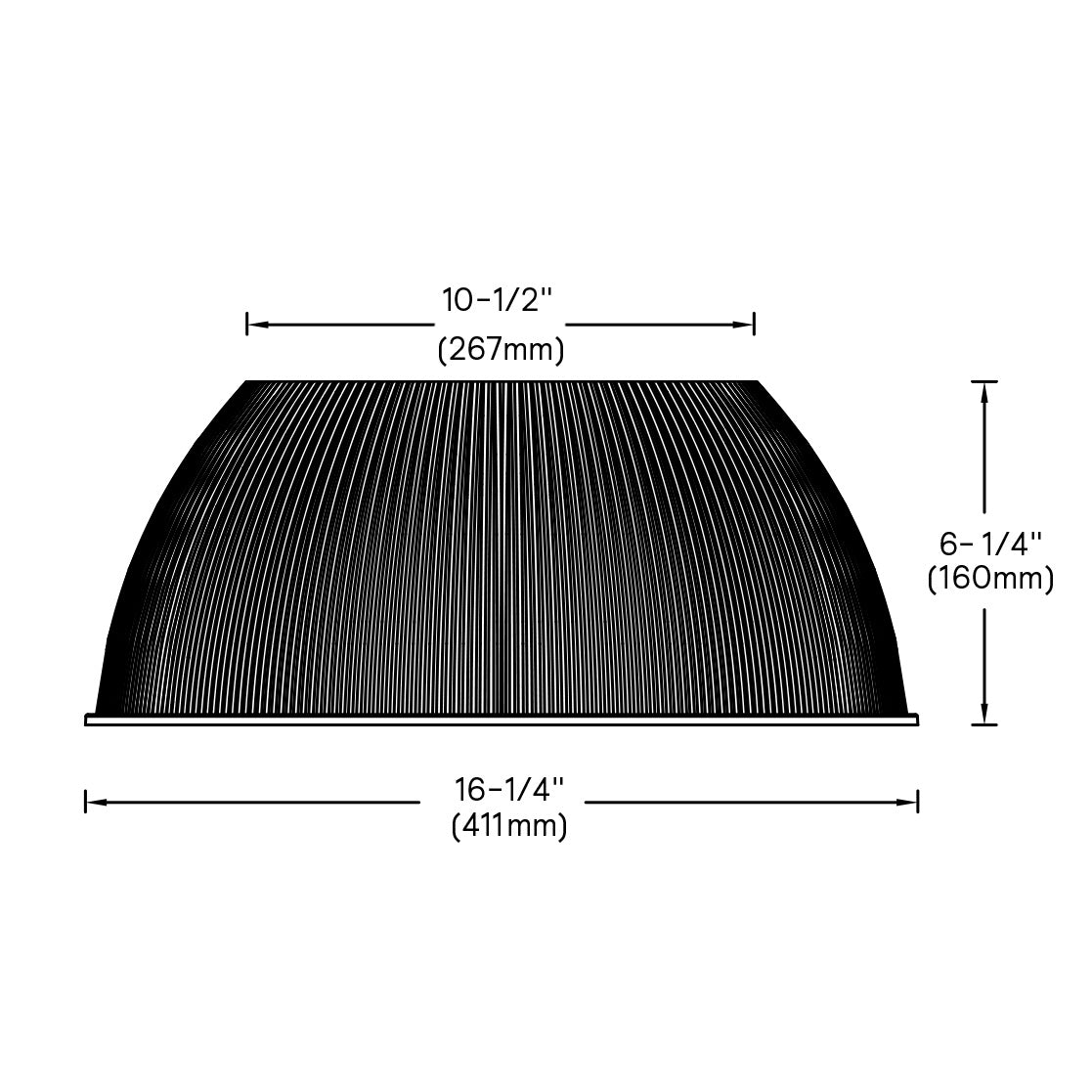

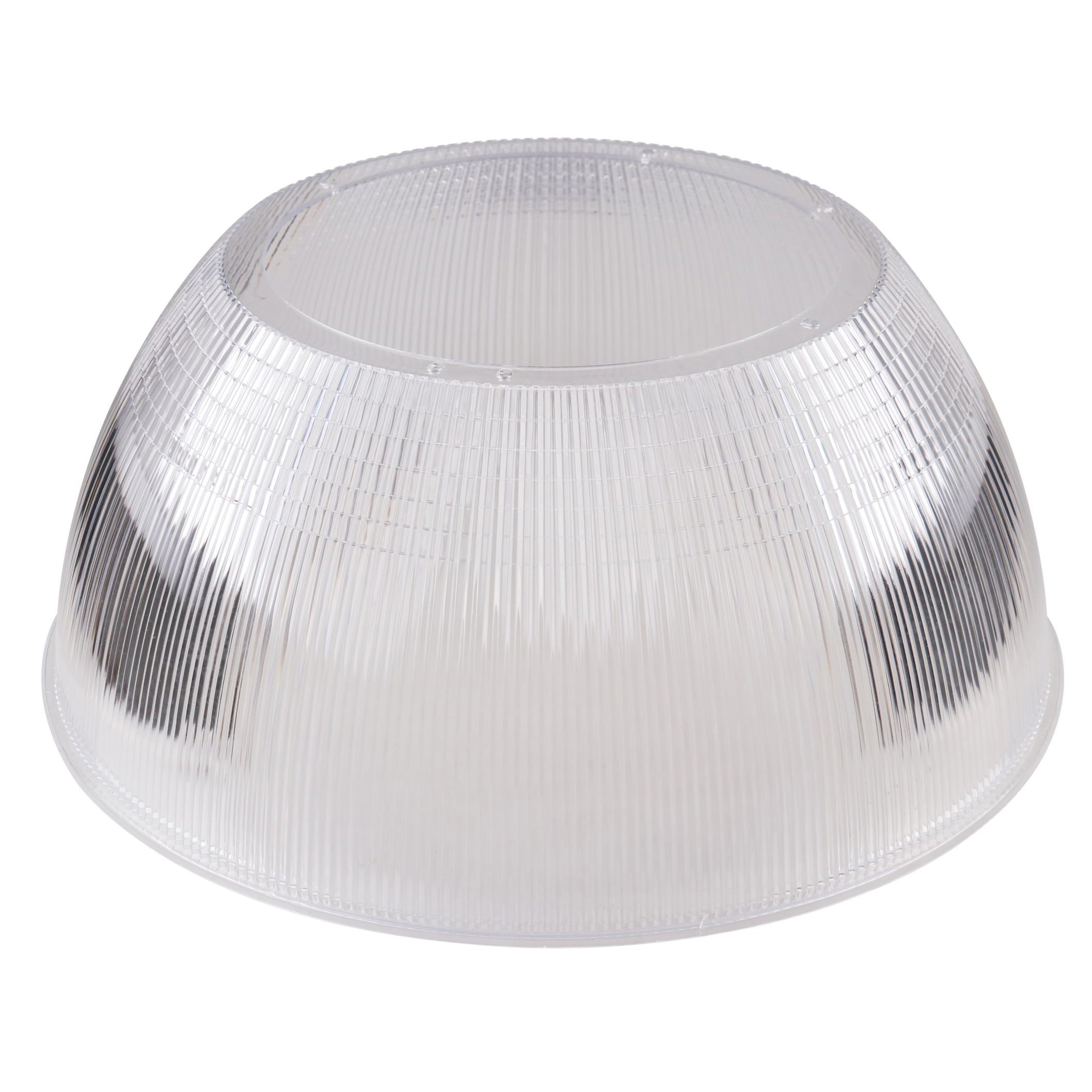

Day-Brite HCY 150W UFO LED Wattage & CCT Selectable - Round High Bay - Black Finish with 16-in Clear Polycarbonate Reflector

SKU: HCY0823L8CST-UN3-DIM-BK, Philips Code: 911401809987, UPC 190096197057
The Day-Brite / CFI HCY sealed high bay is an ideal choice where functional high bay lighting is needed with an aesthetic appeal.
The round form factor lends itself to retail and institutional applications.

Features:
- ideal choice where functional high bay lighting is needed with an aesthetic appeal
- Selectable Wattage Output: 50W (8,000Lm) 90W (14,000Lm), and 150W (23,000Lm)
- Selectable Color Temperature: 3500K - 4000K - 5000K
- Voltage: 120V to 347V
- Heavy duty hook provided for connection to customer-supplied suspension
- Die cast frame and driver containment housing
- IP65 Rated
- UL1598 wet location rated
- UP Certified
- Corrosion resistant
- Driver surge protection is 4kV L-N and 6kV LN-GND

General
Fixture Type	UFO Hi-Bay
Finish	Black
Style	Utility
Specifications
Base	Integrated
Bulb Type	LED
Wattage	50/90/150W
Voltage	120-347
Light Output	8000/14000/23000 Lumens
Rated Life	50,000 hrs
Color Temp	CCT Selectable (3500K/4000K/5000K)
Color	Cool White
CRI	80
Sloped Ceiling	No
Fixture Material	Die Cast Aluminum
Dimensions
Height (in.)	11.25
Width (in.)	4.18
Length (in.)	11.25
Weight (lb.)	10.11
Compliance
Safety Listing	cULus - Listed
Location Rating	Wet
Energy Star	No
CA T20 / T24 Rationale	T20 Exempt - Fixtures Not Regulated
California Status	Lawful for sale in California
California Prop 65	Lead
RoHS Compliant	Yes
FCC Compliant	Yes

Manual:

HCY0823L8CST-UN3-DIM-BK Catalog
