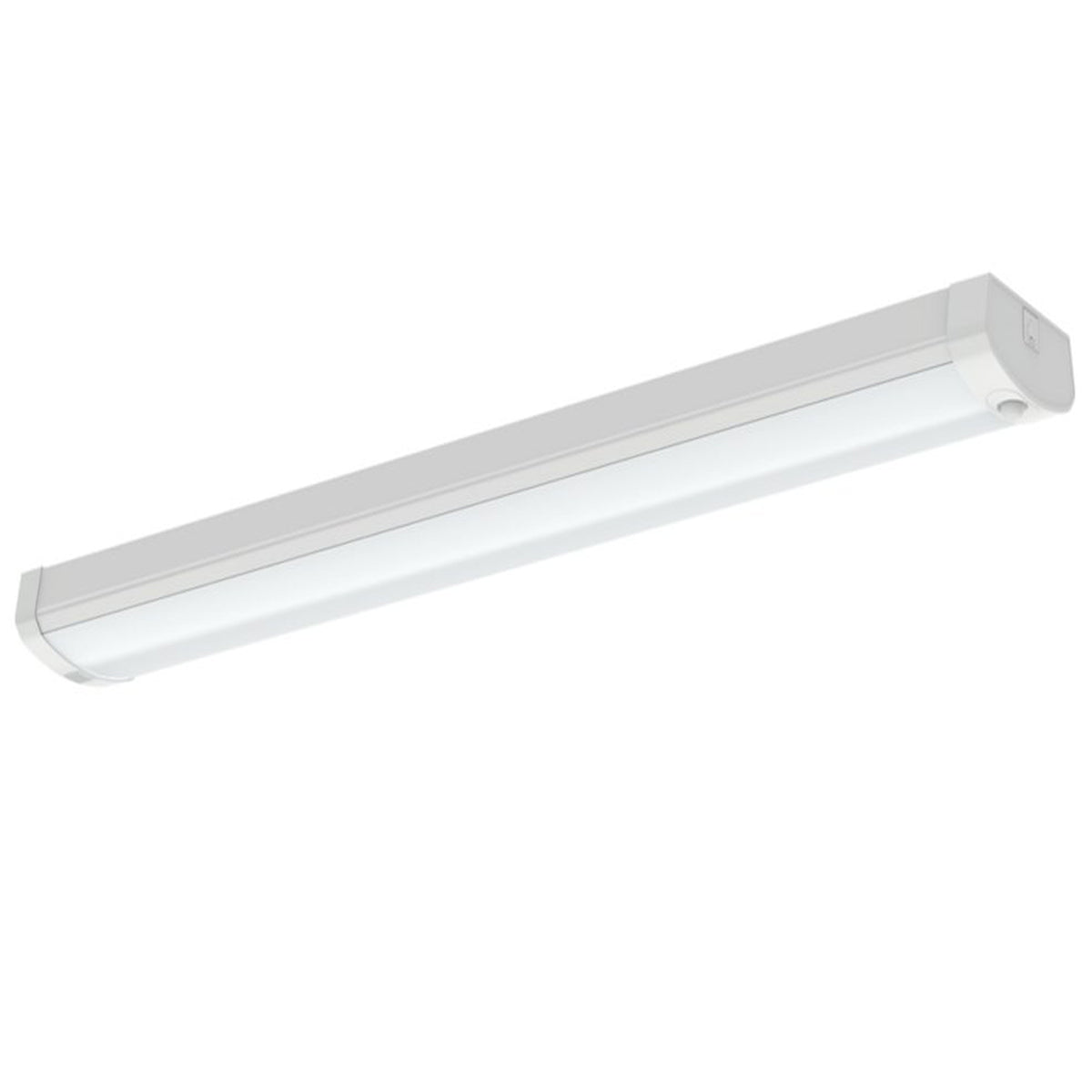

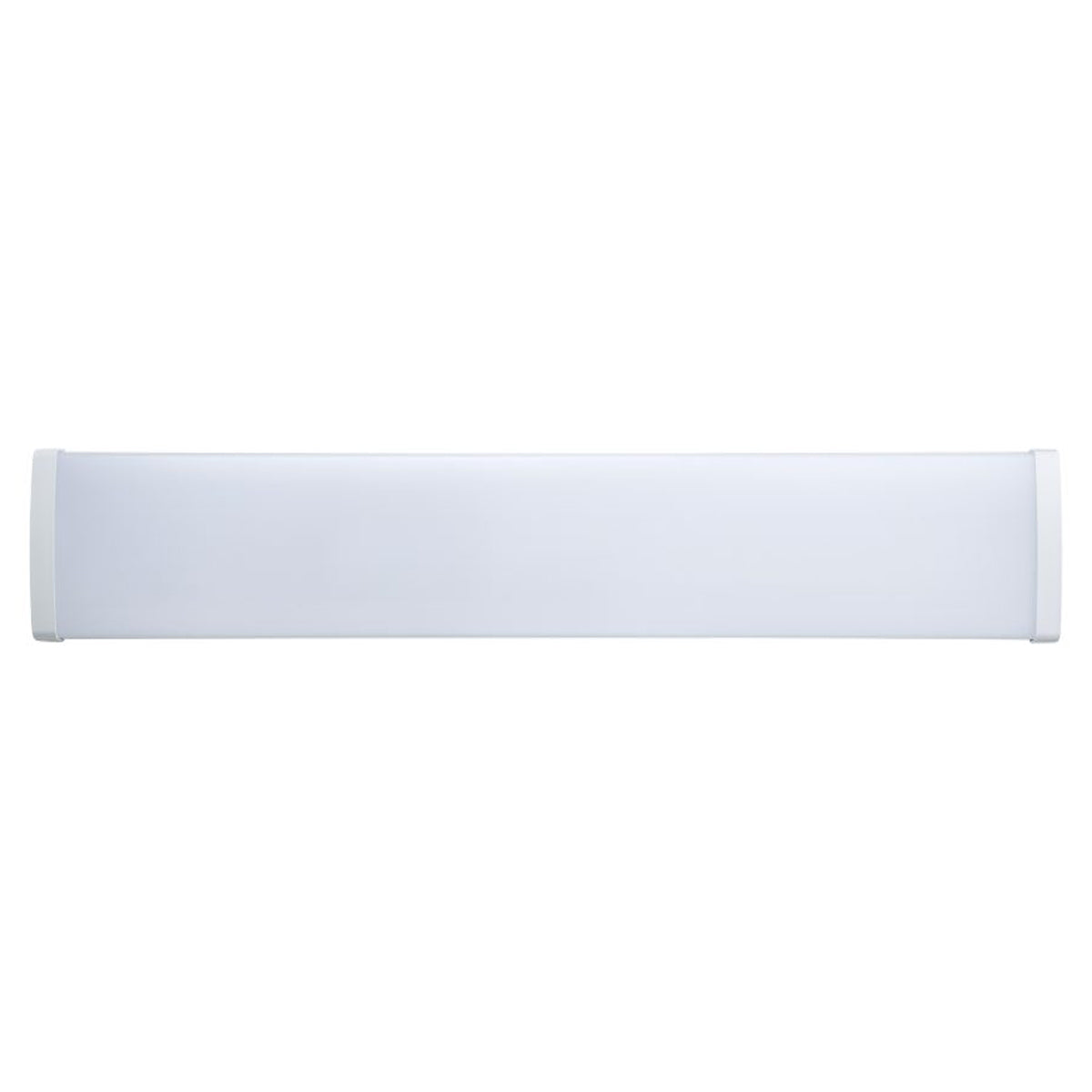

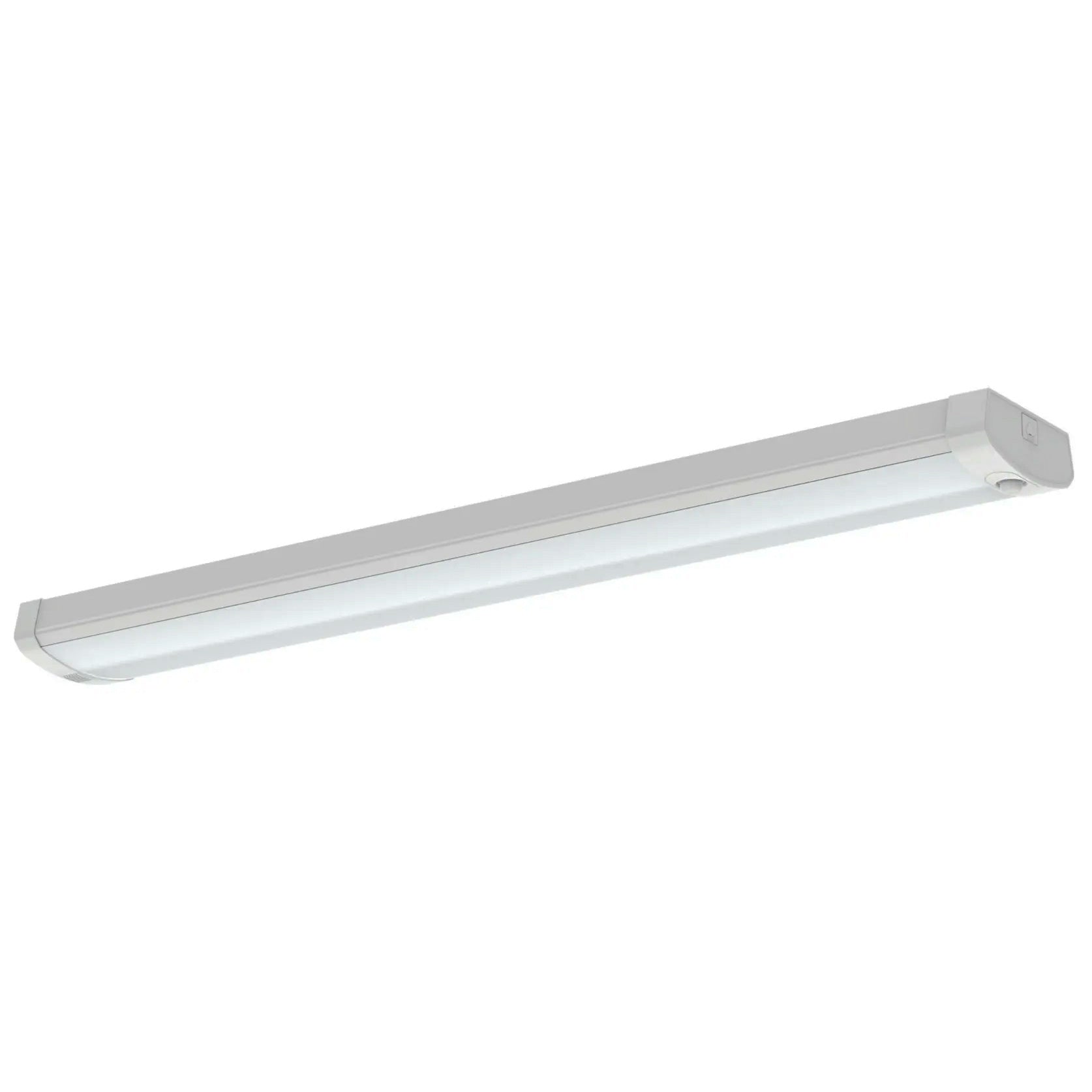

Day-Brite CFI WLS 48-in LED Wraparound Wattage Lumens & CCT Tunable 120-347v

Day-Brite / CFI - GENLYTE Solution, a Signify (Philips) business LED wraparound - is an economical surface mount general illumination luminaire for use in commercial and residential applications. The slender form and frosted lens create an appealing visual aesthetic. The built-in occupancy sensor, lumen and color selectable light output offer complete versatility

Features:

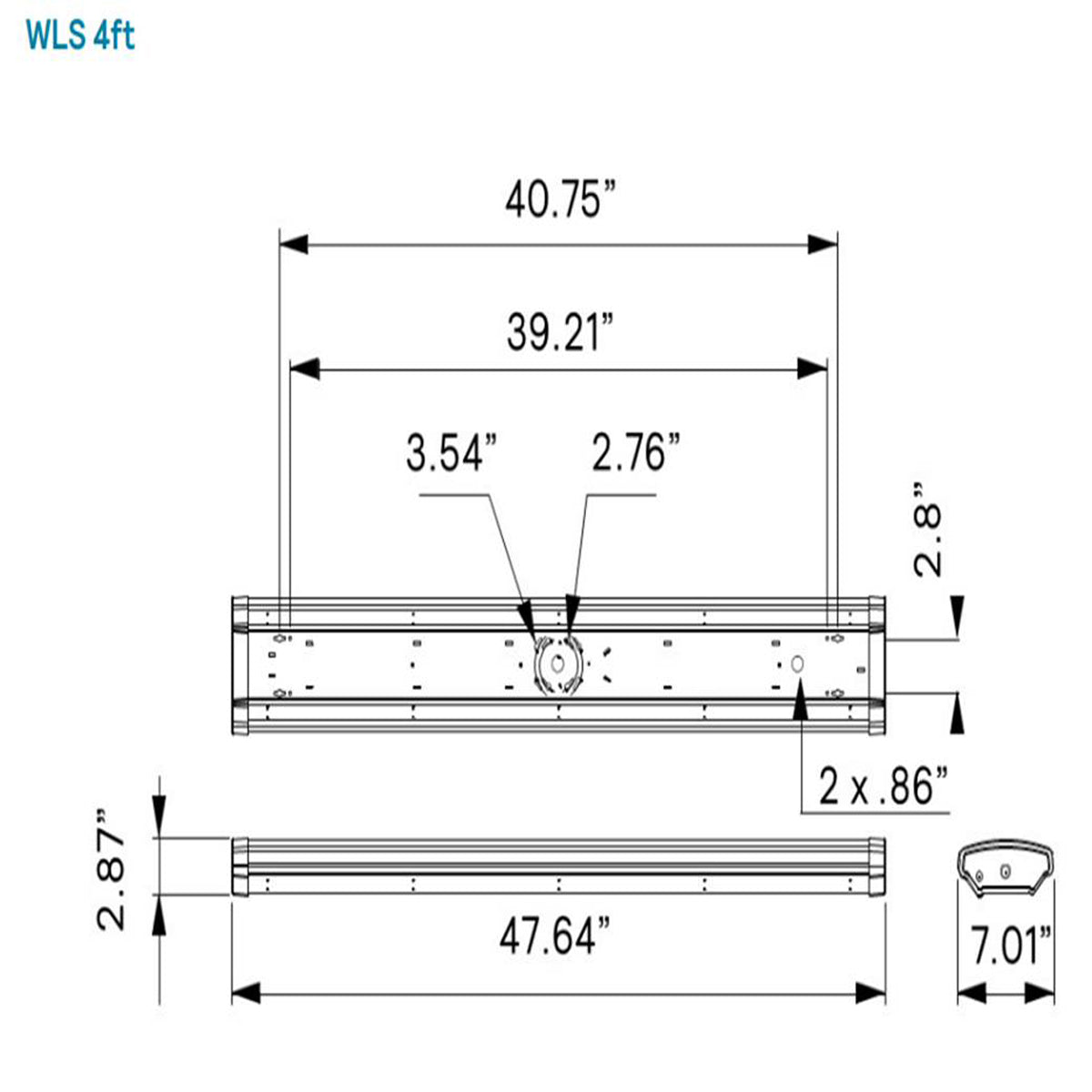

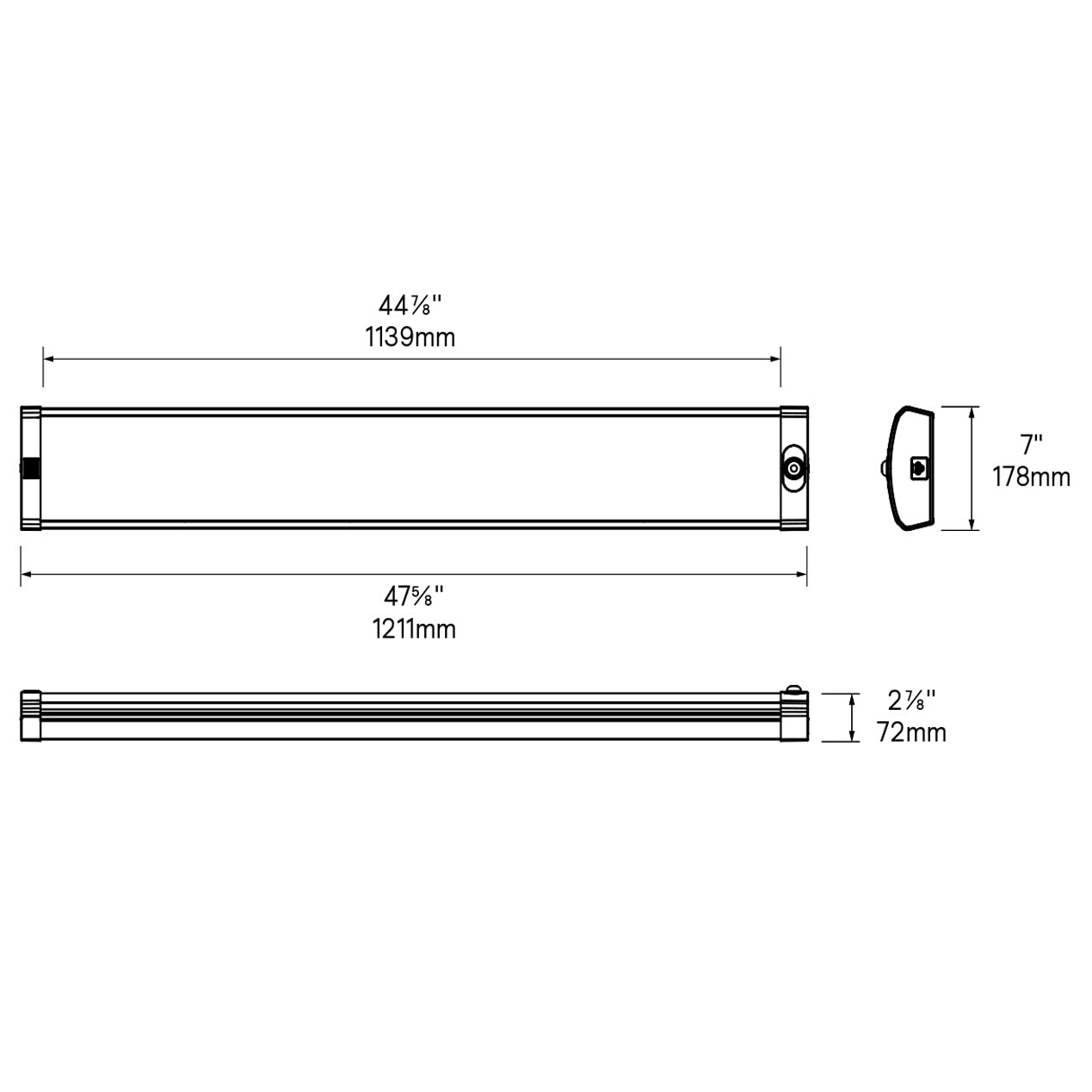

- Size: 4-ft
- White polycarbonate housing for durability
- Frosted polycarbonate lens for even, low glare lighting
- Hardware for surface mounting included and easy installation with holes provided in housing
- Can be surface mounted on ceilings or walls or suspended via chain, pendants or cables. Pendant suspension requires junction box.

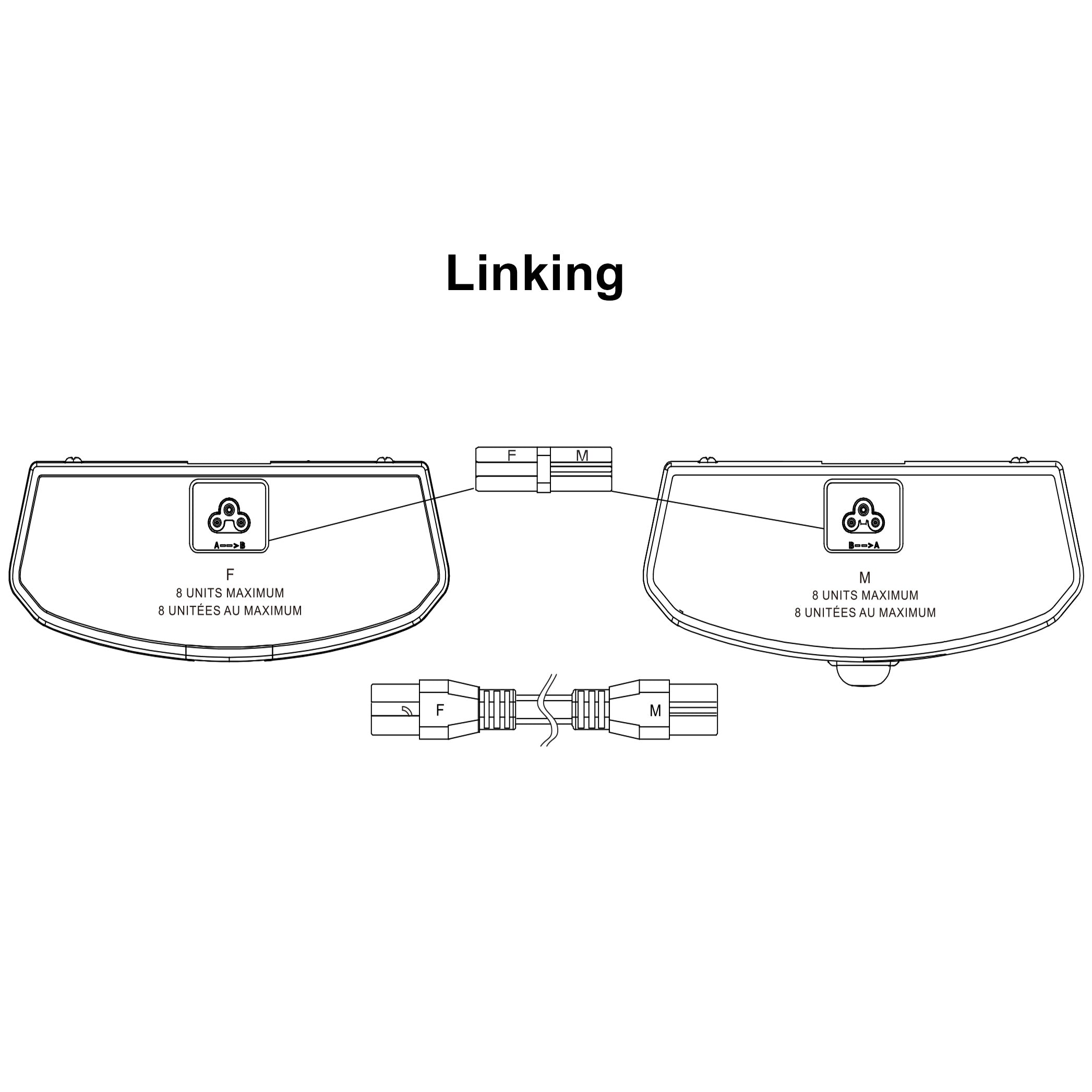

- Interconnecting wiring between two wraparound fixtures is routed through the side-cover knockout openings, enabling both power and 0-10V control wiring to pass through and be connected.
- Color selectable: 3500K/4000K/5000K
- Wattage selectable: 26, 35, 44W
- Lumens selectable: 3,150LM, 4,200LM, 5,300LM (highest available lumens at 42W and 4000K color temperature)
- Voltage: 120-347v
- Suitable for damp locations
- cETLus listed to meet UL 1598 standards for -10°C to 35°C ambient.
- DesignLights Consortium qualified.

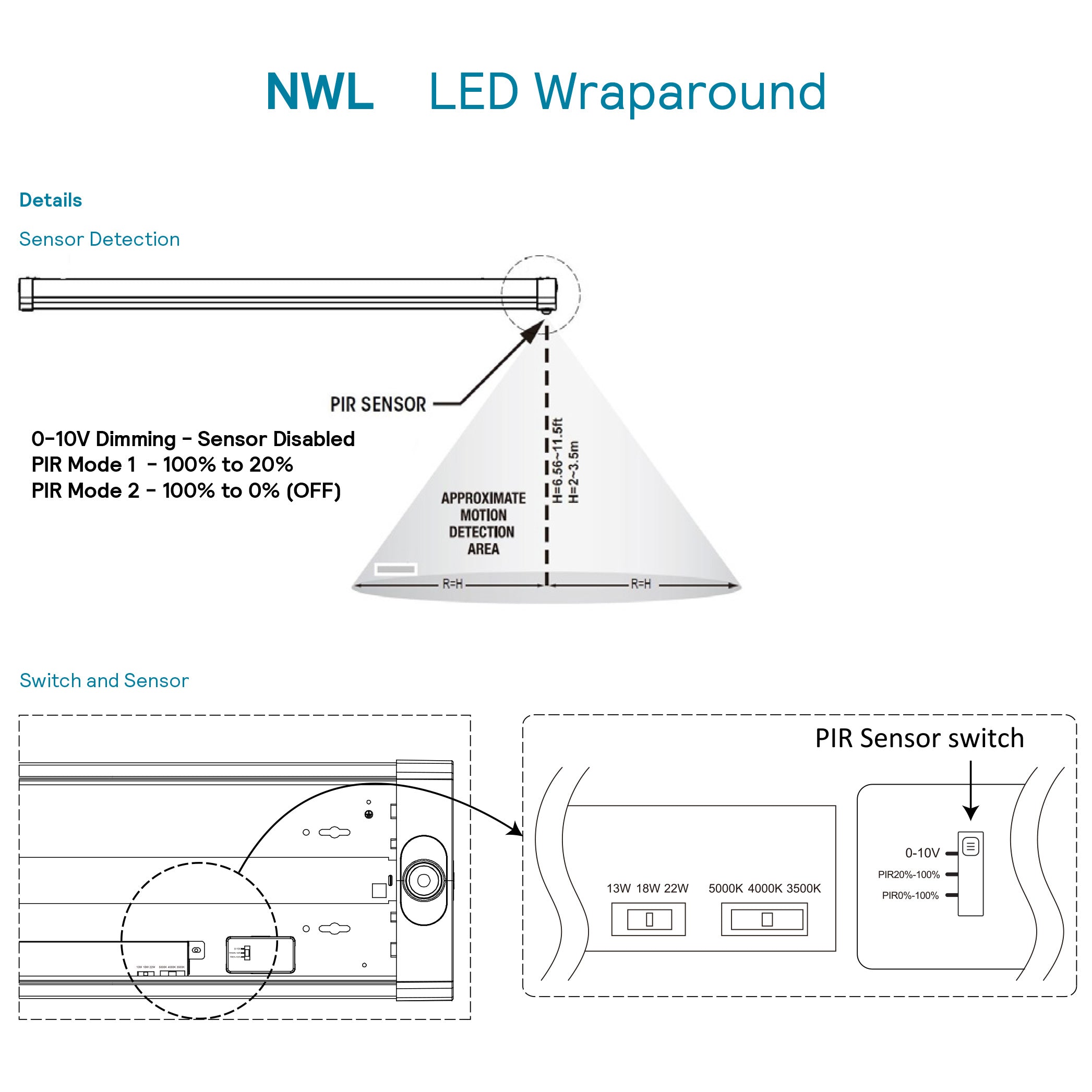

Integrated PIR occupancy sensor with three alternative settings to chose from:
0-10V dimming driver control
- PIR Sensor fully OFF
- Default factory setting
PIR Mode 1
- When movement detected 100%, when no movement is detected dims to 20%
PIR Mode 2
- When movement detected 100%, when no movement is detected dims to OFF

Brand	Day-Brite (a Signify Philips business)
Product Type	CFI WLS LED Wraparound
Size	48-in
Wattage	26W, 35W, 44W
CCT Selectable	3500K, 4000K, 5000K
Lumens	3,150LM, 4,200LM, 5,300Lm
Voltage	120-347v
CRI	80
UPC	190096196890
Philips Part #	9114 018 93185, 911401893185

Manual:

NWL43050L8CST-UN3-DIM Data Sheet
NWL43050L8CST-UN3-DIM Installation Manual
