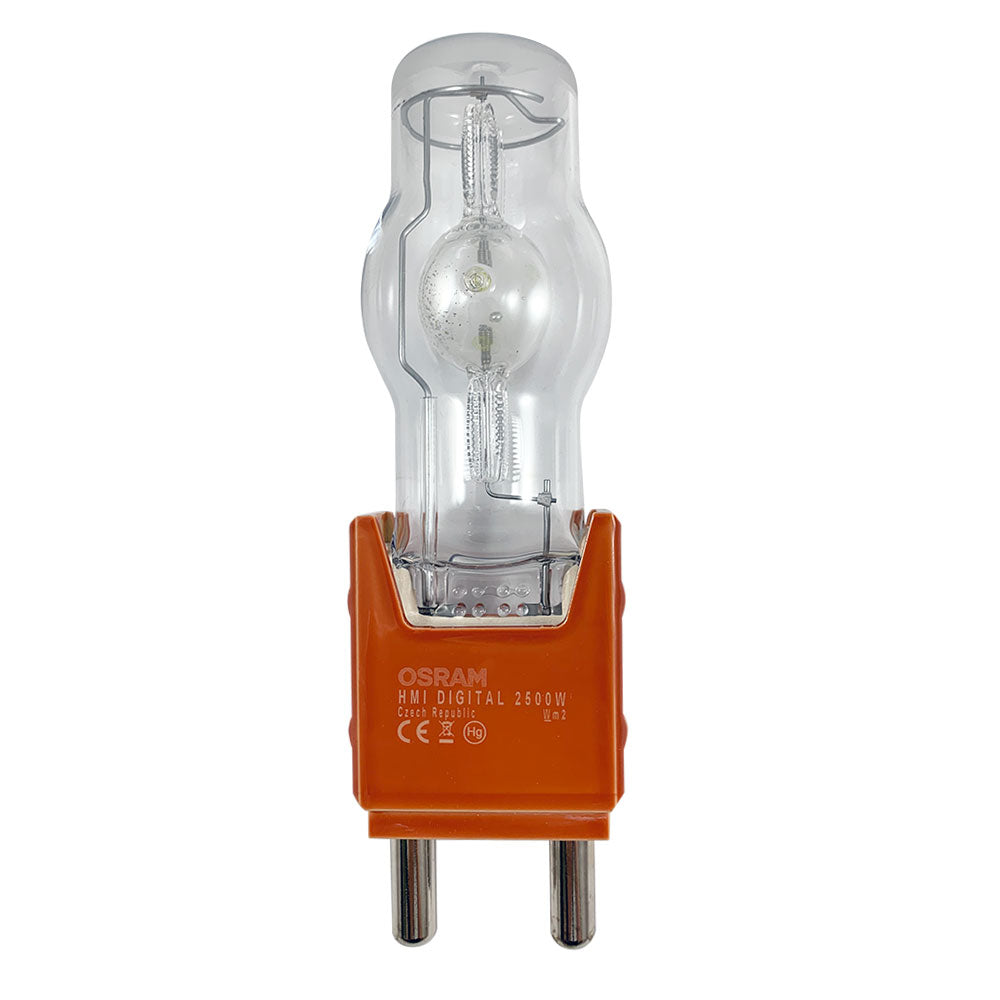

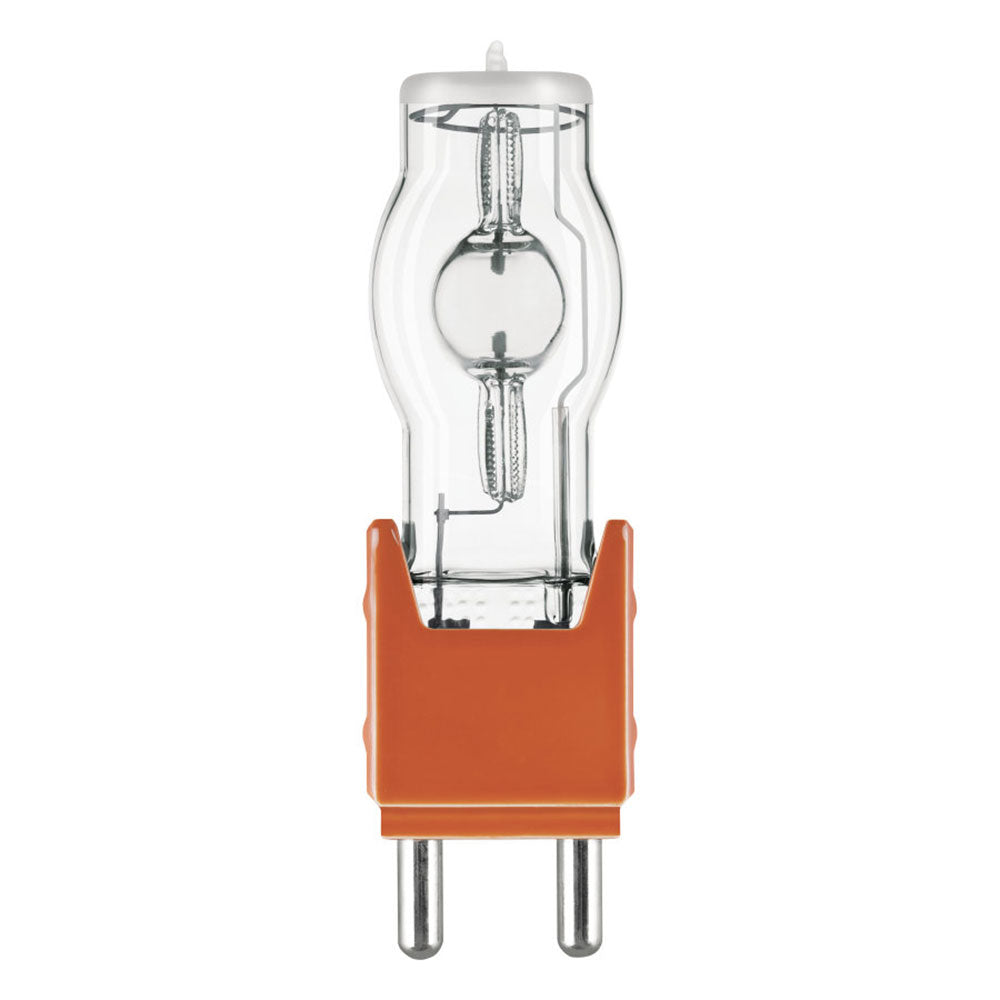

Daylite Molebeams MSR Type 8361 2,500 24-in Daylite Projector Replacement Lamp

Daylite Molebeams MSR Type 8361 2,500 24-in Daylite Projector Replacement Lamp

Features:
- Abbreviation Name: MSR 2500 HR
- Application: Film, TV & Video Production
- Family Brand Name: HMI DIGITAL
- Base: G38 Mogul Bipost
- Bulb: GST60
- Voltage : 115
- Wattage: 2,5000
- Luminous Flux (lm): 220
- Color Rendering Index (CRI): 90
- Color Temperature (K): 5600k
- Rated Life: 500 hrs

Cross Reference:
- HMI2500W/SE Osram 54070
- HMI2500w/SE/XS 302653 54070
- MSR2500/HR Ph 245811
- CSR2500/HR DIS-25H UV-B = USR2500 = BA2500 SE HR
- TruArc 2500W SE
- AMHK2500HR
- BA2500SE HR
- DSE2500
- RSI2500WSE

Application:
- FILM, TV & VIDEO PRODUCTION
- Optimized lamp eXtreme Seal (XS) technology to withstand interior base temperatures of up to 450 degrees Celsius.
- UVS=UV-Stop. UVS technology reduces harmful UV-B and UV-C ultraviolet radiation emissions by 99%.
- Designed to approximate daylight color temperature (5600K to 6200K) inside of a fixture. Note that color temperature will vary based on the ballast used and its operating frequency.

Abbreviation Name	MSR 2500 HR
Application	Film, TV & Video Production
Family Brand Name	HMI DIGITAL
Base	G38 Mogul Bipost
Bulb	GST60
Voltage	115
Wattage	2,5000
Luminous Flux (lm)	220
Color Rendering Index (CRI)	90
Color Temperature (K)	5600k
Rated Life	500 hrs
Cooling	Convection
Current (A)	24.5
Hot Restart	Yes
Operating Position	Any
Type of Current	AC

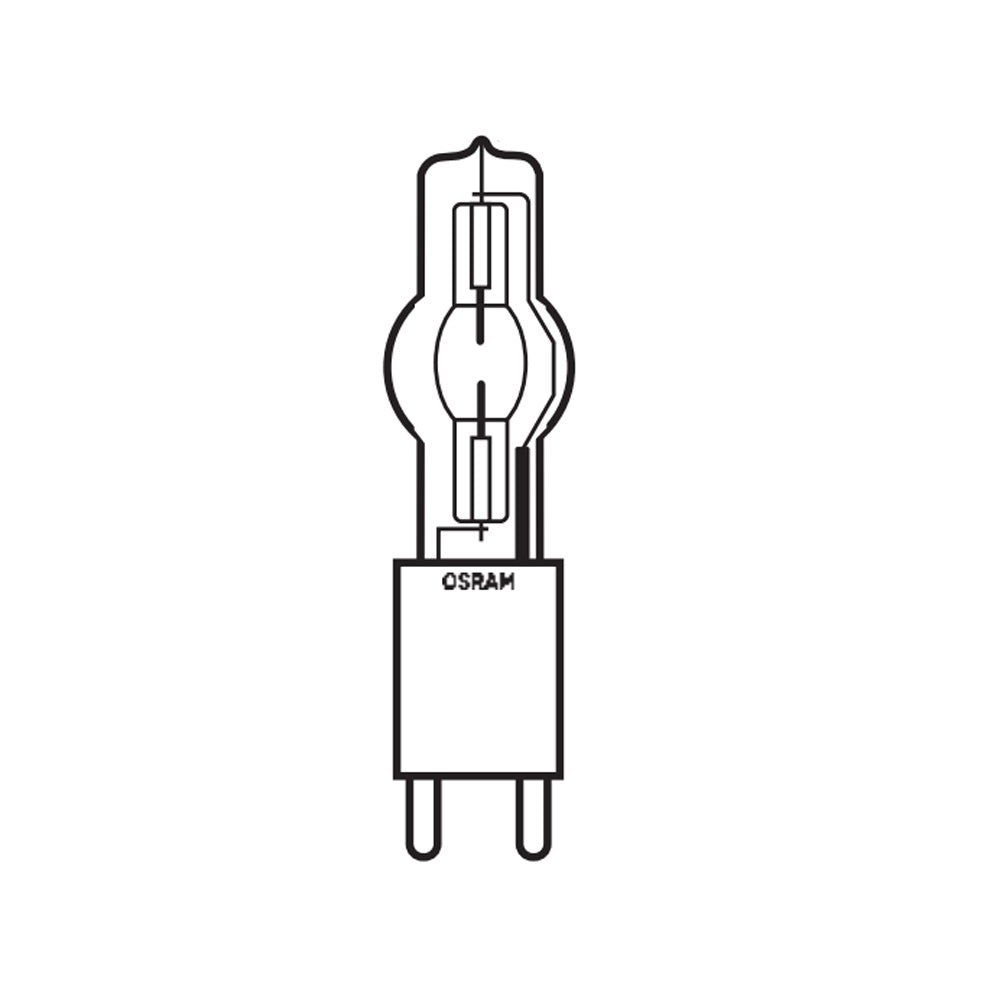

Length l (mm)	225
Light Center Length - LCL (mm)	127
Electrode Gap (cold) (mm)	14
Maximum Overall Length - MOL (mm)	225
Diameter d (mm)	60
Distance a(mm)	127
CA Prop 65	Yes
CA Prop 65 Material	Mercury

The MSR 2500 HR bulbs is used in following equipment:
- ARRI ARRI Daylight 2500 SE
- ARRI ARRI Daylight Compact 2.5 kW
- ARRI ARRI X 40/25
- ARRI ARRISUN 40/25
- Cameleon Lyre 2500
- Coemar Bomber
- De Sisti Goya 2.5-4 kW
- De Sisti Rembrandt 1.2/2.5 kW
- De Sisti Rembrandt 2.5/4 kW
- De Sisti Remington 2.5-4kW
- Despar Rembrandt - Piccolo 2500 W
- F.A.L. Comet 2500
- F.A.L. Meteorite 2500
- F.A.L. Sky-liner 2500
- Griven Dardo 2500
- Griven Shuttle dmx 2500
- Kobold Licht Bel. DL 2500 FR / SE
- Kobold Licht Bel. DLf 2500 SE
- Lampo, Weichhart Traviata TE Sequipersona
- LTM Ambiarc 2500
- LTM Cinepar 2500
- Mole - Richardson Type 6641
- Mole - Richardson Type 8361
- Narva, Imax Followspot 2500
- Niethammer, AVAB HMZ 215
- Niethammer, AVAB MZS 254
- Niethammer, AVAB MZU 256
- Philips Strand Lighting Sirio Bambino 2500 W
- Philips Strand Lighting Super Quasar
- Robert Juliat 900 SX Range
- Robert Juliat Tungstein 500
- Spotlight, Korner Vedette 25MMT
- Spotlight, Korner Verfolger MSR 2500 ZOOM/Figura 25ZS
