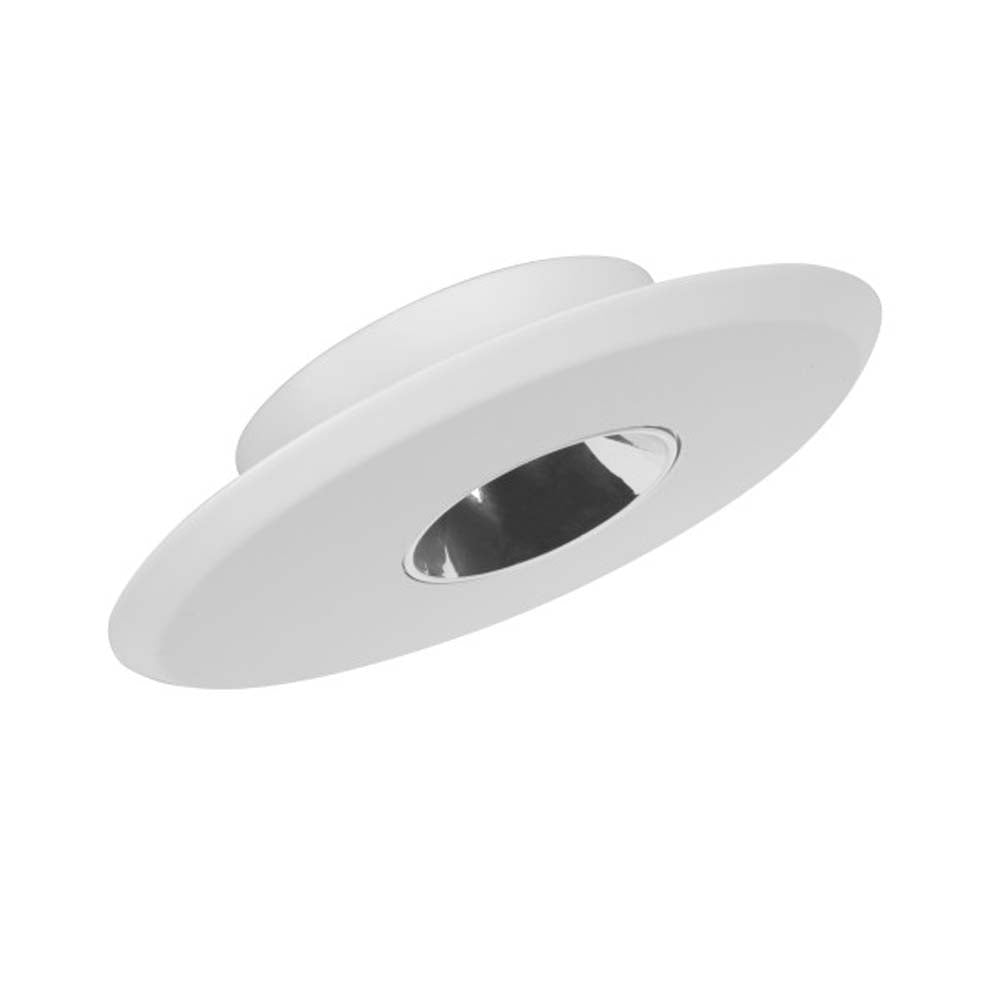

DLFv4 SureFit 5-inch Selectable LED Flush Mount Downlight with White Wall Wash Trim

NICOR series 4 SureFit Ultra Slim Surface Mount LED Downlight is a versatile lighting solution that combines Selectable Color Temperature and Wattage options. Choose between 2700K, 3000K, 3500K, 4000K and 5000K Color Temperature options and 8W, 10W and 12W to optimize your lumen output up to 900 Lumens (650 Lumens for Wall Wash Version). The DLF4 effortlessly fits any decor with its sleek design, offering finishes in Black, White, and Oil-Rubbed Bronze, as well as both Round and Square shapes. With NICOR patented design, easily replace your old flush mount ceiling light without cutting new holes or installing new equipment. Using the included hardware, simply connect the wires to each of the three poke-in connectors and mount the fixture directly to a variety of junction boxes. The SureFit features a 54,000 hour lifespan and is protected by NICOR 5-Year limited warranty.

Features:
- Includes one DLF4 SureFit LED downlight and white wall wash trim
- 5 Selectable color temperatures (2700K, 3000K, 3500K, 4000K, 5000K)
- 3 Selectable Wattage options to controls brightness (8W/450lm, 10W/550lm, 12W/650lm)
- Produces up to 709 Lumens (3500K at 12W)
- Easily installs directly into metallic and non-metallic new construction 4/O junction boxes (see compatibility list)
- Wet-Location and Energy Star rated, and Title 24 and JA8 compliant
- Dimmable down to 5% using standard TRIAC or ELV dimmers
- Additional round, square, and wall wash trims available in black, bronze, and white
- 54,000 hour lifespan
- Protected by NICOR 5-year limited warranty

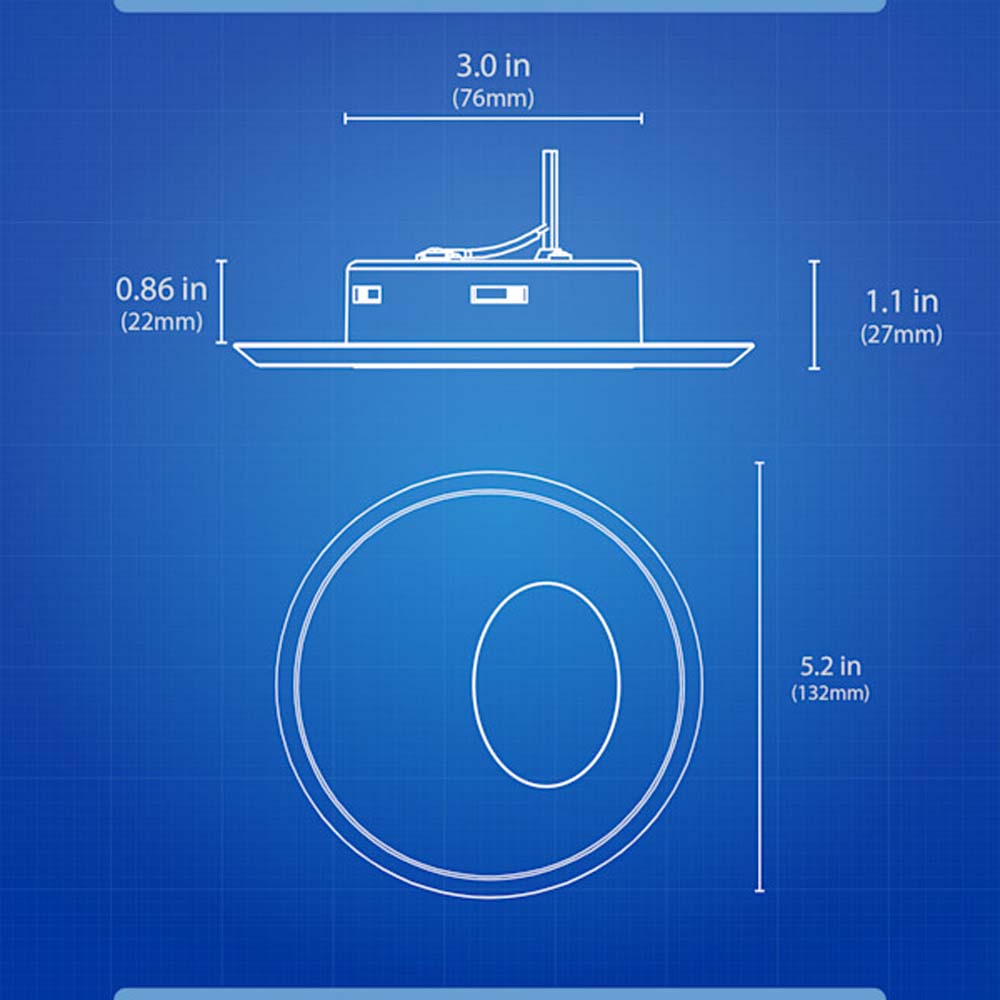

Size (in.)	5.2
Shape	Round
Product Color	White
Finish	Powder Coat
Light Source	LED
Wattage	Wattage Selectable (8W-10W-12W)
Wattage Equivalent	75
Voltage	120VAC
Lumen Output	441-644 (2700K), 455-664 (3000K), 486-709 (3500K), 477-696 (4000K), 437-637 (5000K)
Lumens Per Watt	55.5-58 (2700K), 58.8-61.5 (3000K), 61.7-64 (3500K), 60.5-62.8 (4000K), 56.9-59 (5000K)
Color Temperature (CCT)	5CCT Selectable (27K-30K-35K-40K-50K)
CRI	93
R9 Value	58
Dimmable	Yes
Dimming Type	TRIAC ELV
Operating Temperature	-4F to 104F (-20C to 40C)
Listings/Certifications	UL Certified, Energy Star, Title 24, JA8 Compliant, RoHS Compliant, NFPA 70 Compliant, NEC 410.16 (A)(3), NEC 410.16 (C)(5), FCC Class B, Wet-Location, UL 1598 Listed, cUL 1598 Listed, Patent Pending
Warranty (Years)	5 Year Limited

Manual:

DLF4S120SWWWH Data Sheet
DLF4S120SWWWH Installation Manual
