DPY 5000w 120v G38 base 3200k Halogen Bulb - Stage Studio Lamp

Bulbamerica SKU: DPY
$12899 $230.99 USD
712 in stock




1

Description

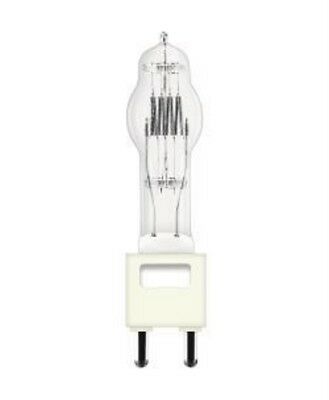

DPY 5000w 120v G38 base 3200k Halogen Bulb - Stage Studio Lamp
Bulbamerica 5000 watts 120 volts G38 Mogul Bipost 500 hours Halogen light Bulb

Cross Reference:
- Atlas/Thorn CP/46
- Atlas/Thorn CP/29
- Bulbrite 762085 DPY
- Colortran BS50-32/17
- Colortran BS50-33/17
- Colortran 176-073
- Colortran 176-150
- Colortran 176-158
- Colortran 176-159
- Colortran 176-160
- GE 41736 DPY-Q5000T20/4CL
- Grainger 6VN59
- Osram 54647 DPY
- Philips 6378P
- Philips 31922-8 DPY 500W 120V
- Ushio 1000215 DPY, JS120V-5000WC

Applications:
- Fresnel
- Stage and Studio

The DPY bulbs is used in following equipment
- Mole - Richardson Type 245
- Mole - Richardson Type 4191
- Mole - Richardson Type 4351

Specs

Abbrev. With Packaging Info. DPY120V
ANSI Code DPY
Application STAGE & STUDIO
Average Rated Life (hr) 500

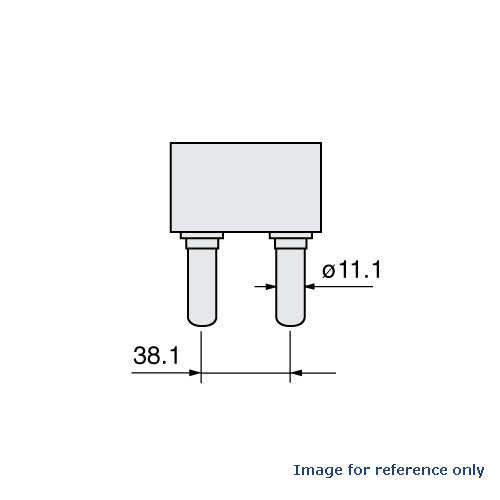

Base G38 Mogul Bipost
Bulb T19
Class C (GAS)
Color Rendering Index (CRI) 100
Color Temperature (K) 3200
Diameter d (in) 2.362
Diameter d (mm) 60.00
Distance a (in) 6.435
Distance a (mm) 165
Filament C13
Filament Dimensions Length (in) 1.02
Filament Dimensions Length (mm) 26
Filament Dimensions Width (in) 1.42
Filament Dimensions Width (mm) 36
Length l (in) 10.842
Length l (mm) 278
Light Center Length - LCL (in) 6.435
Light Center Length - LCL (mm) 165
Luminous Flux (lm) 143000
Maximum Overall Length - MOL (in) 10.842
Maximum Overall Length - MOL (mm) 278
Nominal Voltage (V) 120.00
Nominal Wattage (W) 5000.00

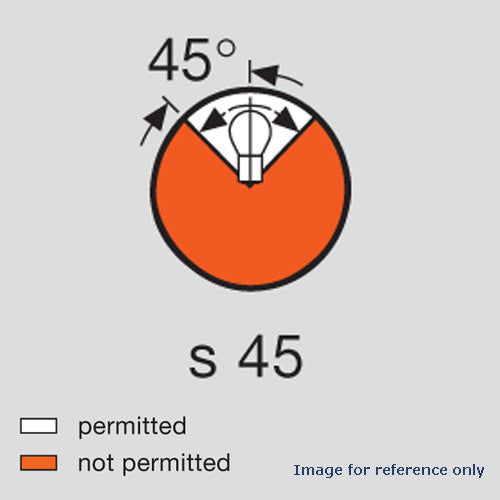

Operating Position S45
Reflector Coating 60.00
Type of Current AC
