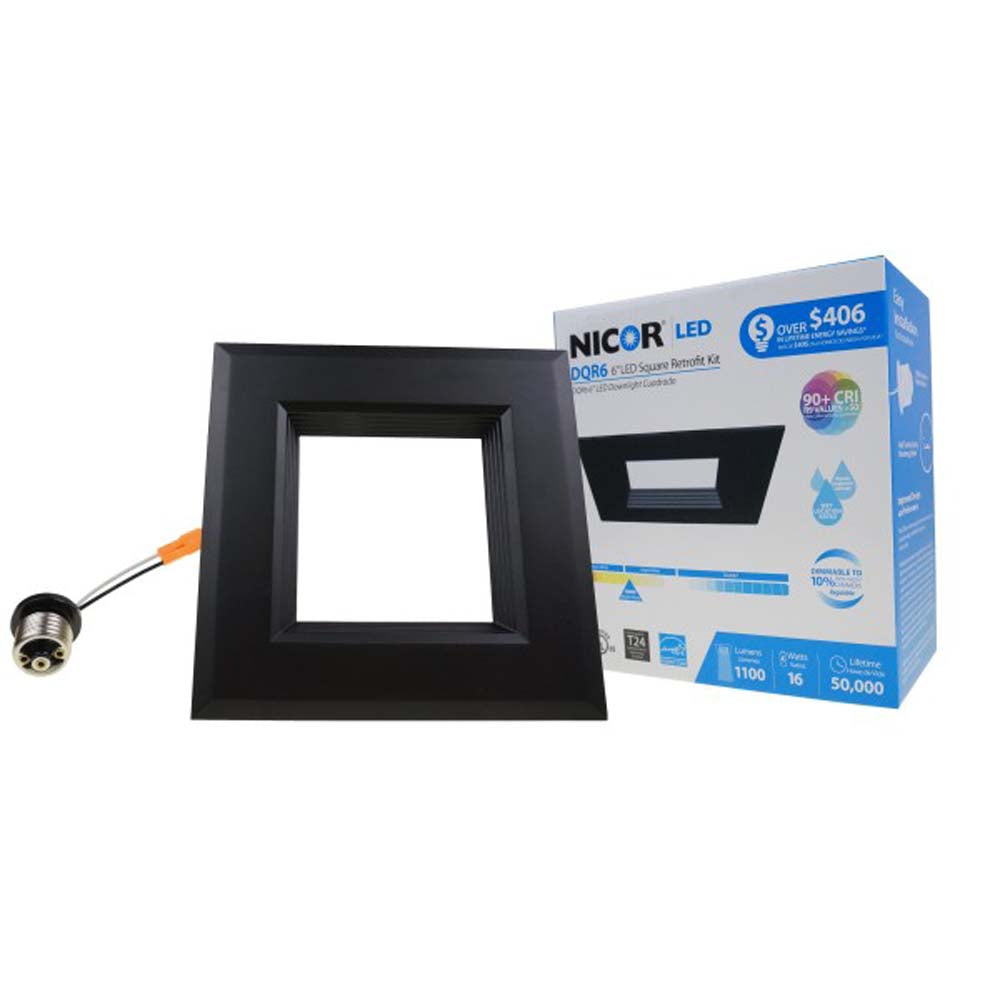

DQR Series 6 in. Black Square LED Recessed Downlight in 3000K

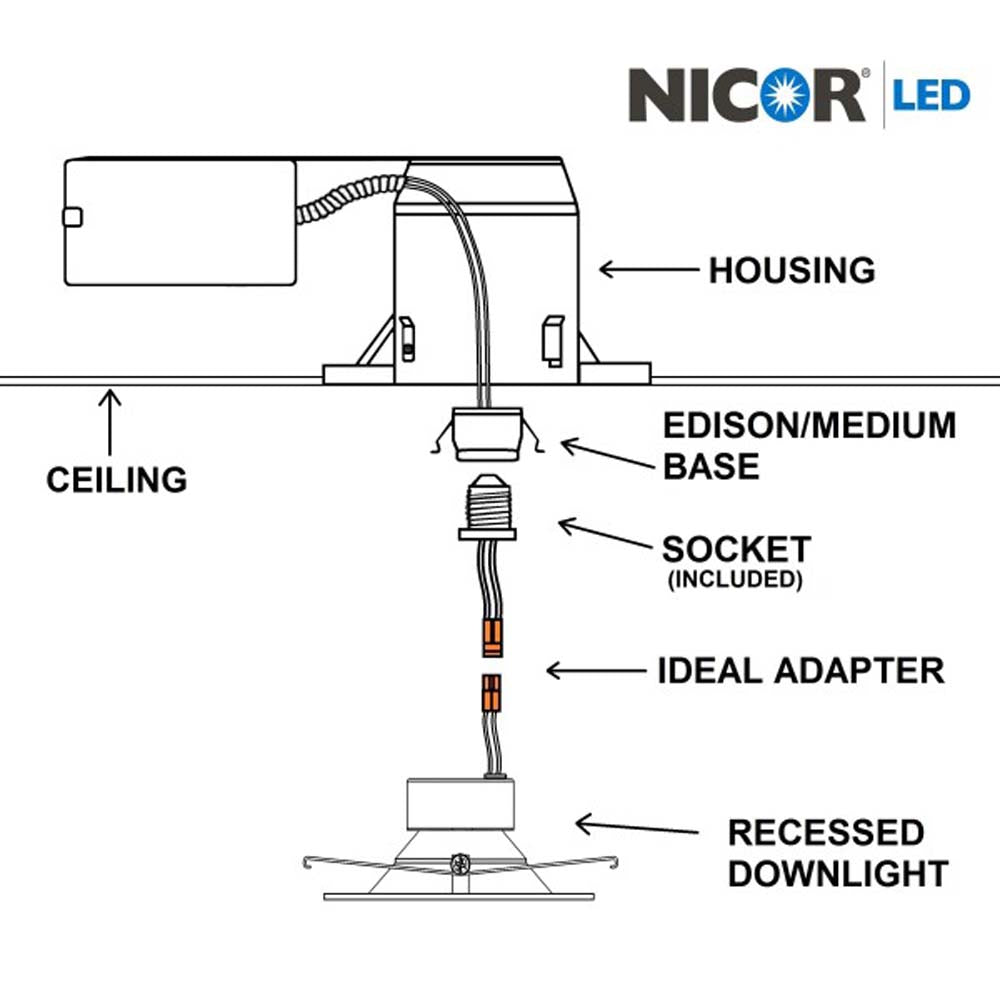

The DQR6 from NICOR is a 6-inch Square LED Recessed Downlight that is ideal for both retrofit and new construction alike. Everything you love about the DLR Series is now available with the aesthetics of a square trim. No special housing required, fits securely into any standard 6-inch recessed housings. The DQR6 features an integrated, energy efficient LED driver to produce over 1200 lumens of light while drawing only 16-Watts of energy! The enriched 90+ CRI provides top quality light output to provide superior color quality in your home. Guaranteed to make the colors in your home brighter and truer. The DQR6 is fully dimmable and constructed using the highest quality materials. The DQR6 is protected by NICOR 5 Year Limited Warranty, UL Classified, Title 24 compliant, and Energy Star rated to bring you the finest recessed downlight on the market with the coverage and affordability you expect.

Features:
- Low profile, integrated driver, allows for use in shallow housings
- Die cast aluminum trim routes heat away from electrical components
- Polystyrene diffuser and reflector cone create a uniform light distribution
- Utilizes high performing LEDs with greater than 90 CRI and an R9 greater than 50
- Dimmable to 10%

Size (in.)	6
Product Color	Black
Finish	Powder Coat
Light Source	LED
Wattage	15.6
Wattage Equivalent	90w
Voltage	120v
Lumen Output	1050
Lumens Per Watt	67.5
Color Temperature (CCT)	3000k
CRI	91
R9 Value	>50
Dimmable	Yes
Dimming Type	TRIAC
Operating Temperature	0F to 120F (-18C to 49C)
Listings/Certifications	UL Listed, cUL Listed, Title 24, CEC Compliant, Energy Star, Wet-Location
Warranty	5 Year Limited Warranty

Manual:

DQR6-10-120-3K-BK-BF Data Sheet
