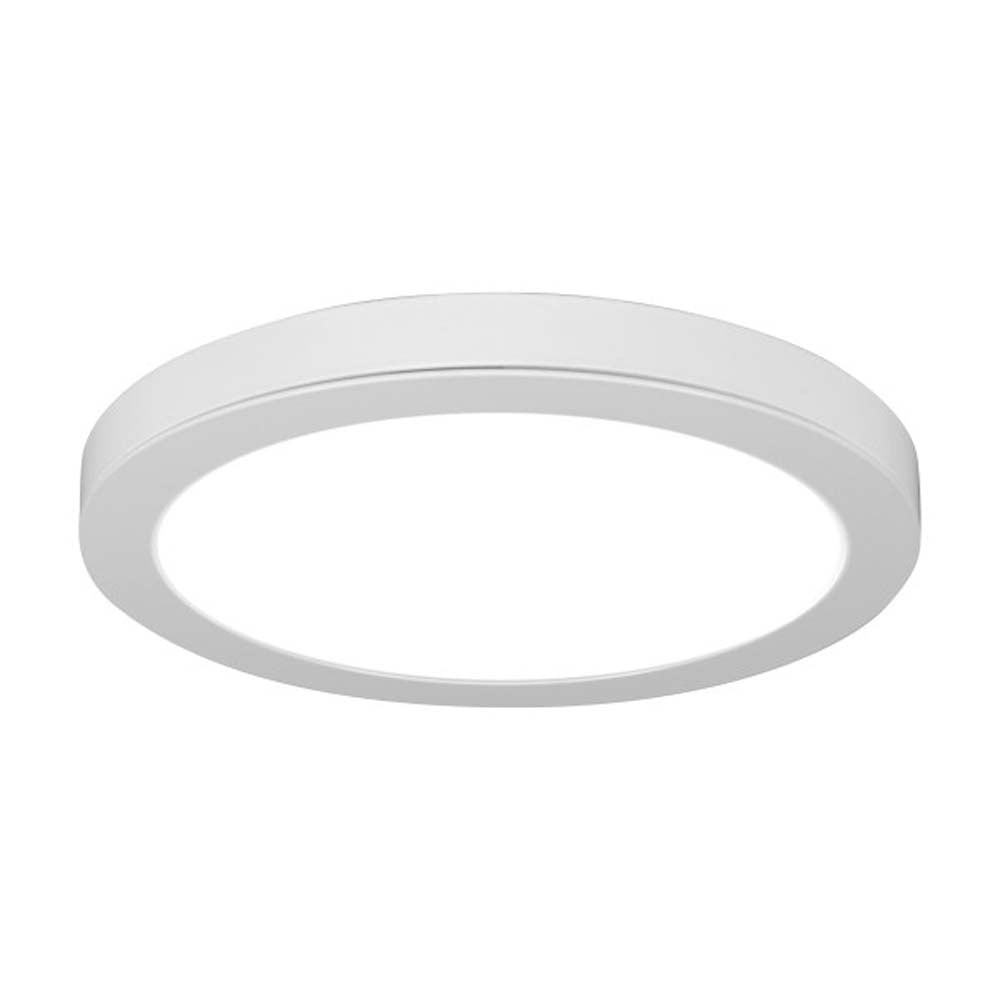

DSE 11-inch Selectable LED Round Surface Mount Downlight - White Finish

The DSE Selectable LED Surface Mount Downlight is a sleek, modern lighting solution that incorporates the latest in LED technology to provide high-performance lighting. Its slim profile design features edge-lit technology with a reflective guide to disperse light evenly across the diffuser's surface for a consistent brightness from edge to edge. The DSE produces incredible color accuracy at 90 CRI and flexible dimming, making it compatible with standard LED dimmers. The driverless system allows for easy installation in a 4-inch junction box using integrated snap tabs on the fixture's back, making installation a breeze. Its narrow, injection-molded polymer housing with matte finish provides the perfect design for any modern space. Available in a variety of sizes in round or square configurations, the Energy Star rated DSE is perfect for retrofit, remodel, and new construction projects, including wet locations. With an estimated lifespan of over 54,000 hours and an industry-leading 5-year limited warranty, the DSE offers superior quality and durability for years to come.

Features:
- Includes DSE fixture with mounting hardware and installation guide
- Selectable Color Temperatures: 2700K, 3000K, 3500K, 4000K, and 5000K
- Incredible color accuracy at 90 CRI with an R9 value exceeding 53
- Produces over 1523 Lumens at 15.9-Watts (90W equivalent)
- Dimmable to less than 5 percent with standard LED (TRIAC or ELV) dimmers
- Easy to install, 120VAC driverless design helps minimize installation height
- Installs directly into most standard 4-inch junction boxes
- Energy Star rated and Wet-Location listed (ETL 1598)
- Compliant with California Title 24 (JA8) and RoHS regulations
- Pendant Mount Kit available (Sold Seperately)

Bulb Type	LED Downlights
Size (in.)	11
Product Color	White
Finish	Matte
Light Source	LED
Wattage	15.9
Wattage Equivalent	90
Voltage	120VAC
Lumen Output	1523 (2700K) 1552 (3000K) 1569 (3500K) 1601 (4000K) 1588 (5000K)
Lumens Per Watt	95.8 (2700K) 97.6 (3000K) 98.7 (3500K) 100.7 (4000K) 99.9 (5000K)
Color Temperature	5CCT Selectable
CRI	90
Dimmable	Yes
Dimming Type	TRIAC, ELV
Operating Temperature	-4 F to 104 F (-20 C to 40 C)
Listings/Certifications	ETL Intertek Listed, cETL Intertek Listed, Energy Star, Title 24, JA8 Compliant, RoHS Compliant, NFPA 70 Compliant, NEC 410.16 (A)(3), NEC 410.16 (C)(5), FCC Class B, Wet-Location (cETLus 1598)
Other Certifications	Testing performed in accordance with IESNA standards, Compliant with NFPA 70, NEC Section 410.16 (A)(3) and 410.16 (C)(5) for closet use, Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions per ANSI C63.4:2014
UPC	767706200447
Warranty	5 Year Limited

Manual:

DSE113120SRDWH Data Sheet
DSE113120SRDWH Installation Manual
