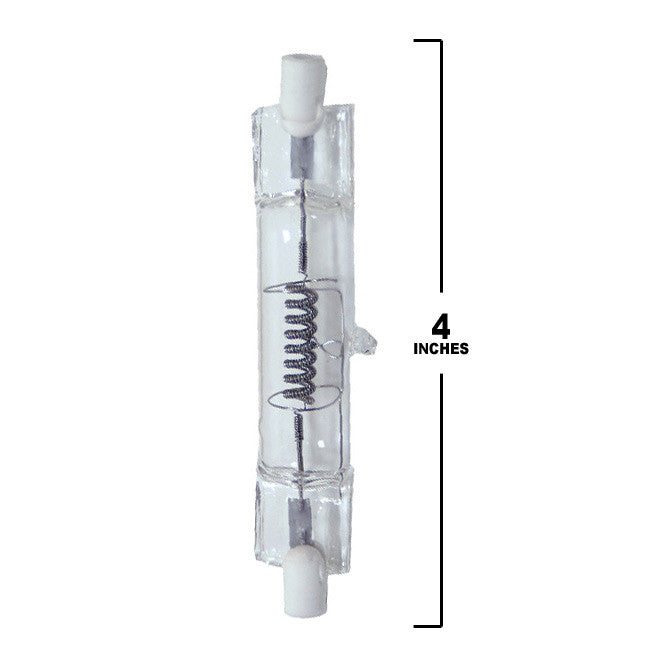

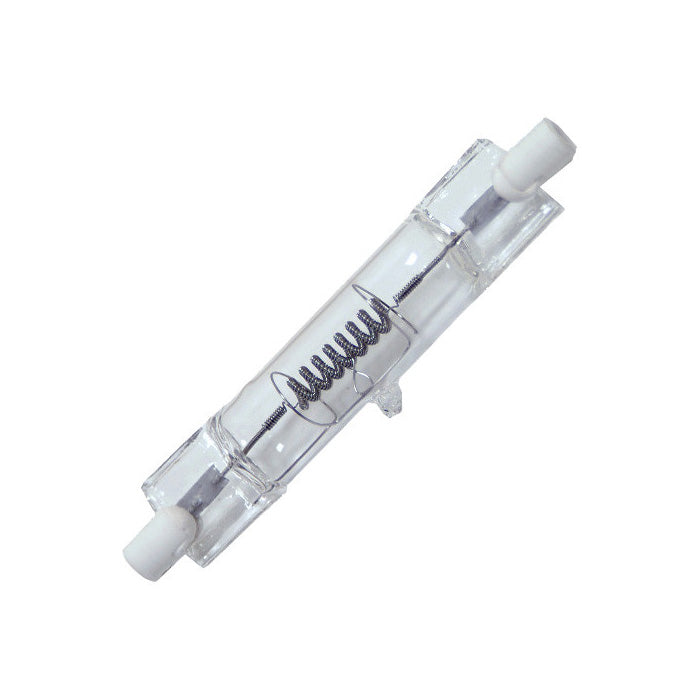

OSRAM DXW 1000w 120v R7S 3200k Double Ended Halogen Light Bulb

DXW bulb OSRAM 1000w 120v R7S 3200k Double Ended Halogen Light Bulb This OSRAM brand halogen bulb has a R7s Recessed Single Contact base with a CC-8 filament. The Double Ended halogen bulb has a rated life of 150 hours.
The Double Ended bulb provides a bright whiter light than incandescent bulbs.

The DXW bulbs is used in following equipment
- Mole - Richardson Type 4081

Note:
Maximum Overall Length:3.72 (in)

Abbreviation Name	DXW 120V

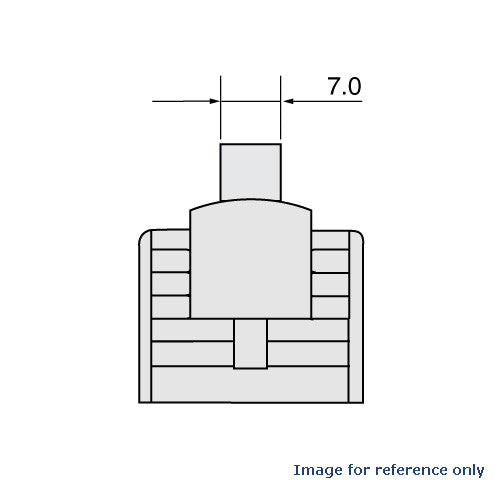

Base	R7s Recessed Single Contact
Bulb Type	Halogen Bulbs
Color Rendering Index (CRI)	100
Color Temperature (K)	3200K

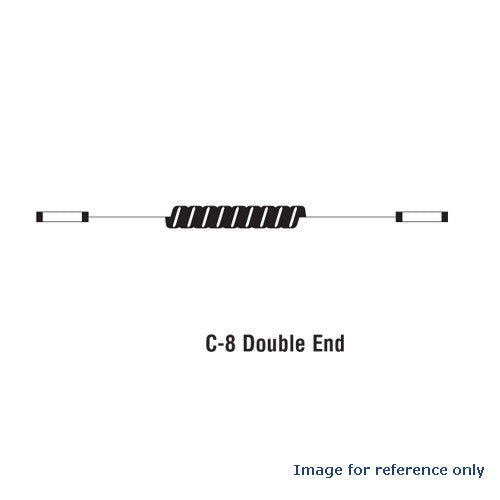

Filament	CC-8
Lamp Finish	Clear
Luminous Flux (LM)	28000
Maximum Overall Length	3.72 (in)
Rated Life (Hours)	150
Shape	Double-Ended
Voltage (V)	120V
Wattage (W)	1000W

Manual:

OSRAM 53997 DXW

DXW - Part # 620130 used for 720-SG
