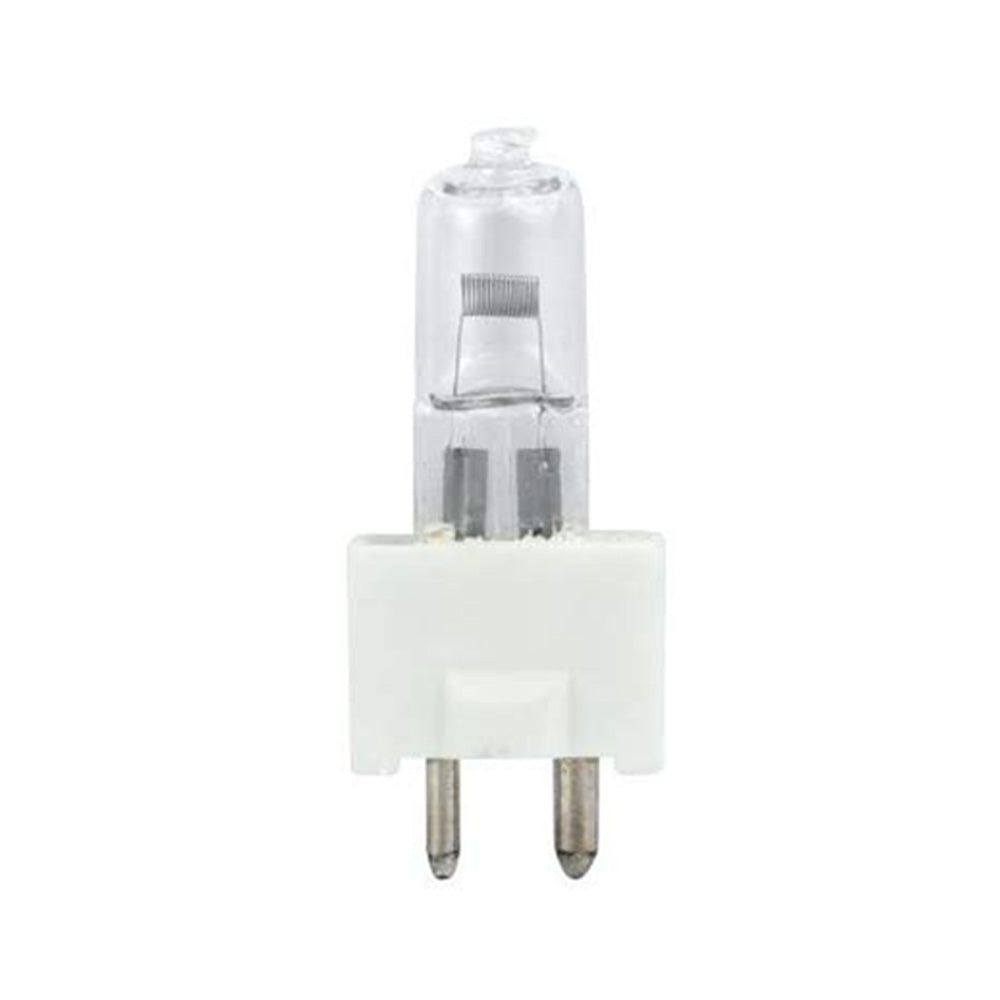

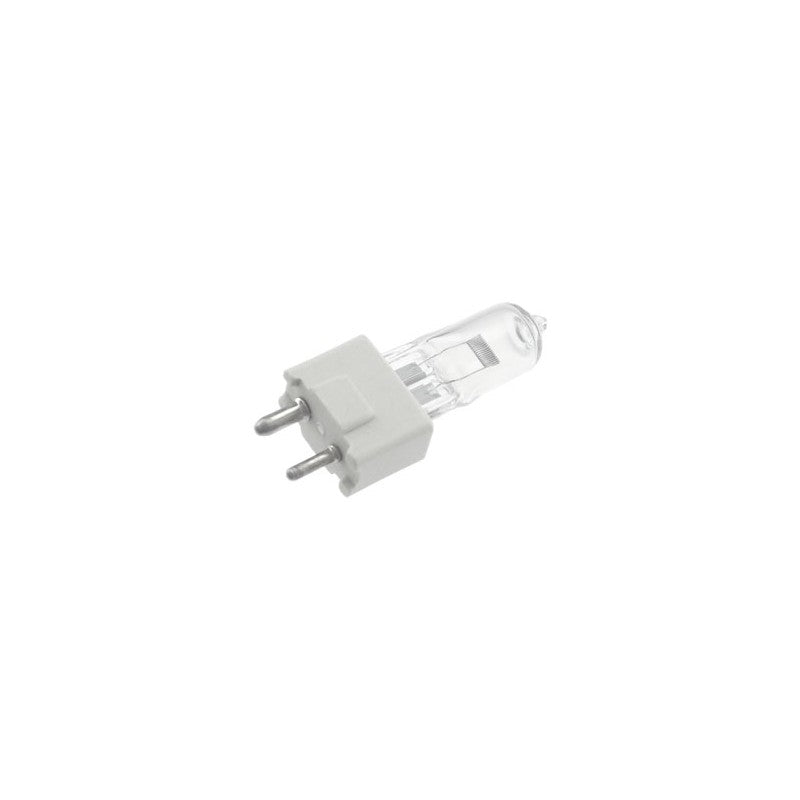

DZE/FDS 150W 24V GY9.5 Halogen Bulb - 54755 Replacement Lamp

DZE/FDS 150W 24V GY9.5 Halogen Bulb - 54755 Replacement Lamp
Bulbamerica 150 watt 24 volts GZ9.5 Bipin Prefocus base lifetime is 100 hours T12 Halogen Lamp.

Cross Reference:
- Osram 54755 DZE/FDS

Applications:
- Projector
- Microfilm
- Stage & Studio

Abbreviation Name	FDS
ANSI Code	DZE/FDS
Application	Projector, Microfilm, Stage & Studio
Average Rated Life (hr)	100

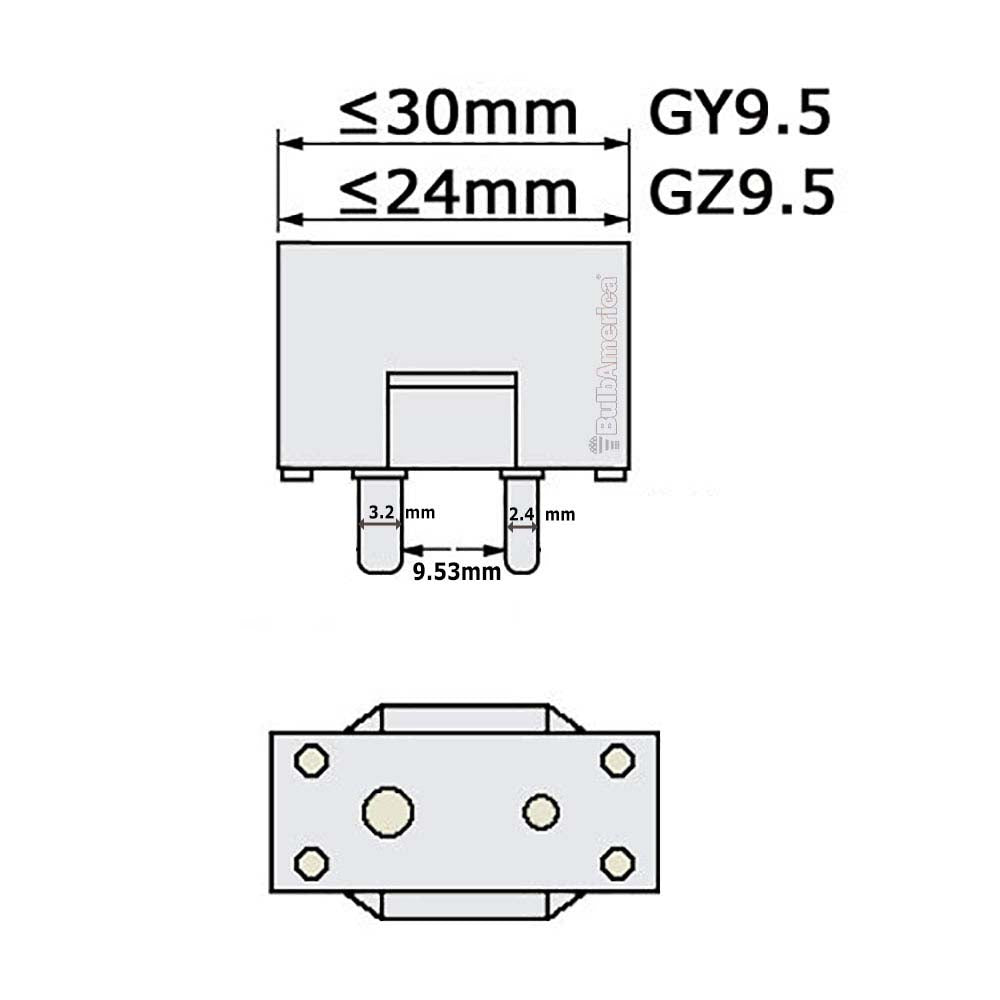

Base	GZ9.5 Bipin Prefocus
Bulb	T12
Class	C (gas)
Color Rendering Index (CRI)	100
Color Temperature (K)	3300
Diameter d (in)	0.571
Diameter d (mm)	14.5
Distance a (in)	1.303
Distance a (mm)	33.4
Filament	C Bar 6
Filament Dimensions Length (in)	0.16
Filament Dimensions Length (mm)	4.1
Filament Dimensions Width (in)	0.308
Filament Dimensions Width (mm)	7.9
Lamp Finish	Clear
Length l (in)	2.231
Length l (mm)	57.2
Length l max. (in)	2.231
Length l max. (mm)	57.2
Light Center Length - LCL (in)	1.303
Light Center Length - LCL (mm)	33.4
Luminous Flux (lm)	4000
Maximum Overall Length - MOL (in)	2.231
Maximum Overall Length - MOL (mm)	57.2
Nominal Voltage (V)	24
Nominal Wattage (W)	150
Operating Position	Any
Type of Current	AC
