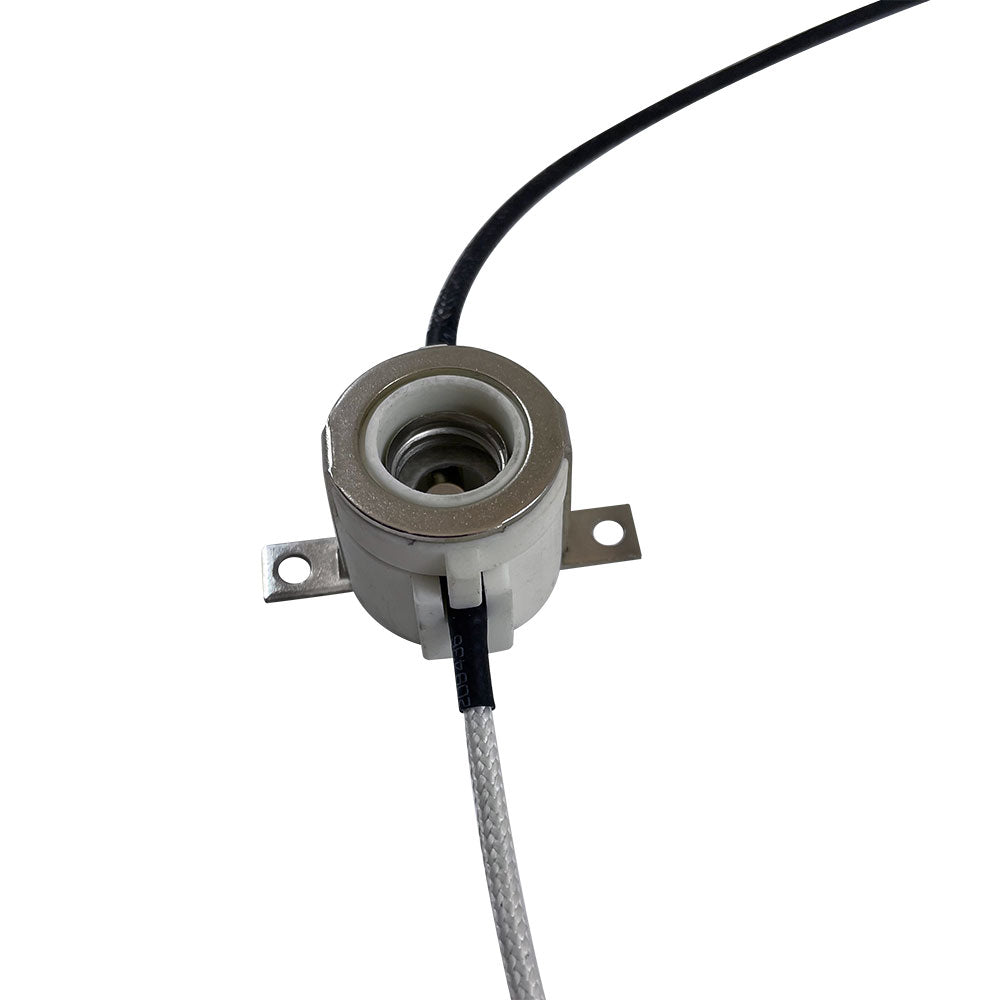

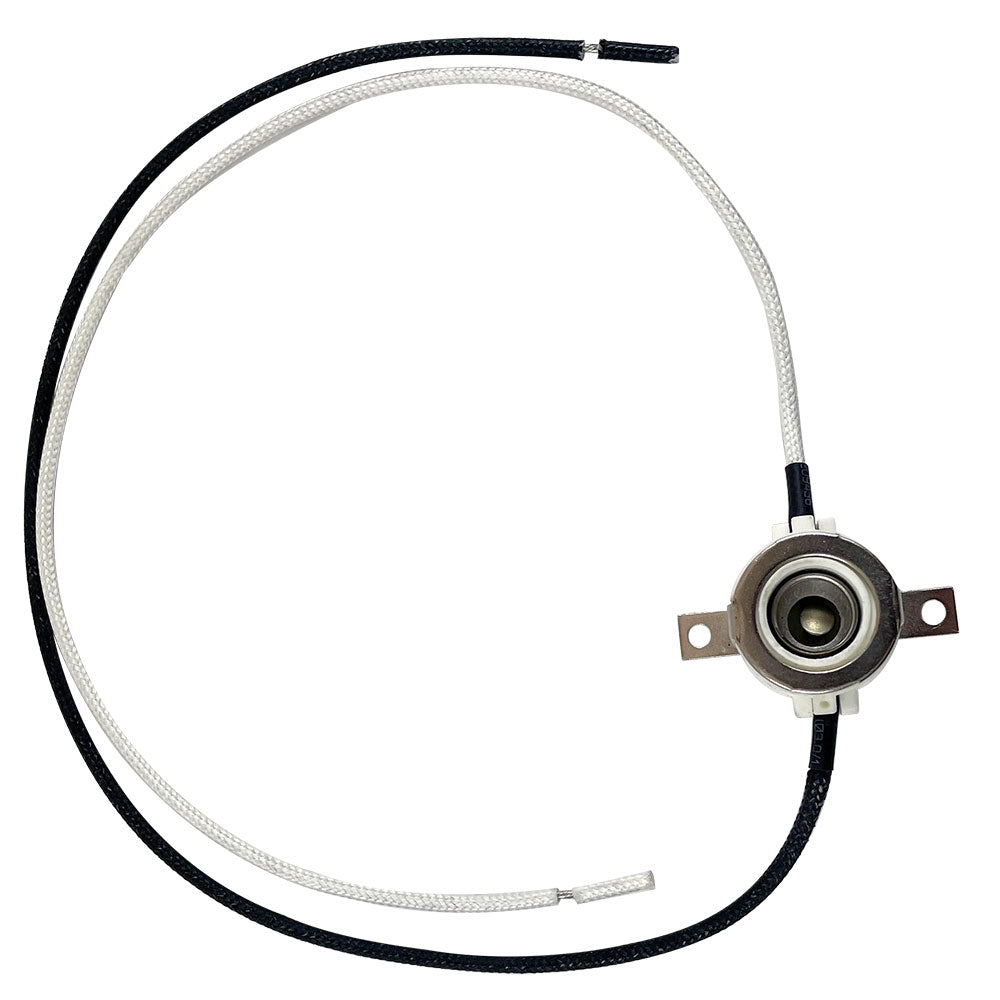

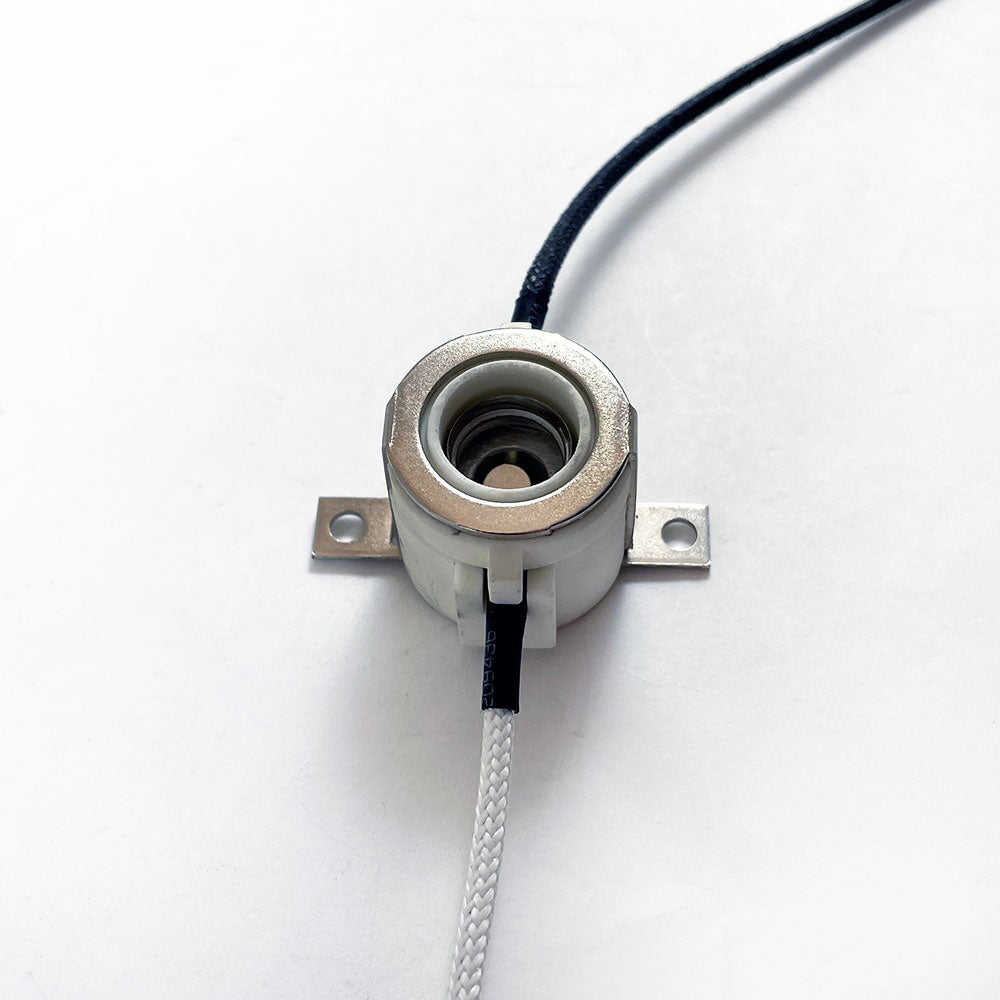

E11 Mini-Candelabra Screw ceramic lamp holder socket with lead wires

BulbAmerica SKU: E11-SOCKET
$899 $24.99 USD
1016 in stock




Description

BulbAmerica E11 Mini-Candelabra Screw Ceramic Lamp Holder Socket with 12inch Lead wires

Product features and benefits:
- Ceramic housings designed specifically for high-temperature halogen applications
- High-quality contact materials for optimal mechanical and electrical properties
- Maximum Wattage: 1000 W
- Maximum Voltage: 250 V
- Maximum Operating Temperature: 300C
- Body Material Steatite / Nickel Plated Steel
- Contact Material Screw Shell, Center Contact = Nickel Plated Brass
- Wire Leads AWG 18

Areas of application
- Halogen Fixtures
- Halogen Instrumentation
- Halogen Equipment

This lamp holder is used for light bulbs with E11 Minicandelabra base like
- EYW
- EVR
- ESN
- ESM
- EHT
- EHV
- ESL
- ETG
- ETH

Cross Reference:
- Osram 69653
- Satco 90-1080, 90/1080
- Satco 80-2537, 80/2537

Specs

Base MS E11 Mini Candelabra
Contact Material Nickel Plated Steel
Operation Temperature (F) 572
Voltages (V) 250
Wire Guage/Type 12 inch 16AWG/UL
