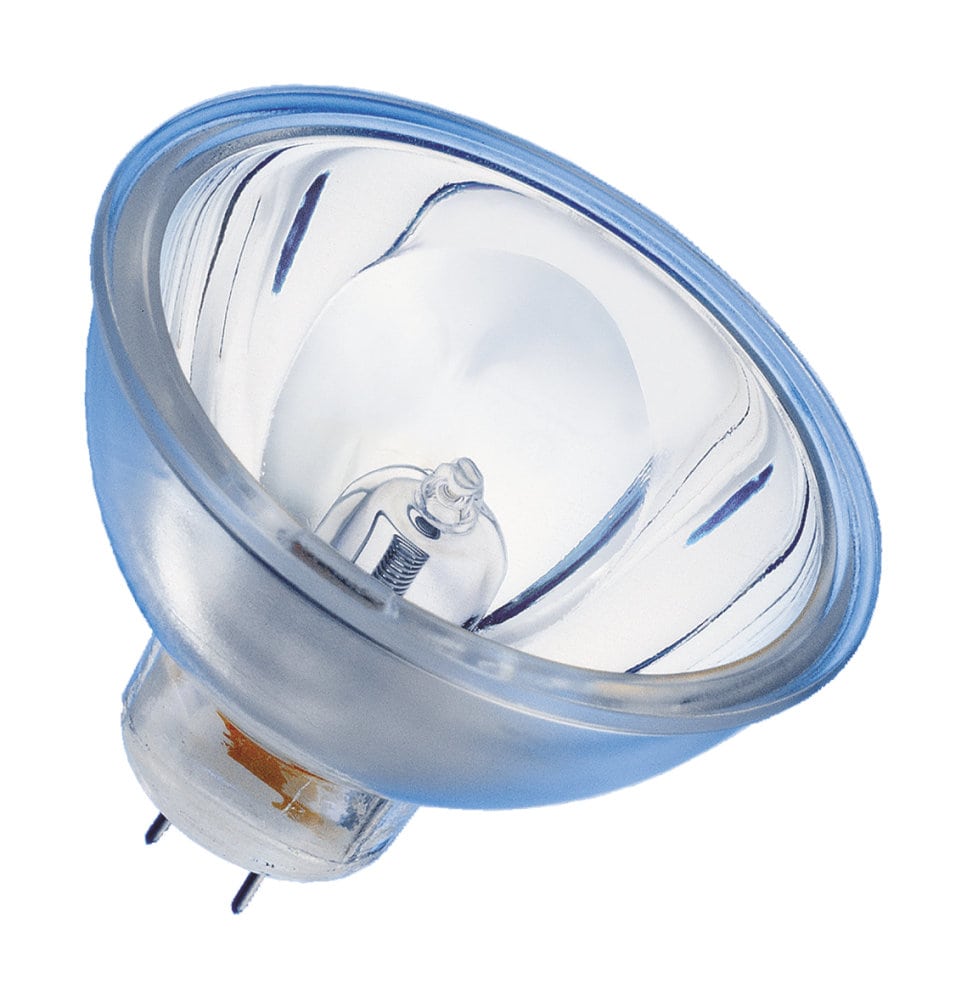

EFM 64607 50W 8V MR16 Medical and Projector Replacement Bulb

EFM 64607 50W 8V MR16 Medical and Projector Replacement Bulb
Bulbamerica 50 watts 8 volts tungsten halogen low to medium voltage with reflector EFM 64607 50W 8V MR16 Medical and Projector Replacement Bulb

Cross Reference:
- Imported Lamp Code JCR8V-50W
- Imported Lamp Code PN101
- Imported Lamp Code 52200
- Algotec EFM
- Atlas/Thorn A1/229
- EFOS 3040
- osram 64606
- osram Sylvania 54151 64607 EFM
- Philips 6847
- Satelec EFM
- Ushio 1000268 EFM

Applications:
- 8mm Movie Projector
- Dental Photo Curing
- Filmstrip Projector
- Slide Projector

Abbreviation Name	EFM
ANSI Code	EFM
Application	Projector - 8mm
Base	GZ6.35 Bipin
Class	C (gas)
Diameter d (in)	2.008
Diameter d (mm)	51
Filament	C-8
Lamp Finish	Clear
Length l (in)	1.638
Length l (mm)	42
Length l max. (in)	1.638
Length l max. (mm)	42
LIF Code	A1/229
Maximum Overall Length - MOL (in)	1.638
Maximum Overall Length - MOL (mm)	42
Operating Position	p 90/15
Reflector Coating	51
Type of Current	AC
Working Distance a (in)	1.26
Working Distance a (mm)	32
Length l1 (in)	1.653
Length l1 max. (in)	1.653
