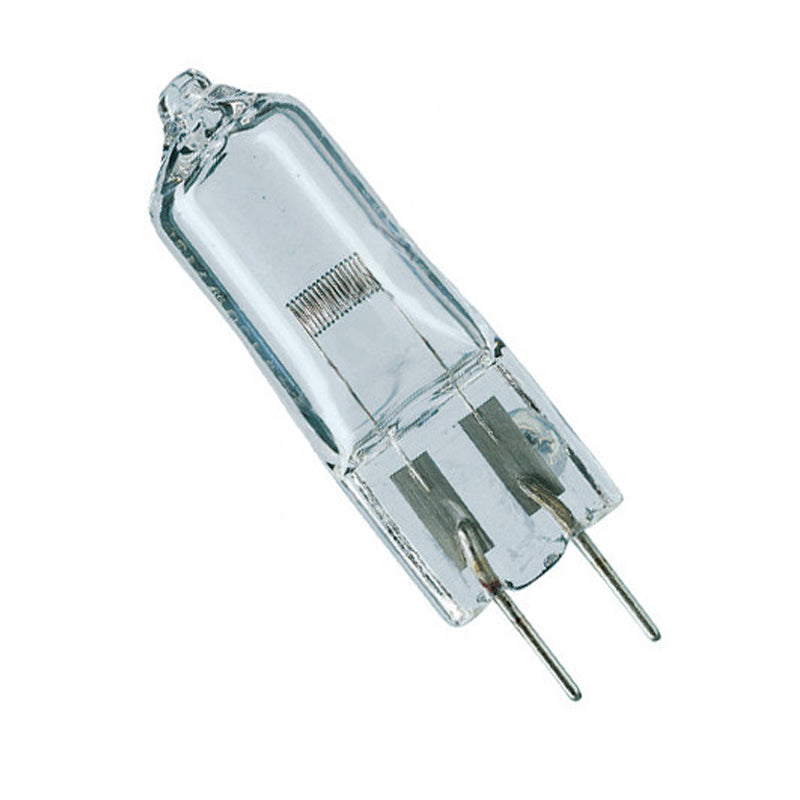

Ushio EVD bulb 400w 36v 3450k G6.35 Single Ended Halogen Light Bulb

400 Watts, Tungsten Halogen, Low Voltage without reflector.

APPLICATIONS:
- Bar/Night Club/Disco Lighting
- Lab Diagnostic & Analytical Blood Analyzer
- Microfilm Projector
- OHP/Film/LCD Projection
- Studio

CROSS REFERENCES:
- American DJ ZB-EVD
- Atlas/Thorn A1/239
- Bulbrite 761115 EVD
- Eiko 02810 EVD
- GE 41164 EVD
- Osram Sylvania 54048 64663 HLX
- Osram Sylvania 54100 EVD 64663 HLX
- Osram Sylvania 54103 EVD 64663 HLX BULK
- Osram Sylavnia 54259 EVD 64663 HLX
- Philips 7787
- Sunlite 70265 EVD
- Technicon 633-0094-01
- Ushio 1000383 EVD, JC36V-400WS1

ORDERING CODE	1000383
PROD. ID / ANSI CODE	EVD
DESCRIPTION	EVD, JC36V-400WS1
DESCRIPTION 2	400W 36V
ITEM TYPE	Halogen

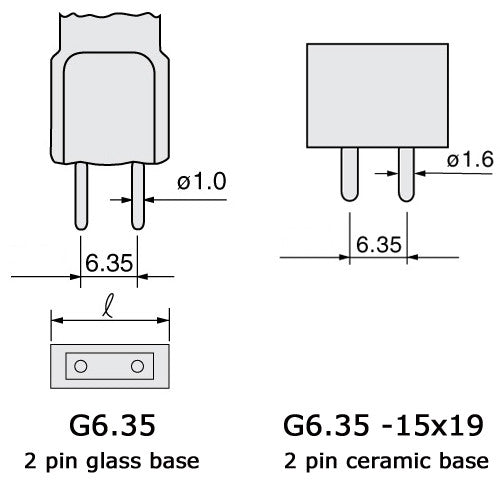

BASE	G6.35
VOLTAGE	36
WATTAGE	400

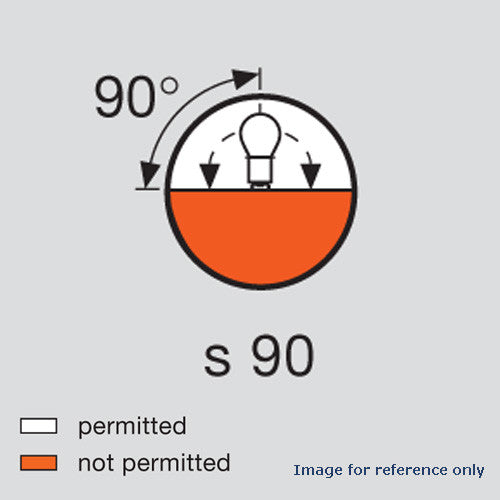

BURN POSITION	BD/HZ
BULB SHAPE	T5
FINISH	CLEAR
COLOR TEMP (K)	3400
EFFICACY (LM/W)	36.3

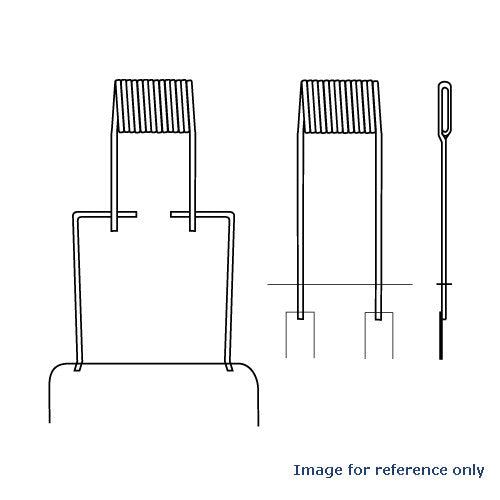

FILAMENT	CBAR6
FRONT GLASS COVER	NO
INITIAL LUMENS (LM)	16000
LUMINOUS FLUX (LM)	16000
LIFE (HR)	50
DIAMETER (MM)	16
DIAMETER (IN)	.62
MOL (MM)	60.00
MOL (IN)	2.3
LIGHT CENTER LENGTH (MM)	36

Manual:

Ushio 1000383 EVD 400W 36V G6.35 T5 Halogen Bulb

The EVD bulbs is used in following equipment
- 3M Model 9550
- 3M Model 9800
- 3M HA6009
- American DJ Beamer40
- American DJ Typhoon
- Apollo Magnastar 400
- Apollo E400SDV
- Apollo S400SDV
- Apollo VS3250
- Apollo VS3400C CO-STAR 400
- ASK 750 Impression
- Audiscan Chieftan
- Audiscan SST-400
- Audiscan SST-400 Zoom
- Buhl 113
- Buhl 196-110 NKD
- Buhl 2963
- Buhl 2964
- CTX-Opto EZPro 500
- Dukane 28A667
- Dukane 667
- Elmo HP-5500
- Goetschmann G8585
- Eiki OHP-3855B
- Eiki OHP-3855SWB
- Eiki OHP-3865B
- Eiki OHP-3865SWB
- Eiki OHP-3875B
- Eiki OHP-3875SWB
- Eiki OHP-3885B
- Eiki OHP-3895BP
- Elmo HP-400HZ
- Elmo HP-5500
- Elmo HP-A305SQ
- Elmo HP-A380 ZOOM
- Infocus LitePro 100
- Infocus LitePro 100LS
- Infocus LitePro 550
- Infocus LitePro 550LS
- Infocus LitePro 560
- Infocus LitePro 570
- Infocus LitePro 760
- Infocus LitePro 760L
- Kaiser CamLight 400
- Liesegang 660
- Sinon HM36F
- Sinon HT401
- Technicon SMAC
