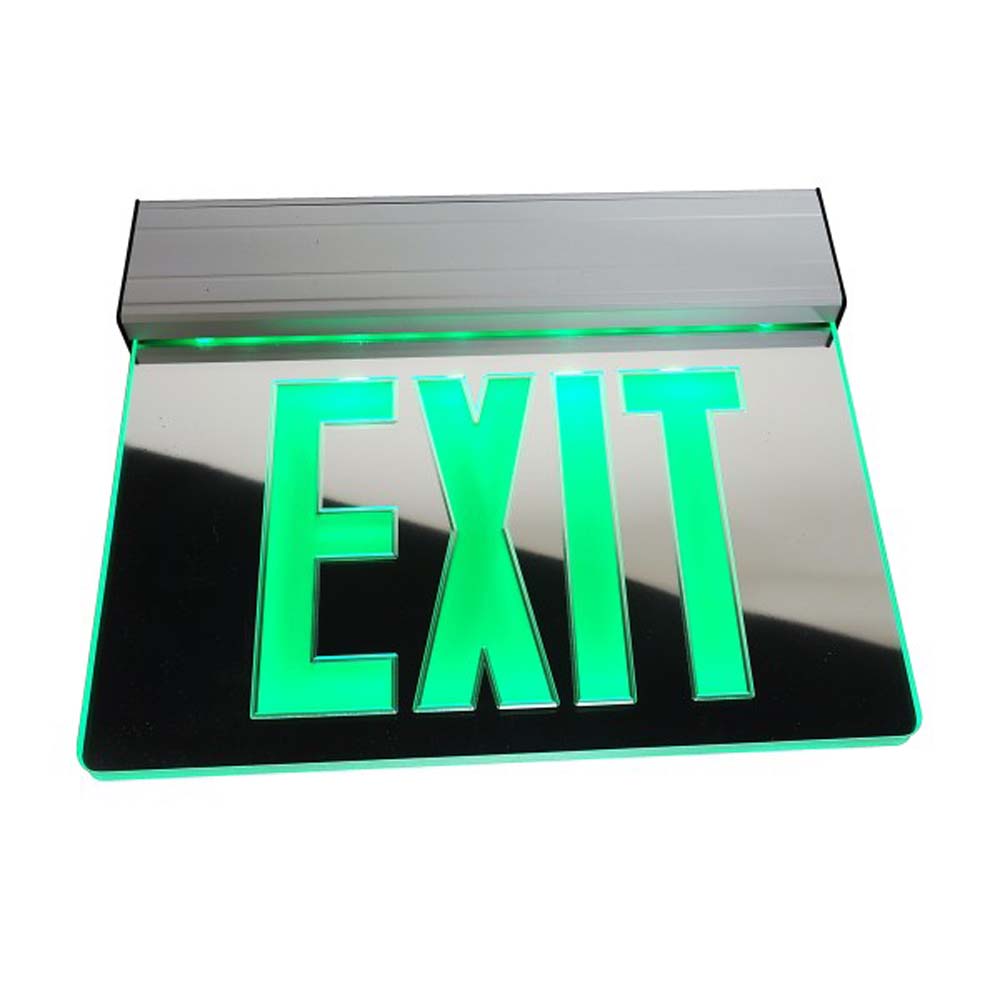

EXL2 Series Edge Lit LED Emergency Exit Sign, Mirrored with Green Lettering

Nicor SKU: EXL2-10UNV-AL-MR-G-2
$9499 $176.99 USD
120 in stock



The EXL2 LED Edge Lit Exit Series presents a contemporary design with ease of installation and dependability in mind. Constructed of impact-resistant, optically clear acrylic, choose from clear single faced or mirrored double-faced panels. High output LEDs deliver an indirect, evenly illuminated edge-lit exit sign with exceptional light distribution and a maintenance-free nickel-cadmium battery for long life. The EXL2 Series offers flexible installation for surface ceiling, wall or end mount options along with field adjustable chevrons for universal configuration based on your application�s directional needs.

- Mirrored Double Sided Configuration
- Specification grade aluminum extrusion design
- 120/277VAC Dual Voltage Operation, 60Hz input
- Push button test switch with LED indicator
- Maintenance-free NiCad battery provides 90-minute emergency operation

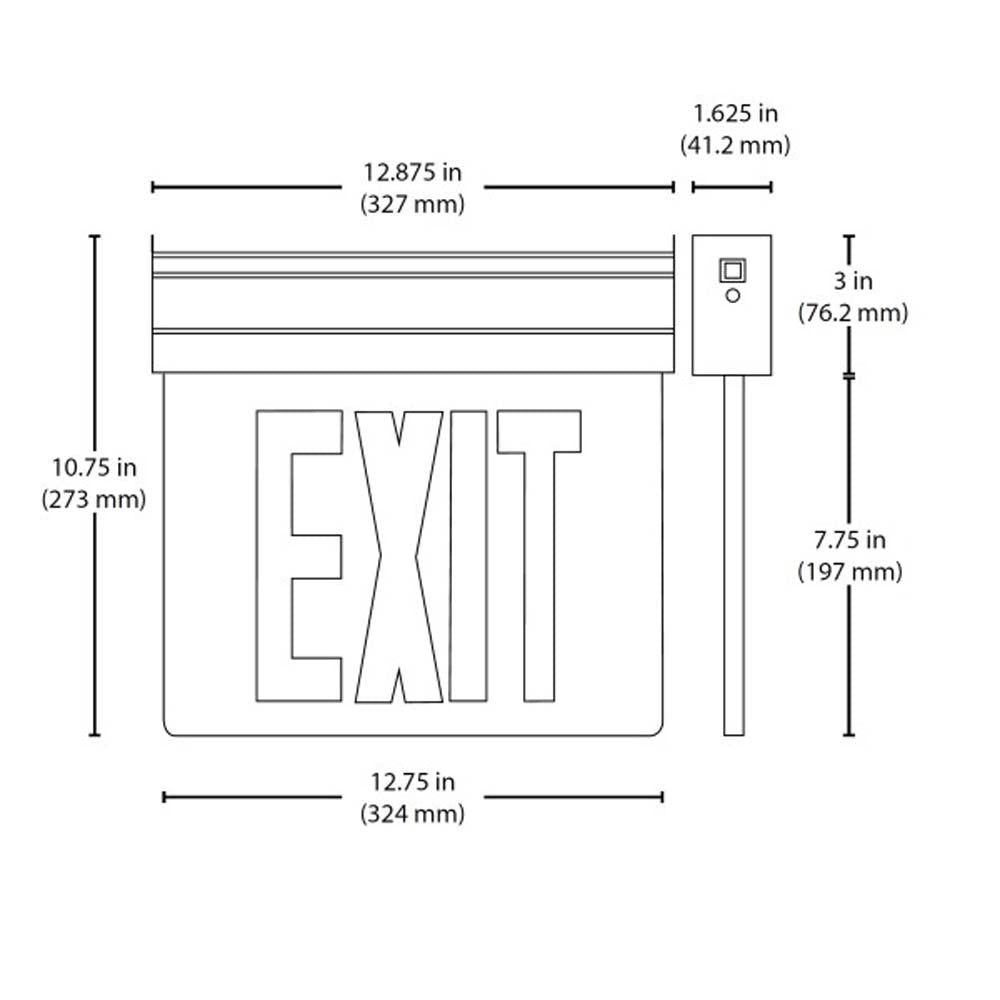

Size (in.) 12.75
Product Color Mirrored, Green Letters
Finish Satin
Light Source LED
Wattage 2.3w
Voltage 120-277V
Operating Temperature 32F to 104F (0C to 40C)
Listings/Certifications UL Listed, cUL Listed, NFPA 70 Compliant, NFPA 101 Compliant, UL Standard 924, Damp-Location
Warranty 2 Year Limited Warranty
